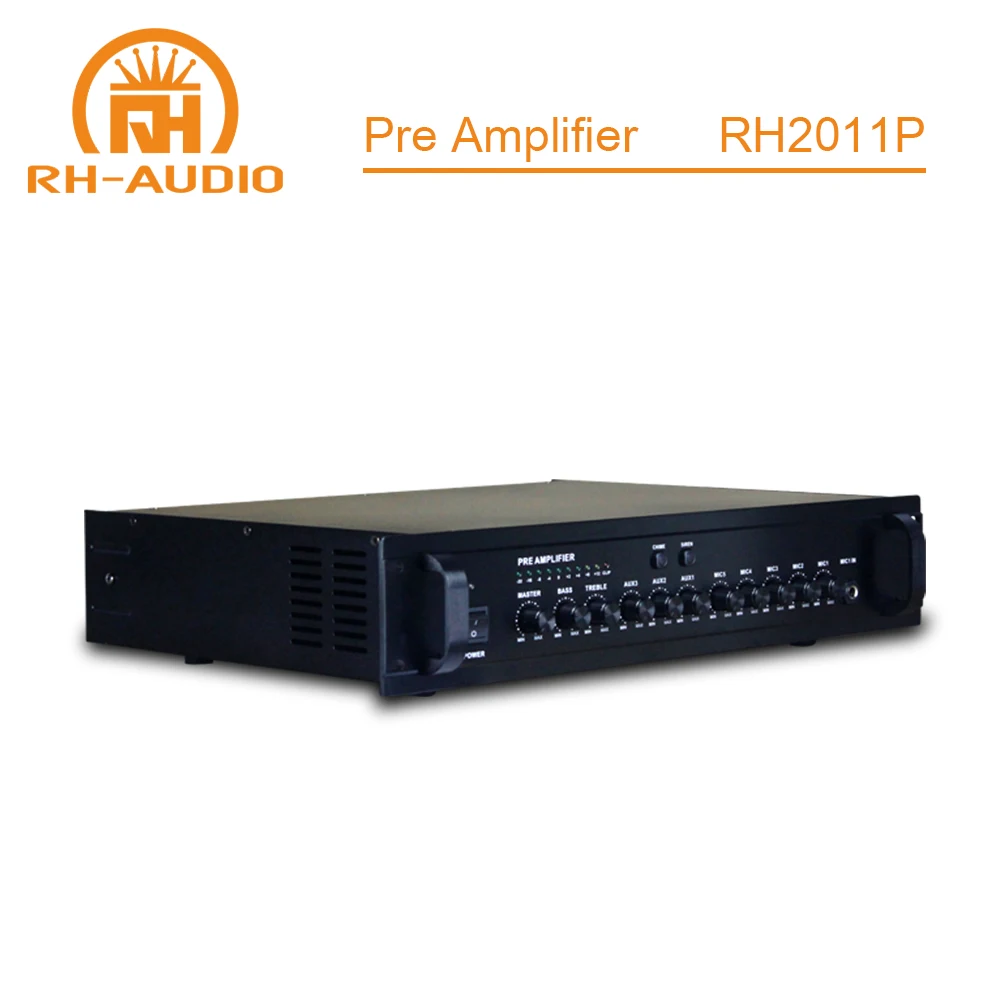

RH AUDIO PA System Pre Amplifier with Microphone Mute Function

Share on (60638009397):


Price:

Quantity:


Product Overview

Description


RH-AUDIO PA System Pre Amplifier with Microphone Mute Function

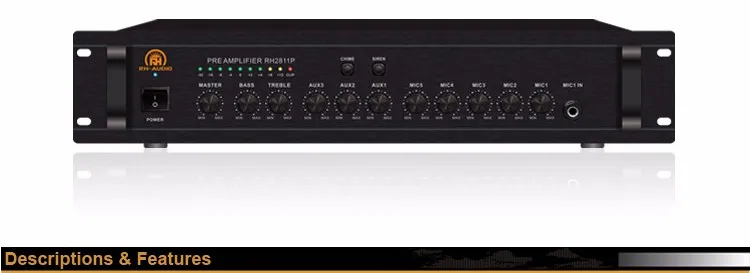

RH-AUDIO Background Music Pre Amplifier With 4 AUX Outputs page.jpg






Product Description







The RH-AUDIO PA Rack-mount Pre Amplifier is designed for background music/paging and public address system installations,these units are exceptional values, loaded with features, and are easy to install in a variety of system designs.





The PA Pre Amplifier supports power amplifiers to work,  features muting function.that MIC1 overrides MIC2,MIC3,AUX1,AUX2 with 0~30dB dB attenuation.


With built-in CHIME & SIREN music.





1) Luxury aluminium alloy front panel.
2) Built-in CHIME & SIREN tunes.


SIREN pushbutton for an orderly emergency avacualtion and conducting a fire or an emergency drill manually.


CHIME pushbutton for attracting listeners' attention prior to speaking.
3) 5 MIC inputs, 3 AUX inputs, 2 EMC input,4 AUX outputs.
4) Individual volume controller for MIC & AUX inputs.
5) MASTER volume controller ,BASS and TREBLE tone controller.
6) EMC1,2 have priority over all inputs except MIC1.






Specification







specification banner.jpg













































































 Model



 RH2011P



 MIC Input



 MIC 1,2,3,4,5: 18mV/600 ohms, Unbalanced



 AUX Input



 AUX 1,2,3: 200mV/10k ohms, Unbalanced



 EMC Input



 EMC 1,2: 1.5V/10k ohms, Unbalanced



 Tone



 BASS:±10dB at 100Hz,TREBLE:±10dB at 10KHz



 Frequency Response



 20Hz - 20KHz



 S/N Ratio



 MIC 1,2: 70dB; AUX 1,2,3: 80dB



 THD



 Less than 0.1%



 Muting Function



 MIC 1 overrides other input signals with 0-30 dB attenuation,EMC1,2  overrides all  inputs except MIC1



 LED Indicators



 POWER



 Protection



 AC fuse



 Power Requirements



 Optional



 Power Consumption



 50W



 Dimensions (W×D×H)



 483(W)×366(D)×89(H)mm



 Packing Size



 185(H)×520(W)×435(D)mm



 Net Weight



 6Kg



 Gross Weight



 7.8Kg










Contact us







Click here to see more amplifier models !


Click here to send inquiry to manufacturer !


skype: sales3(@)rh-audio(.)net
wechat/whatsapp:+86 18138727085



Related Products

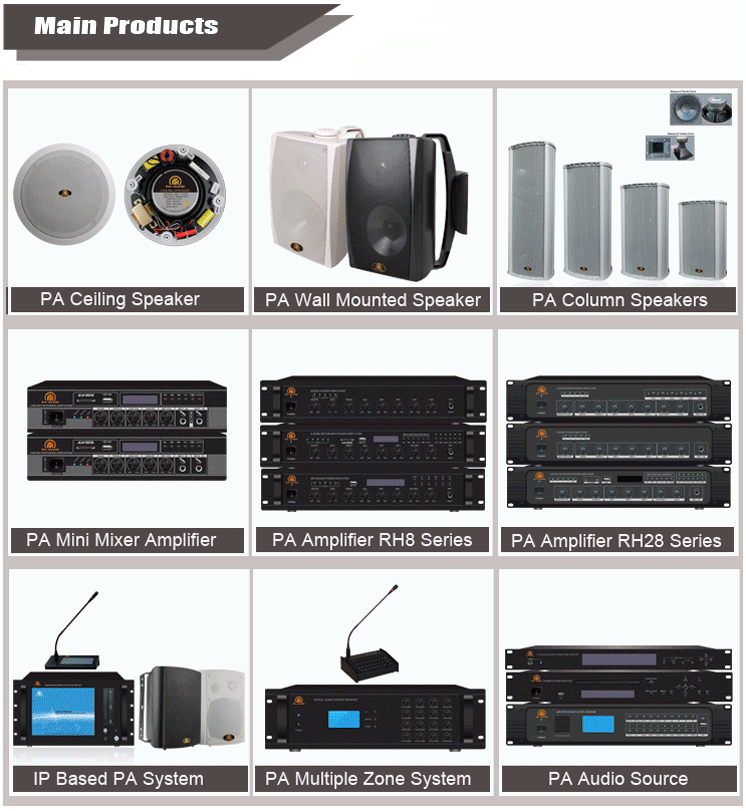

10W Active Bluetooth Ceiling Speaker with All-in-one Solution main-products










Service statement:





XINGHONGDE ELECTRONICS takes “customer-oriented”as our guiding philosophy.


We will treat everyone we encounter as we wish to be treated, with integrity and respect.

We work closely with our customers all over the world to impress our customers with the quality

and timeliness of our services in a pleasant and friendly manner.




Quality Control

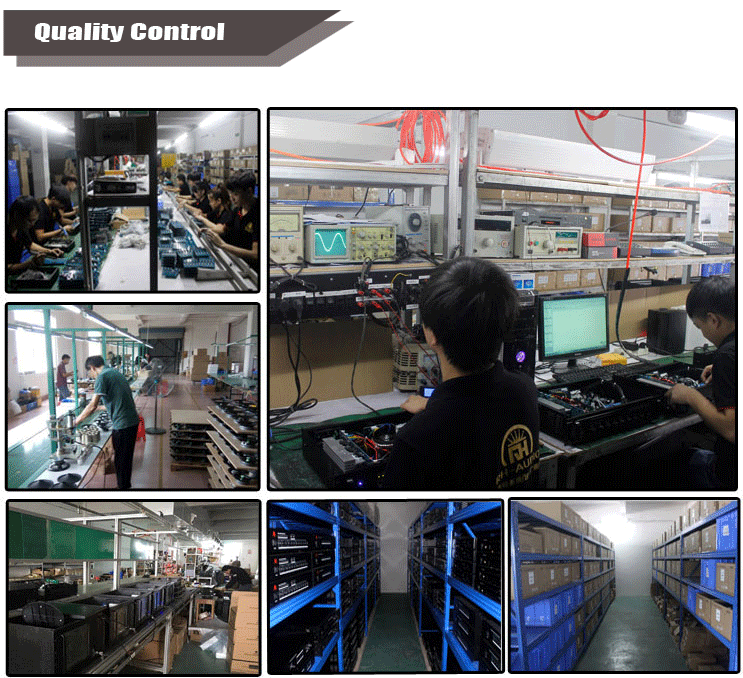

 10W Active Bluetooth Ceiling Speaker with All-in-one Solution quality control




Quality statement:

XINGHONGDE ELECTRONICS is committed to supply the customers with innovative products and services that conform to their requirements,our objective is always to meet or exceed their expectations.

XINGHONGDE ELECTRONICS is ISO9001:2008 registered, we are committed to effective Quality Management at every level within the business.



As we believe that this is critical to the success of our customers and products,the key elements of this strategy are:

A strong management commitment to quality.

Recruitment and retention of high calibre, experienced, well trained staff.

Appropriate documented processes, procedures and controls.

An ethos of continual improvement and challenge.

Meeting all necessary legal and regulatory requirements.




Company Information

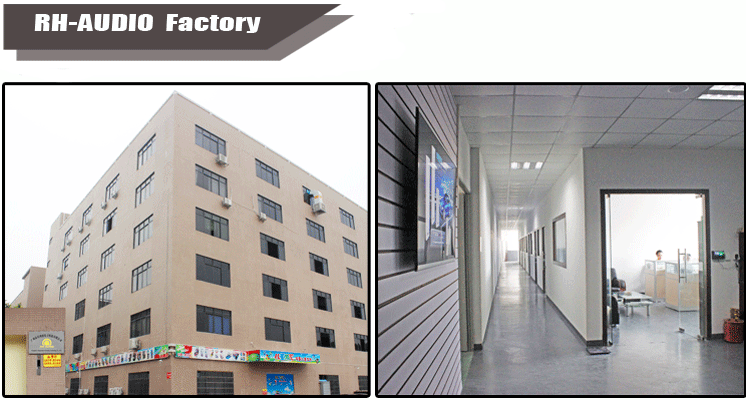

10W Active Bluetooth Ceiling Speaker with All-in-one Solution factory show
