FG 580/780LB Automatic Hot Melt Folding Carton Box Gluing Machine
- Category: >>>
- Supplier: Wenzhou Feihua Printing Machinery Co. Ltd.
Share on (60638076093):
Product Overview
Description
Product Overview

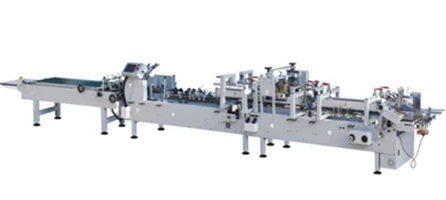

FG-580LB/780LB Automatic Folder Gluer Machine
Except the sample box, the machine can work with lock bottom boxes, straight line boxes etc.
Power supply: 380V AC3F 50Hz
Parameter：max paper width for side pasting box: 580mm
min paper width for side pasting box: 90mm
max paper width for lock bottom box: 500 mm
min paper width for lock bottom box: 150mm
If the machine is equipped with mini-box device, min open width: 60mm
Paper weight： 200－800 g/m2
Speed： 250m/min
Machine size： 9000×1200×1400mm
Packing size: 2.96*1.12*1.6mm 800/900kgs
2.83*1.14*2.2mm 1000/1100kgs
One 20 feet container can fit two sets FG-580LB.
Total power： 6.5Kw
Standard functions：suitable for side pasting and lock bottom boxes
Optional functions：CD box device，sock box device, courier box device，mini-box device，5-line box device, automatic stacker SZ-500
Parameter：max paper width for side pasting box: 580mm
min paper width for side pasting box: 90mm
max paper width for lock bottom box: 500 mm
min paper width for lock bottom box: 150mm
If the machine is equipped with mini-box device, min open width: 60mm
Paper weight： 200－800 g/m2
Speed： 250m/min
Machine size： 9000×1200×1400mm
Packing size: 2.96*1.12*1.6mm 800/900kgs
2.83*1.14*2.2mm 1000/1100kgs
One 20 feet container can fit two sets FG-580LB.
Total power： 6.5Kw
Standard functions：suitable for side pasting and lock bottom boxes
Optional functions：CD box device，sock box device, courier box device，mini-box device，5-line box device, automatic stacker SZ-500
FEATURES AT A GLANCE
• High speed: 200 m/min,
• Standard box: 50000 pcs/hour
• Stable operation
• Anti-vibration
• Synchronous belt drive
• Schneider frequency converter.
• Easy to operate
• Quick Conversion of type
• Standard box: 50000 pcs/hour
• Stable operation
• Anti-vibration
• Synchronous belt drive
• Schneider frequency converter.
• Easy to operate
• Quick Conversion of type
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Model | FG-580LB |
2 | Material | 180-800gsm paperboard, E corrugated boxes |
3 | Max speed | 200m/min (optional 300m/min) |
4 | Width | 580mm |
5 | Weight | 3000kgs |
6 | Size | 9000*1100*1400mm |
7 | Optional functions | For CD、EMS courier boxes, documents file for socks paper boxes |
PRODUCT CONFIGURATION
Feeder
Pre-fold
Lock-Bottom section
Lower Gluing tanks
Folding section
Double sided guns
Company Profile
Why Choose Us?
2. Having ISO 9001-Certified Factory
3. Strong R&D capability
4. High Quality Guaranteed
5. First Class Service And Best Prices
New Star Machinery international Limited And glory packing material produce kinds of laminating machine and uv coating machine and BOPP Thermal film metallizde PET And 3D , Soft touch film . With the development and innovation of post-press equipments, our company has carried on deep research and development to post-press equipments combining the features of printing & packing industry home and abroad. The products occupy sizable market at home and also have been expanded to all over the world.
Exhibition
FAQ
Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
