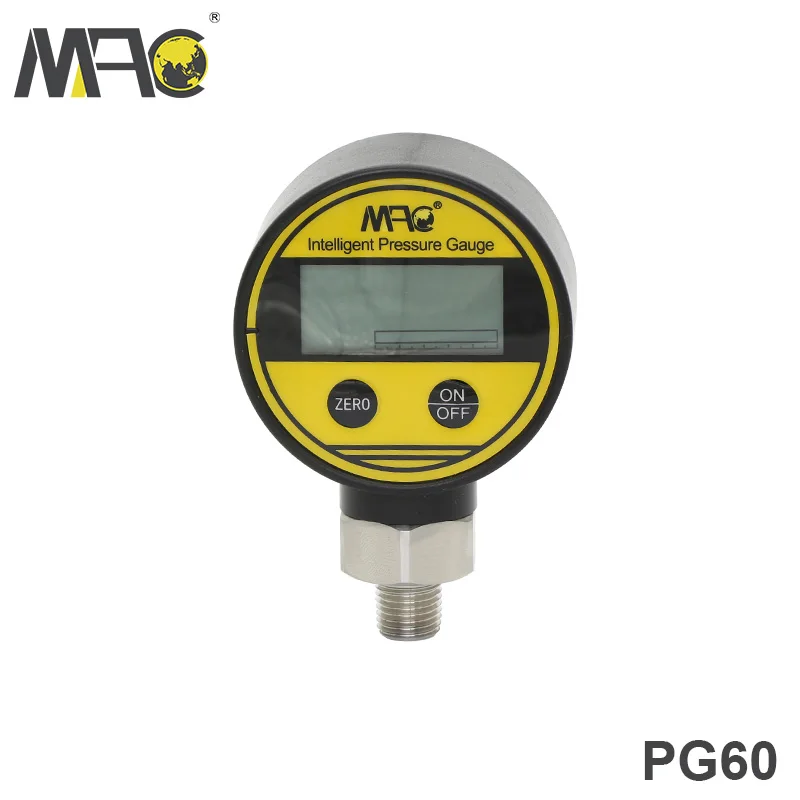

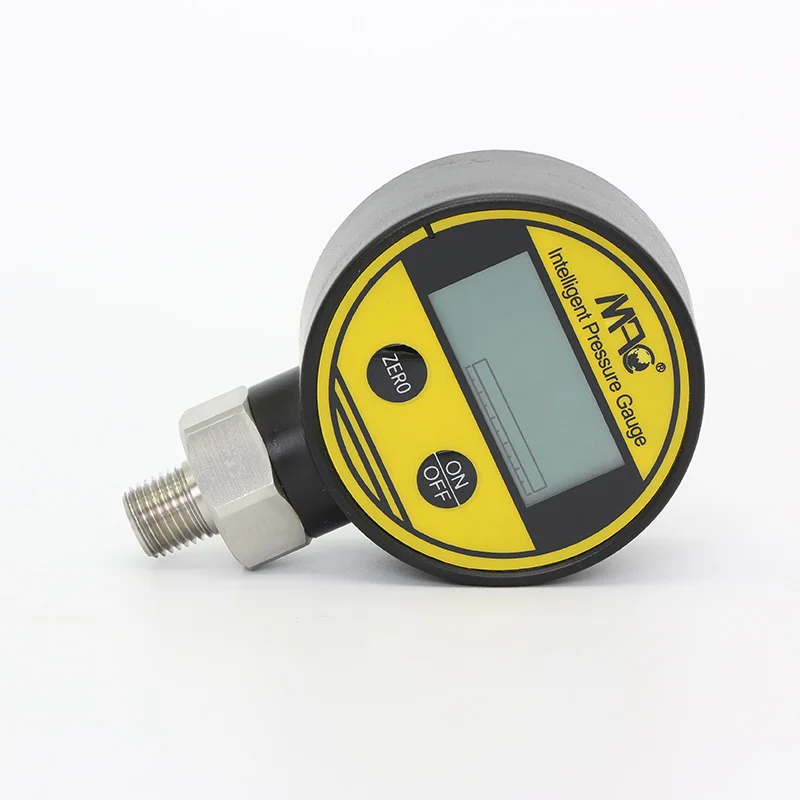

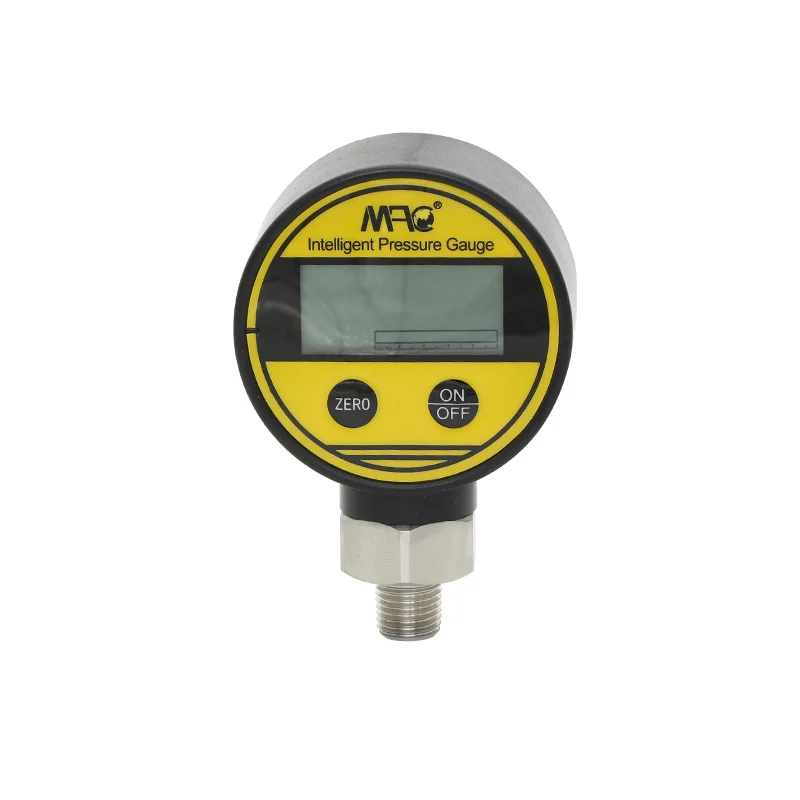

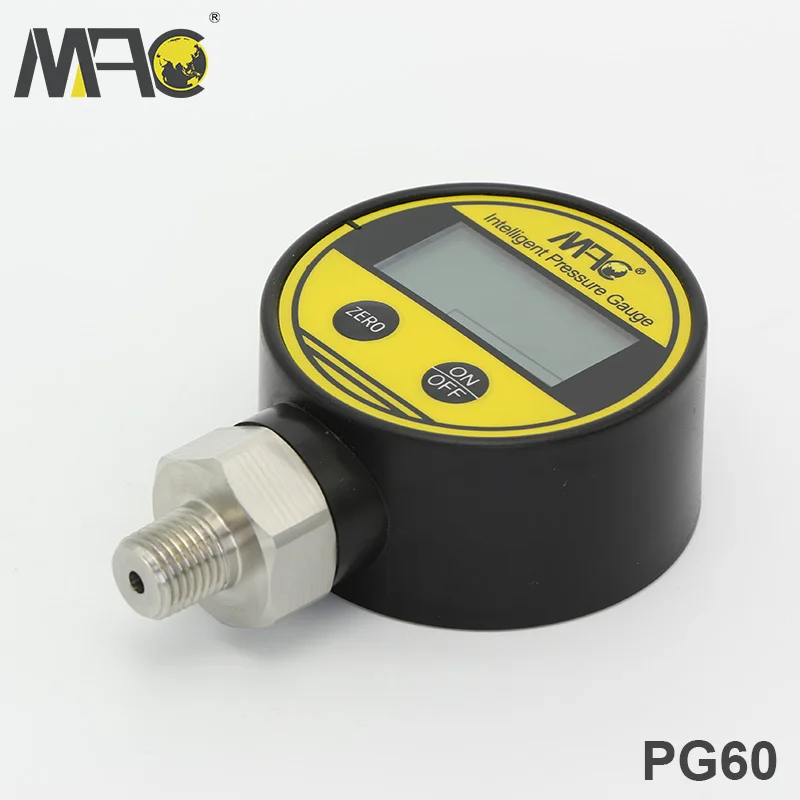

Macsensor transmitter Pure Oxygen Gas Digital Pressure Gauge
- Category: >>>
- Supplier: Hunan Mac Sensor Co. Ltd.
Share on (60638121584):
Product Overview
Description
Macsensor transmitter Pure Oxygen Gas Digital Pressure Gauge
Why you choose MAC Pressure Sensor ?
1. high quality German Sensor cell
2. different pressure port, electrical connection for options.
3.Standard Voltage, current output
4. OEM Viable.
PG series digital pressure gauge is made with entire electronic structure, and uses battery as power supply.It is easy for field installation. PG digital pressure gauges are using high accuracy piezoresistive pressure sensors, which is located in the front end of PG series. The output signal of the pressure sensor is processed and amplified by high accuracy and low temperature coefficient amplifier, and then transferred to A/D switch to transform digital signal which can be processed by microprocessor. After processing operation,the pressure gauge will demonstrates the actual value of the pressure by LCD indicator.
PG digital pressure gauge has automatic turn-off function in 1~15min.
The operation of PG is very simple, and the adjustment of this gauge is easy, safe and reliable.PG digital pressure gauge is widely used in such industries as water and electricity, running water,petroleum, chemical, and machinery, for the measurement and demonstration of fluid medium's pressure.
FEATURES for 0 to 100 Mbar Mpa Bar Digital vacuum Air Pressure Gauge Price:
- 4 digital LCD showing the pressure accurately in real time
- Different pressure units available ( Pa, Kpa, PSI, Kg/cm ² , Bar, Mpa); zero clearing; backlight; on/off button; low voltage alarm
- Peak record (the maximun and the minimum)
- Battery-powered, low power design keeping it working more than 12 months
Specification
Specifications
Pressure range | 0 ~10...25...50...100Kpa -1~2...6...10...16...40...60...100...250...400...600...1000Bar | Accuracy | 0.2%,0.5% |
Overload capacity | 150% | Pressure type | gauge,absolute |
Stability | ≤0.1% /year | Battery voltage | 9VDC |
Display | LCD,digital | Display range | -1999~9999 |
Application temperature | -10℃~95℃ | Relative humidity | ≤80% |

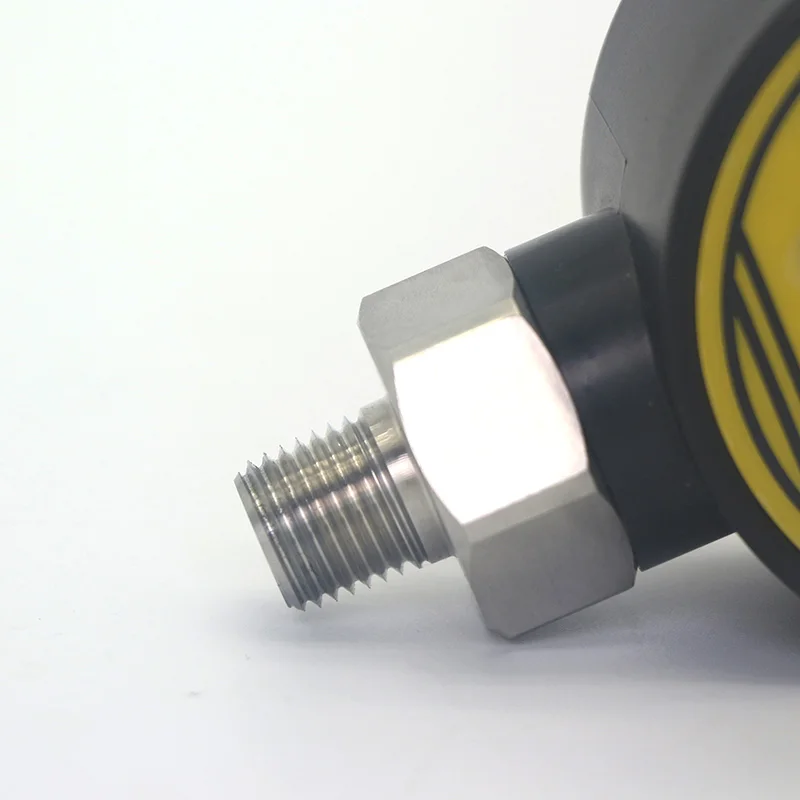

Mounting thread | G1/4 | Interface Material | Stainless Steel |
Auto-shut off time | 1-15 minutes | Back light time | 1-5 minutes
|
APPLICATION(Digital vacuum Air Pressure Gauge Price
- Machinery and electronic indusry
- Supporting equipment of instruments and meters
- Pressure Laboratory
- Mechanical engineering automation
Our Services
- We will provide considerate and comprehensive pre-sales services and after-sales services .
- OEM service, customer's logo are available.
- We can accept consumers order with special requirements.
- All the products have one year warranty.
- We have a specialized team of engineers with sophisticate knowledge and professional skills engaged in presale and after sale services. 24 hours technicial support by e-mail.
Company Information
MACSENSOR is a professional vertically integrated manufacturer and approved high-tech enterprise engaged in product design, development, manufacture, and one-shop solutions service for measuring instruments & equipment since 2009. The manufacturing bases cover an area of about 6000 m² and have been inspected by SGS and TUV. The annual export sales are more than 10 million units.
From shell processing to components selection, MACSENSOR do excellent, use of the international management system, to control every production process, to ensure that each product is qualified before delivery. The product failure rate is less than 1% and the order repurchase rate is as high as 98%.
MACSENSOR is committed to providing more efficient, greener and safer superior performance measurement and control in industrial automation field instrumentation, measurement and control. The main products cover various pressure sensors, liquid level meters, flowmeters, meteorological monitoring products, water quality detecting products, wireless IoT systems, etc., and provide one-stop solutions for water monitoring systems, flood warning systems, meteorological monitoring, agricultural monitoring, and oil and gas industry monitoring, etc.
MACSENSOR brings together a group of outstanding automation engineers, electronic engineers, mechanical engineers and computer experts in various fields, 90% of whom have bachelor's degrees or above.
At MACSENSOR, we believe that by providing you with unique, customized solutions and supporting your needs well beyond your initial purchase, we can become more than a manufacturer. We can become a long-term partner that continues to add value and make your business run more efficiently with
1. Fast response time: 24h response rate ≥99%
2. One-to-one professional sales engineer support to ensure an effective procurement process.
3. Customize the most economical solution for your project.
4. One-stop service whilst minimising time and costs.
5. Easy Ordering with various payment terms.
6. Fast and efficient logistics solution
7. Intimate after-sales service
8. Online training services
9. Ongoing business development and review
After years of unremitting efforts, MACSENSOR becomes a well-known leading brand with good fame and successfully supplied one-stop monitoring solutions to thousands of projects in the world.
Contact the MACSENSOR team today to have all your questions answered and get exactly what you need.
