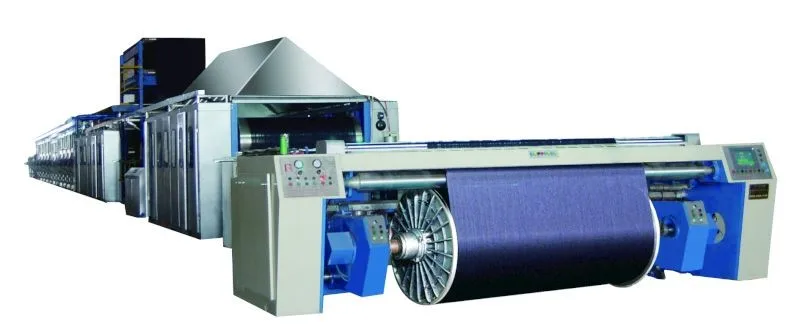

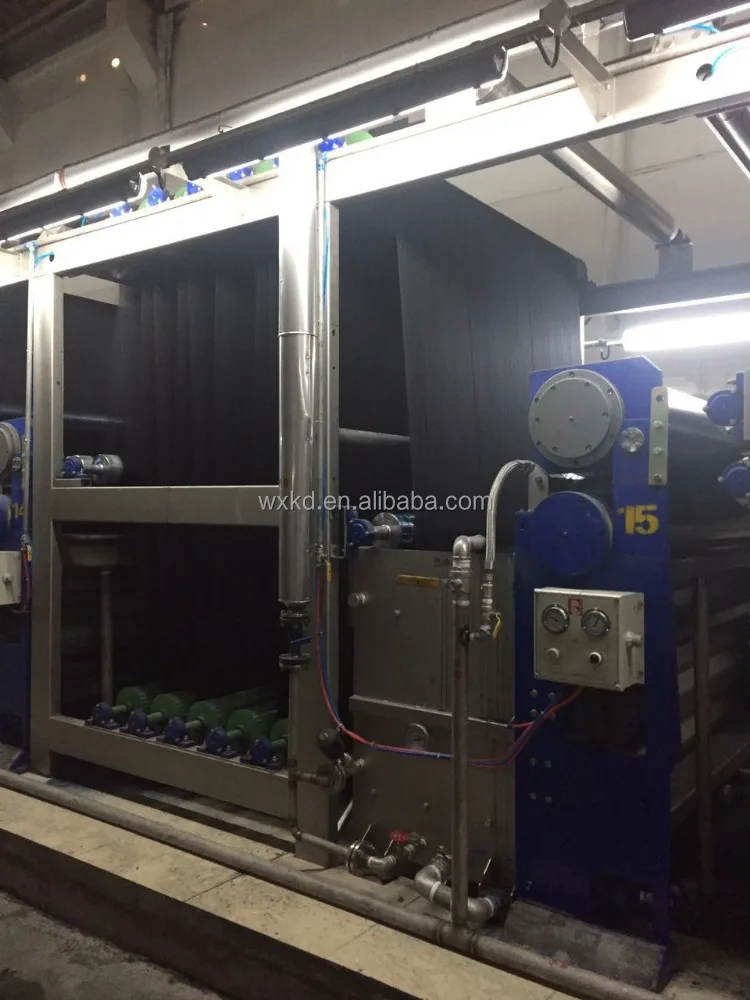

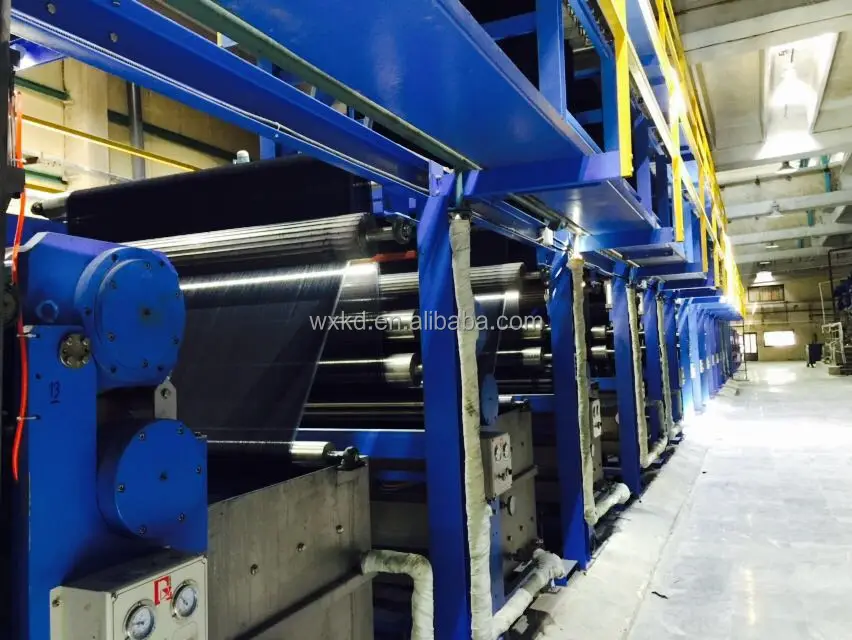

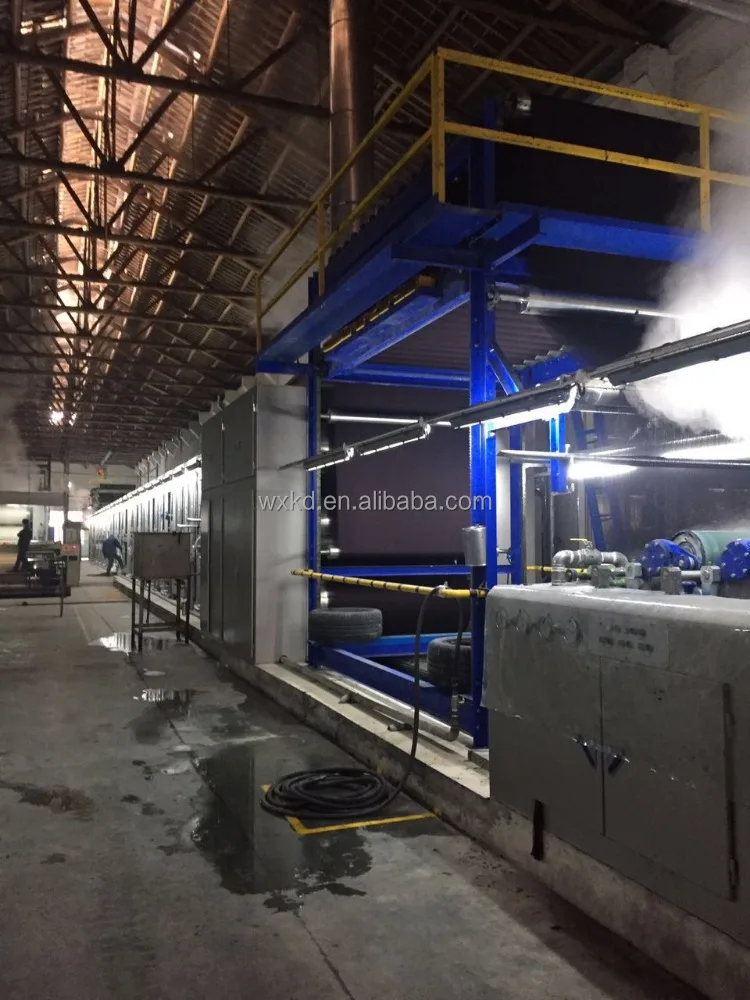

KD XRJR 300B Combined sizing & dyeing machine for fabric

Product Overview

Description

Combined sizing & dyeing machine

Model XRJR-300B





   KD-XRJR-300 combined sizing & dyeing machine is a newly high-end type which is recently developed with our years of experience in designing and manufacturing of sizing equipments and integrated with the latest technology of sizing and dyeing machine both at home and abroad in order to meet the development demands of heavy and ultrathin denim. It adopts the mechatronics technology and is equipped with processing parameters, online inspection and control, display system in a more systematic way. The machine not only can use cold dyeing of indigo from light to dark for yarns at normal temperature, but also can carry out thermal dyeing by use of vulcanization and direct heating of dyes, as well as over dyeing of two dyes. Meanwhile, it can be matched with all domestic and overseas looms.





NO	Item	Specification
1	Applicable quality range	6S~32S cotton and blended fabric warp
2	Headstock width	3000mm
3	Speed	Sizing speed 2~45 m/min Dyeing speed 2~35 m/min
4	Max. winding diameter	1100mm
5	Max. winding tension	60000N
6	Capacity of dyeing tank	1500L
7	Machine power	130KW
8	Overall dimension (L×W×H)	70.8m*5.1m*5.3m
9	Machine direction:	When looking at beam creel from headstock, the transmission is on the left side
10	Surface	Painting for the whole machine



	Our company is located in WuXi,JiangSu Province,China. Our plant has more than 20 years of history.We have a complete management and  a passel of outstanding managers. Sets of textile printing and dyeing equipment development, Manufacture and production through-train service.
Welcome your inquiry!
