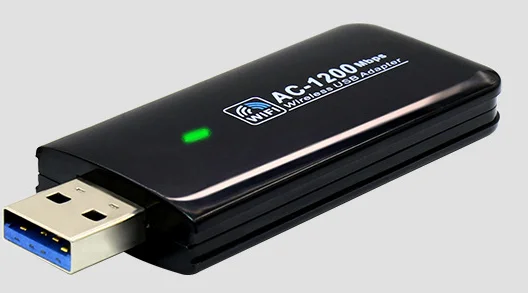

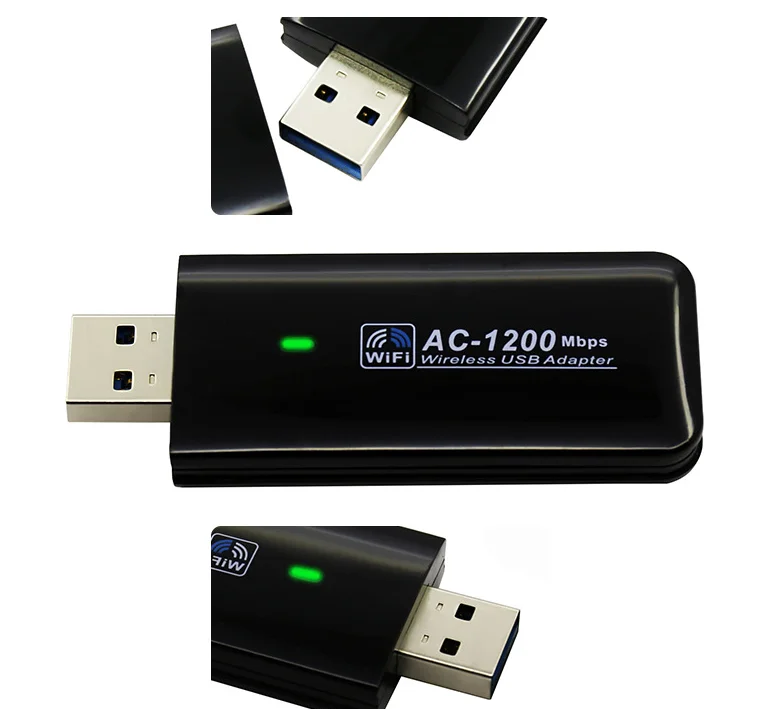

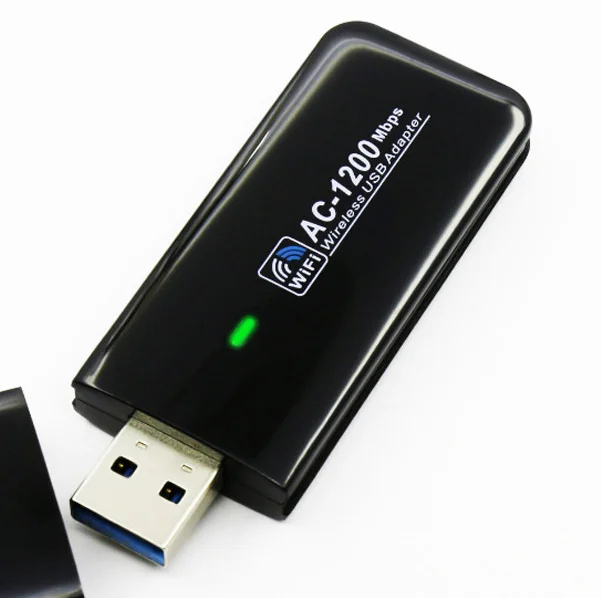

802.11ac Dual band AC 1200M Realtek RTL8812 wifi usb combo adapter Wlan stick wireless dongle

Product Overview

Description

             802.11ac Dual band AC 1200M Realtek RTL8812 wifi usb combo adapter Wlan stick wireless dongle



  Skype:alicewang93916

 Whatsapp: +86 18671057369



1. Product  description

1.1 Product  summary

M-1200s is the latest 11AC dual band wireless USB adapter, it can search 2.4Ghz and 5Ghz networking signal at the same time. By using 5Ghz Channel , it can achieve great performance, yet at the same time it can reduce the date transfer interference. The 802.11AC wireless transmission technology has great advantage over the current 11N technology, it is 3x faster than the 11N speed. The fastest wireless speed can be 2.4G/300mbps, 5G/866Mbps. You can enjoy the high speed when surfing the internet.

This WIFI adapter integrate the wireless configuration program, it is easy to install and use. You can connect the wireless client easily. It has soft AP function which will help you to creat wireless-LAN network.





1.2 Main features

* Support 802.11ac WI-FI standard

* Compatible backward to 802.11 b/g/n standard

* (2.4GHZ/300Mbps, 5GHZ/866Mbps)

*High speed transfer speed, Dual band optional (2.4Ghz/300mbps, 5Ghz/866Mbps)

* Support WPA/WPA2/802.1X/WMM data encryption

XP/Vista/7/8/10, Linx2.6X;Mac OS X

* High anti-interference ability

*Support latest wireless standard

2.Product information







2.1 General information

2.2.Product spec

Main Chipset	RTL8812AU
Wireless standard	IEEE802.11ac/a/n/g/b
Host interface	USB 2.0
RF antenna	Internal onboard PCB antennas
Transmission distance	Indoor MAX:100 Meters(Depends on environment)
Operation Frequency	2.412~2484GHz/5.15~5.825GHz (Depends on country)
Typical Transmit Power	802.11b (CCK) 11Mbps: 18+/-1dBm
	802.11g (OFDM) 54Mbps: 15+/-1dBm
	802.11n (OFDM) 54Mbps: 15+/-1dBm
	802.11ac(AC80)MCS9:12+/-2dBm
EVM	11b  11Mbps: <-15db 11g  54Mbps: <-27db 11ac   MCS9:<-30db
Receive Sensitivity	802.11b: -76+/-1dBm; 802.11g: -65+/-1dBm
	802.11n (HT20), -70+/-1dBm;802.11n (HT40), -65+/-1dBm
	AC80-MCS9:-55+/-1dBm
Wireless transmission rate	11b: Max 11Mbps,11g:Max 54Mbps ,11n:Max 150Mbps,AC:Max 433Mbps
Operation System	Windows XP/Vista/7/8/10, Linx2.6X;Mac OS X
Security	WPA/WPA2/WEP/802.1X/WMM;
Physical Specification
Dimensions		74*27*10mm
Weight		25g
