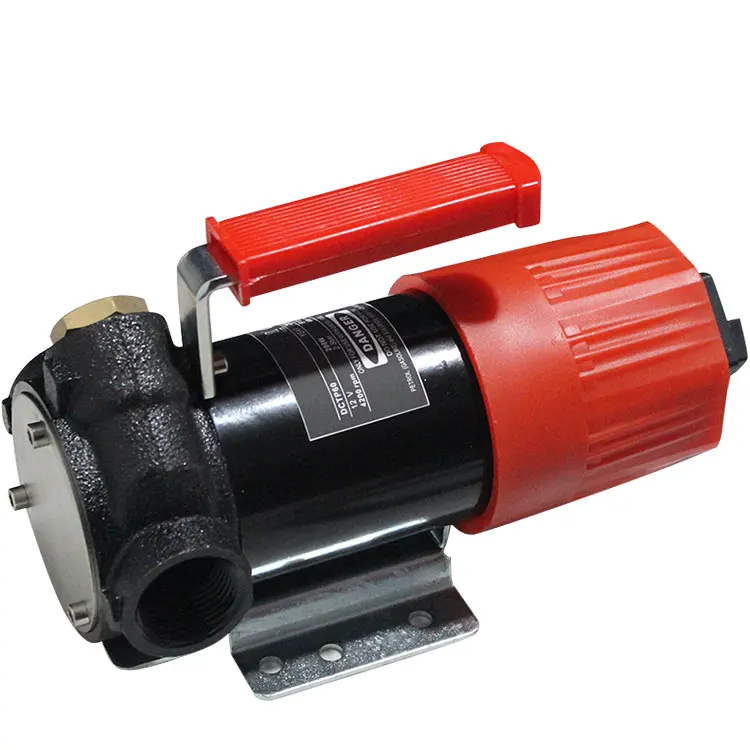

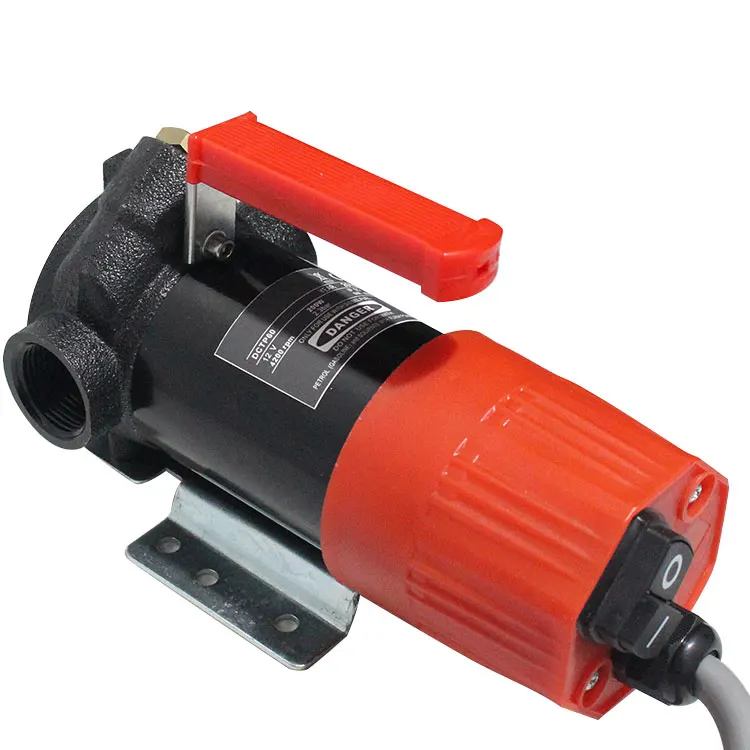

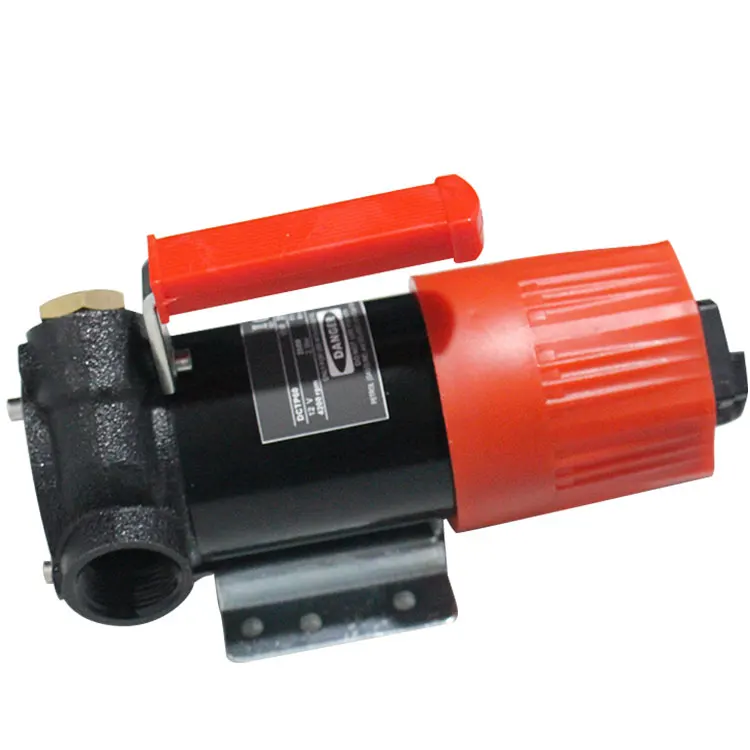

High quality CE Approved Pump/ Transfer Pump Diesel Fuel 24V 12V 60L/MIN
- Category: >>>
- Supplier: Yongjia Aocheng Import And Export Co. Ltd.
Share on (60638291928):
Product Overview
Description
High quality CE Approved Pump/ Transfer Pump Diesel Fuel 24V 12V 60L/MIN
Product Description
If you interest in our products, please send an inquiry or contact us directly.
Descrptions:

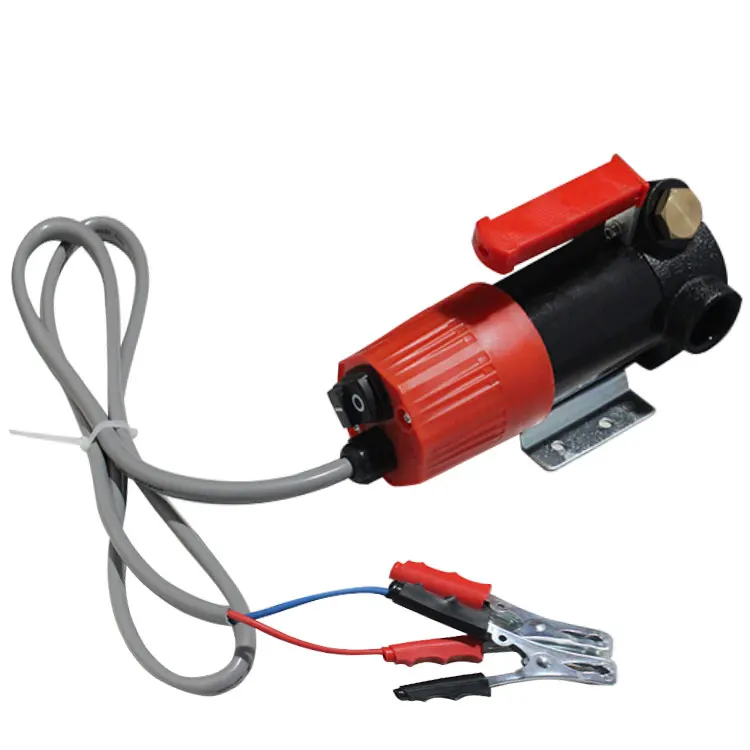

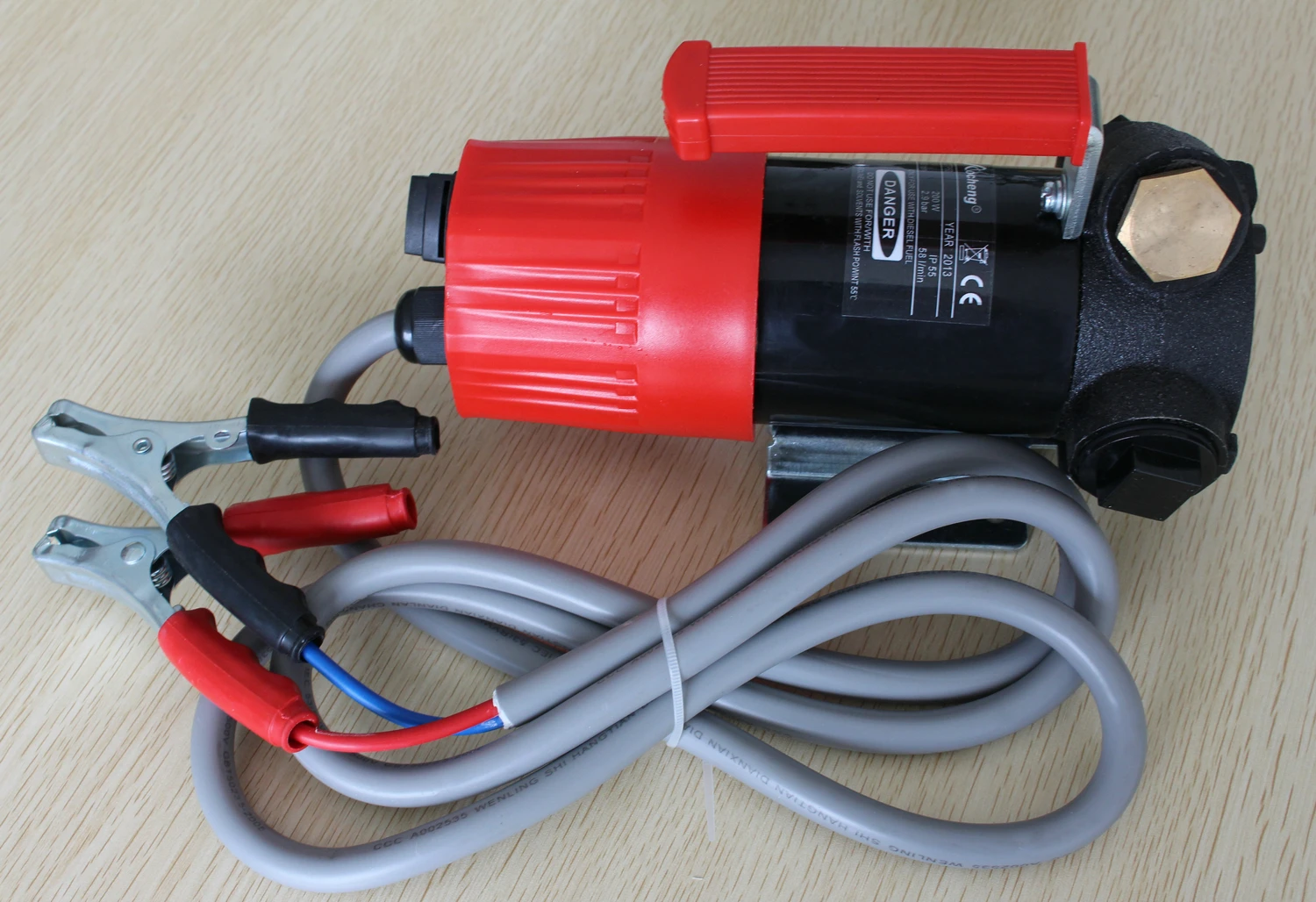

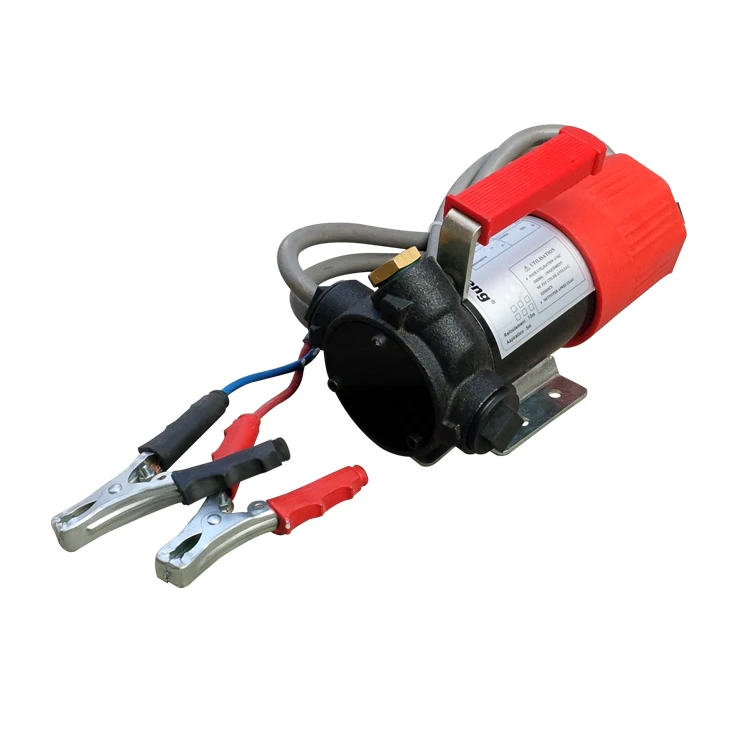

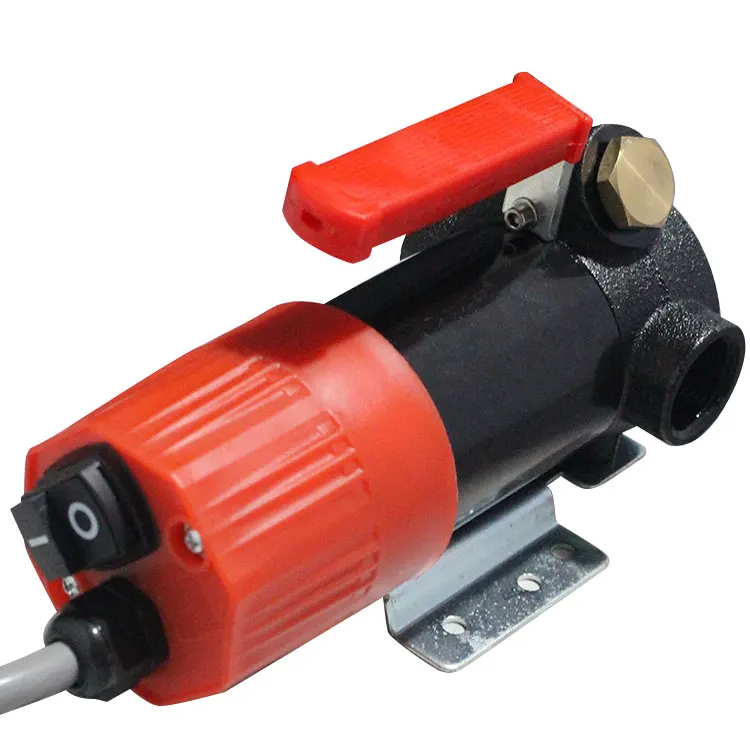

- Portable Diesel/Kerosene Transfer Pump Driven by a 12v or 24V DC motor so can be used where mains electricity or compressed air is unavailable.

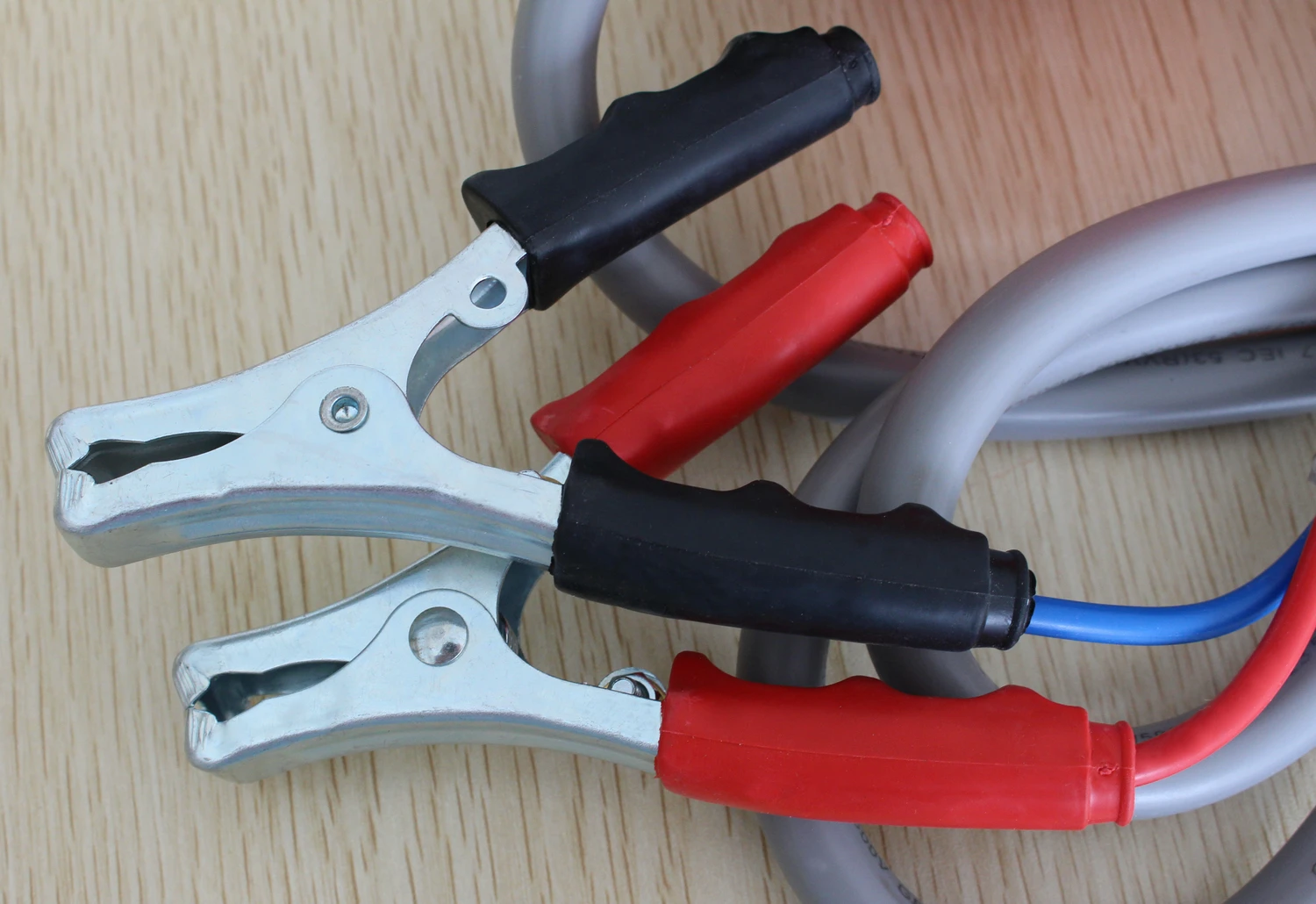

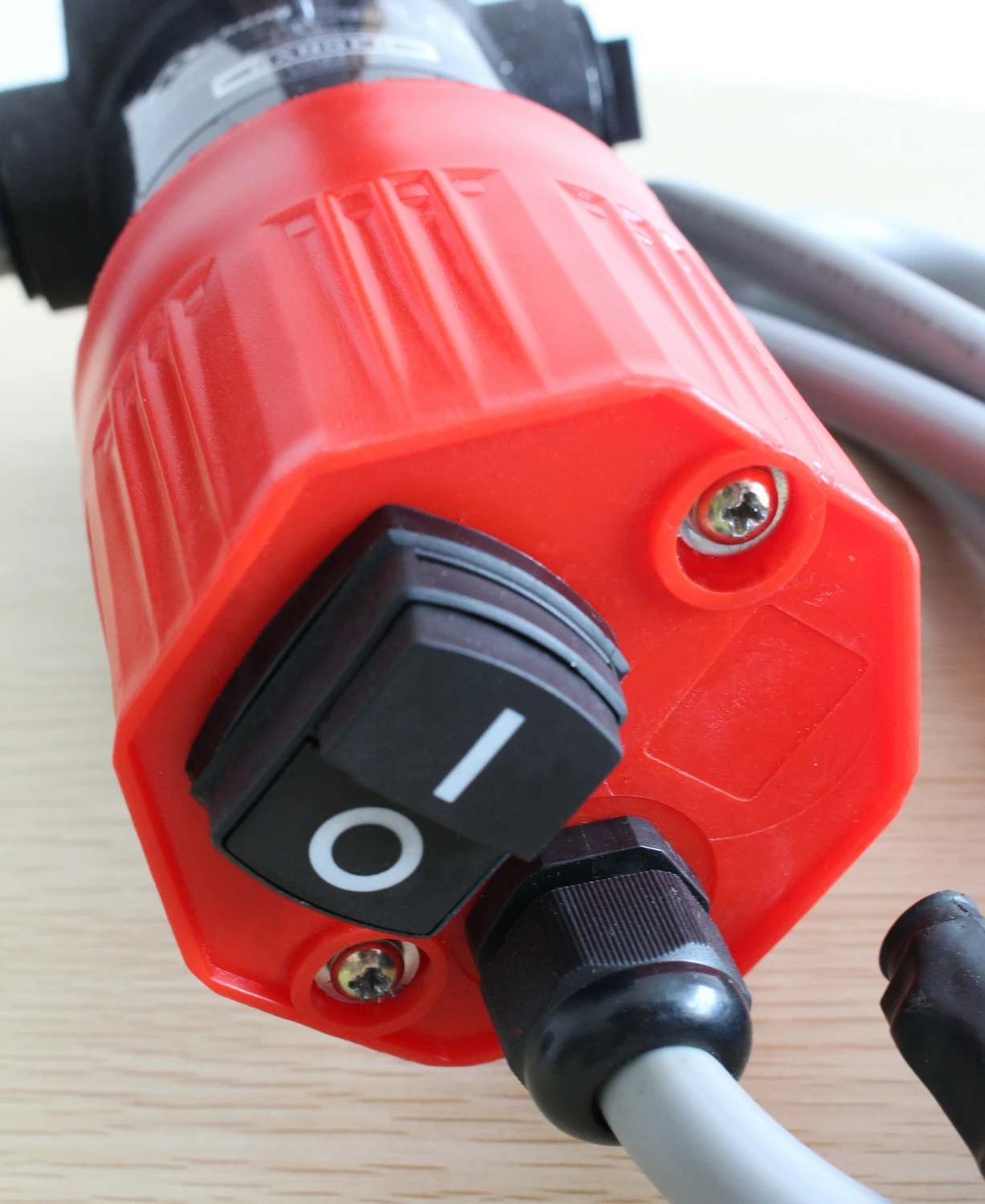

- Excellent Self priming properties for the pumping of Diesel/Kerosene in the engineering industry or mobile tanks. A flow rate of up to 60L/min to a head of up to 15meters. 25mm hose barbs with built in on/off switch and battery leads
Specifications:
- Maximum flow rate: 60L/min
- General working flow: 48-56L/min
- RPM: 2800
- voltage: 12v or 24v
- power: 200w
- Ampere: 19-20A
- max pressure:3bar
- Explosion-Proof: IP54
- Thread: NPT or BSPT
- suction length: 5m
Notice:
- Not suitable for low-ignition fuel(such as gasonline, liquefied petroleum gas, alcohol,etc.) transmission.
Trouble | Reasons | Treatments |
No oil output at first | 1.(+)(-)reversed | 1. (+)(-)correctly attached |
2.oil pipeline leaks | 2.connect the oil pipe and lock the pipe | |
3.no oil before the pump start | 3.add a little oil pumped | |
Little oil transfer | 1.low supply voltage | 1.increase the supply voltage, but not exceed the voltage tolerance |
2.excessive sucking and head | 2.adjusting the sucking and lift ranges | |
3.eyewinker obstruction in the oil filter | 3.clear foreign body | |
4.vane wore | Replace the vane |

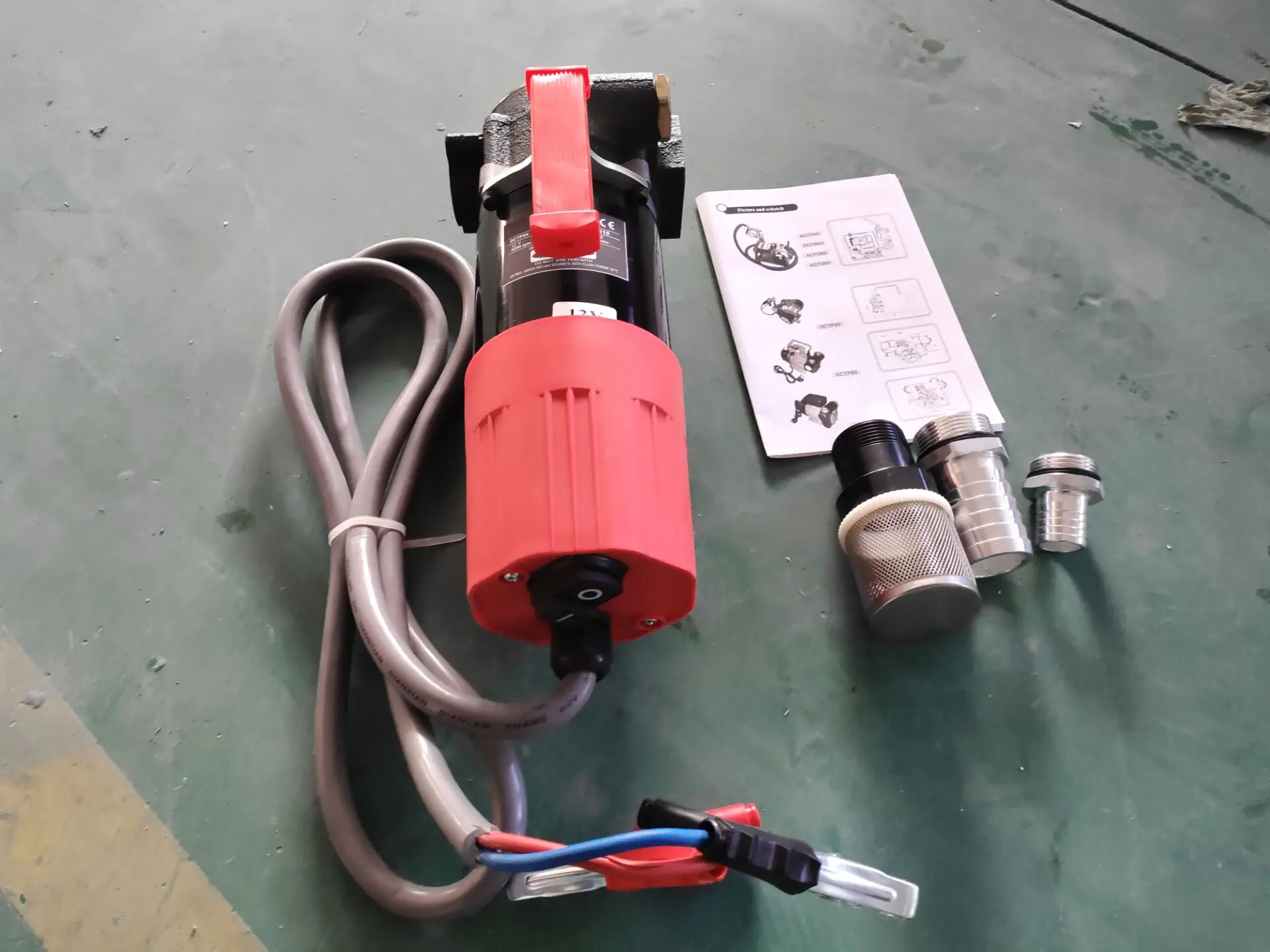

Package Contents

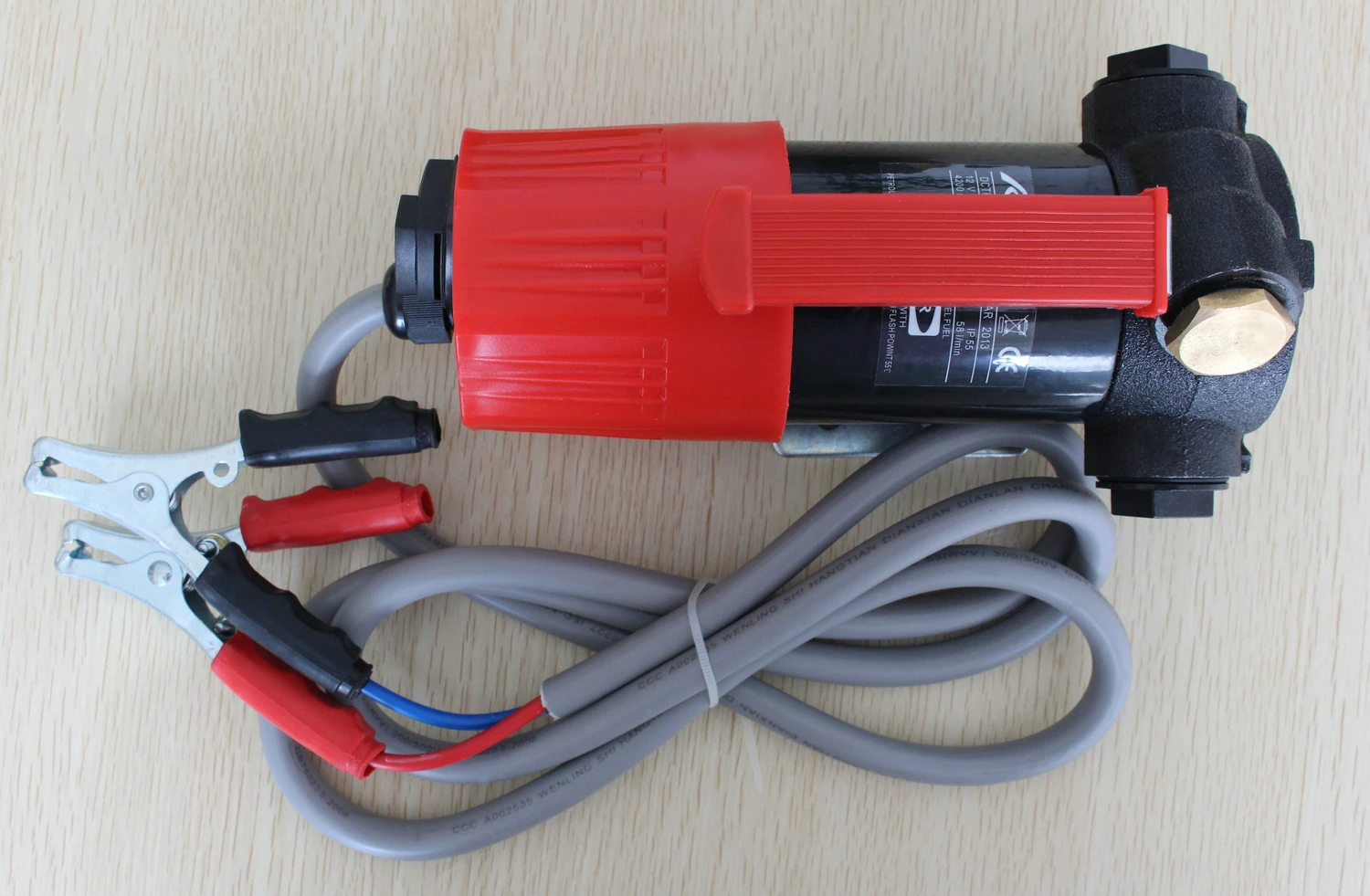

- 1 x 12/24V Motor / Pump Unit
- 1 x Commercial Quality Nozzle
- 1 x 4m Outlet Pressure Hose
- 1 x 2m Filtered Mesh Suction Hose
- 1 x Hose Connection Hardware /“Alligator” Clamps /Filter
- 1 x Owner Manual
Images
Related products
FUEL DISPENSER FUEL NOZZLE HOSE REEL
FLOW METER FUEL PUMP FUEL TANK
Packing
Our Services
Contact us
- If you want to discuss any of our product, please find Ms. Alicia as below info:
Leadtime
- Usually can be finished in 25 days after your Advanced payment received.
Payment terms
- T/T L/C Western union Paypal
Samples
- Normal type can be free.
- OEM need pay for the sample fee .and the customers need to cover the shipping cost.

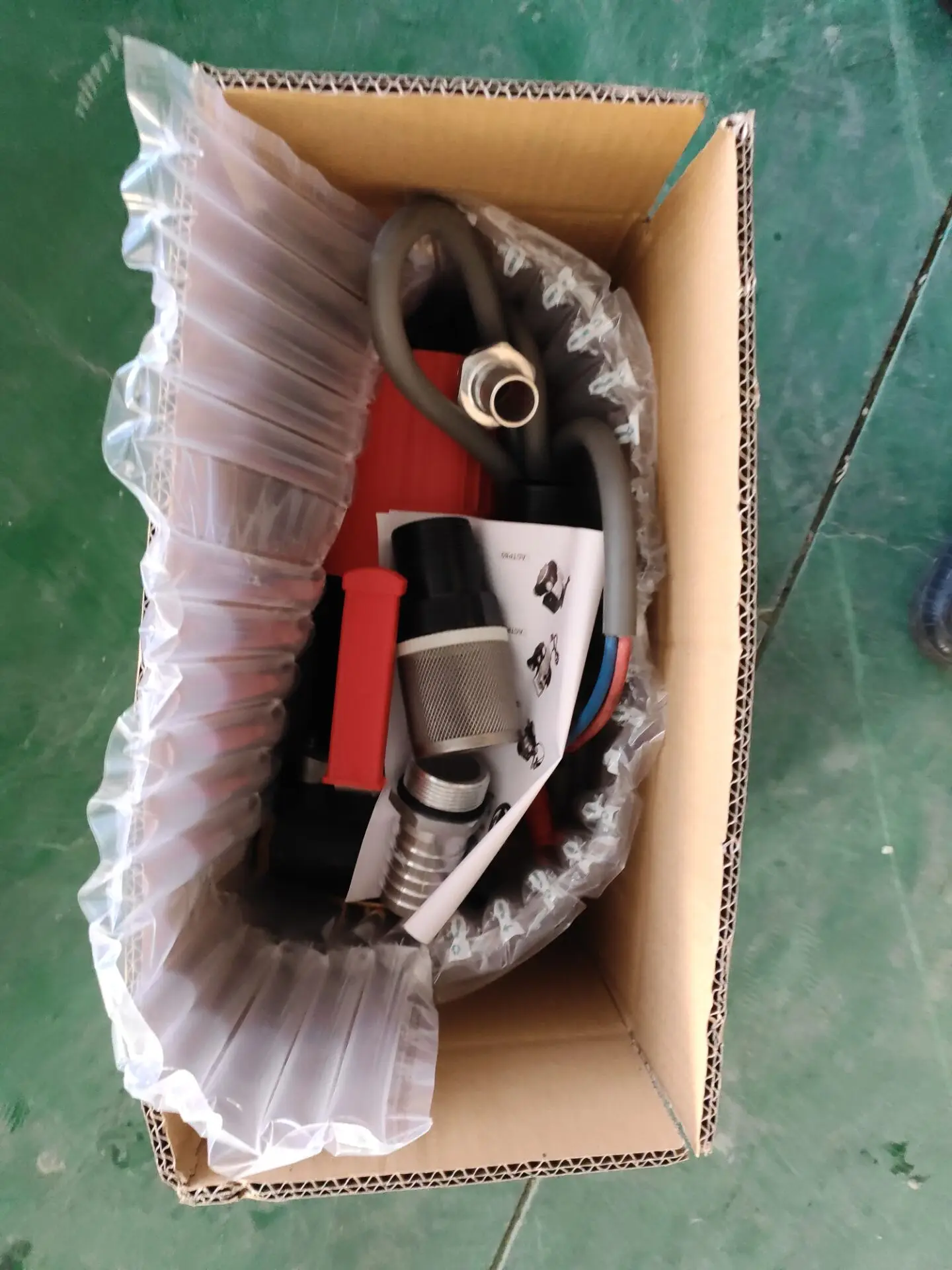

Package
