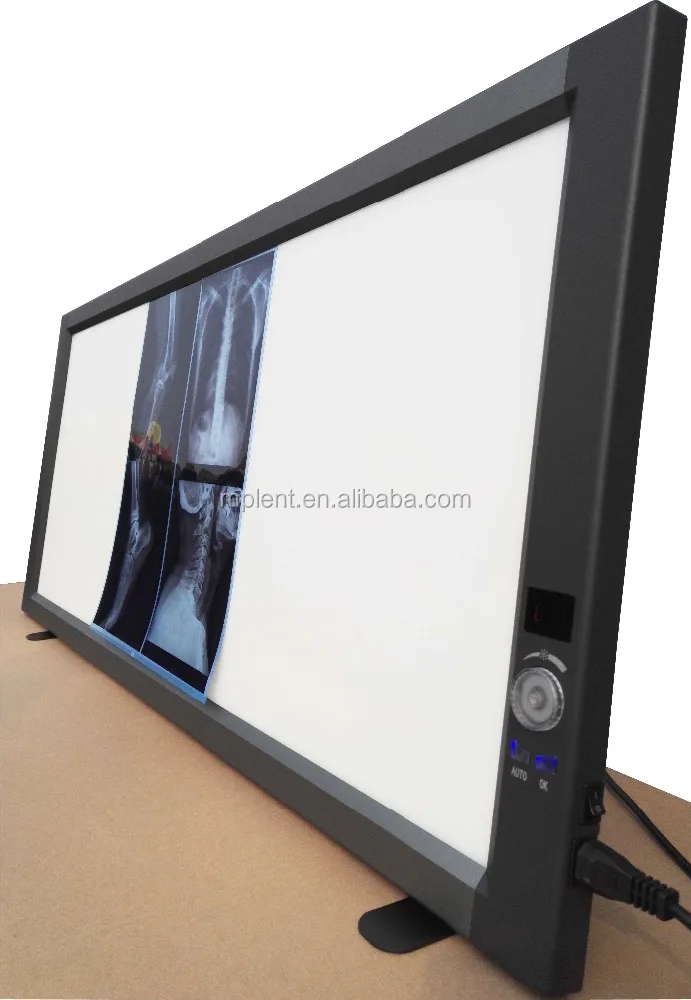

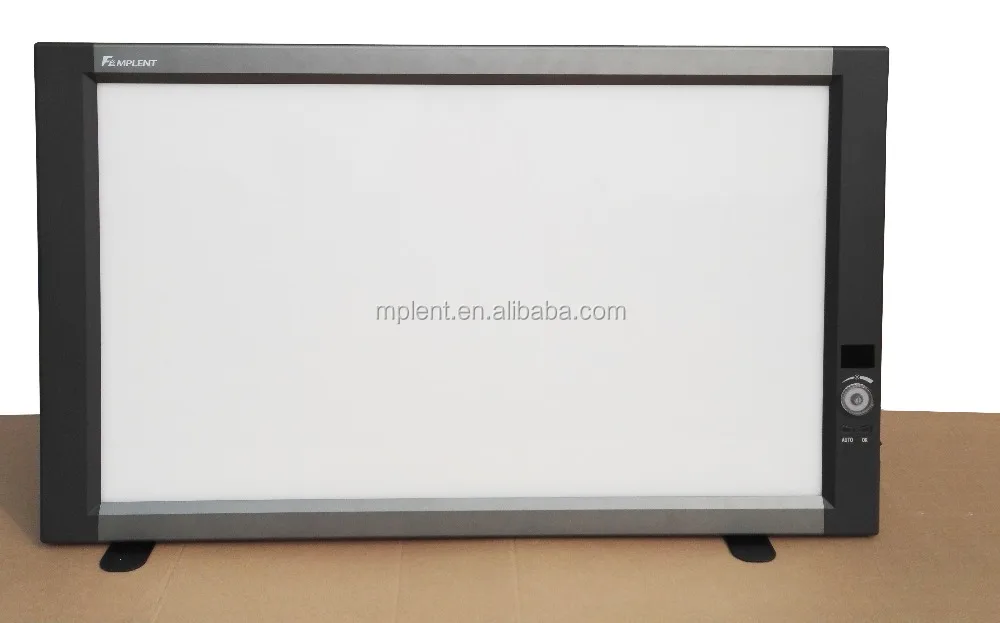

Dental xray ultra slim film view box for operation room

Ultra slim LED x ray film viewer

ZG Series

Single

(ZG-1C)

Double

(ZG-2C)

Triple

(ZG-3C)

Quadruple

(ZG-4C)

Size(L×W×H mm)

475×505×25

835×505×25

1200×505×25

1555×505×25

Visual Area(L×W mm)

360×422

720×422

1080×422

1440×422

Power(W)

30W

60W

90W

120W

LED Specification&Lifespan

Super Bright SMD LED, 144pcs/bank;  CCT ≥ 8000K;Lifespan ≥ 100000 hours

Adaptor

Global Adaptive Power;AC90V-240V ,50/60Hz

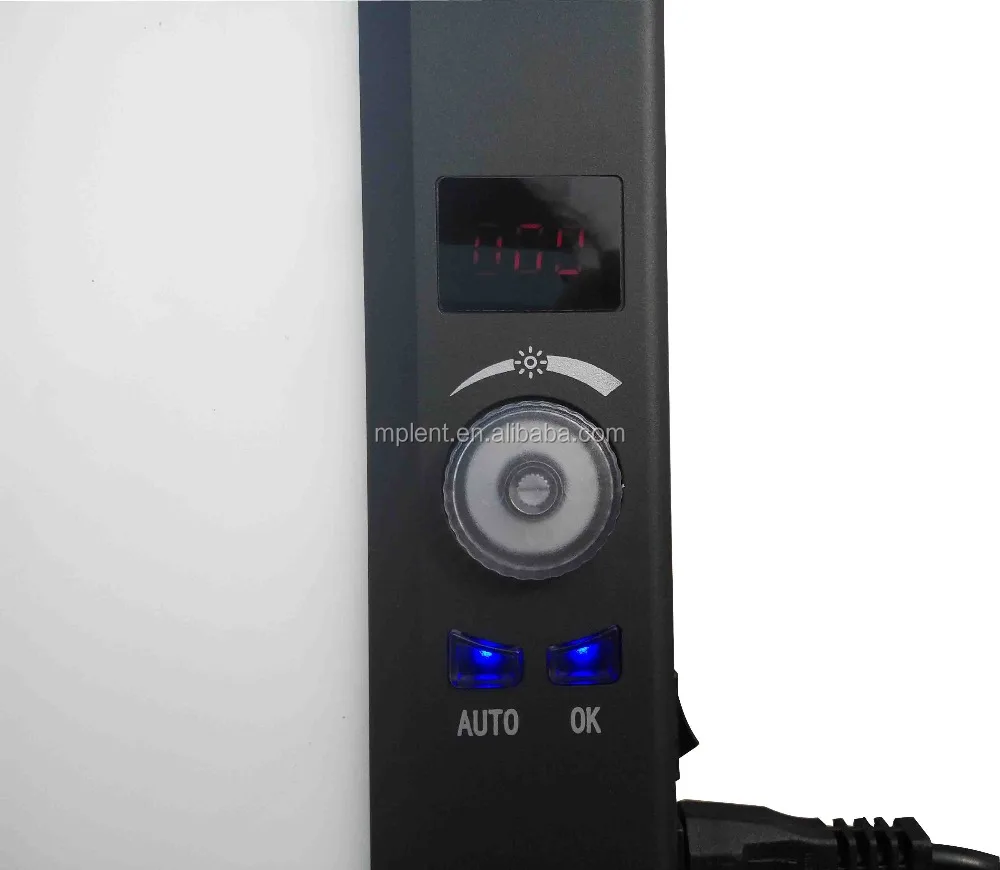

View Panel Luminance

PWM Dimming System,can be modulated range from 1% to 100% continuously,Average Luminance :0~4500cd/ m2

Sensor function

The panel will light up automatically when film inserted and off when moved away

Uniformity

≥90%

Fixture

SS roller oblique compression type Fixture

Installation

Wall mounting, Bracket mounting

Application Scope

General Film,Digital Film,Breast Mammography Film

Application Condition

Room Average Illuminance ≤ 100 lux

Features

• Full Digital Control
• Advanced Ultra Bright LED Light Source with Quality Lead-frame and Big-size Epitaxial Chips
• Imported Acrylic View Panel
• Eye Protective Feature
• PWM Low-Voltage Digital Continuous Dimming System
• LED Constant Current Drive Power
• Automatic film activation
• Improved film clip

Ultra high brightness LED x ray film viewer

ZG Series

  Single(ZG-1)

  Double(ZG-2)

   Triple (ZG-3)

Quadruple (ZG-4)

Size(L*W*H mm)

   475*500*38

  835*500*38

 1200*500*38

  1555*500*38

Visual Area(L*W mm)

     360*422

     720*422

    1080*422

     1440*422

Power(W)

         35W

         70W

        105W

         140W

LED Specification & LifeTime

Super Bright SMD LED; CCT ≥8000K; Life Time≥100000 hrs

Adaptor

Global Adaptive Power;AC90V-240V 50/60Hz

View Panel Luminance

PWM Dimming System,can be modulated range from 1% to 100% continuously,Average Luminance :0~6000cd/ m2

Uniformity

≥90%

Scattering Diffusion

>0.9

Fixture

Needle Roller Fixture

Installation

Wall mounting,Bracket mounting

Application Scope

General Film,Digital Film,Breast Mammography Film

Application Condition

Room Average Illuminance =< 100 lux

Features

• Full Digital Control

• Advanced Super Bright LED Light Source with Quality Lead-frame and Big-size Epitaxial Chips

• Imported Acrylic View Panel
• Eye Protective Feature
• PWM Low-Voltage Digital Continuous Dimming System

• LED Constant Current Drive Power
• Automatic film activation

• Separated Control
• Advanced film clip-elstic silicon rubber
