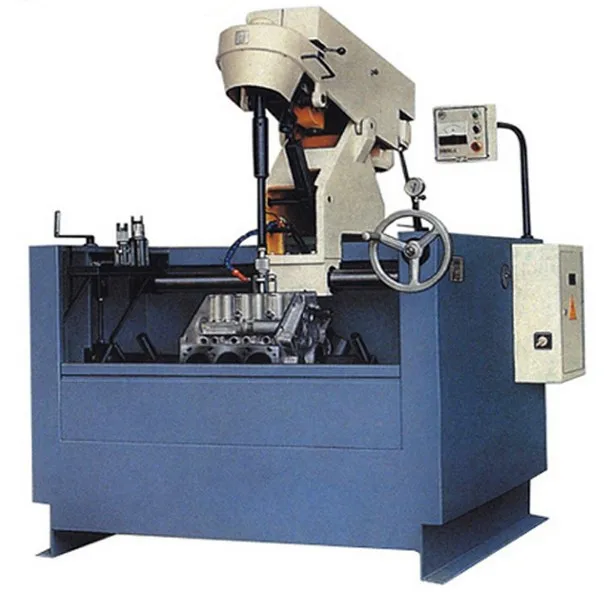

Vertical cylinder honing machine 3MB9817The machine is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
The machine table can shift
Feature
The machine is mainly used for honing single line engine cylinders and V-engine cylinders of
automobiles motor cycles and tractors and also for other machine element holes.
1.The machine table can shift of the fixture change 0°, 30°, 45°
2.The machine table is easily up and down manually 0 – 180 mm
6.The machine is reliable performance widely use honing, easy operation and high productivity.
Good rigidity, amount of cutting
Technical parameter
Model
3MB9817
Max. diameter of hole honed
25-170 mm
Max depth of hole honed
320 mm
Spindle speed (4 steps)
120, 160, 225, 290 mm
Stroke (3 steps
35, 44, 65 s/min
Power of main motor
1.5 kw
Power of cooling pump motor
0.125 kw
Machine working inside cavity dimensions
1400x870 mm
Overall dimensions
1640x1670x1920 mm
Machine weight
1000 kg
Standard accessories: Honing bars, Honing heads MFQ80, MFQ60, Screw plate, Press blocks, Left and right press bar, Handle, Measure block, Pull springs.
other models machine
Packaging & Shipping
We will pack the machine with standard export wooden case ,ensure the transport safety
FAQ
1)Q: Which trade term I can choose? A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you? A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality? A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: how can I make the payment? A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine? A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: how about warranty? A: warranty is one year, but we will offer lifetime service for machine.
