10m water level sensor Waterproof Fuel Level Sensor 4 20mA 0 5V
- Category: >>>
- Supplier: Atech Sensor Co. Ltd.
Share on (60638464001):
Product Overview
Description
10m water level sensor Waterproof Fuel Level Sensor 4 - 20mA 0 - 5V
This series of level sensor is featuring small size, stable performance and mass production.It is a Piezoelectric pressure level sensor applied in Hydraulic monitoring , Frequency water supply,Liquid measuring for petroleum ,metallurgy,City water supply,Sewage treatment,Tank level monitoring,Water-saving irrigation, Circulation fluid monitoring,Circulation fluid monitoring,Water-saving irrigation and industrial wastewater mesaurements. It is work as industrial pressure measurement can be use as water level sensor,tank fuel level sensor,digital sensor,oil level sensor,ultrasonic level sensor,zigbee level sensor,wireless level sensor,GPRS pressure sensor,anti corrosive level sensor,tank level sensor,anti-clogging level sensor,sewage water sensor, The level sensor are made of 316 stainless steel. The pressure sensing elements and chips are selected from German international brands. The products are approved with CE, intrinsically safe, and explosion proof certificates, so can be use chemical experiment.
Product Description
10m water level sensor Waterproof Fuel Level Sensor 4 - 20mA 0 - 5VSensor 4-20mA 0-5V
Product Detail
| Accuracy | 0.5%FS |
| Output signal | 4~20mA, 0.4 ~4.5V, 0~10V leve sensor |
| Pressure range | 0~0.5 m H2O...200 m H2O |
| Type | capacitance sensor,ultrasonic sensor,digital sensor,optical sensor |
| Overload pressure | 150%FS |
| Pressure type | Gauge Pressure Absolute Pressure Sealed Pressure |
| Power supply | 24VDC ,12VDC water level sensor |
| Application | Hydraulic,Liquid measuring for petroleum,Tank level monitoring |
| Operating temperature range | 0~+100c |
| Warranty | 18 Months |
| Product Keywords | Waterproof Water level sensor, Fuel Level Sensor 4-20mA, 0-5V water level sensor, 10m water level sensor |
Feature of PL303 10m water level sensor
1.Long service life
2.Diameter : Ø19mm
3.Diffused silicon oil-filed sensor cell
4.CE certificate
5.no-polarity two wire current output
6.Intrinsically sate ,explosion proof
Description of 4-20mA water level sensor
PT303 water level sensor has small diameter as 19mm . It adopts high performance diffused silicon pressure sensor as the measuring element .The products has reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
PT303 water level sensor is widely used in sewage, river and lakes treatment as well as channel, large rivers, l reservoirs and coastline monitoring. This product has got intrinsic safety certification, explosion proof certification and CE certification. The lead of two-wire circumfluent is no-polarity.
Specification of PL303 10m water level sensor
| pressure medium of water level sensor | liquid compatible stainless steel |
| pressure ranges of 4-20mA water level sensor | 0~0.5 m H2O...200 m H2O |
| overload pressure of water level sensor | 150%FS |
| output signal of 10m water level sensor | 4~20mA, 0.4 ~4.5V, 0~5V water level sensor |
| accuracy of 4-20mA water level sensor | 0.5%FS (standard) |
| load resistance of water level sensor | RL = (U-10)/0.02(ohm) (4~20mA current output), >20Kohm (voltage output) |
| long term stability of water leve sensor | 0.2%FS/year |
| supply voltage | 24VDC ,12VDC water level sensor |
| compensated temperature range | -40~85°c |
| operating temperature range | 0~+85°c |
| storage temperature range | -40~+85°c |
| temperature coefficient of zero | 1.5%FS (Max) |
| temperature coefficient of span | 1.5%FS (Max) |
| insulation resistance | 100MΩ@ 250VDC |
| Pressure connection | screw thread, throw-in type you can OEM |
| Protection grade | IP68 of level sensor |
| material of wetted part and housing | 1Cr18Ni9Ti |
| material of pressure membrane | 316L of 10m water level sensor |
| Response time | 1ms |

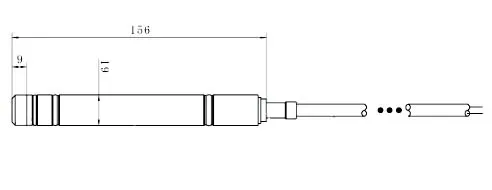

Dimension of water level sensor
Applications of 4-20mA 10m water level sensor
1. Hydraulic monitoring
2.Deep well level measurement
3.Liquid measuring for petroleum ,metallurgy
4.City water supply
5.Sewage treatment
6.Tank level monitoring
7.Water-saving irrigation
8.Circulation fluid monitoring
Company Information
10m water level sensor Level Sensor 4 - 20mA 0 - 5V
10m water level sensor Level Sensor 4 - 20mA 0 - 5V
FAQ
1.Q: How long is the delivery?
-- Mostly within 10days
2.Q:Can I get a sample?
-- Sure, contact our sales please
3.Q:What is your MOQ?
-- 1pcs
4.Q: How about warranty time?
-- 12-18month
5.Q: How can I visit your factory?
-- Fly to Xian Yang air port, it’s our pleasure to pick you up.
6.Q:How do you control your quality ?
-- We have EPR system .we control from parts, process, testing, packing ,retesting.
Every Sensor will be tested two times before reach you, after that sport test for the third time. Make sure about the quantity.
Ordering guide:
In order to recommend the suitable sensor, please kindly advise us the following information
1..What is your testing medium ? oil, water, gas, waster water, or others.
2.Working temperature of the sensor ? -40°C~100°C or others
3.Pressure range ? -1-0bar,0-1bar,0-16bar,0-40bar,0-100bar,0-600bar or others
4.Output signal? 4-20mA, 0-5V ,0.5-4.5V,0-10V,RS485 or other
5.Electronic connection ? DIN43650 ,Packard, Aerial plug, direct cable or others.
6.Screw ? M20×1.5,G1/4,G1/2,R1/2,NPT1/2
