Product Details:Fast Line Speed Electric Winch for Construction
1.The gearbox case of the winch was made of high-strength aluminum alloy materials with light weight and high precision.
2. The high speed winch increased the module gear which could reduce the noise of the gearbox ,higher safety coefficient and longer use time.
3.The mini electric winch equiped with afterburner system,specific motor,case fan,the rotary steel wire rope,Rotating hook and so on.The configuration is very high.
4.The construction winch looks delicate appearance and high grade.
Fast Line Speed Electric Winch for Construction
Items\Types
DTS-200-100-A
DTS-300-100-A
DTS-400-100-A
DTS-500-100-A
Loading Weight(kg)
single rope:200kg
double rope:400kg
single rope:300kg
double rope:600kg
single rope:400kg
double rope:800kg
single rope:500kg
double rope:1000kg
The length of steel wire rope(m)
25m
25m
25m
25m
Lifting Speed(m/min)
10m-20m
10m-20m
6m-12m
6-12m
Motor Capacity(kw)
1.85kw
2.3kw
1.85kw
2.3kw
Supply Voltage(v)
220v
220v
220v
220v
Rope Diameter(mm)
5.0mm
6.0mm
6.0mm
7.0mm
Total Weight(kg)
33kg
38kg
35kg
40kg
Detailed Images
The steel wire rope:
The steel wire rope adopts type of 19*7 galvanized airline anti-rotation steel wire rope to guarantee the goods not to rotate during lifting .

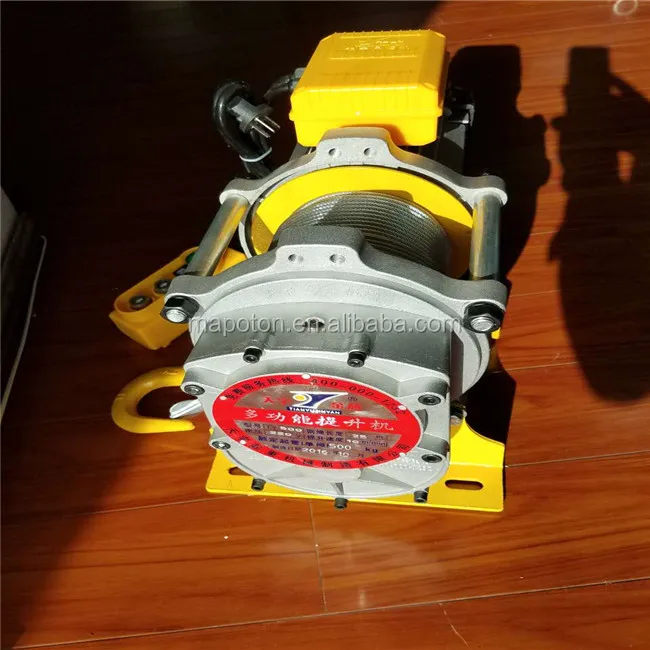

The gearbox case of the winch:
The gearbox case of the easy to use winch was made of high-strength aluminum alloy materials with light weight and high precision.The hoist adopts the 220v big power alongside magneto motor , Which can guarantee the sensitive brake and safe use .
The module gear case:
The motor lifting winch increased the module gear which could reduce the noise of the gearbox ,higher safety coefficient and longer use time.

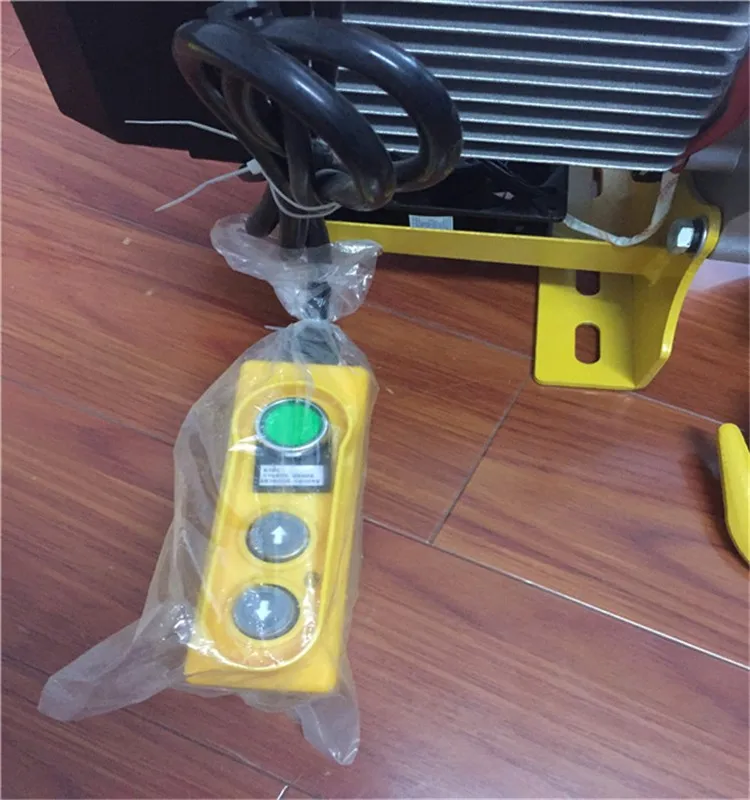

The power-stress button:
The power-controlled system has an innovation that it adds the power- stress button system to avoid the situation when the main engine doesn't work when the voltage is unstable or lower during the goods is lifted in mid- air.
The rotation hook:
The high-grade large -opening rotation hook ,the stress bearing is installed with the rotation bearing to guarantee the bearing can be rotated to avoid the rope wiching

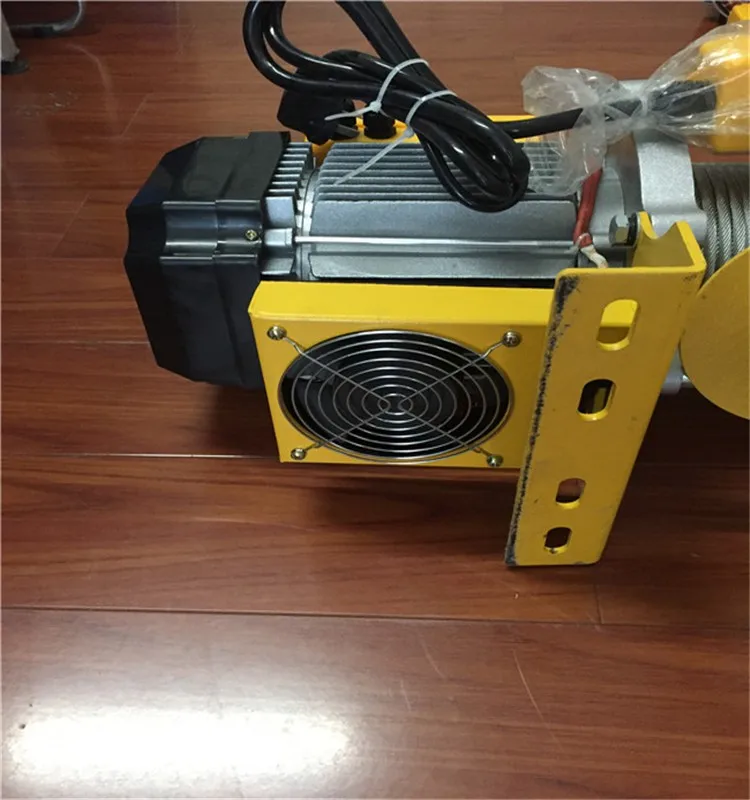

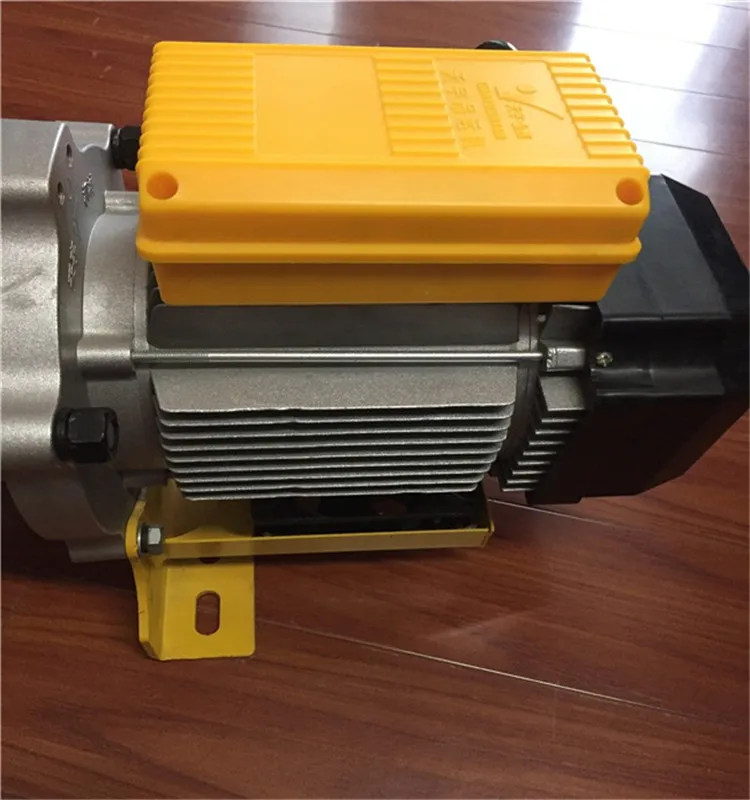

The high-tension cooling fan :
It is designed and installed along the engine side to make it prefectly work.and it can meet the need of long-time working in special working please.
Product Name
Fast Line Speed Electric Winch for Construction
Voltage
110v-460v Customized
Power
2.3kw
Loading Weight
400kg-500kg
Diameter of Steel Wire Rope
6.0mm Of Galvanized Airline Anti-Rotation
Lifting Height
25m
Lifting Speed
20m/min
Color
Yellow Or Customized
Clutch
Without Clutch
OUR FACTORY PK OTHER FACTORY ABOUT THE PRODUCT DETAILS
About the below pictures, each line, the left picture belongs to other factory; the right picture belongs to our factory!

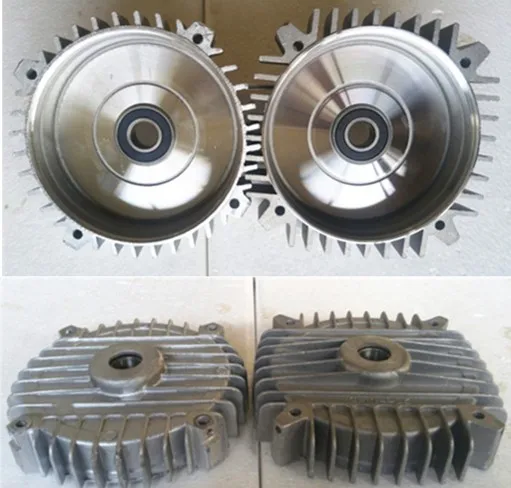

About the engine cover:
Our factory: The material of the engine cover adopts the national standard JIS H5302-2006 aluminum alloy ADC12, based on the acceptance standard of GB/T10851-1989 casting aluminum alloy pinhole. Other factory: The material of the engine cover mostly adopts the recycling mixed aluminum.
About the back cover of the engine:
Our factory: We adopts the ADC12 material to make the engine much more effective. Other factory: They adopt the inferior material and rough machine.

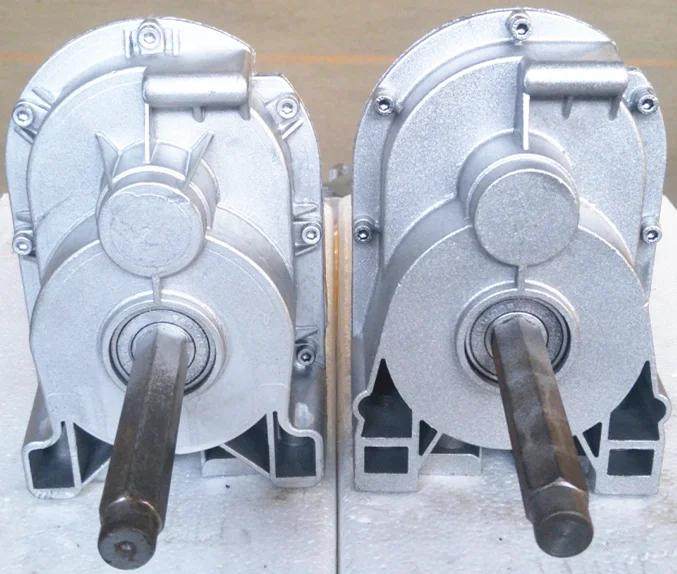

About the gearbox case of the engine:
Our factory: The gearbox case becomes much more bigger and thicken and has a long lifespan more than 3 years. The bearings on the gearbox case also become more bigger. What's more, our factory design 2 oil-filling holes on the one side of the gearbox case so that it is convenient to fill oil and extend the lifespan of the gear usage. Other factory: It is the old-style gearbox case which has the features of small volume, thinner case and short lifespan so that it can easily to get broken. And there is no oil-filling hole on the gearbox case, so it is not convenient to fill oil.
.

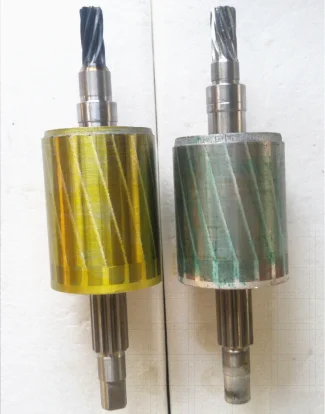

About the rotor of the engine:
Our factory: The engine rotors increase 10% in diameter and length and apply with the 600-grade sheet steel which can decrease the electricity loss so that the engine is powerful in the continuous work. Other factory: The engine rotors are thinner and shorter and apply with the ordinary steel plate and iron plate as the raw material which can increase the electrical loss and make the engine produce heat particularly fast so that the engine has no strength in work after a short while.

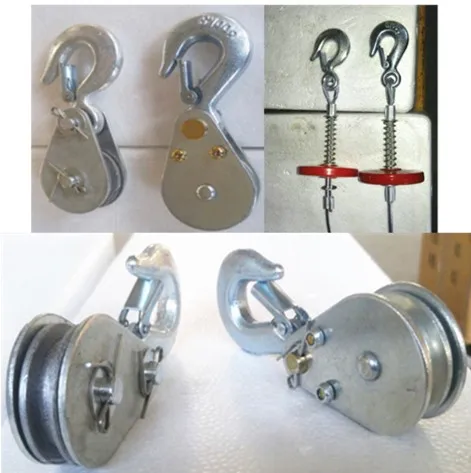

About the lifting hook of the hoist:
Our factory: Ours is equipped with the 2T big hook and can rotate 360 degrees. The bigger the hook, the easier to lift the goods. Other factory: It is the non-standard small type 0.5T hook which is not equipped with rotation function which is not easy to lift the goods. Some customers even take off it and change into the big hook to make it easy to use.
Company Information

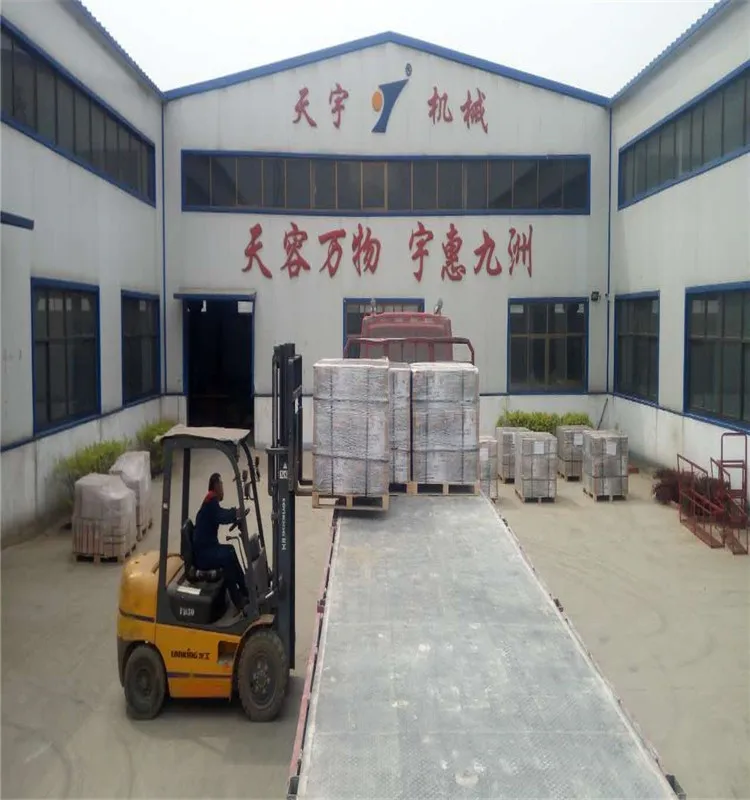

Welcom to our factory
Located in Zhengzhou City, Henan Province, Mapoton is affliated to Hebei Tianyu Hoisting Machinery Manufacturing Company. It is the exclusive foreign business department of our factory.
Our factory was established in 1993, restructured in 2006. We have stepped into the forefront of the domestic lifting industry and one of the domestic largest manufacturers in designing and producing indoor and outdoor lifting machinery, due to 20 years of accumulation and technical innovations, as well as the principles of high starting point and producing high-quality equipment. Besides, we also have been famous for manufacturing hand chain hoists, electric lifting cranes and high-altitude operation pedal baskets.
Over years of continuously adhering to the people-oriented and producing safe lifting equipment,. We have researched and developed full series (covering 18 categories, total 60+) indoor & outdoor hoists with payload capacity ranged 100kg-800kg. The machines secure smooth loading, safety for operators working in construction and decoration.
Meanwhile, we have extensively developed the other types, such as stationary, portable, vehicular hoists. Moreover, we are proud of being one of the constitutors for the lifting equipment industry principles.
All our machines have obtained the quality inspection reports and underwritten by the CLIC(China Life Insurance Company), which is state-owned largest insurance company in China. Varieties of products have been possessed the intellectual property rights and declared the national patent. Thanks to full-blown sales network, products have been exported to Southeast Asia, Middle East. Furthermore, we have embraced a high reputation among customers. Our customer service department consists of technique support and 2-grade service system which provide professional supports in the process of pre-sale, mid-sale and after sale.
Welcome to visit our factory!

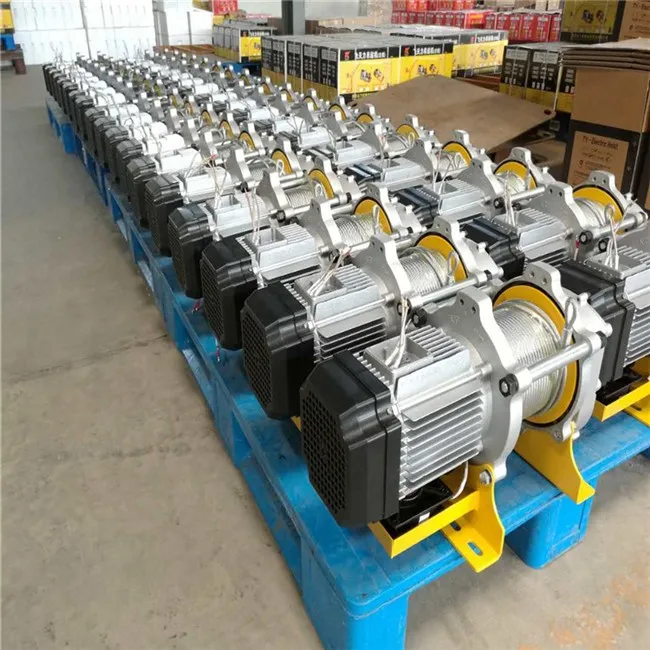

Factory Technology

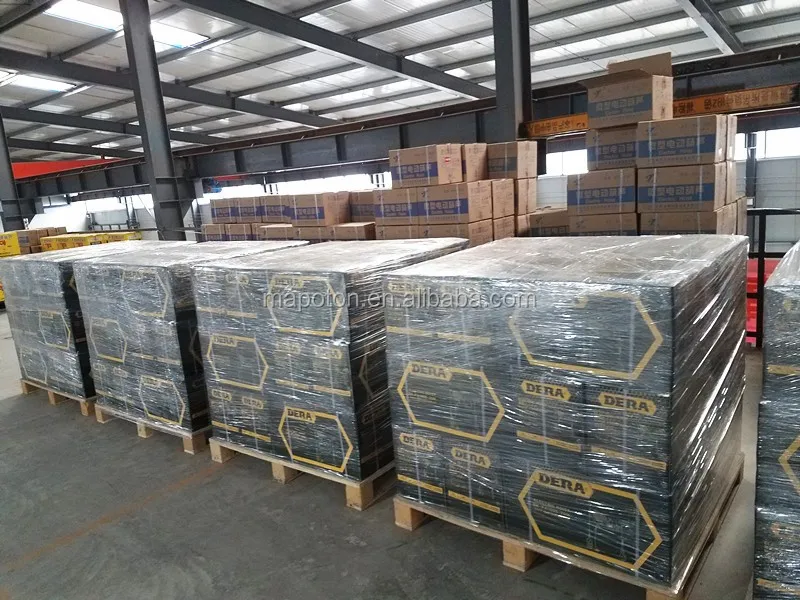

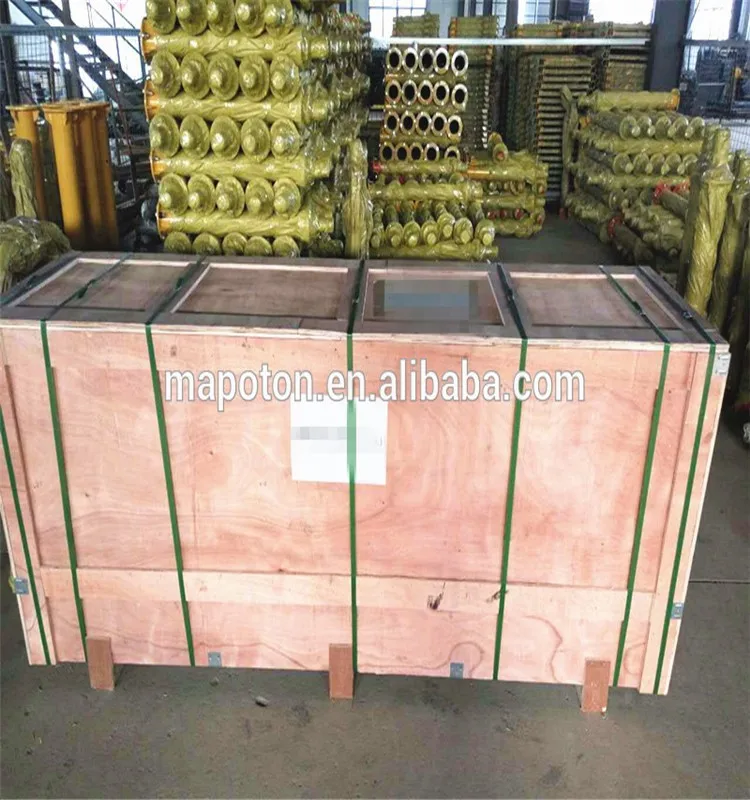

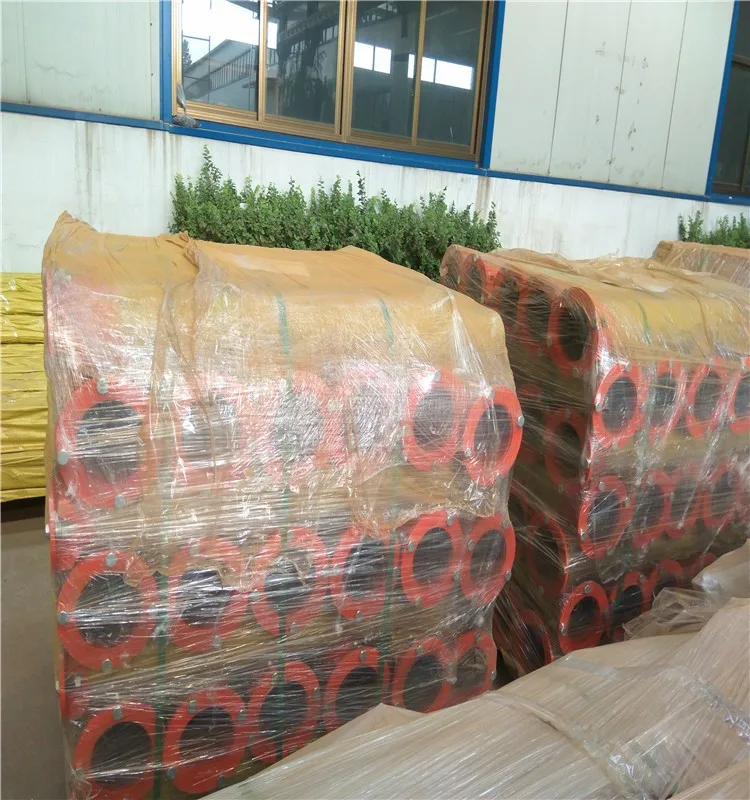

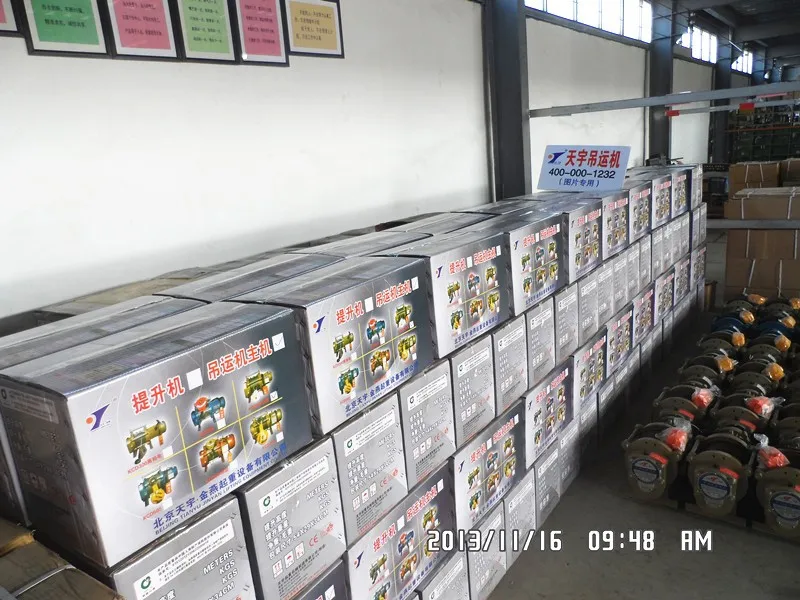

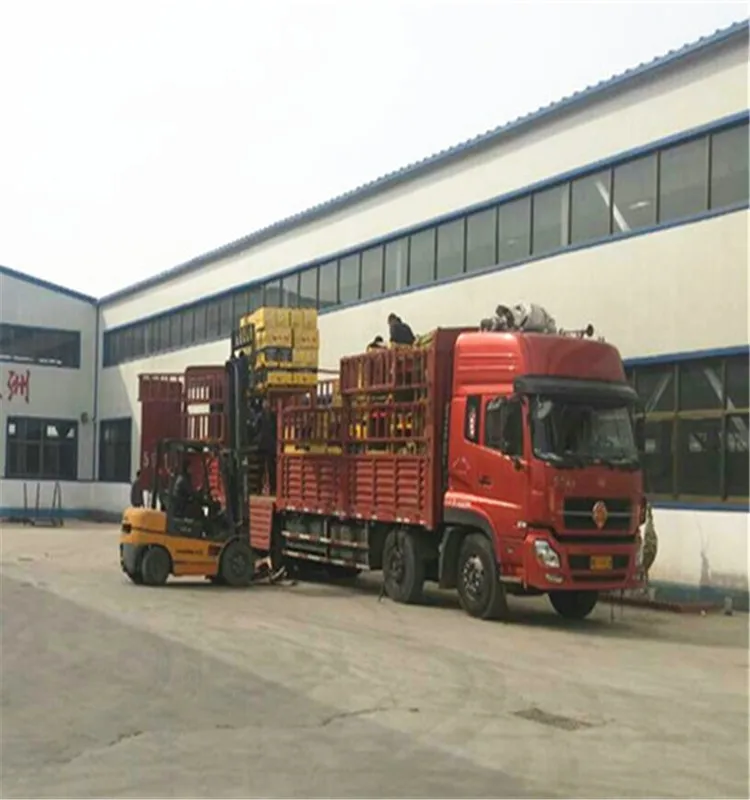

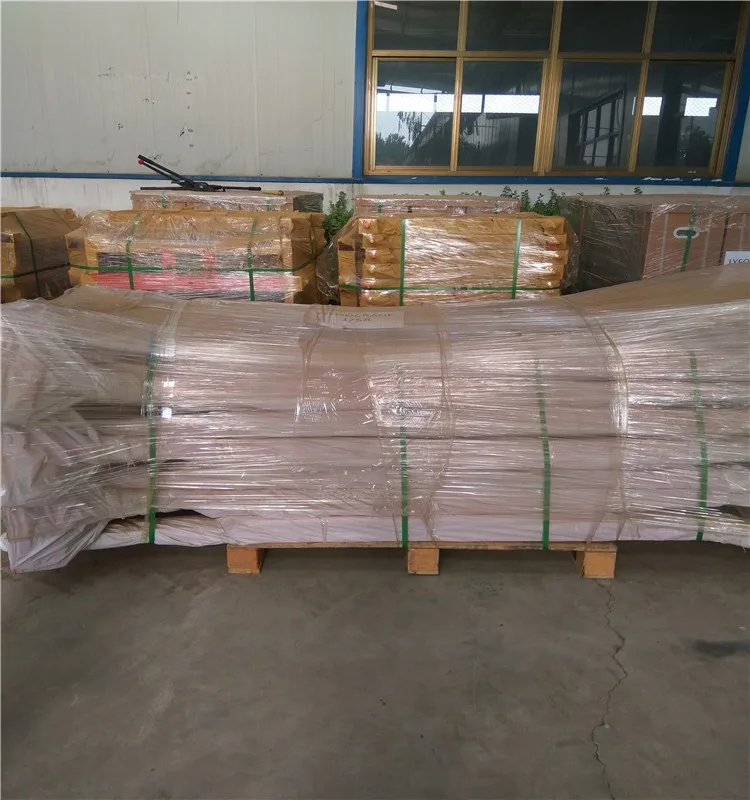

Packing & Delivery
FAQ
1.Q: Are you the direct factory? A: Yes, we are the direct factory for 24 years even though we registered as a foreign trading company. The address of our factory is : NO. 18 South Road, NO. 2 West Ring, Donglv Industry Zone, Qingyuan District, Baoding City, Hebei Province, China. Sincerely welcome to come and visit! 2.Q: MOQ? A: One set is ok. 3.Q: Can you accept payment terms? A: Alibaba Trade Assurance, T/T, Western Union, Credit Card, etc. 4.Q: Delivery time? A: If in stock,1~3 days;If not in stock,normal 5~15 days; Or according to the order. 5.Q: Warranty? A: One year for the electric engine. We can also provide permanent accessories repair and replacement services. 6.Q: Do your products can be customized? A: Yes,our all kinds of electric winch can be customized design according to each client's demands. And we can provide label and company name customized services. 7.Q: What kinds of certificates about your products? A: Normally,we have CE,BV,SGS,CUTR certificates,of course our products make some other certificates according to our clients' specific requirements. 8.Q: How to guarantee the quality and operation when the products leave factory? A: We test each parts of all products before products leave factory and guarantee the successful operation. No-test or failure-test products are prohibited leaving factory. 9.Q: We have a container in other factory or supplier, can you send cargos there? A: Yes, we will as long as you send us the detailed address of the place you want to send. Or it is also ok when you want to send other cargos to our factory. 10.Q: How can I get a accurate quotation? A: Tell and send us the product photo you want, electricity voltage, lifting height(length of the steel wire rope), lifting weight, quantities, FOB/CFR/CIF price or other detailed requirements. 11.Q: What is your HS code? A: 8428909090 for mini crane and aluminum electric winch; 8425110000 for mini electric hoist 12.Q: How about the installation? A: First, easy installation. Then, along with the cargos packages, we enclose the detailed installation and operation instructions; we can also send you the detailed installation videos.
