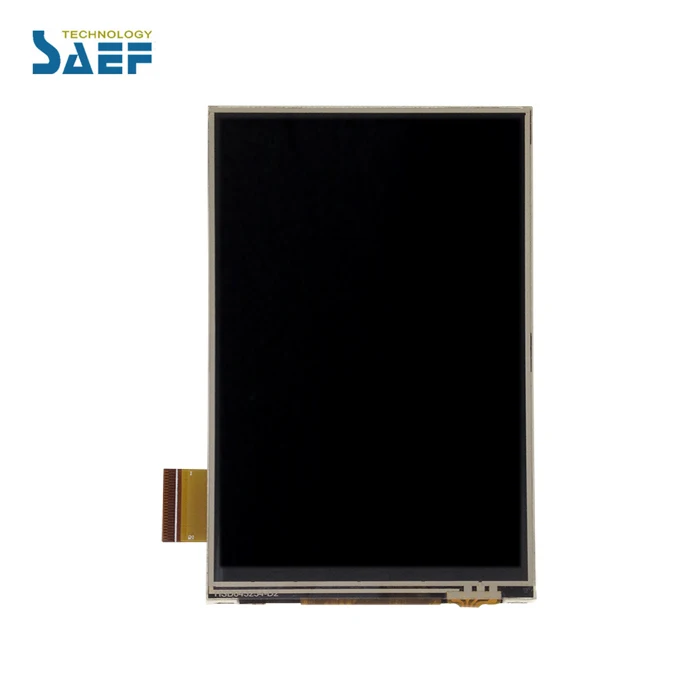

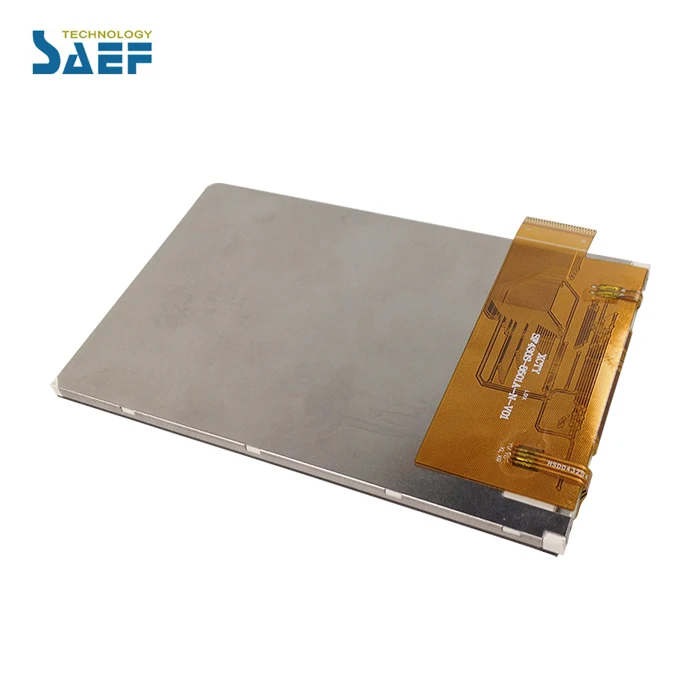

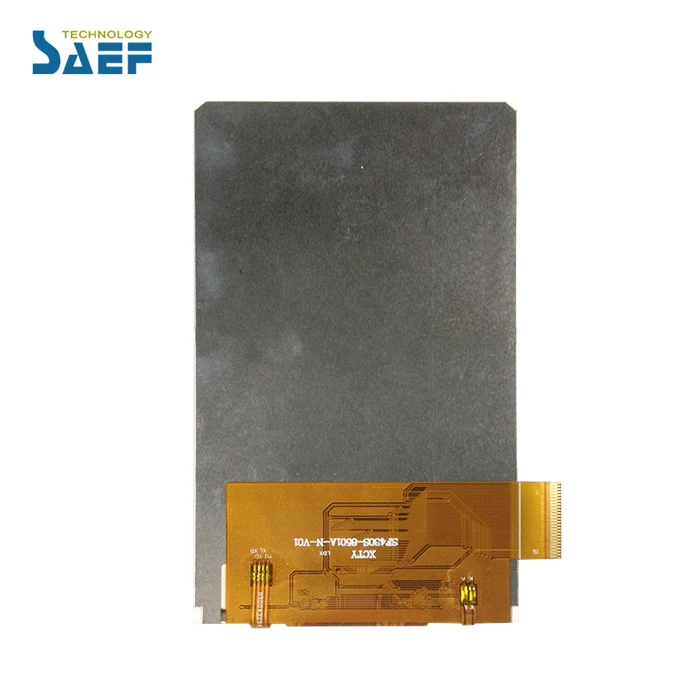

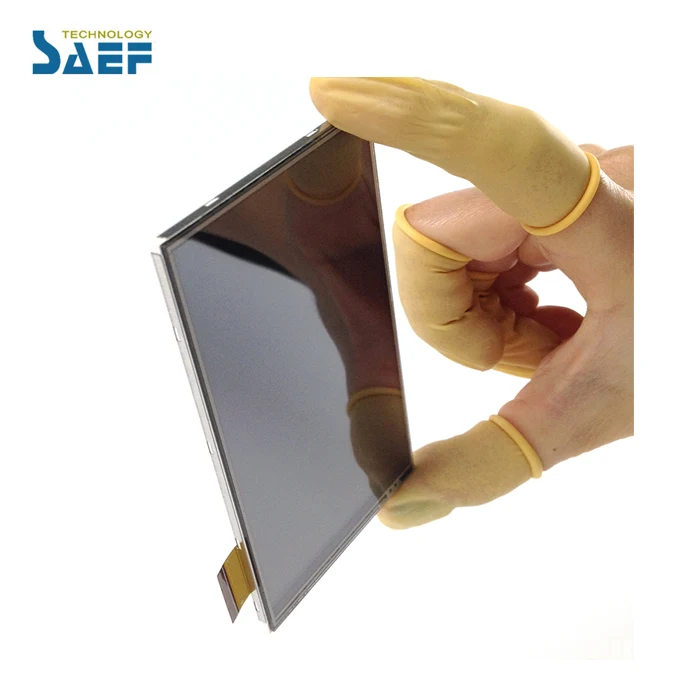

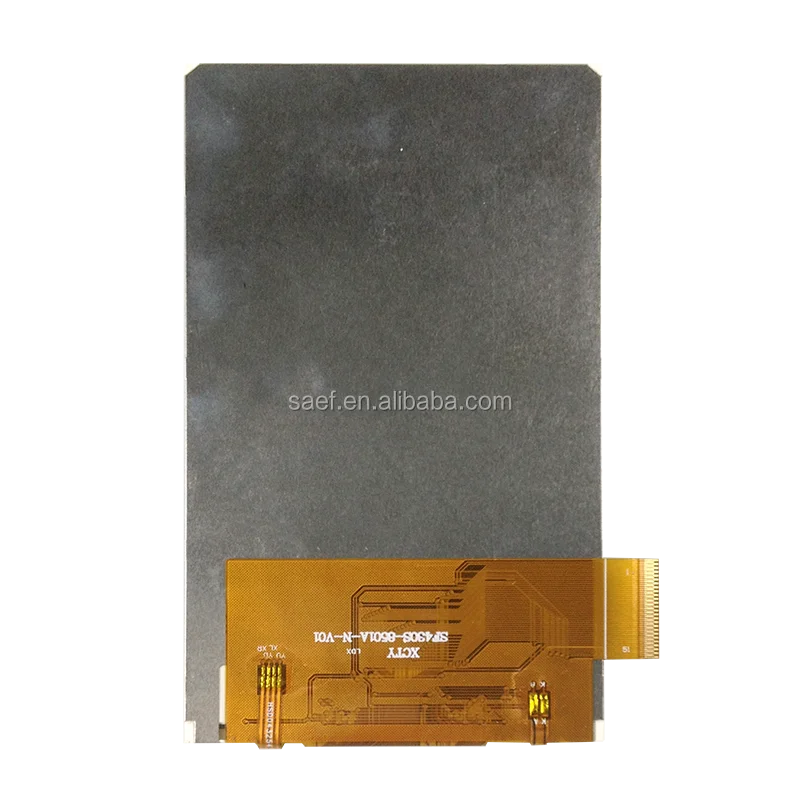

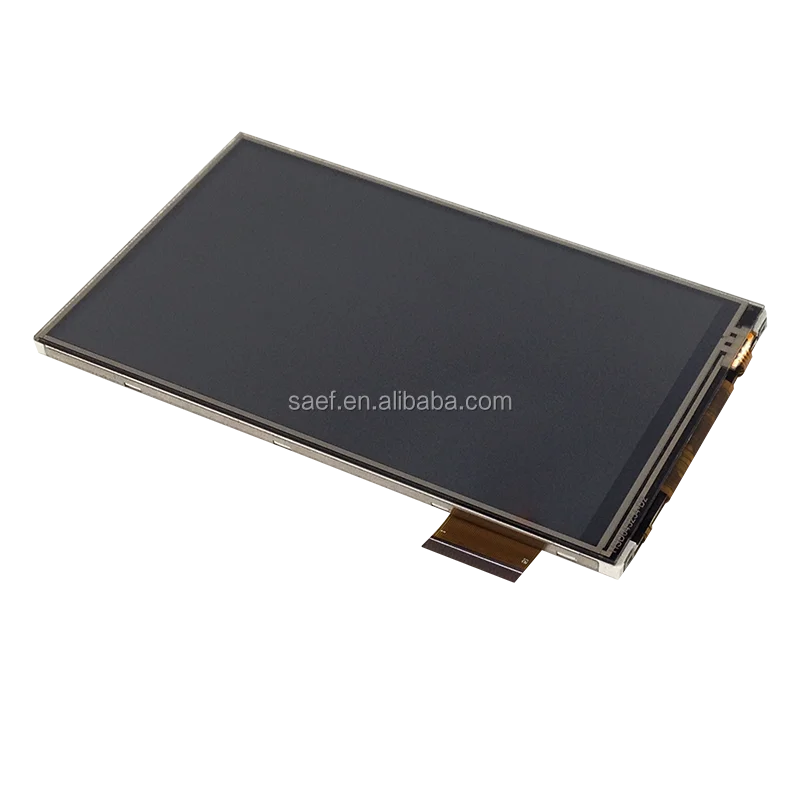

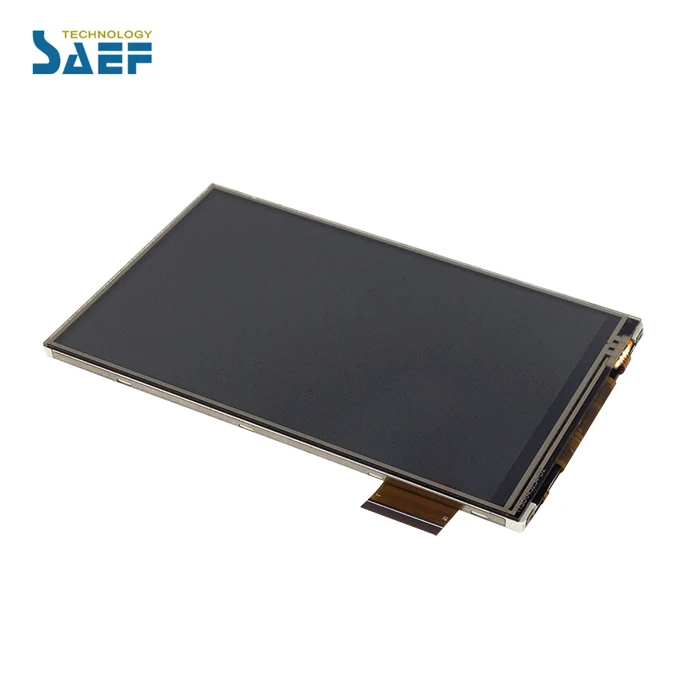

4.3 inch tft LCD touch screen module with 480*(RGB)*800 ips lcd screen
4.3 inch tft LCD touch screen module with 480*(RGB)*800 ips lcd screen
4.3 inch tft LCD touch screen module with 480*(RGB)*800 ips lcd screen
4.3 inch tft LCD touch screen module with 480*(RGB)*800 ips lcd screen
4.3 inch tft LCD touch screen module with 480*(RGB)*800 ips lcd screen
4.3 inch tft LCD touch screen module with 480*(RGB)*800 ips lcd screen
4.3 inch tft LCD touch screen module with 480*(RGB)*800 ips lcd screen

4.3 inch tft LCD touch screen module with 480*(RGB)*800 ips lcd screen

Share on (60638527906):


Price:$8.00 - $9.30

Quantity:


Product Overview

Description


Product Description
\t
 Display Type
\t
4.3 inch TFT lcd display
\t
Display mode
\t
Transmissive
\t
 Resolution

\t
 480*（RGB）*800
\t
Number of colors
\t
262k

\t
 Outline Dimensions
\t
61.56*104.65*3.75 mm
\t
Driver IC
\t
HX8369-A01
\t
Interface Type
\t
RGB
\t
Backlight
\t
White LED
\t
Operating voltage
\t
3.0~3.3 V
\t
Viewing Angle
\t
All viewing angles
\t
Operating Temp
\t
-10~+60°c
\t
Storage Temp:\t
\t
-20~+80°c
\t
brightness
\t
200 Cd/m2
\t
ACTIVE AREA
\t
95.04*53.86（L*W）mm
\t
Backlight Type
\t
White LED
\t
pin
\t
51 pin

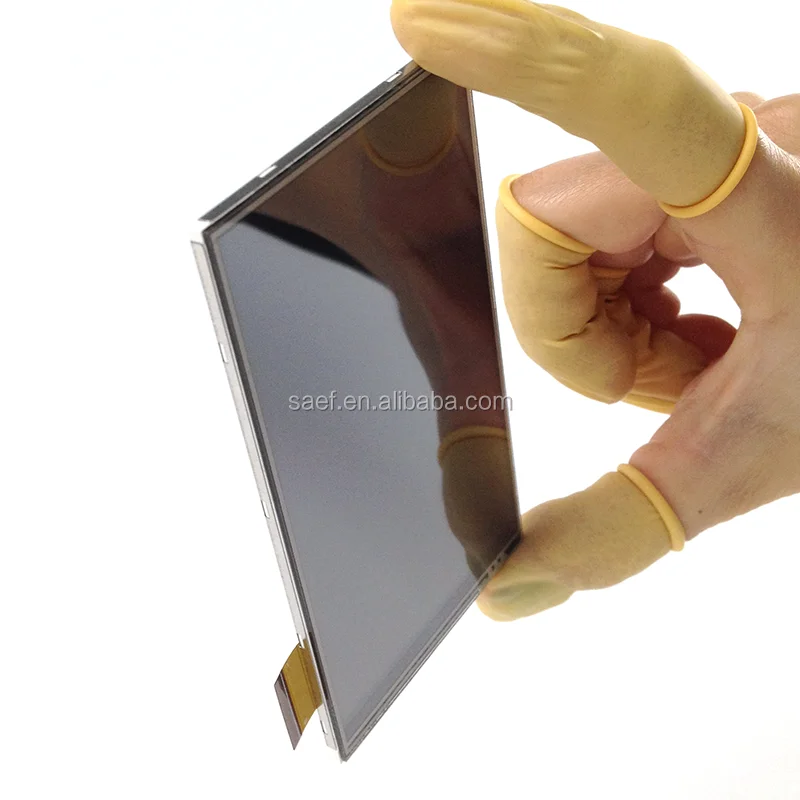

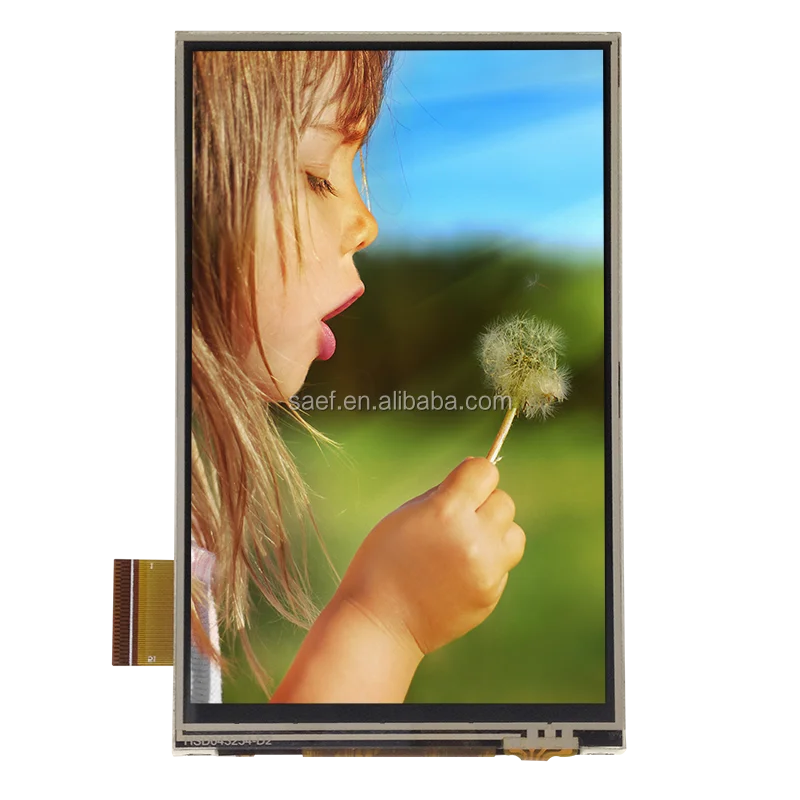

Detailed Images
Company Strength

1> ISO9001 certificated, Factory Direct Supplied

2> RoHS Compliant, Lead Free, Reach Compliant

3> Competitive Price and Short Lead-time

4> Professional Team with Rich Experiences in Design/Mfg/Quality Control

5> Small MOQ Support & Fast Response to Customers

6> Long Product Life Time

Our Client
About Us

Found in 2007, SAEF TECH is an experienced LCD/LCM manufacturer. With good quality, professional service, and competitive price, we have been qualified by many wellknown companies around the world. Our strategic customers include LG in Korea(white goods & remote controller), Uniden in Japan(scanner), Cisco in USA(conference phone), Jabil in UK(industrial meter & instrument), Vtech in HK(IP phone in conference room), Ametek in Germany(bulldozer dash board), AML in USA(banking system), Spectrum mfg in Canada(meter), etc.
