Треугольная аккумуляторная батарея для электровелосипеда 3000 Вт, 72 в, литий ионная аккумуляторная батарея 25 Ач, используется в 18650GA3500 Cell
- Category: >>>
- Supplier: Shenzhen Herculesi Technology Co. Ltd.
Share on (60638530706):
Product Overview
Description
Specification

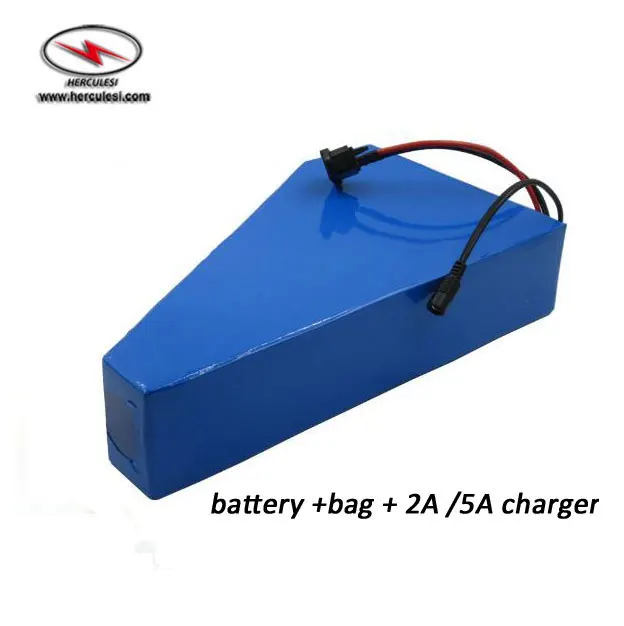

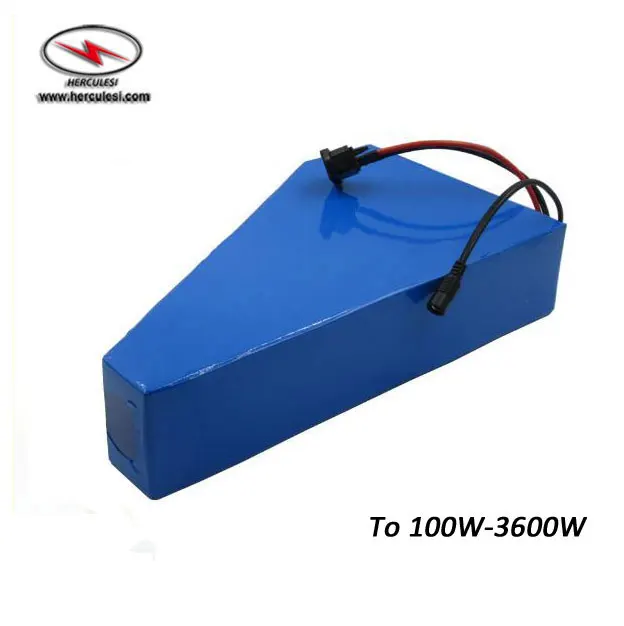

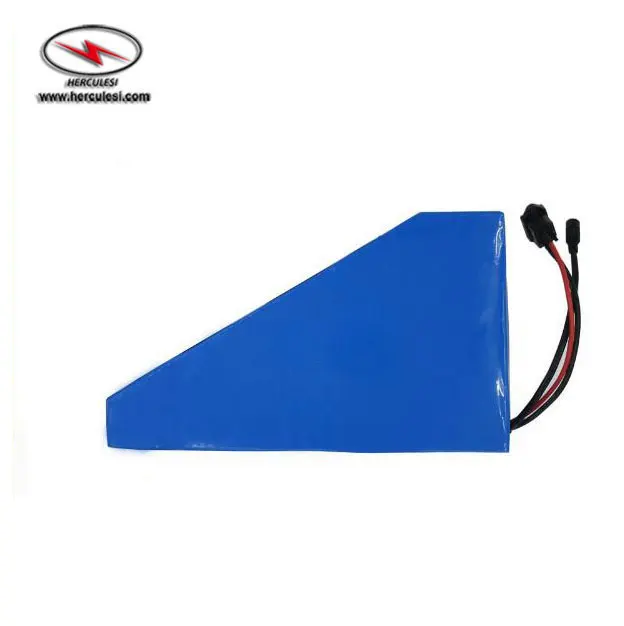

Triangle 3000W E-Bike Battery 72V Lithium Ion Battery Rechargable Battery Pack 25Ah use in Samsung cell
Package include : 1 × 72V 25Ah Lithium Battery Pack ,1 x charger , 1 x bag
Battery Type | 72v 24.5ah triangle battery |
Rated Voltage | 74volt |
Rated Capacity | 24.5Ah |
Source Resistance(mΩ) | ≤40mΩ |
Cell | Cell's type : Samsung 3.7V 3500mAh |
Cell Combination : 20S7P | |
Charge | Charge Mode : CC/CV |
Standard Charge Current : 5A | |
Fast Charge Current : 8A | |
Charge Cutoff Voltage : 84V | |
Charger Type : US,UK,AU,EU plug | |
Discharge | Continuous Discharge Current : 50A |
Peak Discharge Current : 70A | |
Discharge Cutoff Voltage : 56V | |
Working Temperature | Charge Temperature : 0~45°C |
Discharge Temperature : -20~65°C | |
Storage Temperature : 0~35°C | |
Cycle Life | 1000 times |
Fit for Motor | 3600W |
Dimension (L*W*H) | 45*70*90*200*310*350mm |
Weight | NW : 7kgs , GW : 10kgs |
Application | Electric bike triangle style |
Warranty | 1 year |
Package Include | 1 × Lithium Battery Pack 1 × BMS System inside 1 × 4A Charger 1 x triangle bag |
72 Volts
This is a 72v battery designed for big power .Actual voltage is : 74v .
24.5Ah
this is a 72 volt battery so you are actually getting 1800 Watt hours of power capacity.
1800-watt hours means 1.8 kilo watt of energy.
this is a 72 volt battery so you are actually getting 1800 Watt hours of power capacity.
1800-watt hours means 1.8 kilo watt of energy.
Cell
Samsung 3500mAh 3.7V original cells
Samsung 3500mAh 3.7V original cells
50 Amps
This pack has our 50amp continuous BMS with temperature protection built in. While the BMS can do this output it is user's responsibility to keep the discharge at a level in line with the manufacturers discharge specs for a 7 pack, about 50A continuous, 70A peak. For high continuous current applications you need more than one of these packs in parallel.
This pack has our 50amp continuous BMS with temperature protection built in. While the BMS can do this output it is user's responsibility to keep the discharge at a level in line with the manufacturers discharge specs for a 7 pack, about 50A continuous, 70A peak. For high continuous current applications you need more than one of these packs in parallel.
Compatibility
Make sure your controller is capable of handling 72 volts. This battery is 20S which means when at full charge it is at 84 volts.This battery is compatible with any of 3600W motors .
Make sure your controller is capable of handling 72 volts. This battery is 20S which means when at full charge it is at 84 volts.This battery is compatible with any of 3600W motors .

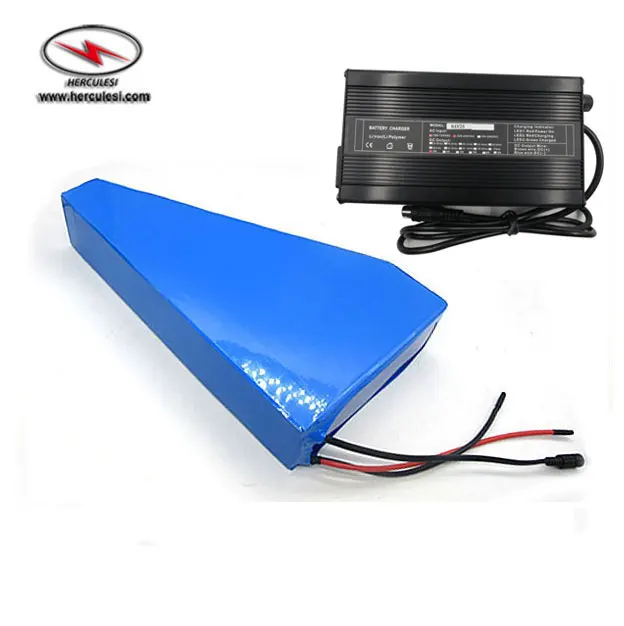

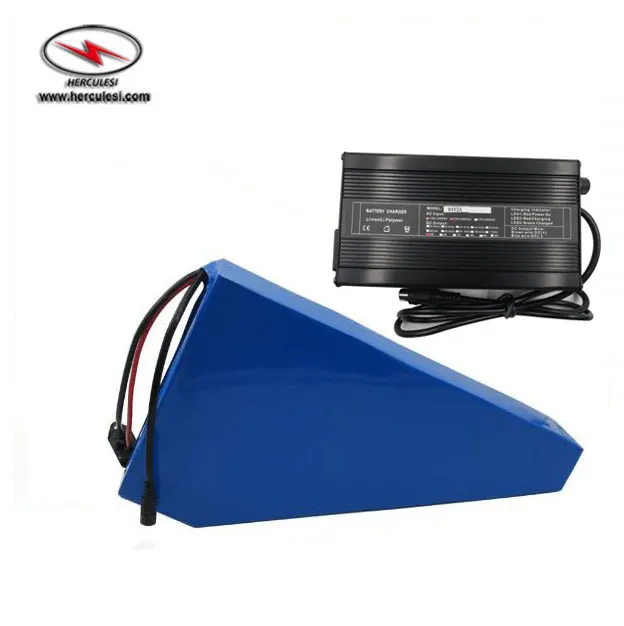

Charger
4A charger comes with a fan , it is Heat dissipation .
4A charger comes with a fan , it is Heat dissipation .
Product Description

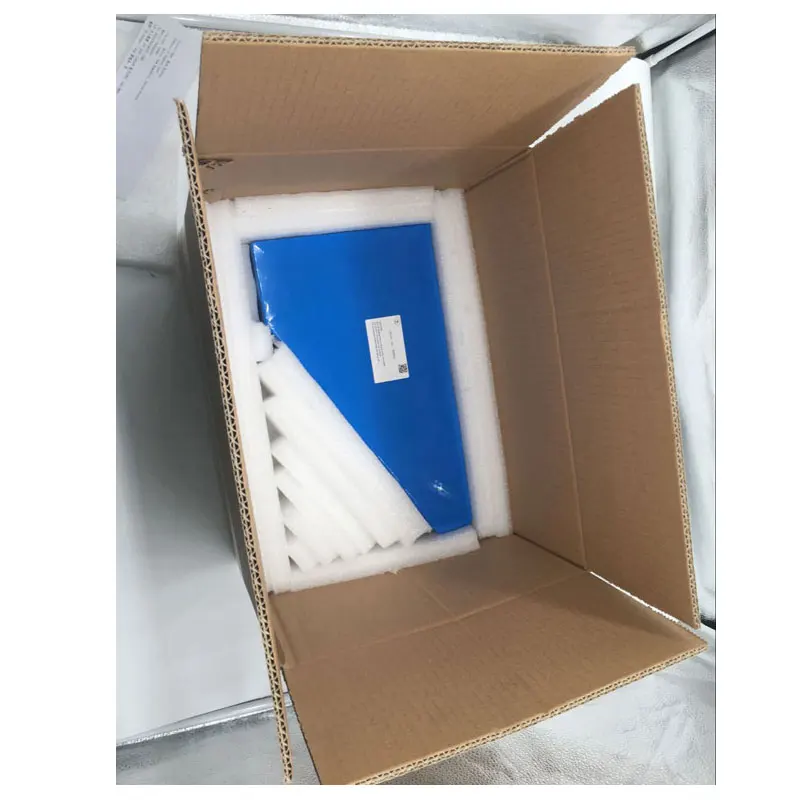

Packing & Delivery
Each / Carton
Package Weight:10KGS
Package Weight:10KGS
FAQ
1. Lead time : usually within 7 days for samples . 10 days for big orders . This is decided by quantity .
2. Shipping time : faster air freight 7 days . slower air freight : 18 days . road : 25 days . train : 50 days . sea : 30 days around .
more questions please contact us .
