Schneider XB4 selector switch 3 positions XB4BD32
- Category: >>>
- Supplier: RST ENTERPRISE CO. LTD.
Share on (60638577101):
Product Overview
Description

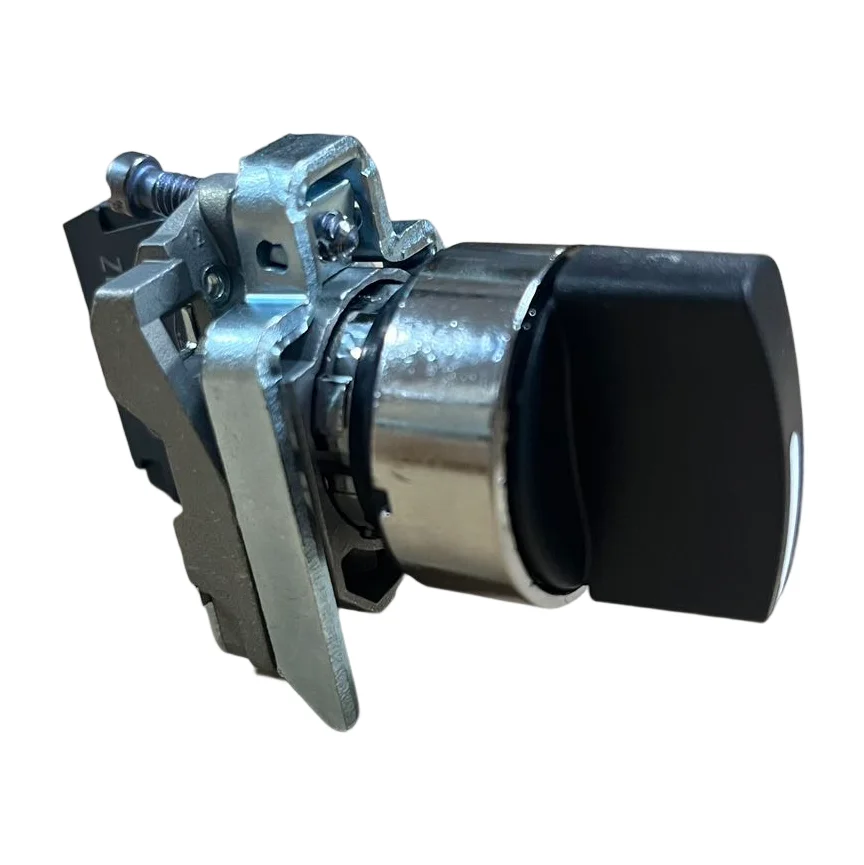

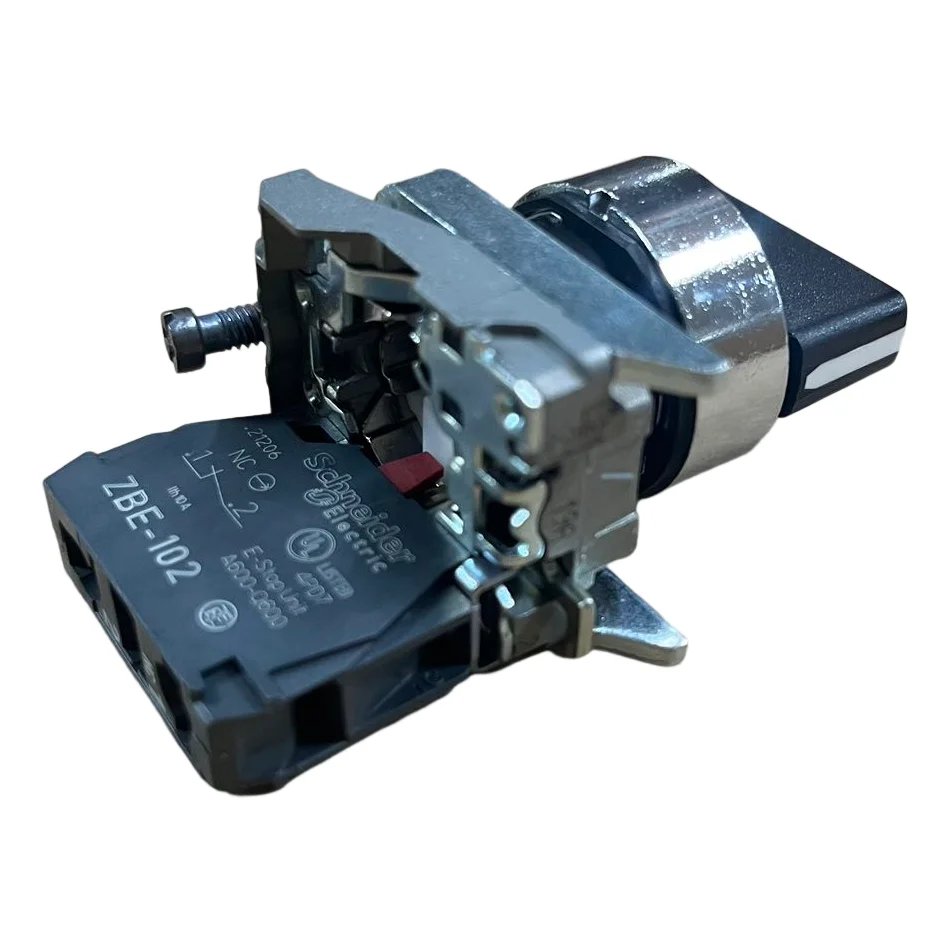

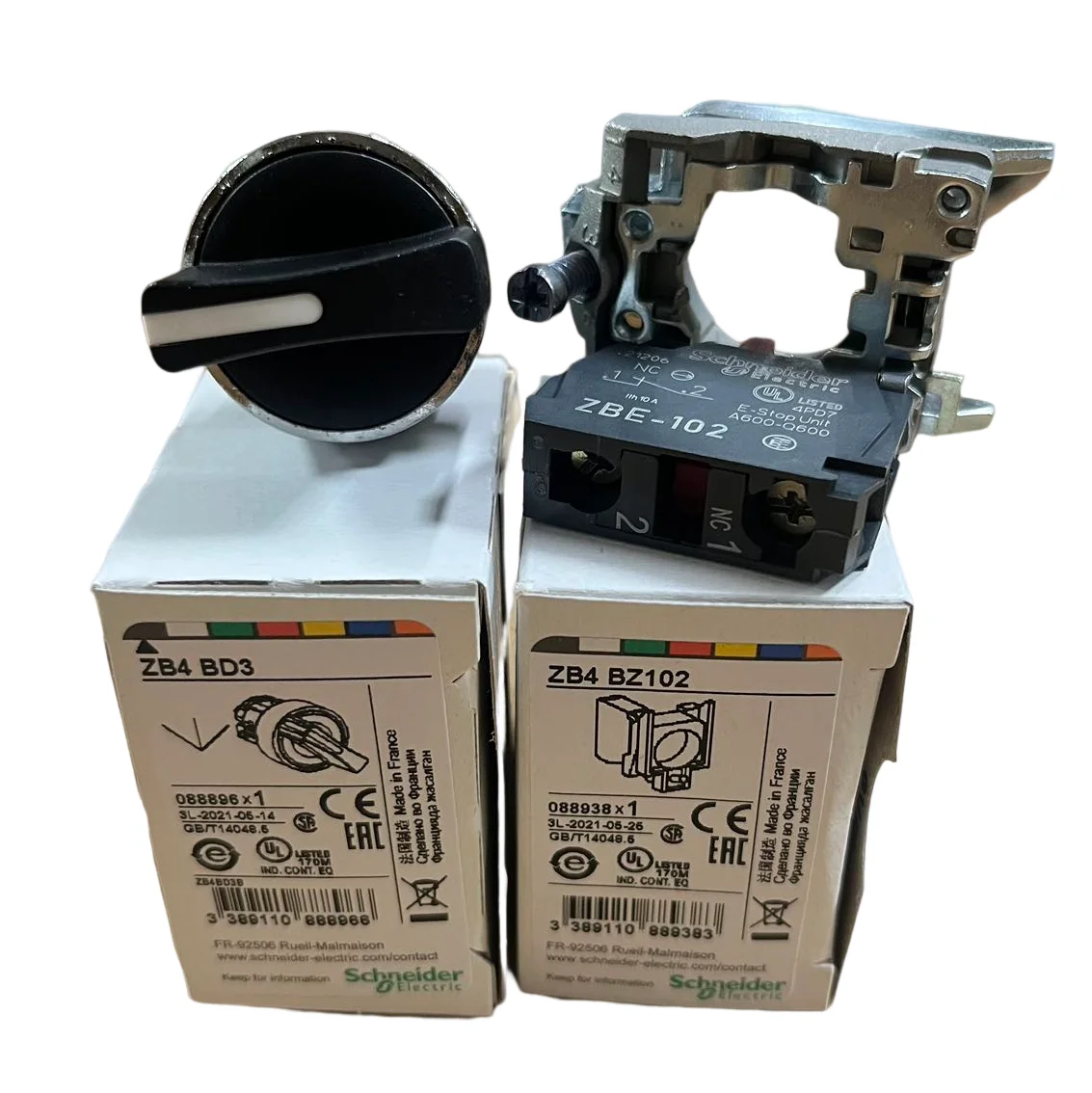

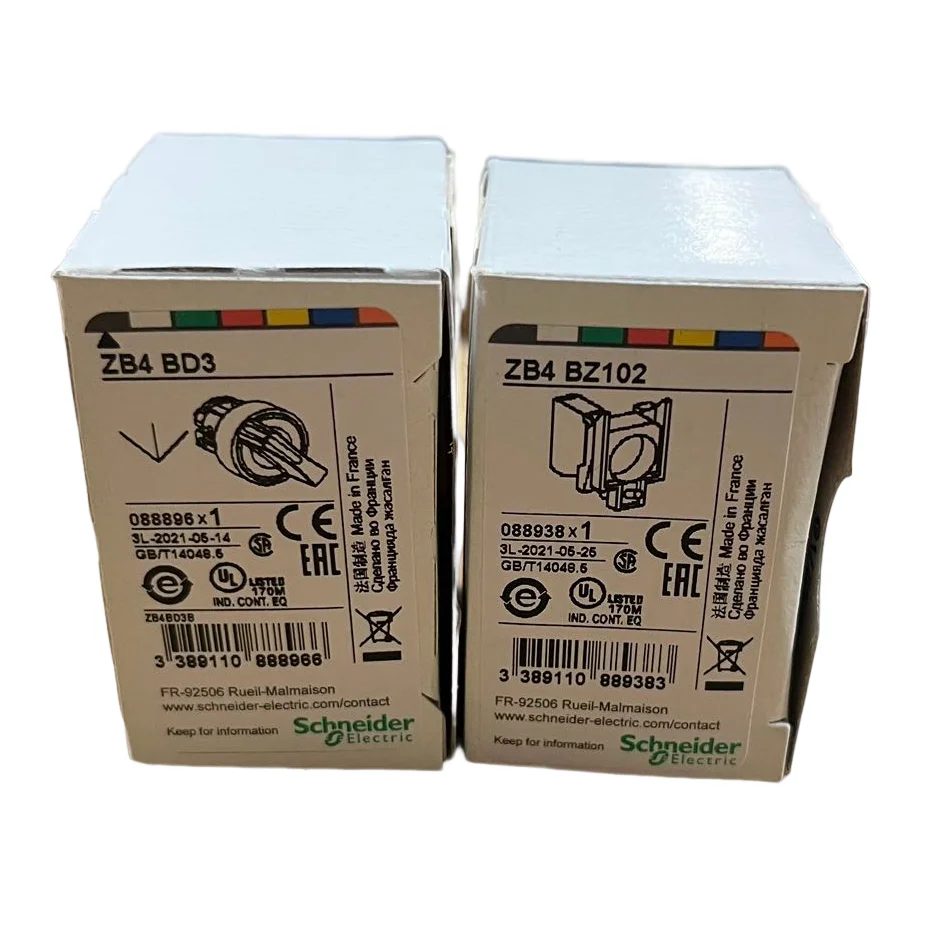

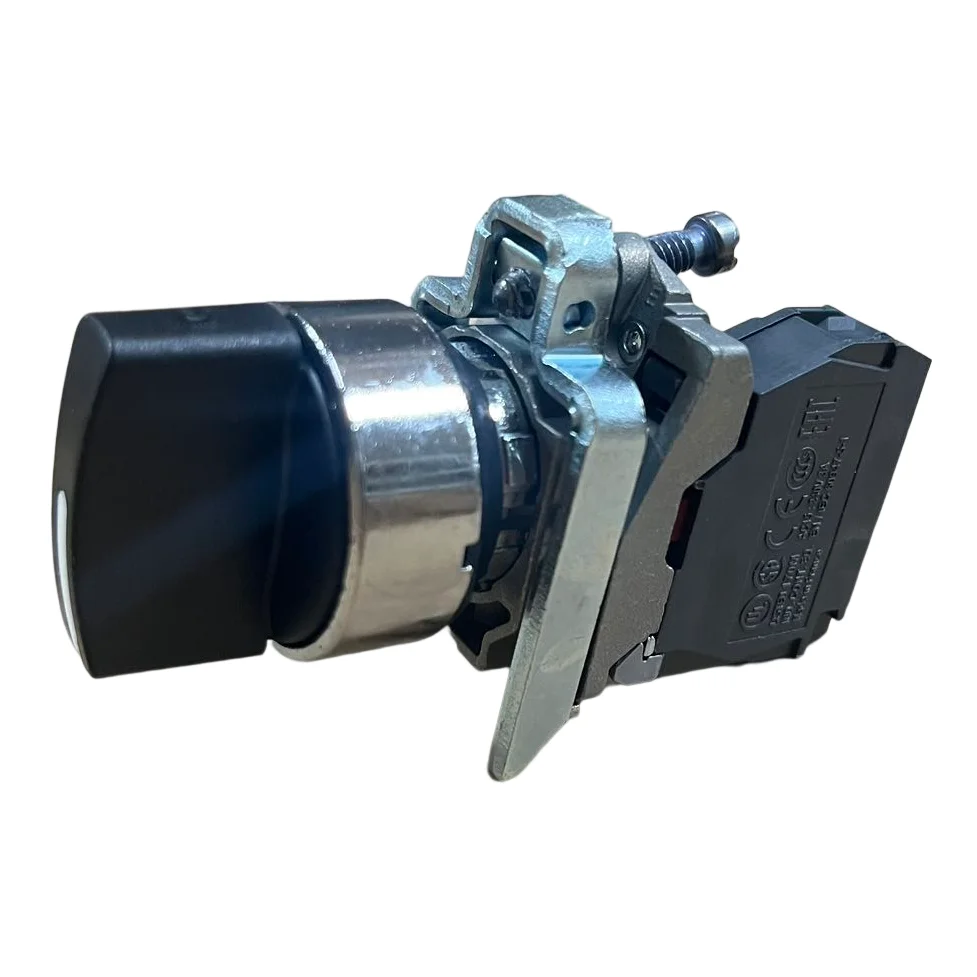

Schneider XB4 pushbutton selector switch,
black, 3 positions, 22mm, XB4BD32
Product Description
>> What are the main features of Schneider XB4 pushbutton selector switch XB4BD32?
Main | |
Product line | Harmony XB4 |
Type of product or component | Selector switch |
Device short name | XB4 |
Bezel material | Chromium plated metal |
Fixing collar material | Zamak |
Mounting diameter | 22 mm |
Sale per indivisible quantity | 1 |
Head type | Standard |
Shape of signaling unit head | Round |
Type of operator | Stay put |
Operator profile | Black standard handle |
Operator position information | 3 positions +/- 45° |
Contact operation | Slow-break |
use of contacts | Standard contacts |
positive break | Without |
Torque value | 0.14 N.m NO changing electrical state |
mechanical durability | 1000000 cycles |
tightening torque | 0.8…1.2 N.m conforming to EN 60947-1 |
screw head shape | Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
contact material | Silver alloy (Ag/Ni) |
overload and short circuit protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
[Ith] outdoor conventional thermal current | 10 A EN/IEC 60947-5-1 |
[Ui] rated insulation voltage | 600 V 3)EN/IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 6 kV EN/IEC 60947-1 |
[Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
Electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA In clean environment as per EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA In clean environment as per EN/IEC 60947-5-4 |
Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
Device presentation | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix CComplete product |
>> What condition of the environment could Schneider XB4 pushbutton selector switch XB4BD32 be used?
Environment | |
Protective treatment | TH |
Ambient air temperature for storage | -40…70 °C |
Ambient air temperature for operation | -40…70 °C |
Electrical shock protection class | Class I conforming to IEC 60536 |
IP degree of protection | IP69 IP69K IP67 conforming to IEC 60529 |
NEMA degree of protection | NEMA 13 NEMA 4X |
Standards | EN/IEC 60947-5-4 UL 508 EN/IEC 60947-5-1 EN/IEC 60947-5-5 JIS C8201-5-1 EN/IEC 60947-1 CSA C22.2 No 14 JIS C8201-1 |
Product certifications | GL UL LROS (Lloyds register of shipping) CSA BV DNV |
Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
>> What is the dimension of Schneider XB4 pushbutton selector switch XB4BD32?
Dimension | |
Depth | 47 mm |
Height | 30 mm |
Width | 68 mm |
Net weight | 0.105 kg |
