Refractory Ceramic Large Zirconia Crucible

Product Overview

Description

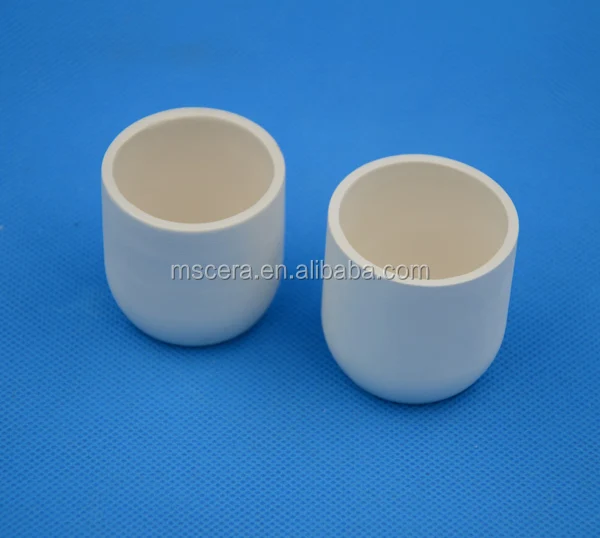

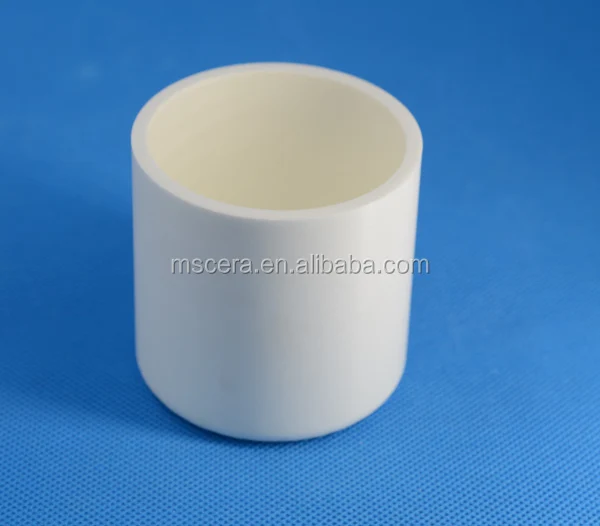

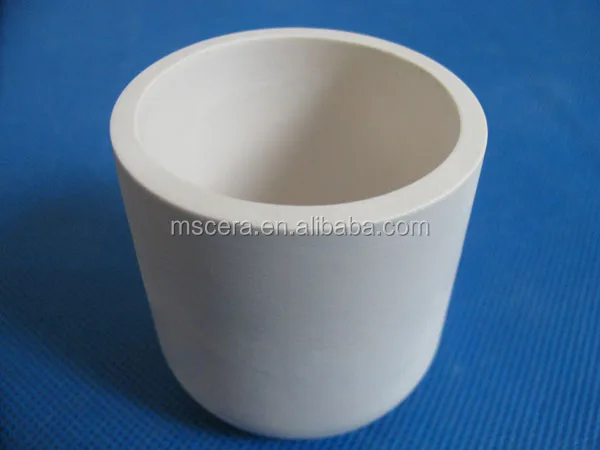

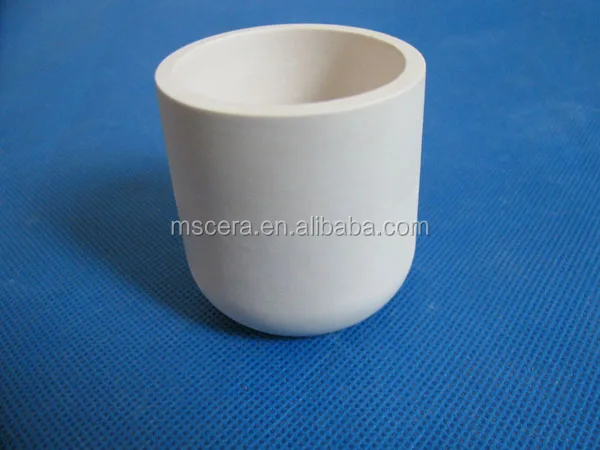

Refractory Ceramic Large Zirconia ZrO2 Crucible/Boat

1.     Zirconia Ceramic Crucible Brief Introduction.

Mission Ceramic supply high quality zirconia ceramic crucible.
Material is yttria fully stabilized zirconia (Y203-ZrO2), other material like Cao-ZrO2, MgO-ZrO2 are available.

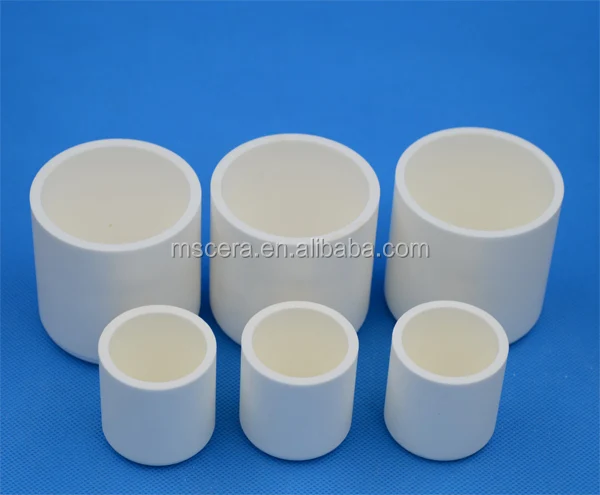

2.    Zirconia Ceramic Crucible Sizes
Mission has been making zirconia crucibles for long time, many sized moulds in stock.
I believe there's one suitable for your application.

Sizes Of Zirconia Crucible
OD (mm)	25	35	40	50	55	60	75	120	120	120
ID (mm)	21	31	35	44	47	52	69	110	114	108
H (mm)	25	35	40	60	150	110	90	60	80	220

For other sizes, please contact with us.



3.       Zirconia Ceramic Crucible Technical Data

Y-FSZ Ceramic Properties
Chemical content	ZrO2	86 wt%
	Y2O3	14 wt%
Physical Properties	Melting point	≥2500℃
	Max. operating temperature	2200℃
	Color	White
	Density	5.8g/cm3
Mechanical properties	Flexural strength	200MPa
	Young’s module	200GPa
	Hardness(HRA)	86
Thermal properties	Thermal expansion coefficient(20℃)	8-10X10-6
	Thermal conductivity	1-2W/mk
Electrical properties	Dielectric constant(1MHz25℃)	12
	Electrical resistivity(25℃)	109



4.  Zirconia Ceramic Crucible  Usage

High temperature container, used for melting precious metal, and metal alloy.



5. Zirconia Ceramic Crucible Package



Wood box padded with foam board.



    6.Zirconia Ceramic Crucible  Advantage:

       1.High purity

       2. zirconia ceramic crucible is made by ISO pressing,  It can be machnined to make a tight tolerance.

       3.Very small and very big sized ones can be made.

       4. Inspection: each single crucible will be checked before shipping.



       5..Low transportation cost: We have long time cooperated shipping agency, which can provide very low prices.



About Our Company

1.Alumina mainly 95% to 99.7% purity.

2.Zirconia,including FSZ and PSZ, Y2O2-ZrO2,CaO-ZrO2,MgO-ZrO2 available.

3.Silicon Carbide, including SiSIC,ReSiC,NSiC,SSiC.

4.Boron Nitride(BN)

5.Ceramic Fiber products,including board,blanket,and bulk fiber.

6.Heaters,mainly Molybdenum Disilicide(MoSi2) and Silicon Carbide(SiC) heaters.



For different ceramic part,we have different processing method,including Casting,Extruding,Tape Casting,Dry pressing and ISO pressing.

If you are interest in any of our products,please let us know.I believe you will like our products and service.
