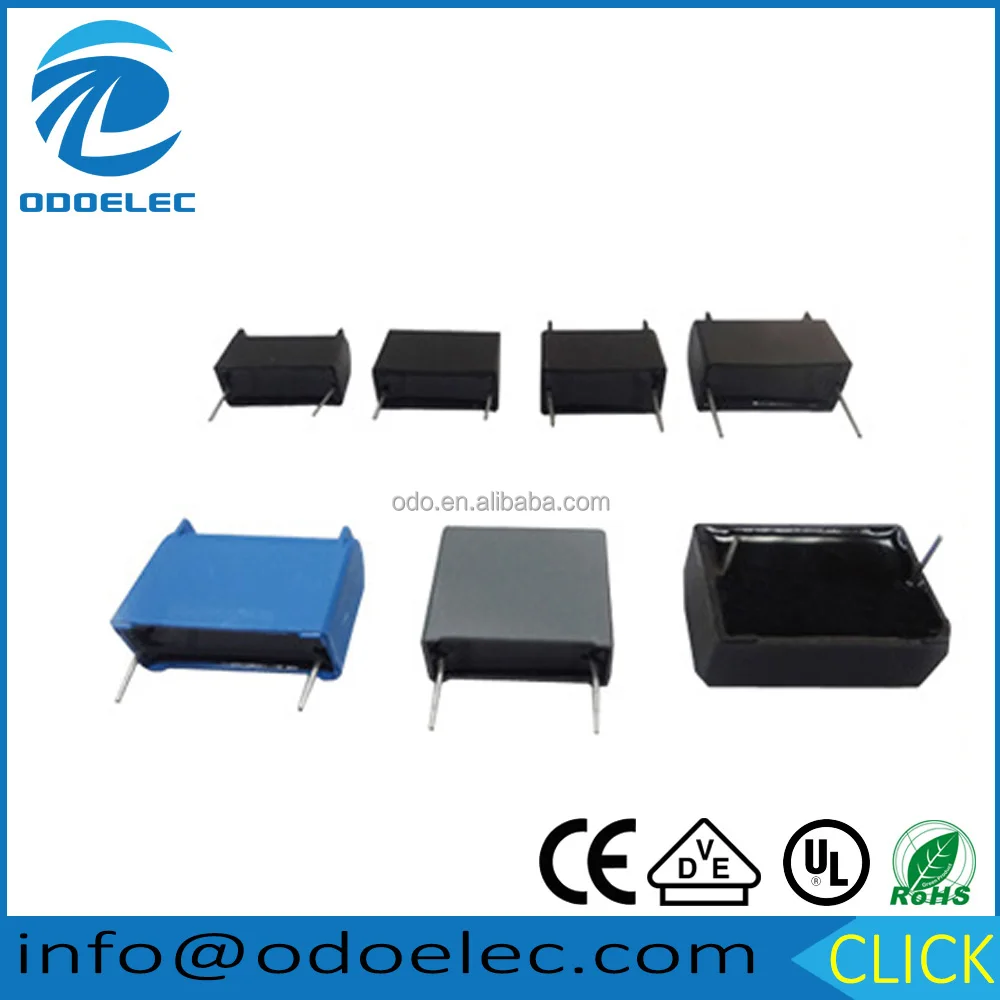

MKP X2 6.8uf 400V DC filtering capacitors for induction cooker

The products are made of metallized polypropylene film, non-inductive construction, encapsulated in a plastic house sealed with epoxy resin.

1) High Stability

2) Low Dissipation Factor

3) Excellent Self- healing Property

4) Good Frequency Characteristics

Used in induction cooker power for DC filtering and DC-link.



Technical data


Climatic Category
40/105/21
Capacitance Range
2~10uf
Rated Voltage
400V .AC
Caoacitance Tolerance
±5%
Dissipation Factor
≤0.001 (at 1khz)
Insulation Resistance
CxRs ≥5000S
Withstand Current Ability
dv/dt>30V/μs
Flammability
UL94V-0
Withstand Voltage
700VDC/10S
Referenced standard
GB/T 17702         IEC61071
