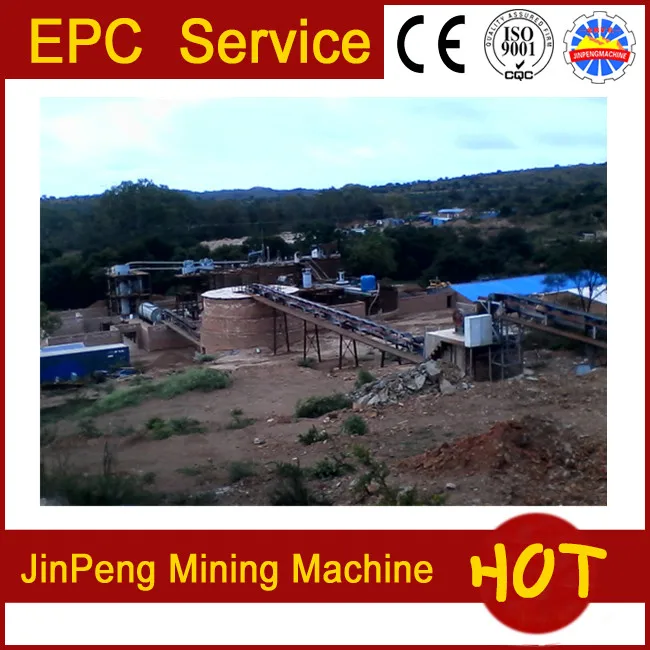

Jinpeng gold CIP production line, gold processing professional EPC contractor
- Category: >>>
- Supplier: Yantai Jinpeng Mining Machinery Co. Ltd.
Share on (60638621996):
Product Overview
Description
Products Description

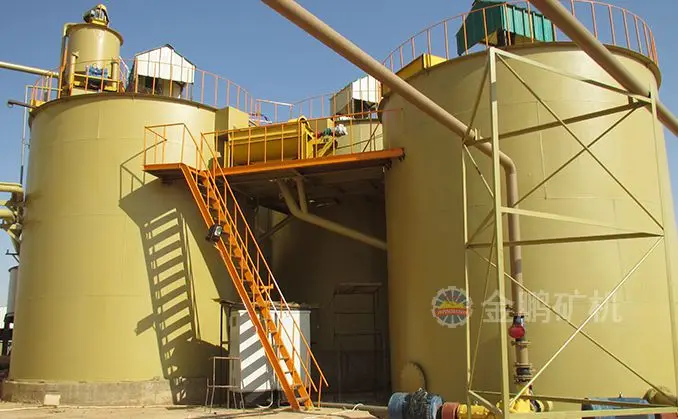

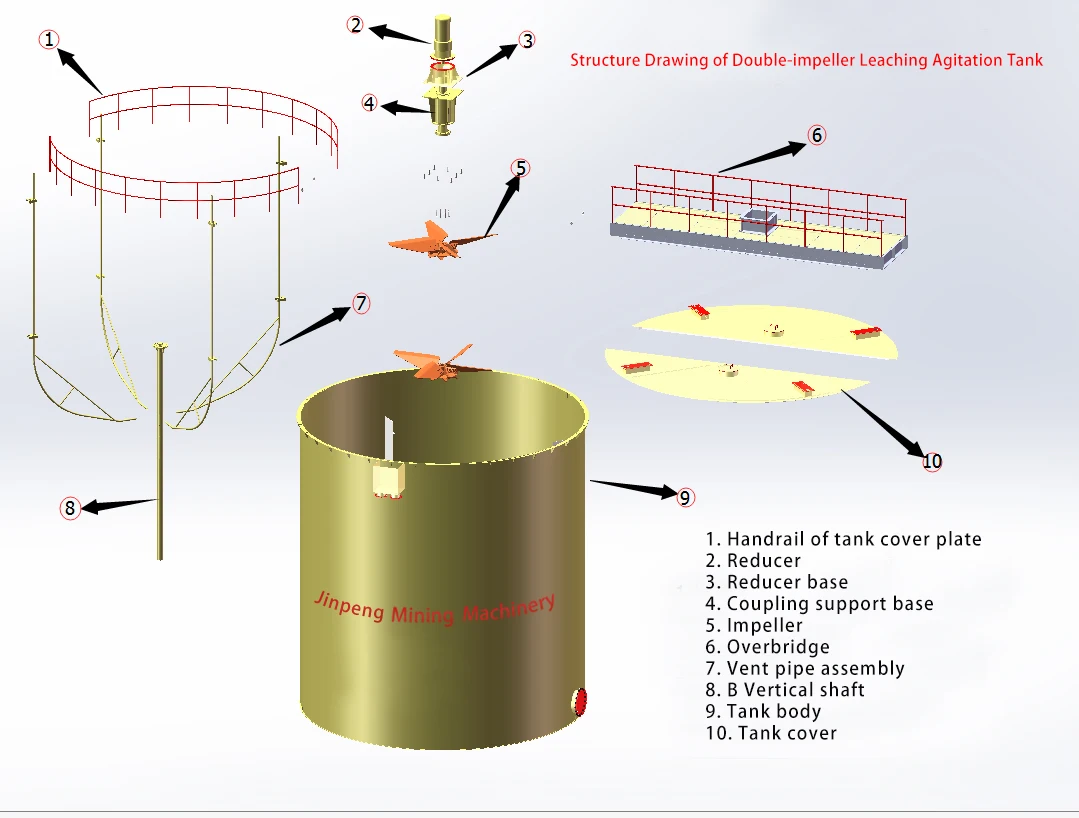

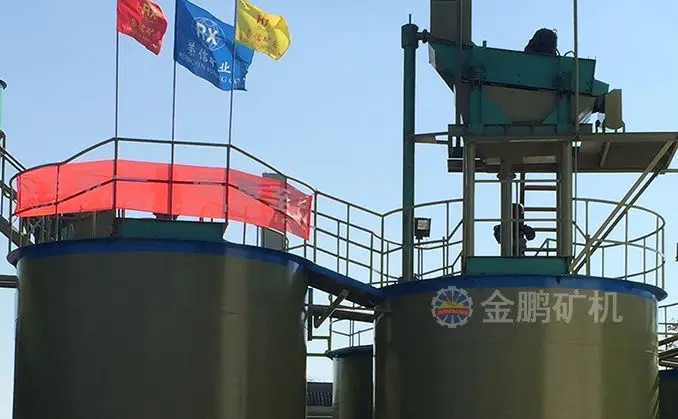

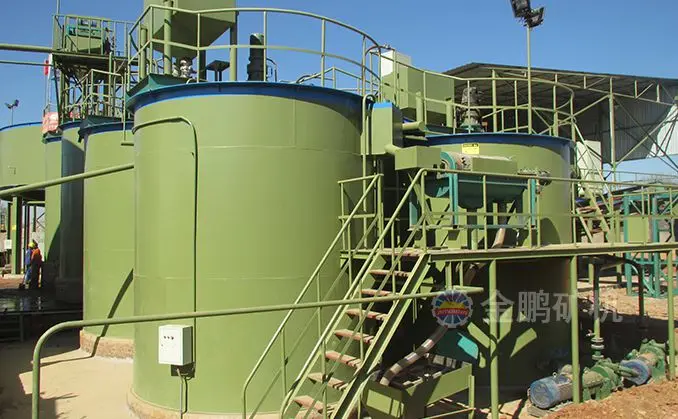

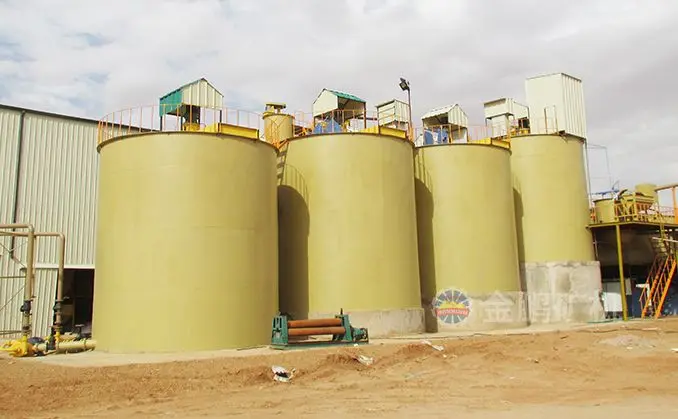

Double impeller leaching stirred tank
Compare double impeller leaching stirred tank with the ordinary mixing tank, it adopts the double impeller, the mixing of pulp can
be more uniform, in terms of energy consumption, the more saving energy. the impeller use wrapping adhesive technology, long service life, moral give in to the gas use is for gas, air evenly.
be more uniform, in terms of energy consumption, the more saving energy. the impeller use wrapping adhesive technology, long service life, moral give in to the gas use is for gas, air evenly.
Effective volume : 6-1740m³
working principle
Scope of application
The proportion of small, low viscosity, sedimentation velocity is slow, ore particle size in 200 yard accounted for more than 90%,pulp density is less than 45% of gold leaching, adsorption and other mixed in.product working principle
Pulp in double impeller and stirring under the action of the drag, the flow in the center from top to bottom, the diffusion of
damping plate, on the lower end of the shaft into the air, and pulp are mixed and upward circulation, forming uniform suspension mixture.
Advantage
The characteristics of the double leaf leaching stirred tank:
1. Ventilation, is surrounded by air to the bottom of the tube or hollow shaft ventilation, make the air through the air tube or hollow shaft into the mixing tank, uniform gas dispersion, small air bubbles.
2. The is a new type of rubber impeller in large diameter, rotational speed is low, long service life.
3. Have very strict control on the stirring intensity, make the concentration of the mixing tank and fineness is consistent with the distribution.To improve the rate of pass in and out of cyanide and carbon adsorption rate.
company for pneumatic system, air lift system, carbon carbon isolation system for the structure optimization and improvement.Ore flow smooth movement, pulp mixing, less power consumption, thereby reducing the wear of carbon.Compact structure, convenient maintenance.Development of maximum diameter of more than 10 m leaching tank specification, also continue to improve structure and performance.
1. Ventilation, is surrounded by air to the bottom of the tube or hollow shaft ventilation, make the air through the air tube or hollow shaft into the mixing tank, uniform gas dispersion, small air bubbles.
2. The is a new type of rubber impeller in large diameter, rotational speed is low, long service life.
3. Have very strict control on the stirring intensity, make the concentration of the mixing tank and fineness is consistent with the distribution.To improve the rate of pass in and out of cyanide and carbon adsorption rate.
company for pneumatic system, air lift system, carbon carbon isolation system for the structure optimization and improvement.Ore flow smooth movement, pulp mixing, less power consumption, thereby reducing the wear of carbon.Compact structure, convenient maintenance.Development of maximum diameter of more than 10 m leaching tank specification, also continue to improve structure and performance.
Product Paramenters
Model | Tank specifications（mm） D×L | Effective volume（m³） | Impeller speed (r.p.m) | Impeller Diameter (mm) | Motor model | Motor power (kw) | Tank Weight (kg) | Total weight (kg) |
SJ2.0×2.5 | 2000×2500 | 6 | 52 | 909 | XLD2.2-4-29 | 2.2 | 2144 | |
SJ2.5×3.15 | 2500×3150 | 13.14 | 52 | 935 | XLD2.2-4-29 | 2.2 | 2242 | 3095 |
SJ3.0×3.0 | 3000×3000 | 18 | 40.85 | 1130 | XLD4-5-35 | 4 | 2802 | 4161 |
SJ3×3.15 | 3000×3150 | 18.93 | 43 | 1130 | XLD4-5-35 | 4 | 3331 | 4323 |
SJ3.15×3.55 | 3150×3550 | 24 | 43 | 1260 | XLD4-5-35 | 4 | 3391 | 4583 |
SJ3.5×3.5 | 3500×3500 | 30 | 52 | 1310 | XLD5.5-5-29 | 5.5 | 4286 | 5025 |
SJ3.5×4.0 | 3500×4000 | 32.7 | 41 | 1310 | XLD5.5-5-29 | 5.5 | 4631 | 5429 |
SJ3.55×4.0 | 3550×4000 | 33.6 | 43 | 1310 | XLD4-5-35 | 4 | 4860 | 5825 |
SJ3.7×4.2 | 3700×4200 | 38.4 | 42 | 1310 | XLD4-5-35 | 4 | 5058 | 6153 |
SJ4.0×4.0 | 4000×4000 | 38 | 35 | 1750 | XLD7.5-7-43 | 7.5 | 6056 | 7450 |
SJ4.0×4.5 | 4000×4500 | 48 | 35 | 1750 | XLD7.5-7-43 | 7.5 | 6106 | 7569 |
SJ4.5×5.0 | 4500×5000 | 71.57 | 35 | 1750 | XLD7.5-7-43 | 7.5 | 7506 | 10864 |
SJ5.0×5.6 | 5000×5600 | 98 | 31 | 2046 | XLD11-8-47 | 11 | 10483 | 14291 |
SJ5.5×6.0 | 5500×6000 | 112 | 31 | 2100 | XLD11-8-47 | 11 | 14209 | 18745 |
Φ6×6.5 | 6000×6500 | 170 | 24.9 | 2300 | XLD18.5-9-35 | 18.5 | 16164 | 21006 |
Φ6.5×7 | 6500×7000 | 215 | 23 | 2400 | XLD18.5-9-43 | 22 | 17190 | 25567 |
Φ7.0×7.5 | 7000×7500 | 245.4 | 21 | 2400 | XLD22-10-47 | 22 | 22091 | 30486 |
SJ7.5×8.0 | 7500×8000 | 268.6 | 21 | 2900 | XLD22-10-47 | 22 | 26958 | 34365 |
SJ8.0×8.5 | 8000×8500 | 342 | 16.4 | 3200 | Y250M-8 | 30 | 33489 | 42468 |
Φ8.5×9 | 8500×9000 | 395 | 18.5 | 3300 | Y250M-8 | 30 | 36696 | 46623 |
Φ9.5×10 | 9500×10000 | 648 | 16.6 | 3750 | Y280S-8 | 37 | 46261 | 59786 |
Φ10.5×11 | 10500×11000 | 900 | 13.28 | 4400 | Y315S | 55 | 56888 | 72647 |
Φ11.5×12 | 11500×12000 | 1190 | 12.1 | 4600 | Y315M-8 | 75 | 67669 | 95669 |
Φ12×13 | 12000×13000 | 1414 | 13.4 | 4600 | Y315L1-8 | 90 | 88418 | 120635 |
Φ13×14 | 13000×14000 | 1740 | 10.7 | 5200 | JR125-8 | 110 | 113669 | 148666 |
Success cases
Recommend Products
Packaging & Delivery
We makes a classification package plan for all the kinds of equipments and materials. Transport the goods to Chinese port in batches, handle the procedure.
Company Information
JINPENG GROUP has more than 30 years experience in mining design and equipment manufacture. We can provide one-stop service that including research, design, manufacture, installation and commissioning, personnel training, after-sale service and management of dressing plant.
Mineral processing and smelting research institute
Our Mineral processing and smelting research institute has undertaken thousands of experimental research projects in various minesat home and abroad. In particular, nearly one hundred scientific tests have been carried out on the mines with low grade and refactory ore. The institute now has more than 30 processing, research and development personnel. and possesses national leading
technology in gold research
technology in gold research
Meanwhile, we obtained a number of scientific research achievements ,in recent years, we also made a major breakthrough in the field of non-metallic, particularly in fluorite ore, graphite ore, quartz, sodium potassium feldspar ore dressing research, which obtained a number of proprietary technology.
Our Metallurgical Design and research institude owns the professional qualifications of metallurgical industry issued by Ministry of construction. Since its establishment, the company has completed hundreds of mine engineering design projects, and won the national excellent engineering design awards many times. President xu baohua once served as the chief designer of the largest gold mine in Asia - zhongkuang gold industry (lingnan gold mine), the mine has advanced design technology, reasonable equipment selection, with the characteristics of saving investment and quick capital recovery. In recent years, based on the domestic market,at the same time, the design institute has also gone abroad by designing for hundreds of mineral processing plants in more than 40 countries , which is well received by users
Our Metallurgical Design and research institude owns the professional qualifications of metallurgical industry issued by Ministry of construction. Since its establishment, the company has completed hundreds of mine engineering design projects, and won the national excellent engineering design awards many times. President xu baohua once served as the chief designer of the largest gold mine in Asia - zhongkuang gold industry (lingnan gold mine), the mine has advanced design technology, reasonable equipment selection, with the characteristics of saving investment and quick capital recovery. In recent years, based on the domestic market,at the same time, the design institute has also gone abroad by designing for hundreds of mineral processing plants in more than 40 countries , which is well received by users
Laborotaries
EXHIBITIONS
Jinpeng participate in various exhibitions frequently,such as China Gold Congres,China Import and Export Fair , Mining EXPO CHINA,Asia-pacific's International Mining Exhibition, Mine Entra Zimbabwe CONEXPO Morocco, etc.
