Термостат MC ksd301g для сушки одежды, Термостат 150c, термостат с сертификатом UL TUV CB CQC
- Category: Other Home Appliance Parts >>>
- Supplier: Foshan Kehua Electric Appliance Co. Ltd.
Share on (60638707682):
Product Overview
Description
Product Description

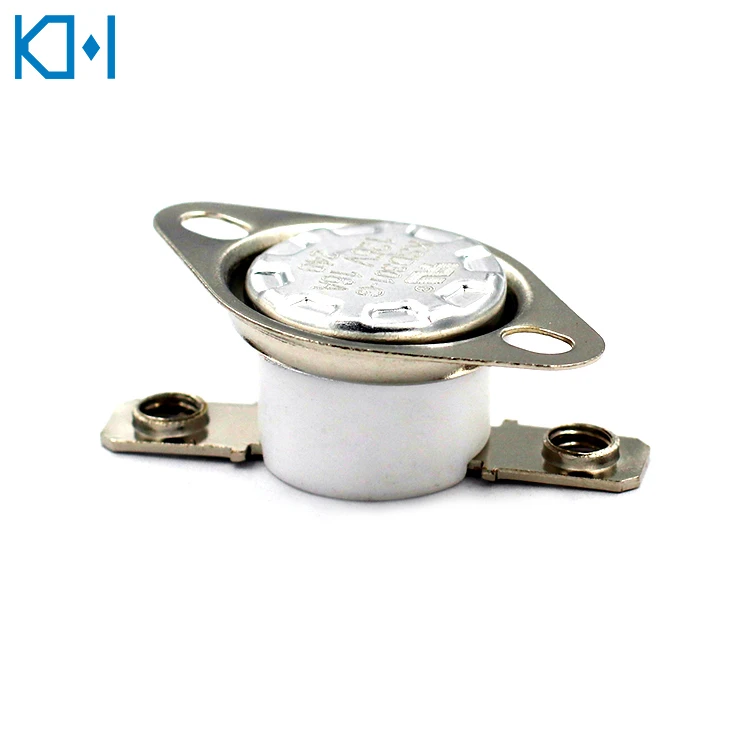

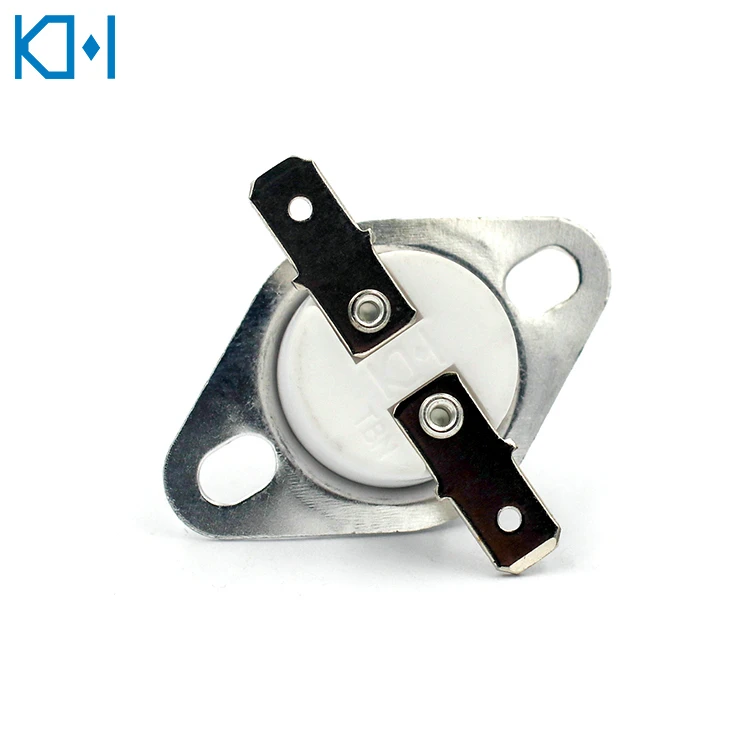

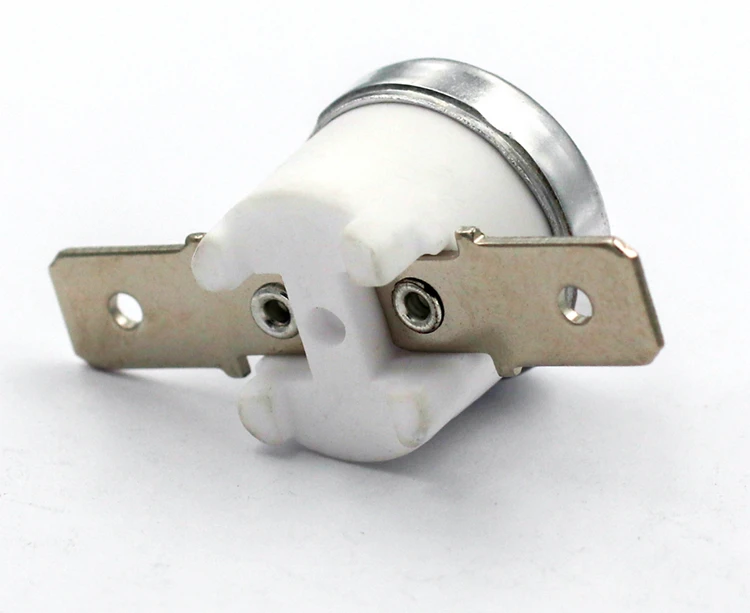

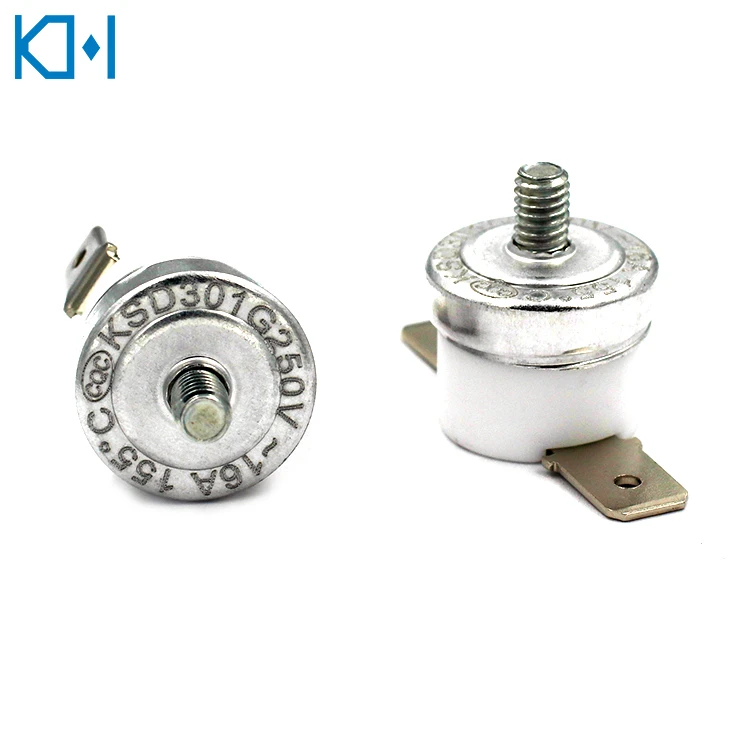

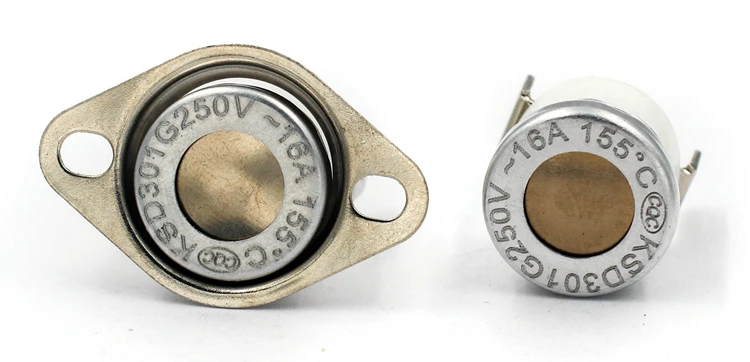

ksd301g Termostato Clothes Dryer Thermostat UL TUV CB CQC Certificate
description
KSD301 series snap-action use in a great variety of small home appliances, such as portable icebox, to provide temperature control or temperature protection. This can be divided into 7 sub-series: KSD301,KSD301R,KSD301G,KSD301GR,KSD301-SG,KSD301R-M,KSD301,GR-M
SAFETY CERRIFICATE
| Type | Max.Operating values | Rated vlotage | Rated current | Life |
| KSD301 SERIES | 185℃ | 250VAC | 5A,10A,16A | 100,000 cycles |
| KSD301R SERIES | 185℃ | 250VAC | 5A,10A,16A | 10,000 cycles |
| KSD301G SERIES | 270℃ | 250VAC | 5A,10A,16A | 100,000 cycles |
| KSD301GR SERIES | 270℃ | 250VAC | 5A,10A,16A | 10,000 cycles |
| KSD301R-M SERIES | 185℃ | 250VAC | 5A,10A,16A | 10,000 cycles |
| KSD301GR-M SERIES | 270℃ | 250VAC | 5A,10A,16A | 10,000 cycles |
UL CERRIFICATE
| Type | Max.Operating values | Rated vlotage | Rated current | Life |
| KSD301 SERIES | 150℃ | 125VAC | 5A,10A,16A | 100,000 cycles |
| KSD301-R SERIES | 150℃ | 125VAC | 5A,10A,16A | 10,000 cycles |
| KSD301-G SERIES | 240℃ | 125VAC | 5A,10A,16A | 100,000 cycles |
| KSD301-GR SERIES | 240℃ | 125VAC | 5A,10A,16A | 10,000 cycles |
| KSD301-SG SERIES | 160℃ | 125VAC | 5A,10A,16A | 100,000 cycles |
Dimension of bimetal thermostat
Terminals and covers(COVER CODE AND THER SKETCH)
THERMINAL
FAQ
*TERMINALS AND COVERS OF BIMETAL THERMOSTAT CAN BE CUSTOMIZED UNDER YOUR REQUEST. PLEASE REFER TO OUR SPECIFICATION. WELCOME TO OUR WEBSITE TO GET MORE INFORMATION ABOUT BIMETAL THERMOSTATS.
