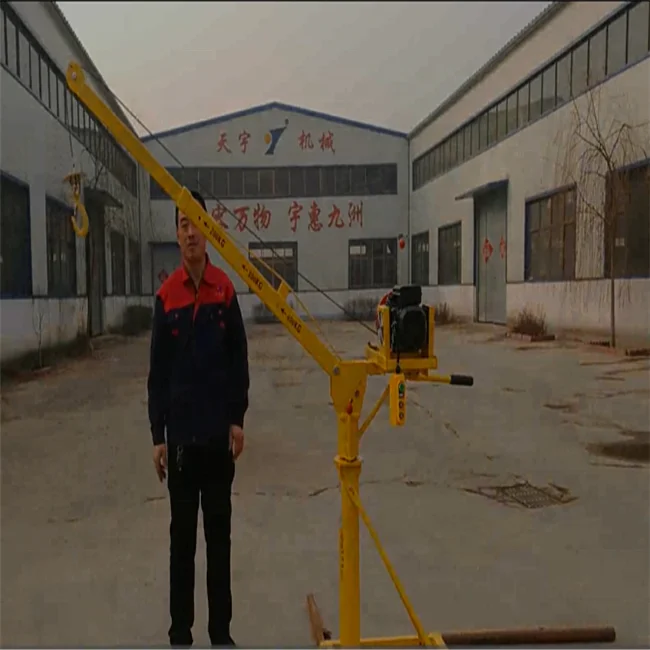

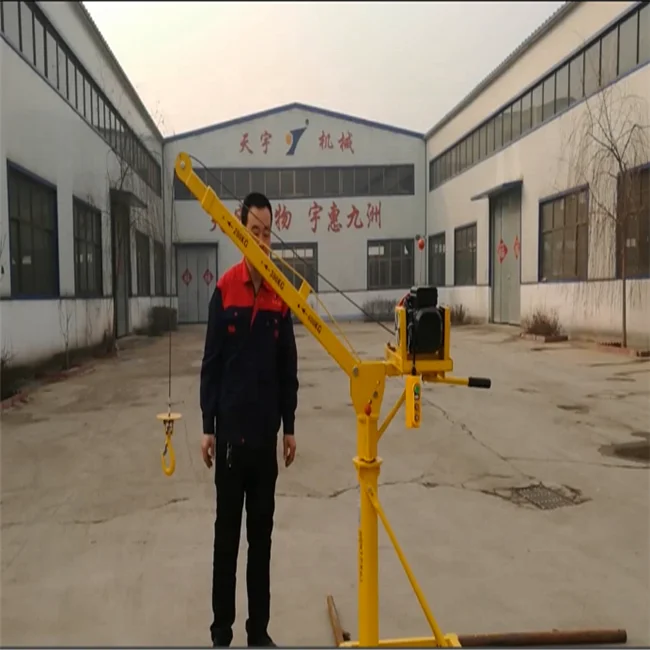

       New Design Small Construction Lift Pulley Crane Portable Floor Crane

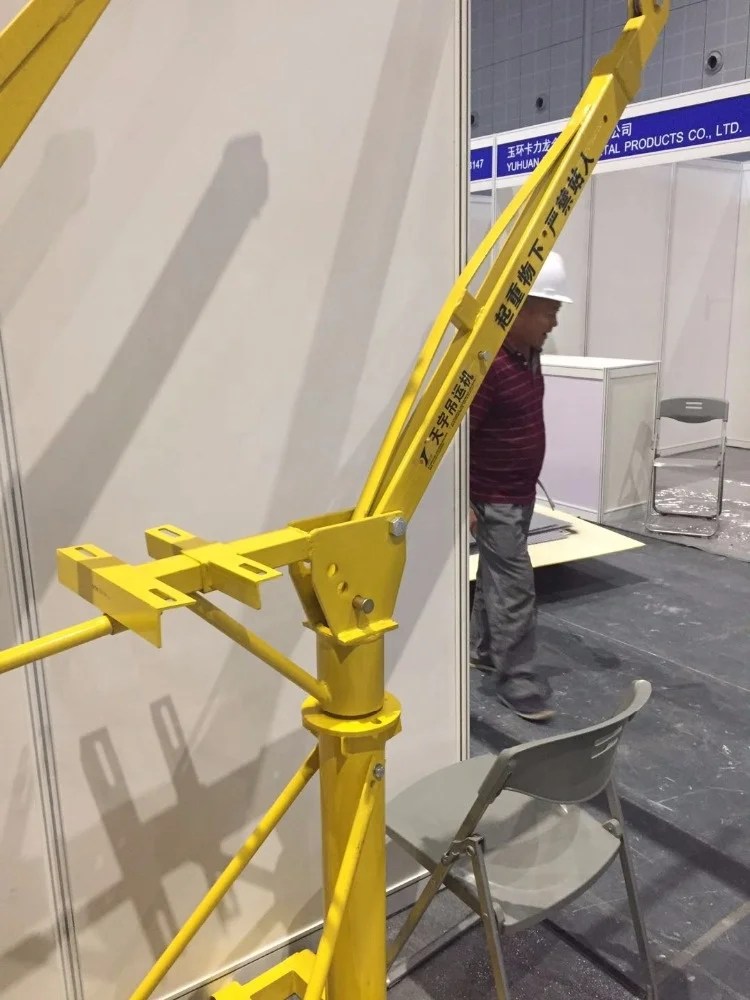

      This type crane was design based on 08-type, the rotating arm was innovation designed and brought their own adjustment holes which could adjust the up angle .The rotating arm with scaling function which could adjust the length of rotating arm.
Notes:


Advantages
Detailed  Specifications

1.
Roating arm was increased the new design which can adjust the up angle degree,the bearing wheel which the top of the roating arm heights range  1.7m-2.5m off  the ground,It is  versatile and easy to control.
2.
This type adds to extending and contracting  function,it can  increase the effective parallel distance  when you adjust the rotating arm,the effective distance is  able to reach 1.7m.
3
Telescopic jib used international standard square tube 60mm*60mm*3.5mm,firm and durable ,long working time.
4
The rotating arm could install on the round column column immediately.easy to install and take down
5.

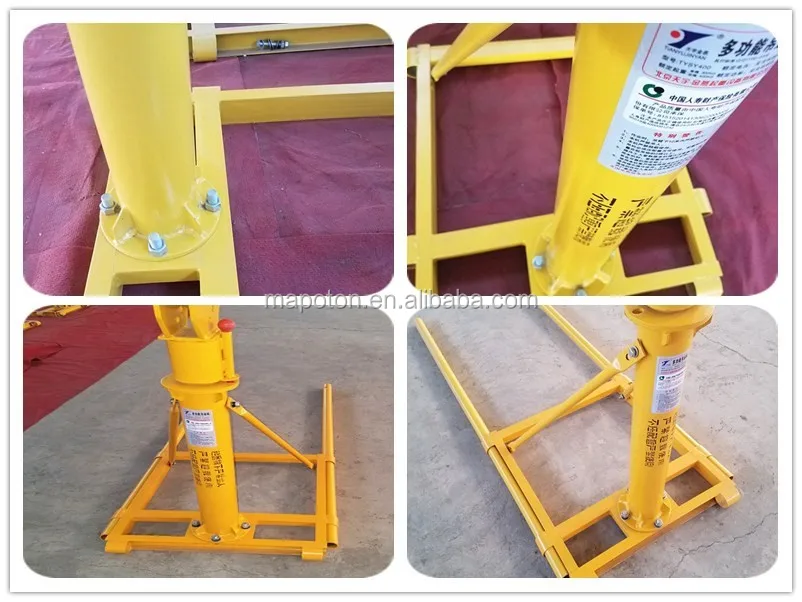

The round column  was made of international tube 110*3.5mm.The factor of safety is high.
6.
The rotating arm with automatic positioning system,effectively prevents the rorating arm wagging,improves the factor of safety.
7
The rotating arm with handrail which operates more conveniently
8
The shelf was welded firmly and  surface adopts electrostatic spraying

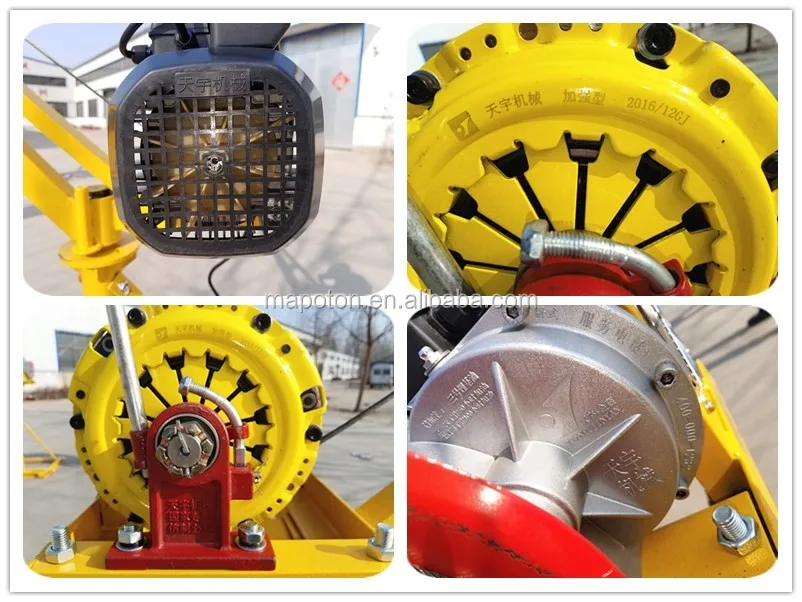

Detailed Images


Production Description of the New Design Small Construction Lift Pulley Crane Portable Floor Crane






Voltage
220v-380v or Customized
Power
1.35/1.85/2.3/1.5/1.8/3.0kw
Loading Weight
250-550kg
Lifting Speed (m/min)
12/13/15/20/24/36m
Length of the Steel Wire(m)
25m or customized

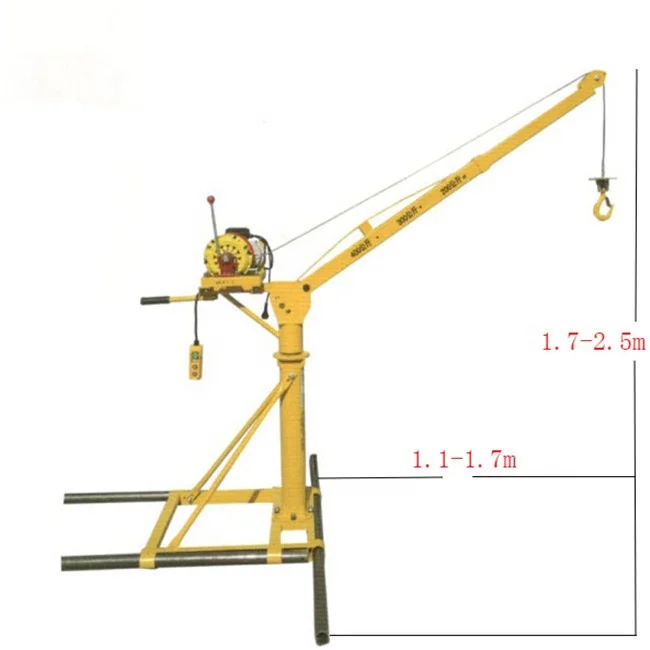

horizontal distance(m)
1.1m-1.7m
vertical distance(m)
1.7m-2.5m
Diameter of steel Wire Rope(mm)
oily airline steel rope 6.0/7.7mm
Package Size(mm)
500*250*280mm
630*350*350mm
The weight of the  main electic winch(kg)
35kg/38kg/50kg/52kg/56kg


Product Data

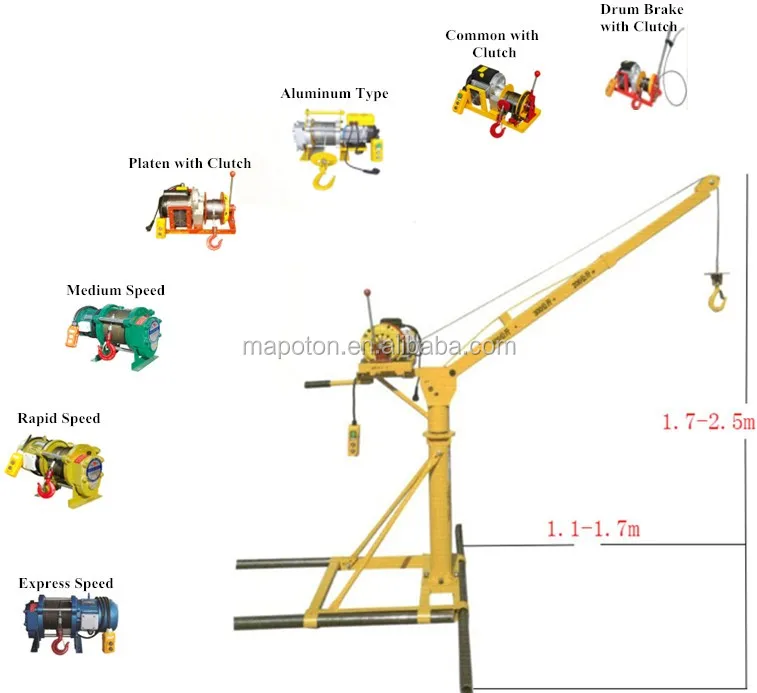

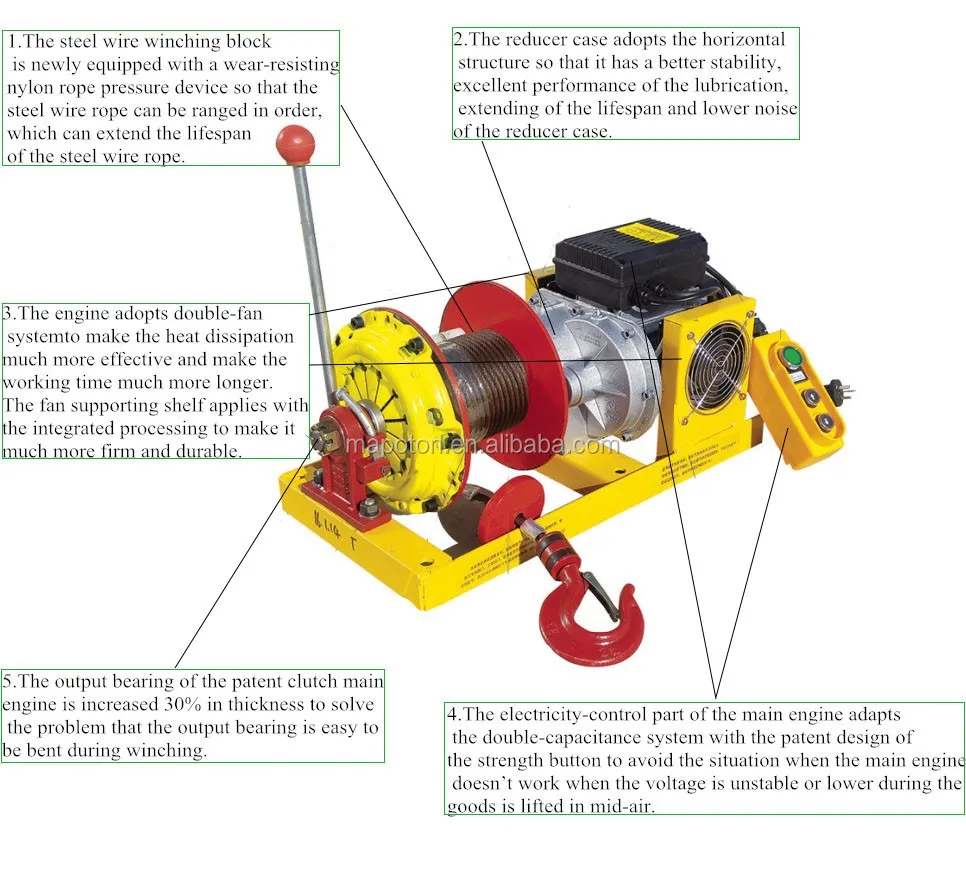

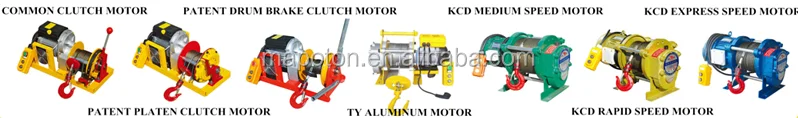

  Match The Electric  winch  for The Crane:

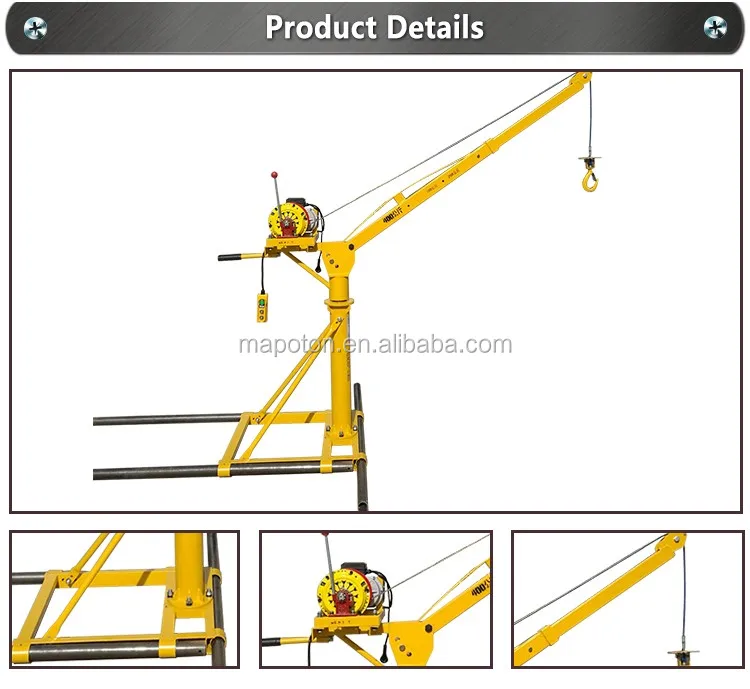

Product Details of the Portable Crane



Product Name
New Design Small Construction Lift Pulley Crane Portable Floor Crane
H.S Code
8426990000


Warranty of The Crane
1,12 months guarantee for the main part of the  electric winch.
2 ,We provide free maintenance  for spare parts,but the new components replaced               should be paid.
3 ,Delivery with English version user manual,parts manual,test certificates,class certificate and all other related documents.
4,Technique support within 24 hours response .




For Customer
1,Loading Capacity?(kg)
2,Working Speed?(m/min)
3,Wire rope length?(m)
4,Power Supply?(110v-460v)or customized.
5,Where does it use?
6,What does the winch use for ?(for horizontally pulling or vertically lifting?)
7,QTY?(Set)
8,FOB CFR CIF price?(If need ,Please tell us your nearest destination port)
9,Any other special demands?


Our Company




Customer Visit

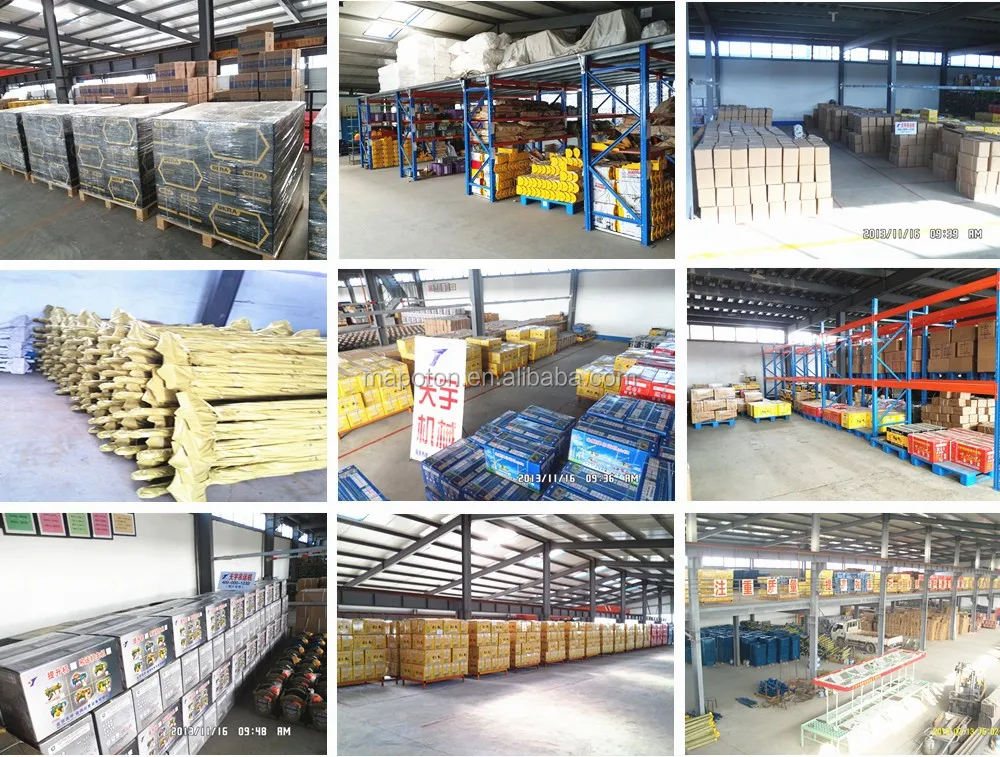

Packing & Delivery








FAQ


1.Q:MOQ?
A:One set is ok.
2.Q:Can you accept payment terms?
 A:T/T,L/C,Western union,Paypal,Escrow,Trade assurance,Credit card,etc.
3.Q:Delivery time?
A:If in stock,1~3 days;If not in stock,normal 5~15 days ;
4.Q:Can you provide OEM/ODM?
A:Allowed OEM/ODM;
5.Q:Warranty?
A:One year for the whole machine .
6.Q:Do your products can be customized?
A:Yes,our all kinds of electric winch can be customized design according to each client's demands.
7.Q:What kinds of certificates about your products?
A:Normally,we have CE,BV,SGS,CUTR certificates,of course our products make some other certificates according to our clients' specific requirements.
8.Q:What kinds of winch you can offer?
A:We can produce construction winch,marine winch,mine winch, sinking winch,hydraulic winch,diesel winch,etc.
