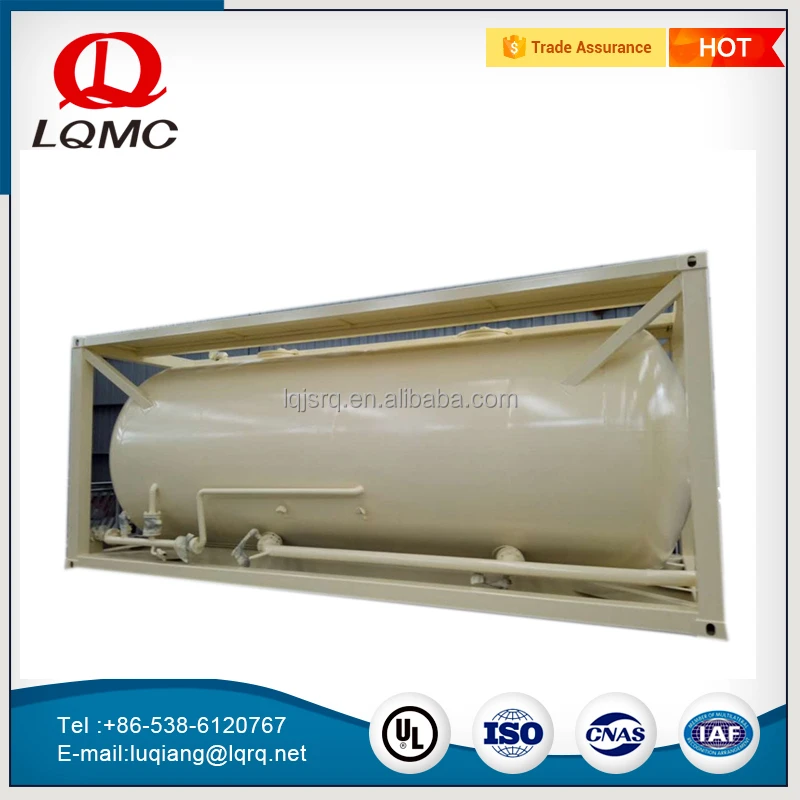

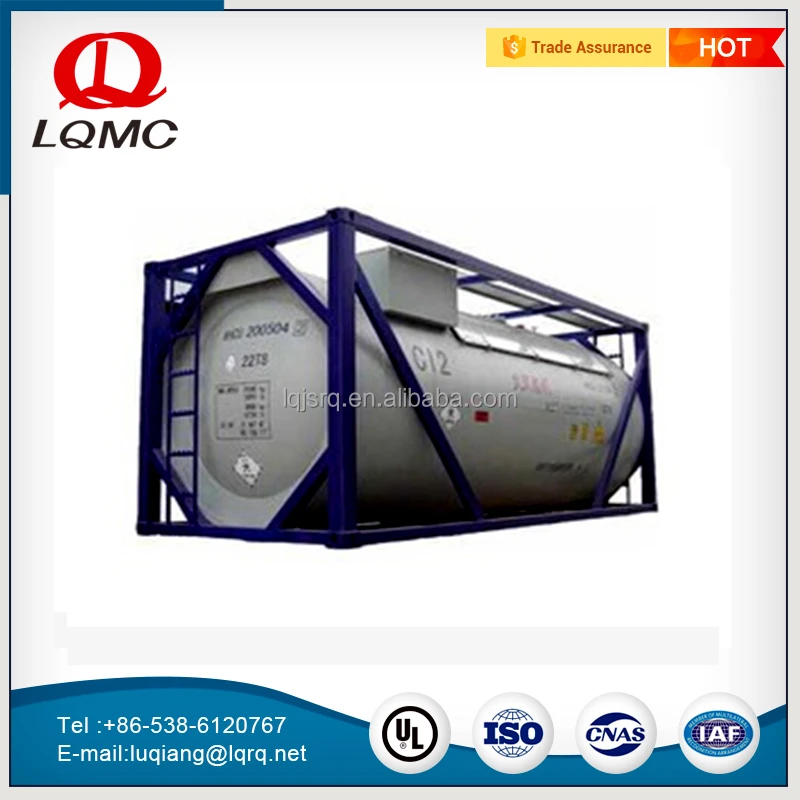

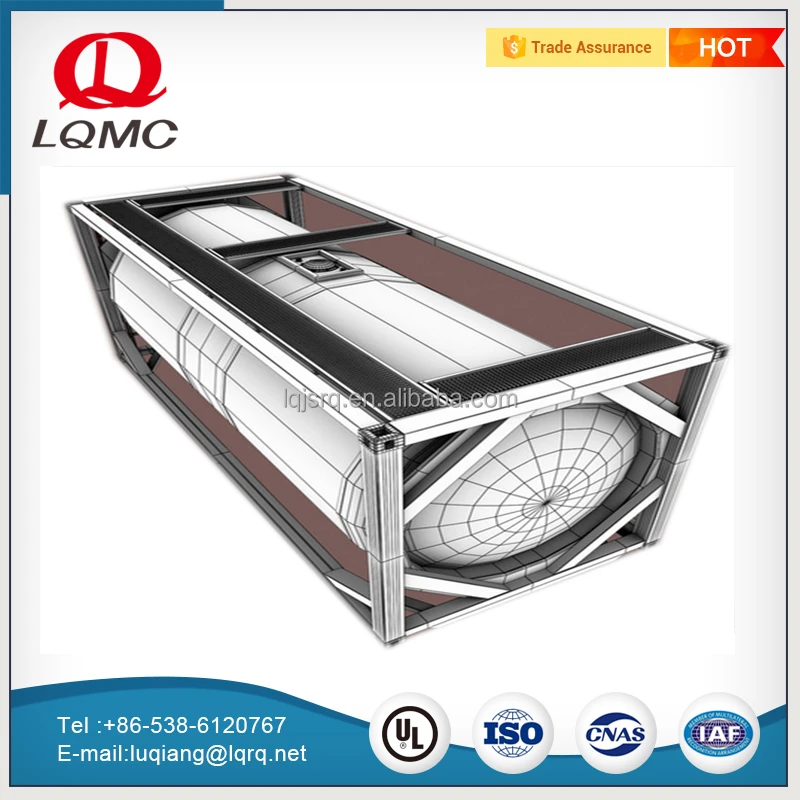

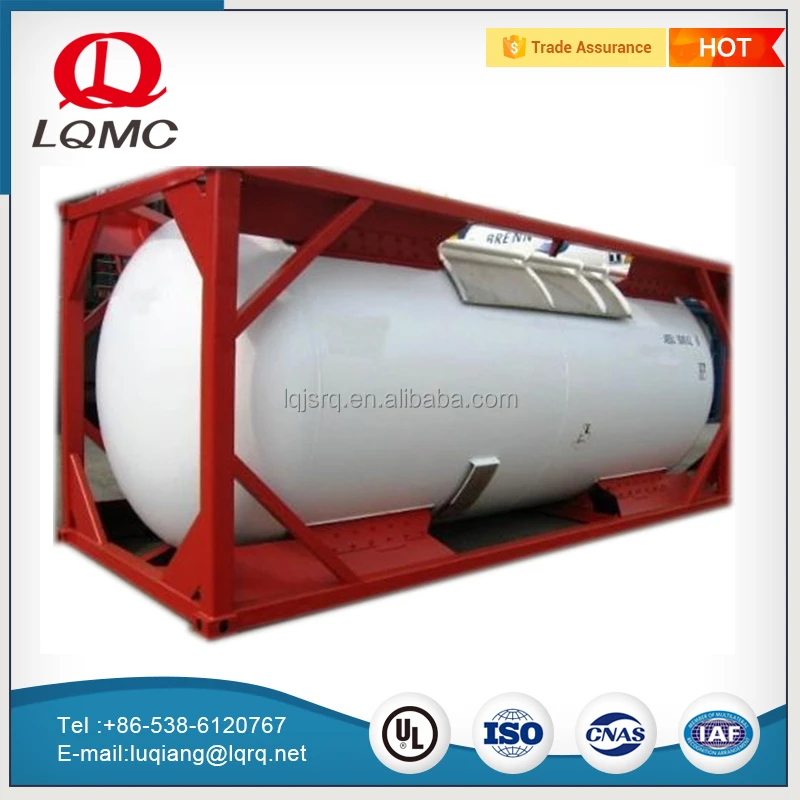

20000L carbon steel liquid storage iso tank containers price
- Category: >>>
- Supplier: Luqiang Energy Equipment Co. Ltd.
Share on (60638779132):
Product Overview
Description
20 feet liquid storage carbon steel iso tank containers with low price
Product Description
About ISO tank
1.ISO tank series mainly used for transportation and storage of chemical liquid productsand oil products,they are widely used in ware house, and other industries due to can be stack up placed.
2.We produced the ISO tank containers in accordance with the ISO standard design, in line with international maritime standards. Tank material according to different transportation medium can choose carbon steel, stainless steel, and insulation and non-insulation tank.
3.Light self-weight, easy to clean, covering a wide range of goods, accessing to reliable, long life
and easy maintenance characteristics
.
Techinical Patameters
ISO TANK SPECIFICATION | |
Main Dimensions | |
Overall Length | 6058mm |
Overall Width | 2438mm |
Overall Height | 2591mm |
Tare (approximately) | 5,000Kgs |
M.G.W | Approximate 28,800Kgs |
Max. Payload | 23,000Kgs |
Tank Body | |
Loading Capacity | 20m3 |
Tanker Body Material | 6mm Q235B |
Front/End plate | 6mm Q235B |
Design Operating Temp. | -20 ~ +80°C |
Lifting Ladder | Including Top walkway and 2 ladders |
Manhole cover | 2 sets 500mm Diameter |
Bottom Valve | 1 set of Bottom Valve,Diameter is 3 or 4 inch |
Discharging valve | 1 set |
Frame Material | Q345B Steel |
Baffle | 4 pieces |
Heating Equipment | Without |
Color | As your requirement |
Painting | Complete sand blasting to clean rust,1 coat of anticorrosive prime 2 coats of final paint |
1.This ISO tank container is applied to transport liquid medium in a short or long distance.
2.It’s an ideal equipment to transport diesel oil, petrol oil, vegetable oil, edible oil, chemicals or any other liquid from storage field to plant, or transfer it from storage field to market.
Specification
ISO Tank included these fittings:
Manhole cover φ500mm,which at the front ends
Safety valve EDN80 Build in and full lift.
Emergency cutoff valve2 piece, 1×DN25 ball valve for vapor inlet,1×DN50 ball valve for liquid inlet Liquid lever meter Handing device
We also manufacture these products:
We specialized in all kinds of storage tanks, fuel storage tank for diesel, gasoline,double wall fuel tank ,portable fuel stations and other pressure vessels.No matter what you need all kinds of mobile fuel stations ,storage tank in carbon steel ,stainless or aluminum ,single or double wall tank for diesel, petrol, bio diesel, kerosene,ethanol or other liquids we all can meet your requirements.
Product flow
Process Flow of ISO tanks
1). cutting materials
2). rolling machines for circling
3). welding and NDT(non-defection test) inspection
4). re-circling after welding
5). outer vessel’s abrasive blasting and anti corrosive painting for outside surface
6). pipe connecting and assembly of inner vessel and outer vessel
7). valves installation
8). perlite filling
9). vacuum-pumping
10). final painting and ready for shipment
![W6D4BL2T(E9L8Y3]F~C$]8T.png](http://g01.s.alicdn.com/kf/HTB1SefmQFXXXXXYXVXX760XFXXXn/202717061/HTB1SefmQFXXXXXYXVXX760XFXXXn.png)
Company Information
About Luqiang Company
Luqiang Energy Equipment Co.,Ltd is a professional factory which has more than twenty years manufacturing experience.We specialized in all kinds of storage tanks, fuel storage tank for diesel, gasoline,double wall fuel tank ,portable fuel stations and other pressure vessels. Our products have been exported to many countries in Asia,Africa ,Australiaand South America.suchas Japan,Lebanon,India,Djibouti,Japan,Lebanon,India,Djibouti,Angola,Mozambique,Argentina over twenty beyond countries all over the world. And we get good reputation from our customer owing to our innovative and quality products.
Packaging & Shipping
We have implemented a strict and complete quality control system, all products have been strictly inspected before shipment.Before shipment ,our techical workers will check the products again and again.We try our best to protect the ISO tanks to arrive your palce safely.
Customers visiting
Customers from all over the world visit our factory .Clients from Asia Africa,Australia America such as Japan, Singapore,Middle east,Russia ,Angola Mozambique, Djibouti visited our workshop,check our ISO tank and place order to us.
Cooperations
We established good relationship with Shell company Petro China,Sinopec,CNOOC and petroleum companies in Asia ,middle East,Australia and Africa market .Not only our customer visited our factory but also we meet them in their countries to provide convenient guide.
Our Services
We guarantee to make high standard ISO tank with fantastic price,and pay more attention to long cooperation with customers in and abroad.
Pre-Sales Service
1.24 hours online timely inquiry reply and consulting support.
2.Sample testing support. View our Factory.
After-Sales Service
1.Most convenient transport and prompt delivery
2.Training how to install the tank, training how to use the equipment.
3. Warranty for 12 months.
4.Life-long maintenance
FAQ
1.Could you modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of fuel tank and mobile fuel station ISO tank .we can meet with your personalized demands.
2. Could you customize products for me?
We can provide the customized-designing ISO tank container product meeting with any of your demand.
3. Could you provide certification that we need?
We have ISO BV and pressure vessel certificate,and UL certificate for underground double wall fuel tank.CSC certification for ISO tank
4. How about the after-sale service?
We can provide you the technical support to guide you repair your product. And we will also send original spare parts for free charge If you have special need, we can let our engineer to help you in person.
