TORCH suitable price selective wave soldering machine with low price TB780D

Product Description:

A function of flux spray device
1 nozzle: import nozzle, better spray
2 air system: AIRTAC electromagnetism valve, anti-corrosive pipe
3 moving nozzle system: air cylinder driven, spray speed and spray width can be adjusted by handle.

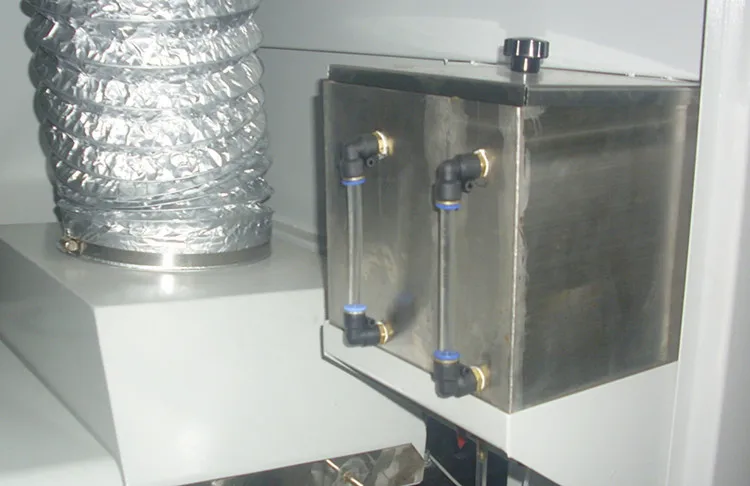

4 filtration flux system: collecting device is made of multi collecting lay, it is convenient to clean.
5 flux controlling: anti-corrosive controlling flux and display flux.

Technique parameter:

Features and function:

Flux spray system
A function of flux spray device
1 nozzle: import nozzle, better spray
2 air system: AIRTAC electromagnetism valve, anti-corrosive pipe
3 moving nozzle system: air cylinder driven, spray speed and spray width can be adjusted by handle.
4 filtration flux system: collecting device is made of multi collecting lay, it is convenient to clean.
5 flux controlling: anti-corrosive controlling flux and display flux.
B function of flux foam device
With foam function, inner foam pump, it don't need outer air supply, it is convenient to spray flux.
1 preheating temperature range: room temperature—260℃
2 controlling way: with PID controlling to make welding process.
3 Heat: infrared heating, temperature uniformity, rapid speed, PID supply heat.
4 Preheating security: surface temperature is lower than fire point of flux.
5 Preheat: it can meet preheating need of batch PCB welding, uniformity temperature, small temperature differences of PCB.
Welding system features:
1 Material: 316 stainless steel
2 Capacity: 100kg double wave crest capacity
3 Height range of wave crest: 0—8mm adjustment and keep wave crest balance.
4 Power consumption (heater): 6kw, uniformity heat, long life. It will take 1 hour to melt tin. This can save 6kw during melting tin and save 3kw during constant temperature.
5 Unique nozzle: double wave crest design, with unique flat wave which is stable and reduce SMD leaking solder.
6 Heat controlling system: PID control, accuracy is ±2
7 Moving tin pot: in and out can be finished by hand.
8 Motor of wave crest: import motor, running stable.
9 Tin pipe: screw thread stem


Cooling system
 Cooling motor: unique cooling design, it can achieve import device effect.

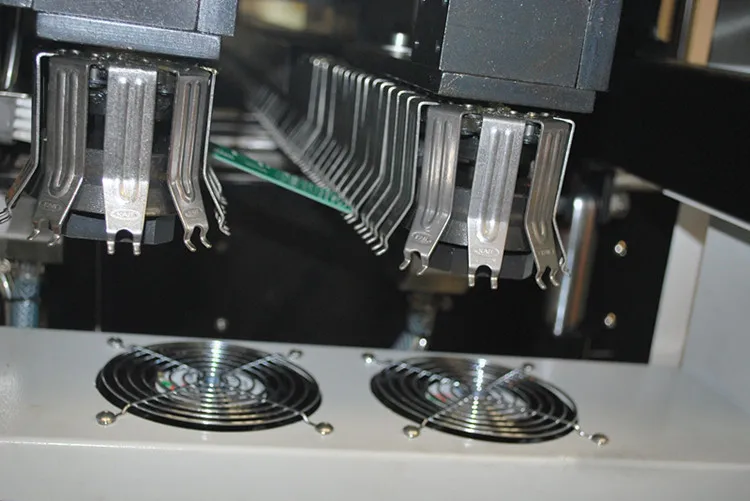

Transmission system
1 chain: stainless steel chain, anti-corrosive, ametabolic.
2 rail system: special strong aluminum
3 speed: 0—1800mm/min
4  accuracy: motor is from Taiwan, it is easy to adjust and maintain

Controlling system
1 buttons on the panel: manual/ automatic control, speed can be set, temperature can be display.
2 protect short circuit: with short circuit protection, with Sanling air switch protection in main power and tin pot of preheating zone, with fuse power in controlling system.
3 urgent stop protection: there are 2 urgent stop protection in the machine, please cut off power in urgent condition.
4 whole machine controlling: relay controlling.
5 transmission speed: Taiwan motor makes sure stable speed.
6 wave crest: Taida transducer makes wave crest flatter.
7 over-current protection: over-current protection with transducer, it will cut off power when current is over to make motor safe.
8 modularization wiring device: there are main wiring modularization and controlling modularization.

Technology parameters:

Remark:

Technical parameter for TB780D:
