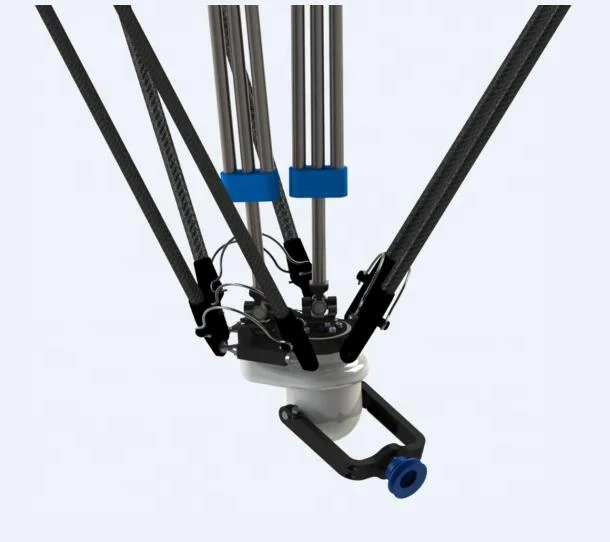

fastest industrial delta robot spider robot

No

Production name

Name

specifications

quantity

Unit

Remark

1

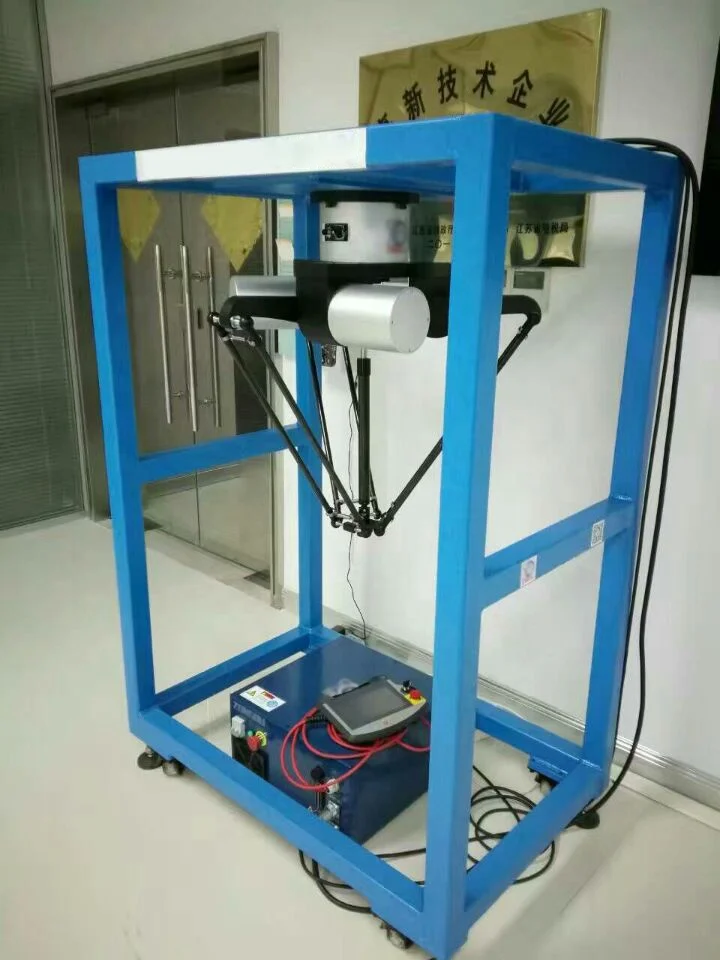

Spider robot

Customized 5 axises

LZLD5

1

SET

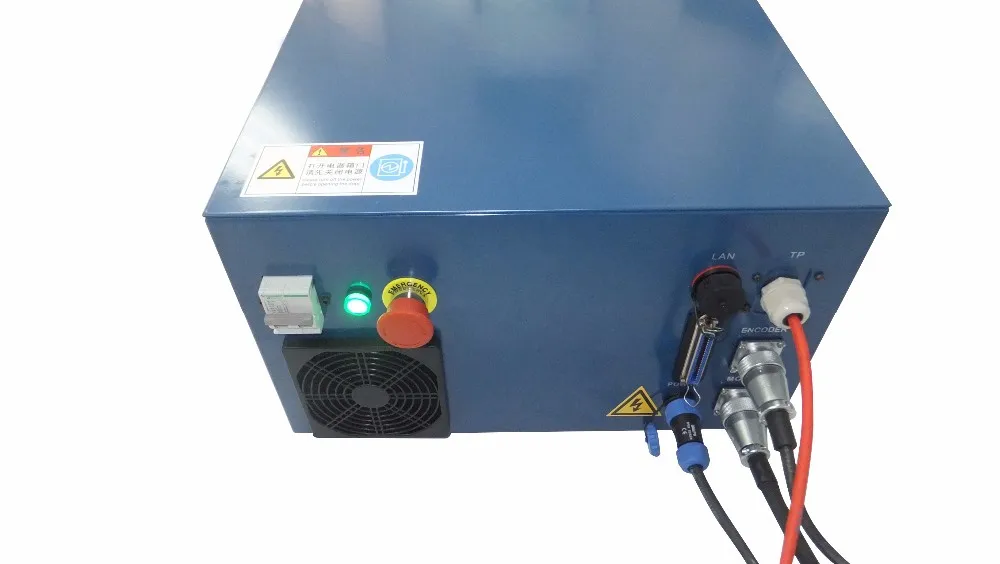

robot + control cabinet + line

2

Visual tracking module

standard edition

1

SET

3

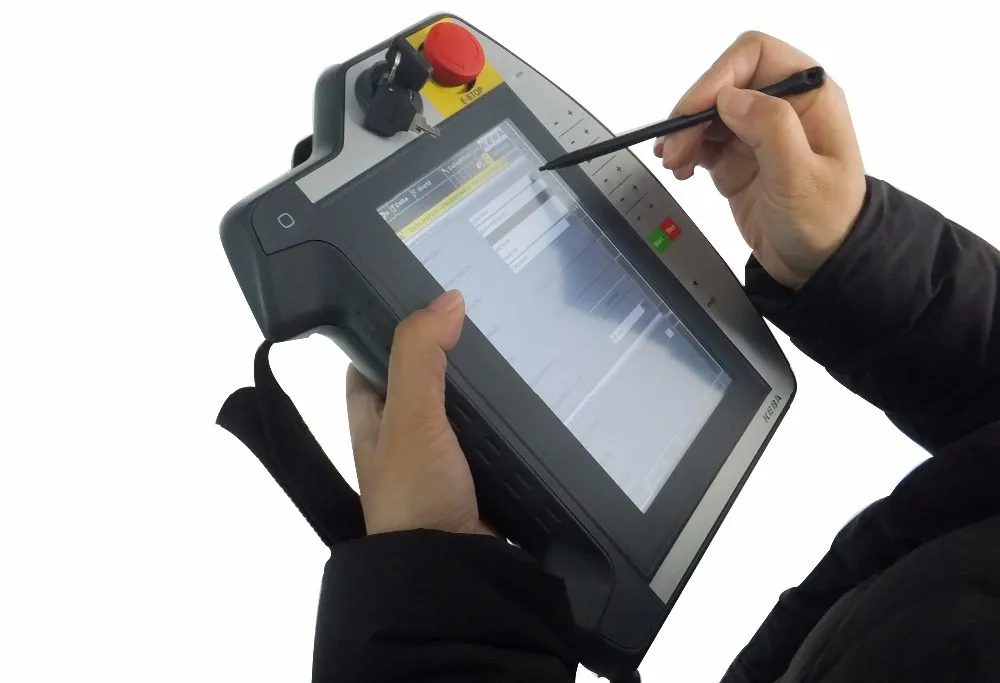

Touch screen control board

standard edition

TL70

1

SET

The instructor supports the heat

Plug, one can be

used to multiple machines

4

Vacuum pneumatic unit

SMC cylinder

1

SET

5

Visual unit

standard edition

130 ten thousand CCD

1

SET

Camera + lens + light

Source + light source control

Item

Detailed parameters

Model

LZL D5

Number of axis

5

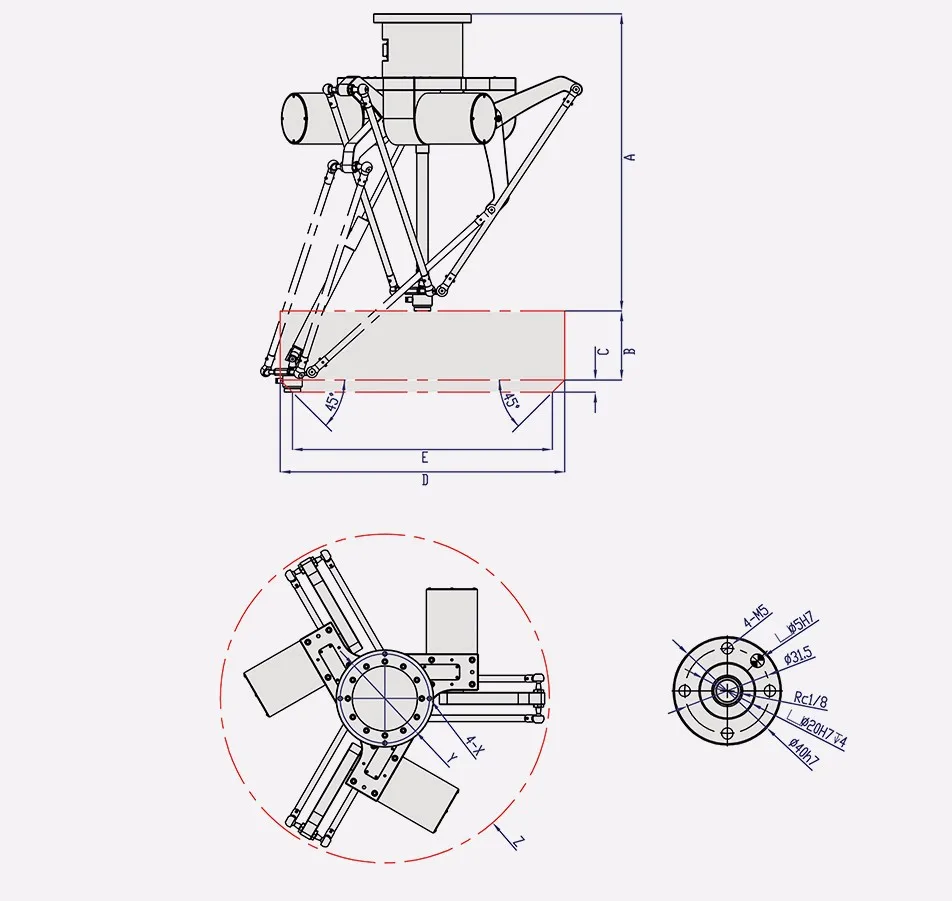

The machine is highly

A

887

The scope of work
(mm)

B

300

C

100

D

1100

E

900

Execute the end of the rotation Angle (°)

±720

--

The base installation
size

X

D13(M12 Bolt mounting hole)

Y

D260

Z

D1055(Pay attention to the swing arm)

load

Rated 2 kg, maximum 4 kg

Repeat positioning
precision

XYZ axis (mm)

0.04

R axis (°)

0.05

--

The beat cycle
25*305*25
(sec)

2kg

0.43

4kg

0.51

6kg

--

Kg weight (ontology)

56

52

The power supply voltage

220V

controller

C4-B

C3-B

The I/O interface

No.6 input output (extensible) + 8 road

Communication interface

USB,CAN,Ethernet
