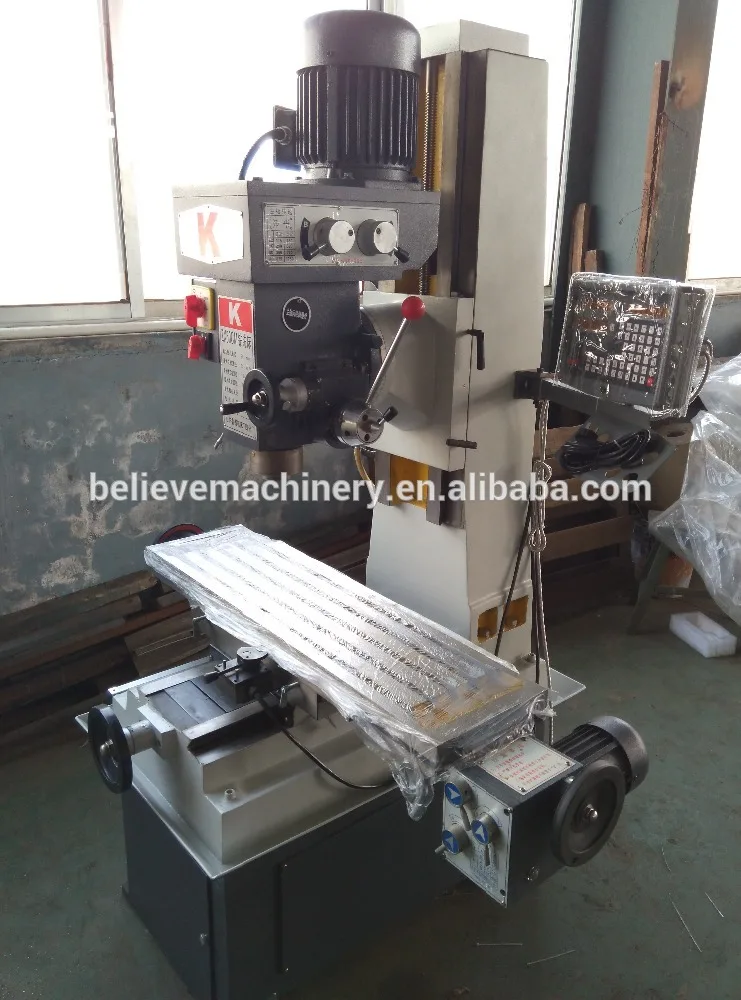

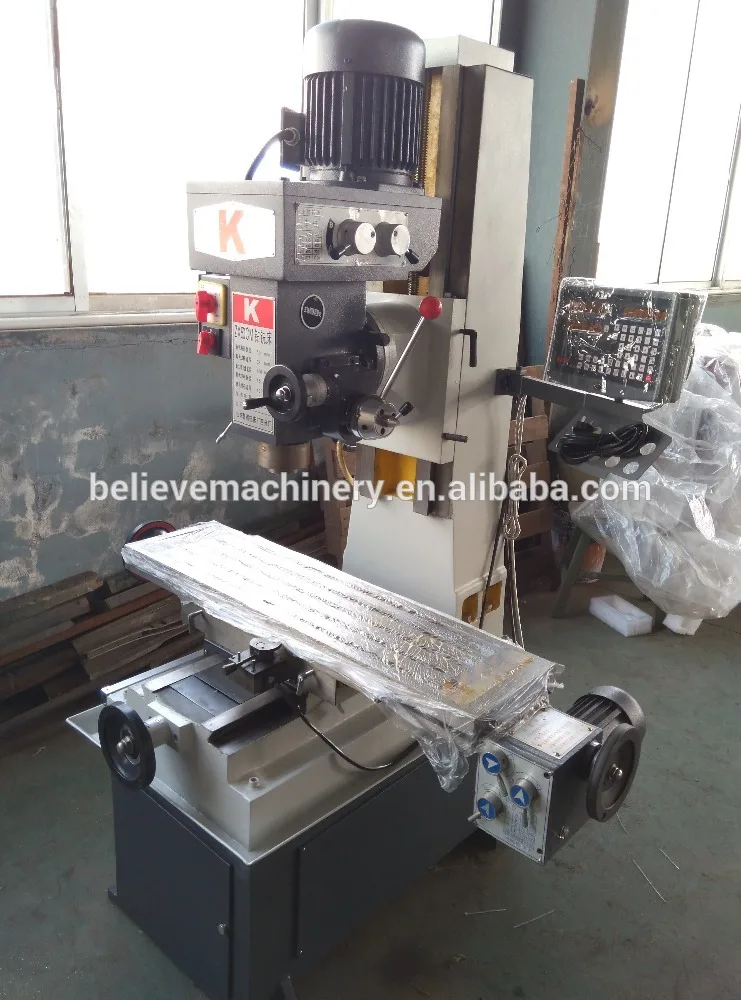

ZX50CM B Drilling and Milling Machine with DRO
- Category: >>>
- Supplier: Tengzhou Believe Machinery Co. Ltd.
Share on (60638830334):
Product Overview
Description
ZX50CM-B Drilling and Milling Machine with DRO
Characteristics:
1. Stable performance
2. High performance-to-price ratio
3. Excellent design
4. Mechanical processing necessary machine

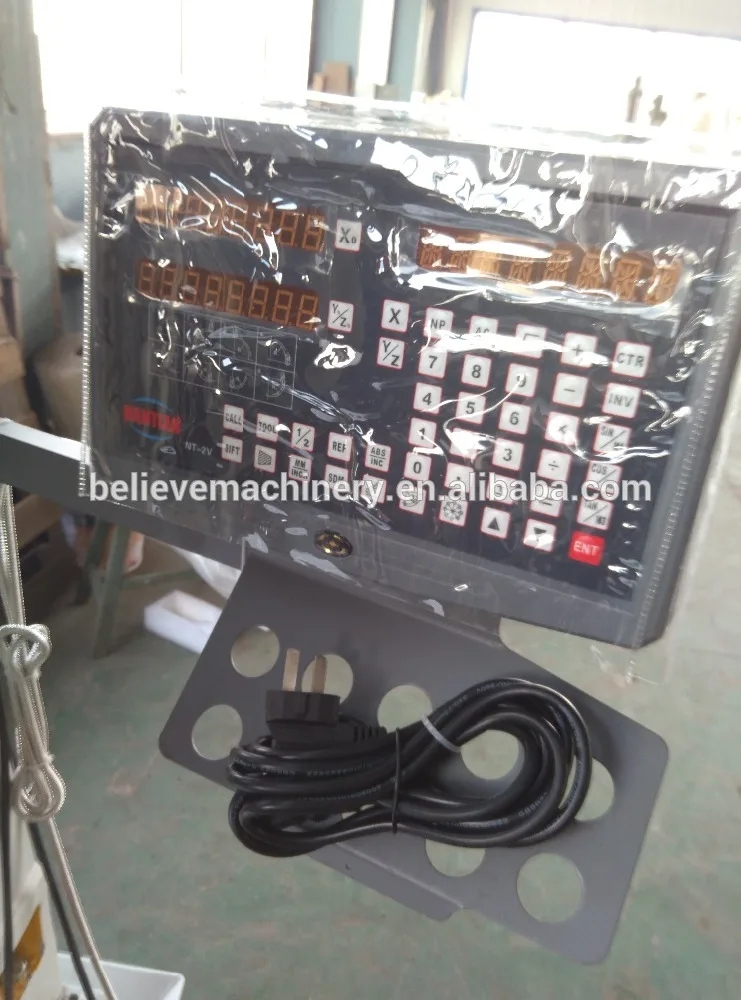

5. With DRO for x and y aixs.
Specifications:
Item No | 931033 |
Model | ZX50CM-B |
Max .drilling diameter | 50 mm |
Spindle taper | ISO40 |
Max .vertical milling diameter | 25 mm |
Max .boring diameter | 100 mm |
Distance .spindle to table surface | 60-690 mm |
Spindle speed (V/H) | 115-1750 rpm |
Spindle travel | 120 mm |
Table size | 1000*260 mm |
Table travel | 520*350 mm |
Overall dimension | 1300*1100*1850 mm |
Main power | 2.2 kw |
N.W/G.W | 620/670 KG |
Standard accessory list:
Item | Type | Qty |
Drill chuck | 16 | 1 piece |
Milling chuck | ISO40 | 1 piece |
Reduction sleeve | ISO40 ISO40 | 1 piece 1 piece |
Flat tongs | 125 | 1 piece |
Allen wrench | 5 | 1 piece |
wedge |
| 1 piece |
draw bar |
| 1 piece |
connection rod of spindle |
| 1 piece |
boring bar |
| 1 piece |
English manual operation |
| 1 book |

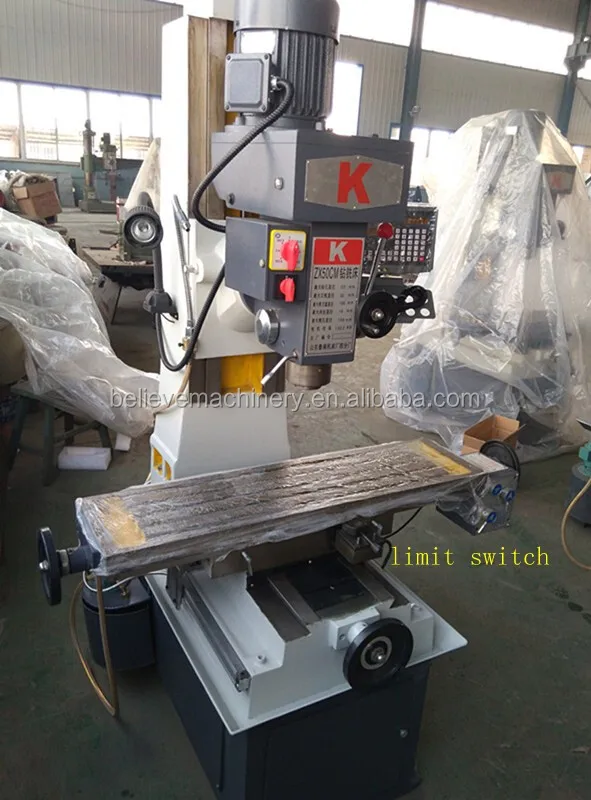

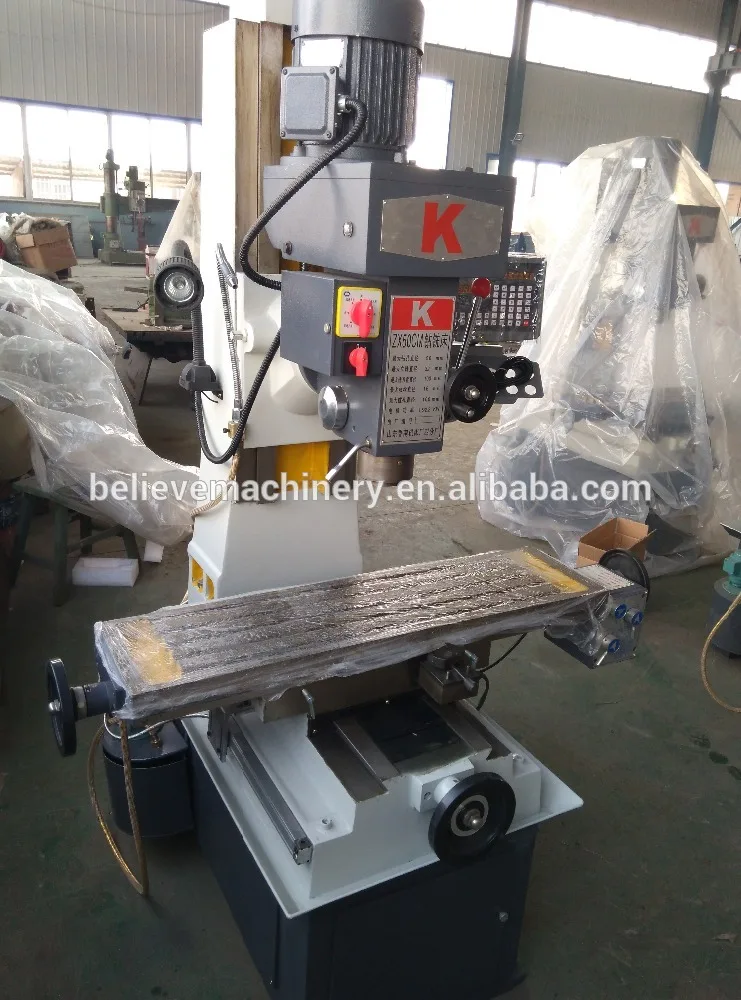

the model bigger than ZX50C model,and with limit switch:
