Q11 series sheet metal shears electric mechanical shear machine
- Category: >>>
- Supplier: Zaozhuang DS Machine Tool Co. Ltd.
Share on (60638908129):
Product Overview
Description

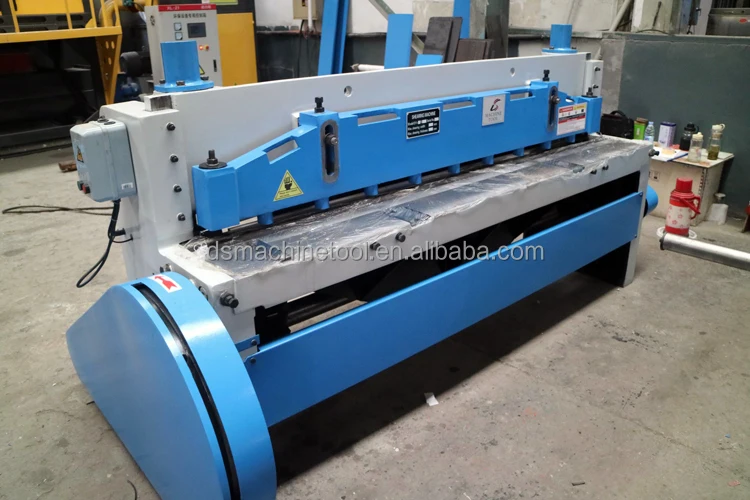

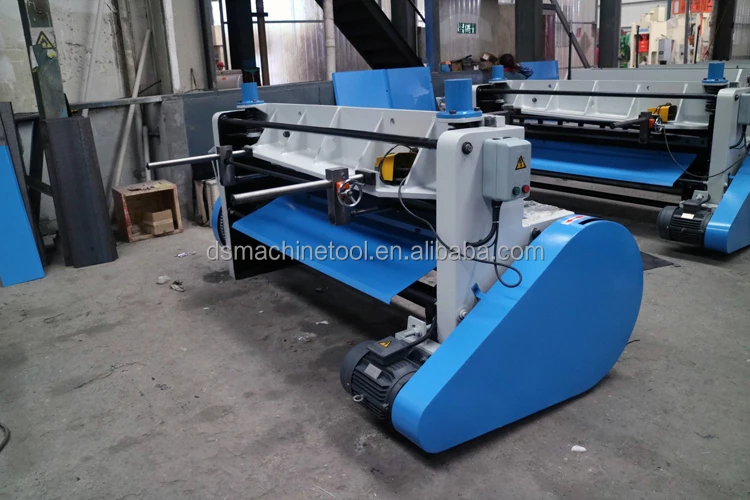

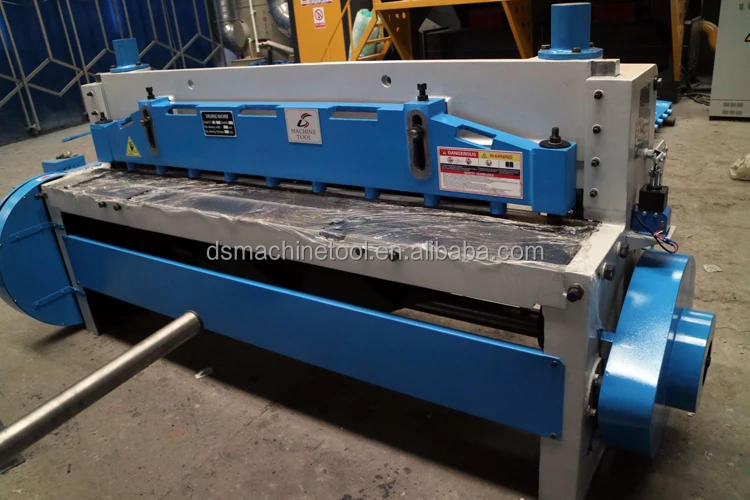

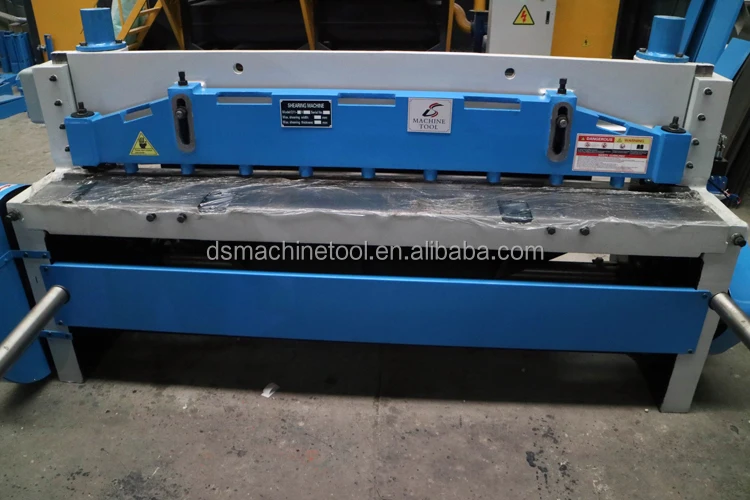

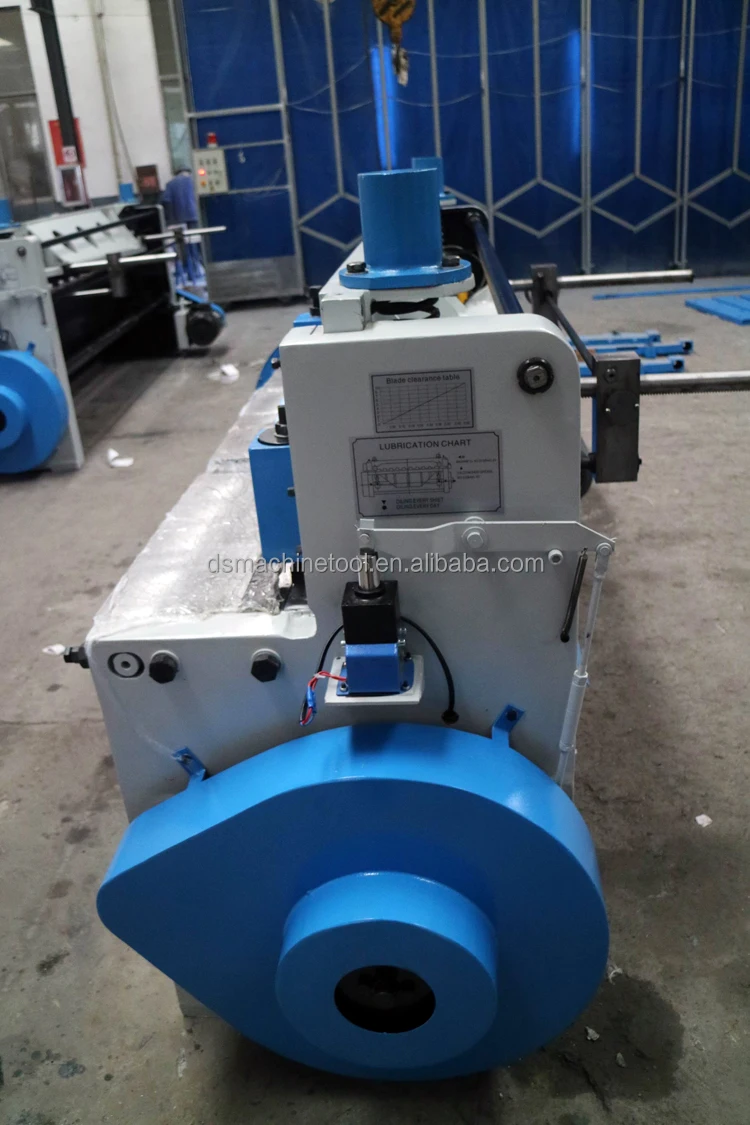

Q11 series sheet metal shears electric mechanical shear machine
Specifications
Long-life of high quality blade

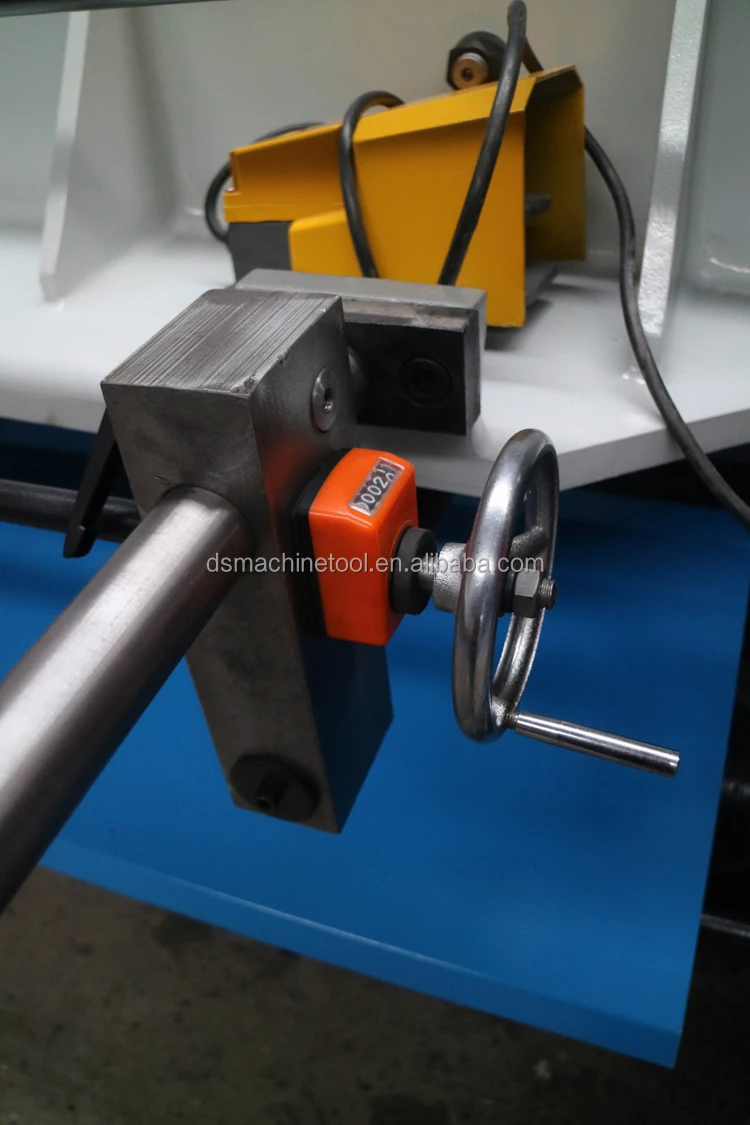

Back gauge is available to give fine adjustment
Simple construction with good appearance
Features:
1. Structured finished products,
2. Low center of gravity,
3. Sound vibration-proof performance
4. Stable property.
5. Long-life of high quality blade
6. Back gauge is available to give fine adjustment
7. Simple construction with good appearance
8. Easy to operate with lower energy consumption
9. Widely used for medium and thick steel
10.Our electric shearing machine is used to cast components and has the advantages of producing firmly structured finished products, low center of gravity, sound vibration-proof performance, uniform transmission and stable property.
11.Its capacity range is from 1300 to 2500 mm length and the maximum thickness can reach 10 mm. Our electric shearing machine is used for shearing large and medium thickness plates.
Back gauge is available to give fine adjustment
Simple construction with good appearance
Features:
1. Structured finished products,
2. Low center of gravity,
3. Sound vibration-proof performance
4. Stable property.
5. Long-life of high quality blade
6. Back gauge is available to give fine adjustment
7. Simple construction with good appearance
8. Easy to operate with lower energy consumption
9. Widely used for medium and thick steel
10.Our electric shearing machine is used to cast components and has the advantages of producing firmly structured finished products, low center of gravity, sound vibration-proof performance, uniform transmission and stable property.
11.Its capacity range is from 1300 to 2500 mm length and the maximum thickness can reach 10 mm. Our electric shearing machine is used for shearing large and medium thickness plates.
Model | Q11-6X2000 | Q11-6X2500 | Q11-8X2500 | Q11-8X2000 | Q11-10X1000 | Q11-10X1500 |
Shearing thickness(mm) | 6 | 6 | 8 | 8 | 10 | 10 |
Shearing width(mm) | 2000 | 2500 | 2500 | 2000 | 1000 | 1500 |
Shearing angle | 2° | 1°30 | 1°42 | 2° | 3° | 3° |
Num of stroke | 20 | 20 | 14 | 20 | 26 | 20 |
Motor power | 7.5 | 7.5 | 11 | 11 | 11 | 15 |
Back gauge(mm) | 500 | 500 | 500 | 500 | 500 | 500 |
Dimension(cm) | 310x165x161 | 380X177X155 | 388X250X178 | 335X175X182 | 240x175x182 | 290x175x182 |
N.W./G.W.(kg) | 4100/4300 | 5200/5300 | 6800/7150 | 4500/4800 | 3500/3750 | 4000/4300 |
