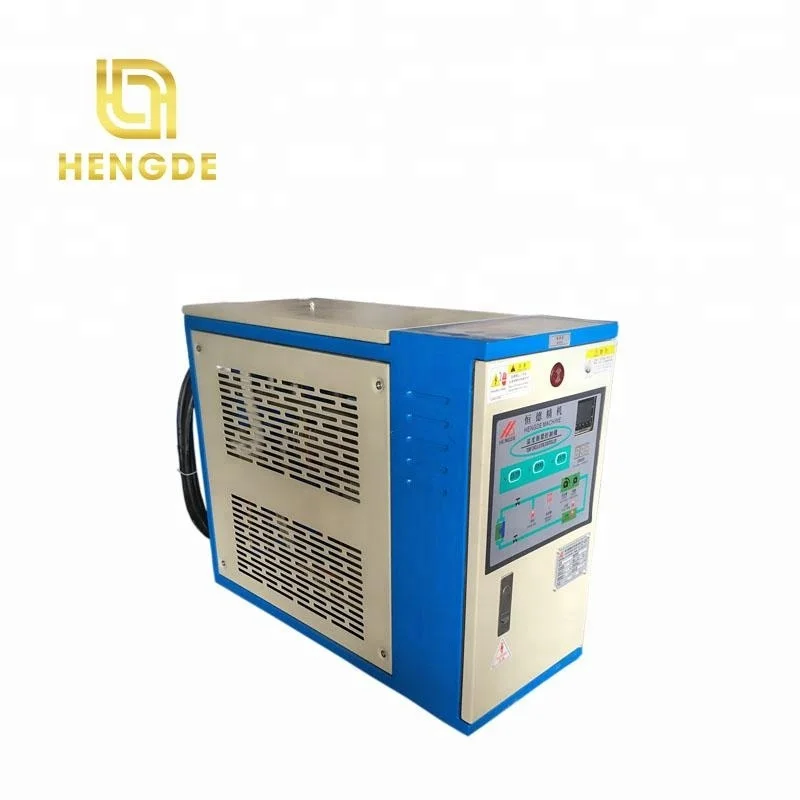

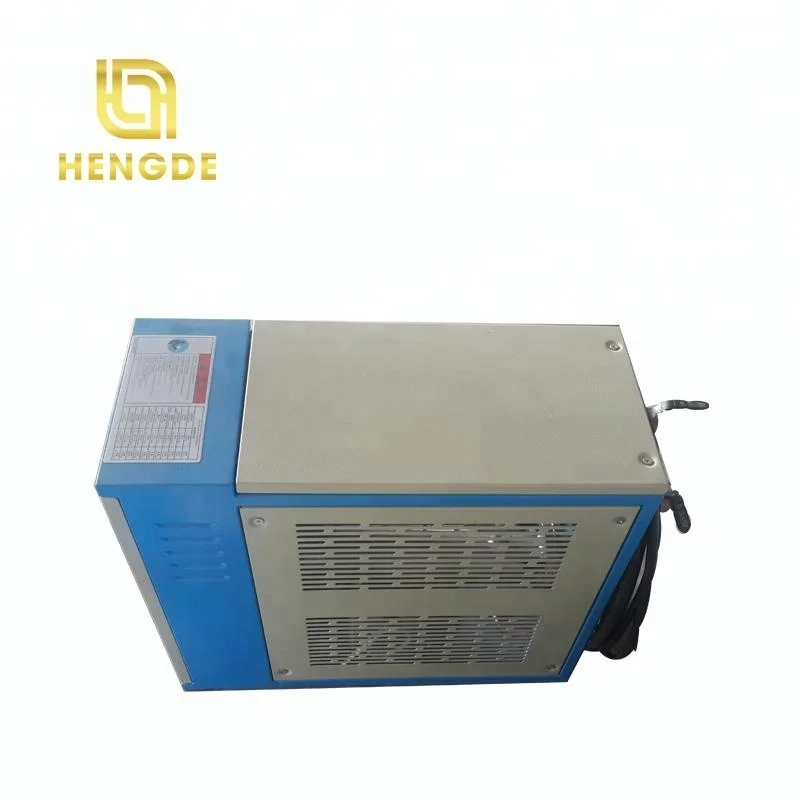

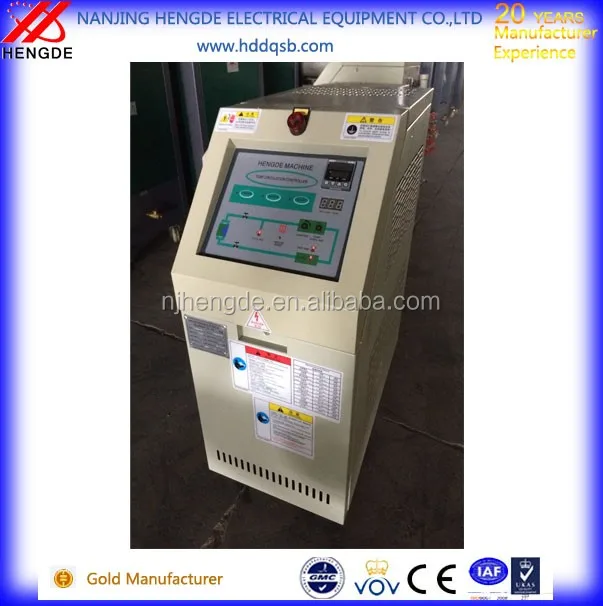

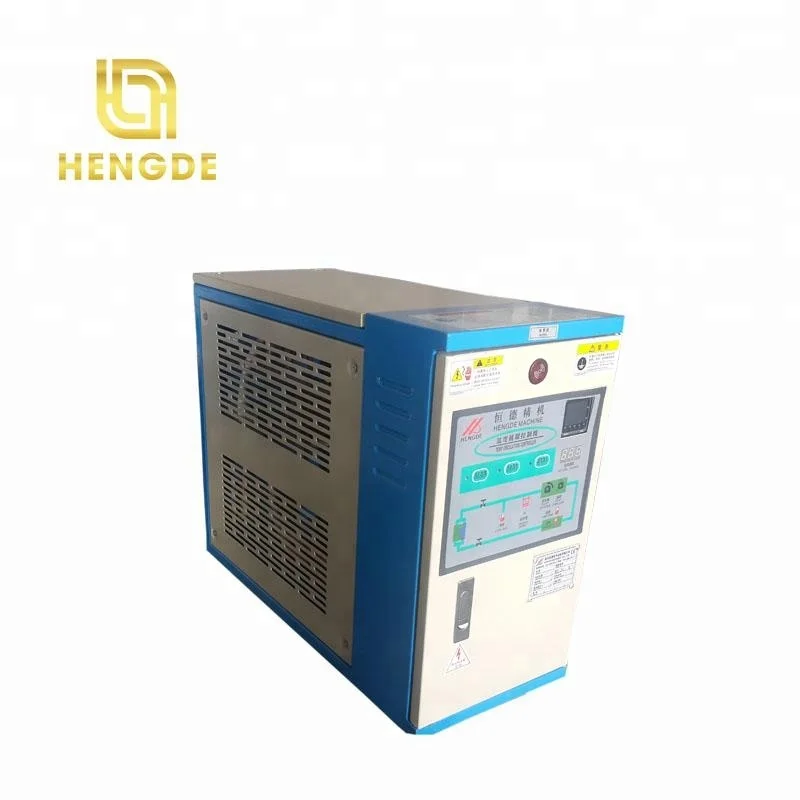

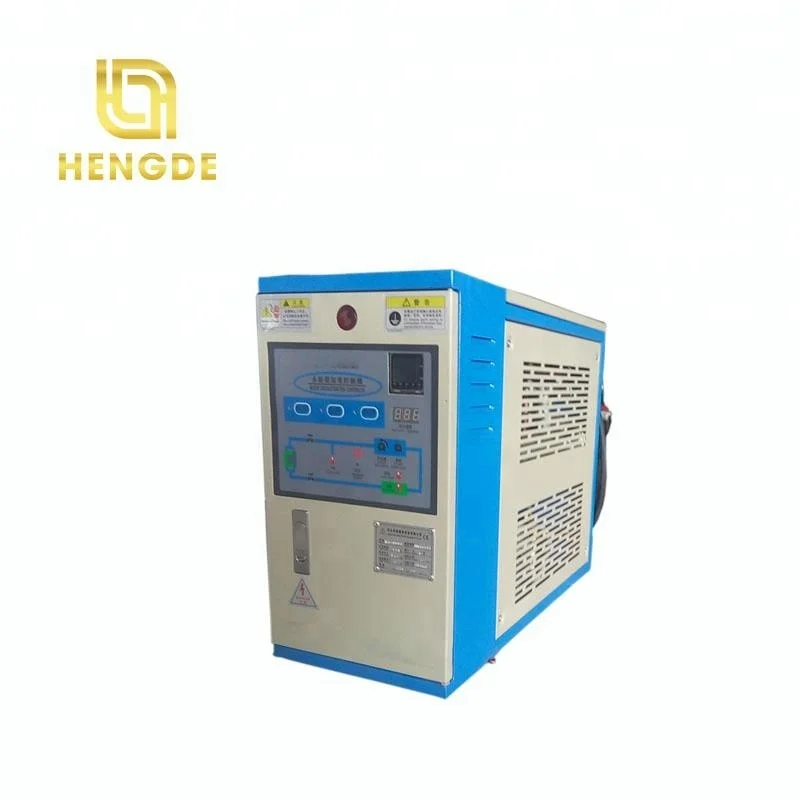

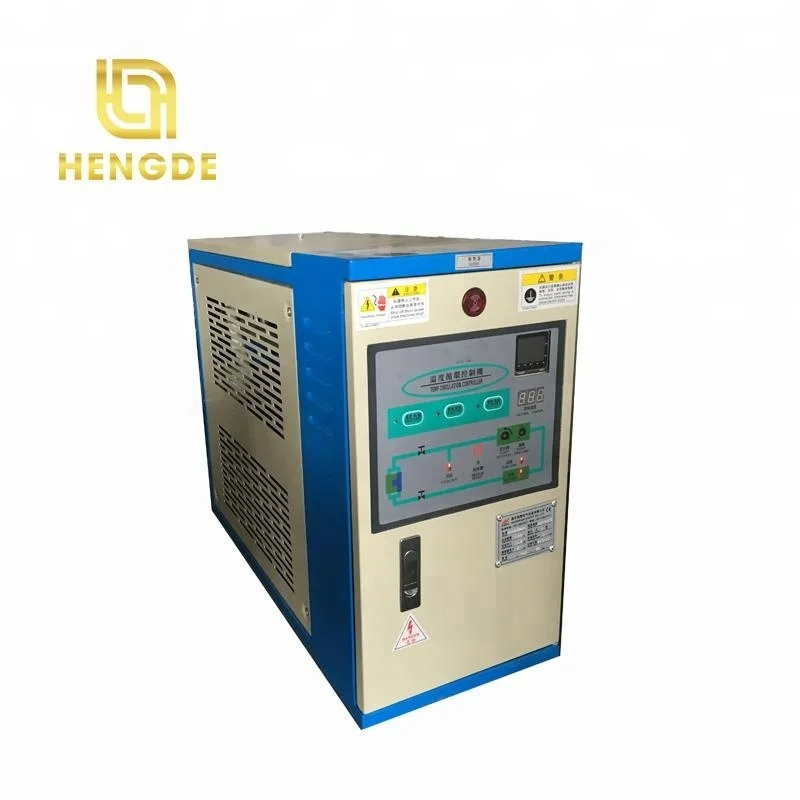

HWM-05B Water Mold Temperature Controller Unit Plastic Extruder Machine
Product Description
*Explosive device pipe
*Blowing return function (optional)
*Return water temperature indicator
*Power automatic exhaust function of heating power switching
*Instant cooling power function
*BY-PASS relief of hot water loop
*Multi-point temperature control unit can be customized
*Pump horsepower and heating power can be customized
*Electric with OMRON,FUJI,TE,LG,Schneider, Siemens
*Temperature control range: inlet temperature: +15℃-120℃
*304 stainless steel pipeline to reduce the tube group and rust
*Isolated electrical control box, to extend the useful life of electrical appliances
*RS485 communication function, automated management (optional)
*Control: imported microcomputer or PLC control (optional)
*Perfect safety protection. fault display, repair and maintenance without professionals

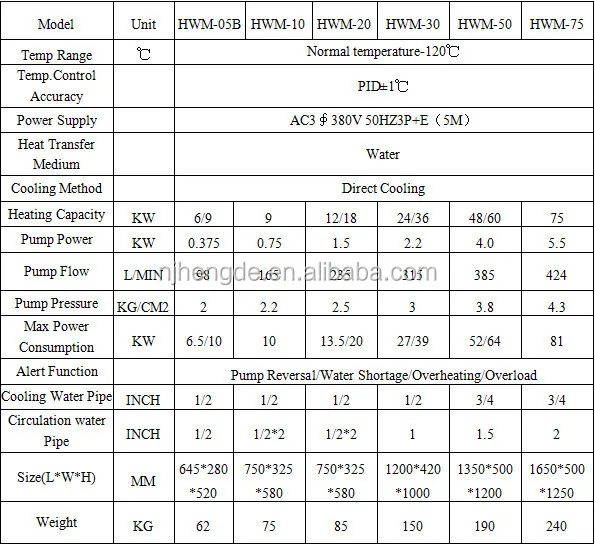

Model
Unit
HWM-05B
Temp Range
℃
Normal temperature-120℃
Temp.Control Accuracy
PID±1℃
Power Supply
AC3PH 380V 50HZ3P+E(5M)
Heat Transfer Medium
Water
Cooling Method
Direct Cooling
Heating Capacity
KW
6/9
Pump Power
KW
0.375
Pump Flow
L/MIN
98
Pump Pressure
KG/CM2
2
Max Power Consumption
KW
6.5/10
Alert Function
Pump Reversal/Water Shortage/Overheating/Overload
Cooling Water Pipe
INCH
1/2
Circulation water Pipe
INCH
1/2
Size(L*W*H)
MM
645*280*520
Weight
KG
62

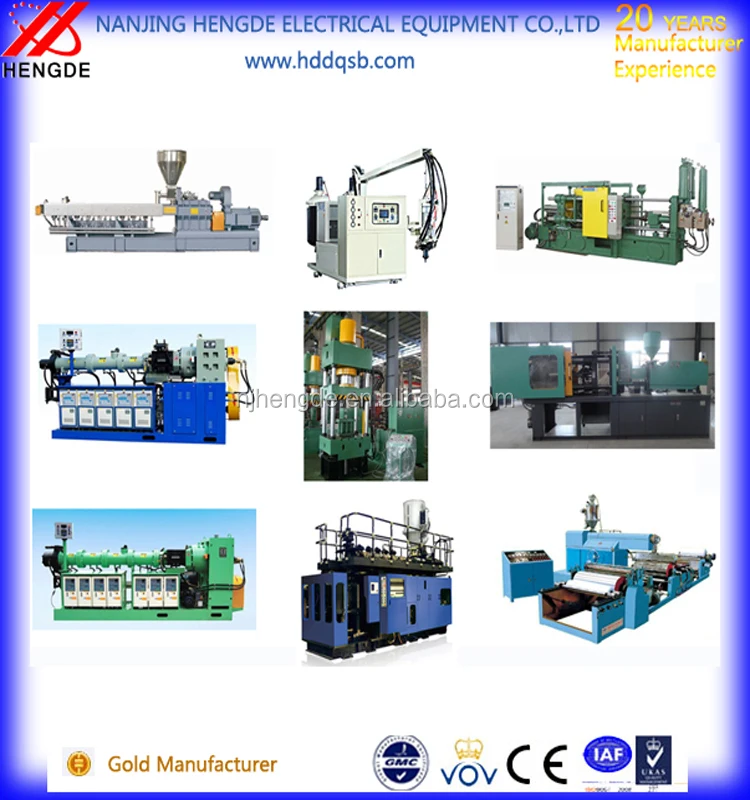

Application
Packaging & Shipping
♦ Packing
1. Dust Proof Film + Anti-collision Foam + 5 Layer Cartons + Ply-wooded Case (For LCL only, no need fumigation). 2. Customized packing is available. 3. We are always working hard on the most reliable packing in order to help you get the Perfect products.
B. Technical service 1, We calculate the capacity and recommend the best models. 2, We design and develop the new products according to your requirement besides our standard products. 3, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation. 4, We supply the spare parts and technical support in & after the warranty time. 5, We supply the training course to your workers at our factory if you need. C.After sale service
1. Technical support for your installation, operation and maintenance. 2, One year’s warranty, and you can pay for extended warranty. 3, Spare parts and technical support at most economic prices after the warranty. 4, Update you the latest products information and price adjustment every year. 5, Old customer discount will be available when you order the products again.

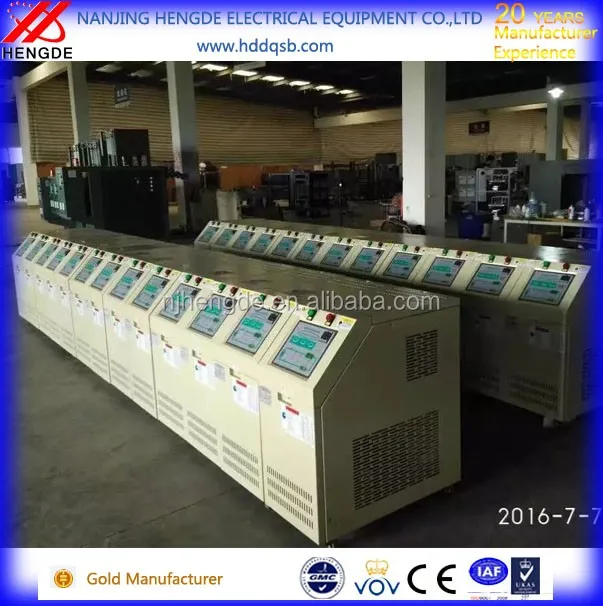

Company Information
Hengde Electrical Equipment is a professional water / air cooled chiller & mold temperature controller manufacturer,was founded with the mission of providing the best humanized and performance products for worldwide customers. We design and manufacture a comprehensive range of high quality products, covering temperature controller, water chiller, air chiller, and dehumidifier etc. Our goal is to be a one-stop-shop for your needs. To deliver on that promise we only carry the highest quality products and services. We also have knowledgeable application engineering on hand to answer any questions or recommend solutions for your process cooling requirements. Welcome to contact us for more info.
FAQ
1. What makes you different with others?
1) Our Excellent Service For a quick, no hassle quote just send email to us
We promise to reply with a price within 24 hours - sometimes even within the hour.
2)Our quick manufacturing time For Normal orders, we will promise to produce within 15-20 working days.
As a manufactory, we can ensure the delivery time according to the formal contract
2. May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
3.Can I use our own brand logo on the products? Yes. We provide OEM/ODM service to our customers.Our professional engineers having rich experience in heat pump design and manufacture. Just tell us your ideas or provide the drawing, we can help you to carry out your ideas. 4.What is your terms of delivery? We accept FOB, CFR, CIF, EXW etc. You can choose the one which is the most convenient or cost effective for you. 5. What is your payment terms? 1) T/T 40% deposit, T/T balance 60% paid before shipment;
2) T/T 40% deposit, balance 60% paid through irrevocable L/C at sight;
3) Other payment terms are negotiable. 6. What about warranty?
One year, all spare and accessory parts of products will be free.
