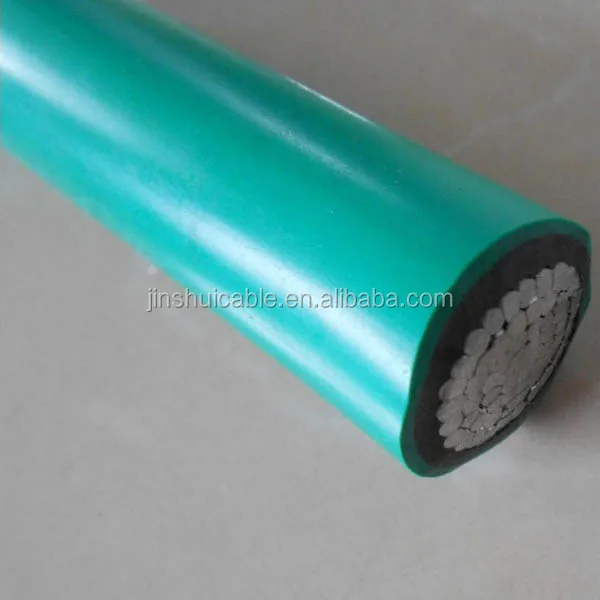

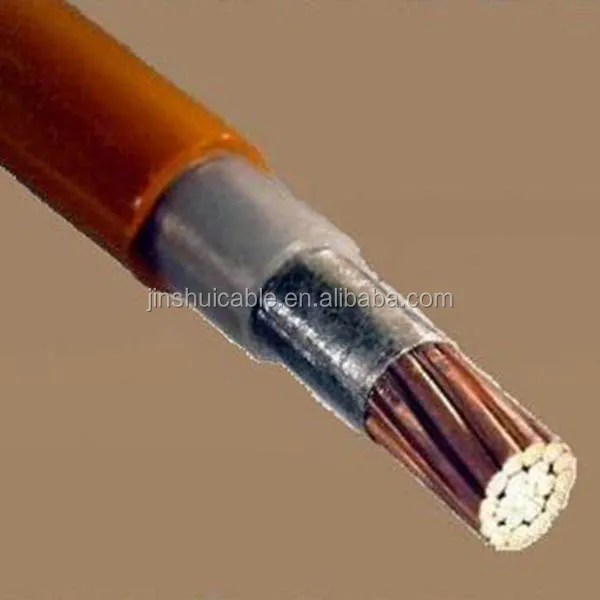

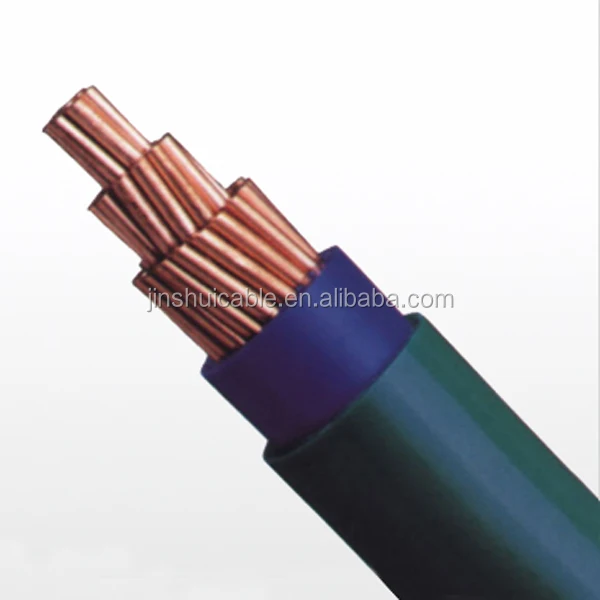

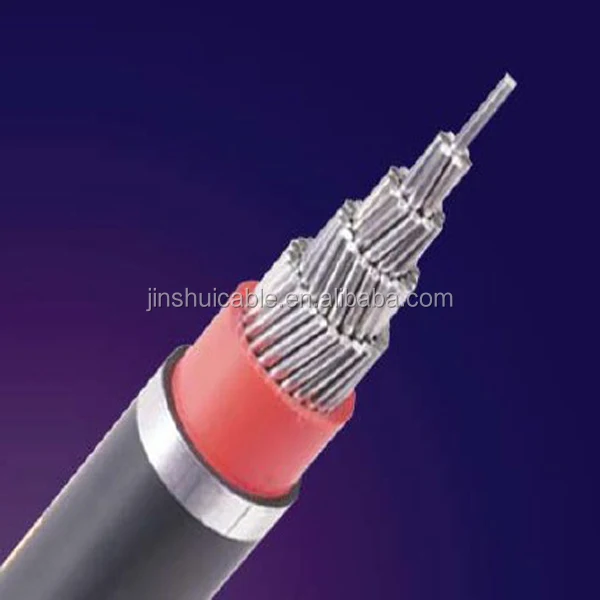

Single Core Aluminum/Copper Conductor 630MM XLPE Cable

Standard

IEC 60502: Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um=1.2 kV) up to 30 kV (Um=36 kV) - Part 1: Cables for rated voltages of 1 kV (Um=1.2 kV) and 3 kV (Um=3.6 kV)

Application

This copper/aluminum conductor 630mm cable is used in underground power transmission lines of rated voltage 600/1000V and below. Besides, flame retardant and fire resistant xlpe insulated copper cable is also available.

Product Details

1) Conductor: stranded copper or aluminum

2) Sectional area: 630 mm2

3) Conductor shape: round

4) Insulation: XLPE, 2.4 mm

5) Outer sheath: PVC, 2.5 mm

6) Overall diameter: 42.2 mm

7) Approx. weight: 6457/2668 kg/km (copper/aluminum)

8) Max. DC resistance at 20 degree: 0.0283/0.0469 ohm/km (copper/aluminum)

9) Max. working temperature: 90 degrees
