180m Deep Bore Water Well Drilling Rig Crawler Mounted Drill Machine
The KW180 multifunctional drill rig of geothermal well is an improved device. Equipped with the Yuchai four-cylinder engine (China Ⅲ), the drill rig meets national standards for emissions and environment. Meanwhile, the hydraulic system, supporting configuration and appearance, ets. have been optimized, thus improving and working efficiency. The double rotation motor increases the rotary torque and revolving speed. In addition, the 1.5 supporting oil cylinder is also optional, making loading and transport convenient.
1. It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.
2. It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism orhydraulic chuck.
3. It hashole bottom pressure gauge to be easy to master the situation in the hole.
4. It also has advantage of Compact structure,concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountainareas.
3. It hashole bottom pressure gauge to be easy to master the situation in the hole.
4. It also has advantage of Compact structure,concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountainareas.

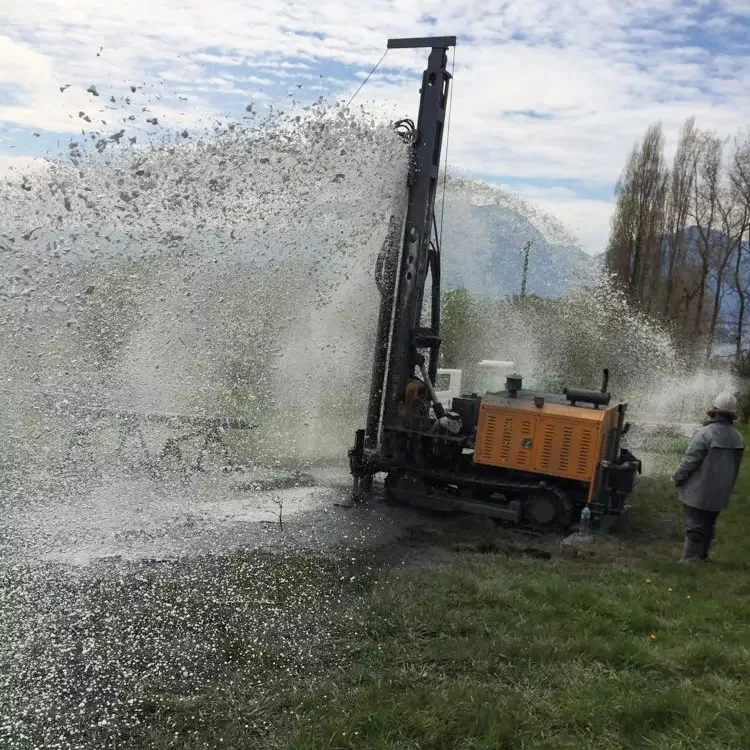

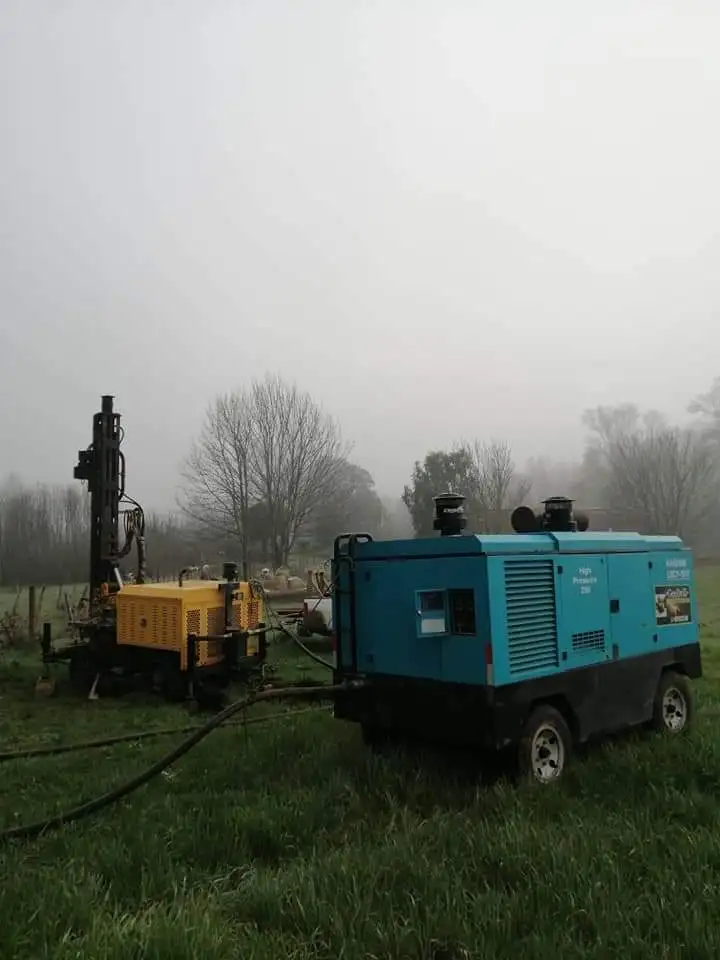

Our machines can be applied to various countries in the world, suitable for various scenarios, various geological scenarios including deserts, swamps, grasslands, mountains, orchards, etc.
Our customers are distributed all over the world. You are not alone. The quality of our machines is very good. Customers have given us certain affirmations. Contact us for information about the machine

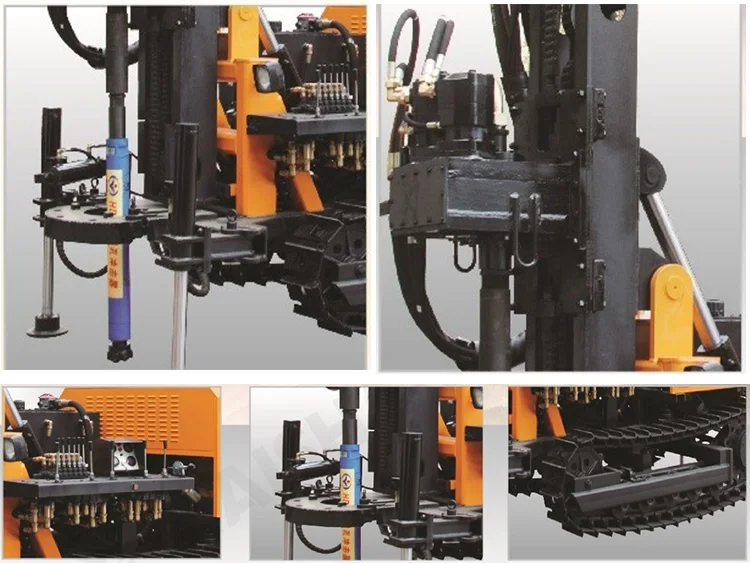

Details Images
Console:The console is composed of a console frame, manual reversing valve, pressure reducing valve, speed regulating valve, oil pressure gauge, various pipelines, engine instruments, throttle cable, flameout cable, damper control, etc. All control functions are concentrated on the console, which is easy to operate, time-saving and labor-saving. The operator can stand on a foot pedal with sufficient area to operate.
Promotion part:The propulsion part is composed of propulsion cylinder, chain, slide plate and so on. When the piston rod of the propulsion cylinder comes out and retracts, it drives the pulley block, and the slide plate slides up and down on the carriage through the chain. The resin slider structure is adopted on the skateboard, which effectively reduces the wear of the slideway. The axial pressure can be adjusted during deep hole drilling.
Power system:It is composed of engine, coupling, oil pump connecting plate, and air filter. The air filter is composed of three-stage air pre-filter and air fine filter. It can effectively protect the engine from normal use under severe working conditions.
Details determine success or failure, we focus on every detail of the product, every process, every process, we focus on creating the best quality products, to provide you with higher product quality.
Model of drill rig | KW180 |
Feed stroke | 2m |
Supporting drilling rod | 76*2m or 89*2m |
Outer dimensions | 4600*1550*2350 mm |
Drilling hardness | f = 6 - 20 |
Dnilling diameter | 115 to 202 mm |
Maximum depth of drilling | 200m |
Weight of complete vehicle | 4500kg |
Ground clearance | 280mm |
Climbing capacity | 15° |
DTH hammer | K4.K5.K6 |
Air consumption | 19-30 m³/min |
Supporting power | Yuchai YCD4R23T8-80(59KW/2400r/min) |
Power parameters | 58KW / 2200r/min |
Travelling speed | 0-2 km/h |
Rotary torque | 4200N*m |
Rotary speed | 0-100 rpm |
Lifting method | Oil cylinder-leaf chain |
Rated lifting force | 50KN |
Advancing speed of sliding plate | 15-51m/s |
Lifting speed of sliding plate | 8-26m/s |
Nolume of hydraulic oil tank | 200L |
Nolume of diesel oil tank | 60L |
Drilling method | Down-the-hole hammer or mud.etc. |
Why Choose Us
1. We are driiling rig in SiChuan for more than ten years, with a series of PASSED certificate, like CE,TUV,BV,ISO.
2. for Soils,we have hydraulic one for choice.for rocks, we have penumatic one for choice.also we have DTH drilling rig, big diameter drilling rigs, geological exploration drilling rig, engineering drilling rig for different working condition.
3. for hydrtaulic drilling rig, we have portable type, wheel type, crawler type for choice.
Packaging & Shipping

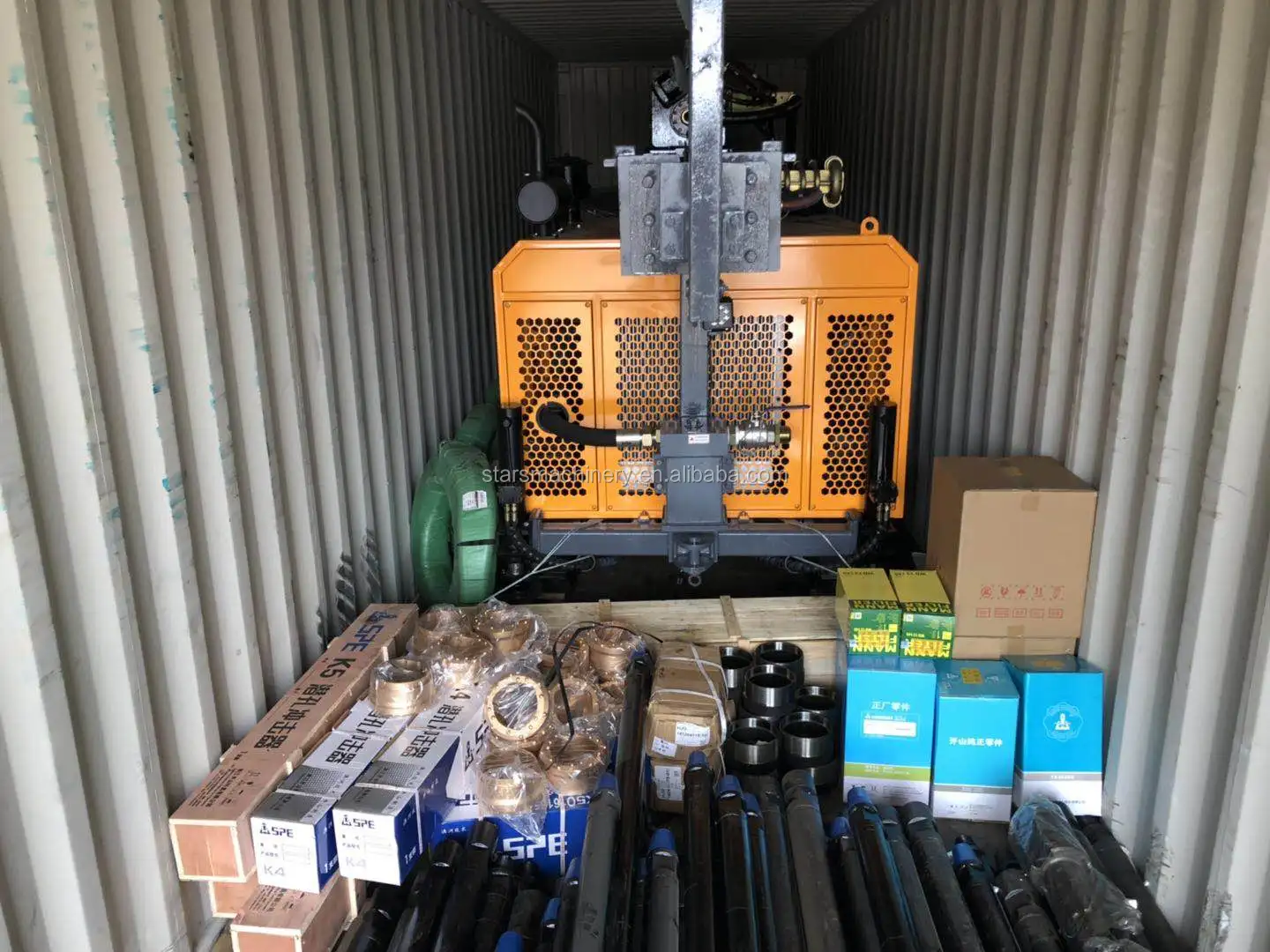

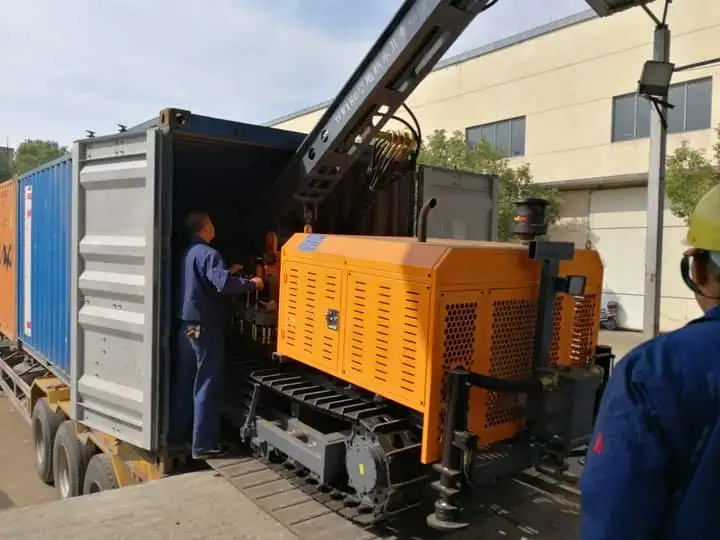

We will provide safe and reliable transportation for your goods. We will pack your goods in wooden boxes, and related supporting goods will be arranged in the same container. We usually take the shipping method, and it takes about 30 days to arrive.Thespecific time depends on the situation. Of course, I will also use land transportation or other transportation methods.
Recommend Products
We also have your drilling rigs` related accessories——drilling bits, drilling rods, drilling pipe, Underwater detector and so on.Just send message to us to get the best price!
FAQ
Q1: Are you factory or trade company? A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our Company is located in JNo.9 Kaixuan Ave West, Economic Zone Quzhou, Zhejiang, China
Q3: How long is your air compressor machine warranty?
A3: One year for the whole machine and two years for screw air end, except consumable spare parts.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your requirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery, the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8.What about the maintenance?
A8: First maintenance need to be done after 500 Hours, and then every 2000-3000 hours to do the normal maintenance, and consider
the actual environment.
Q9: Can you accept OEM orders?
A9: Yes, with professional design team, OEM orders are highly welcome.
Q10: Which trade term can you accept?
A10: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
