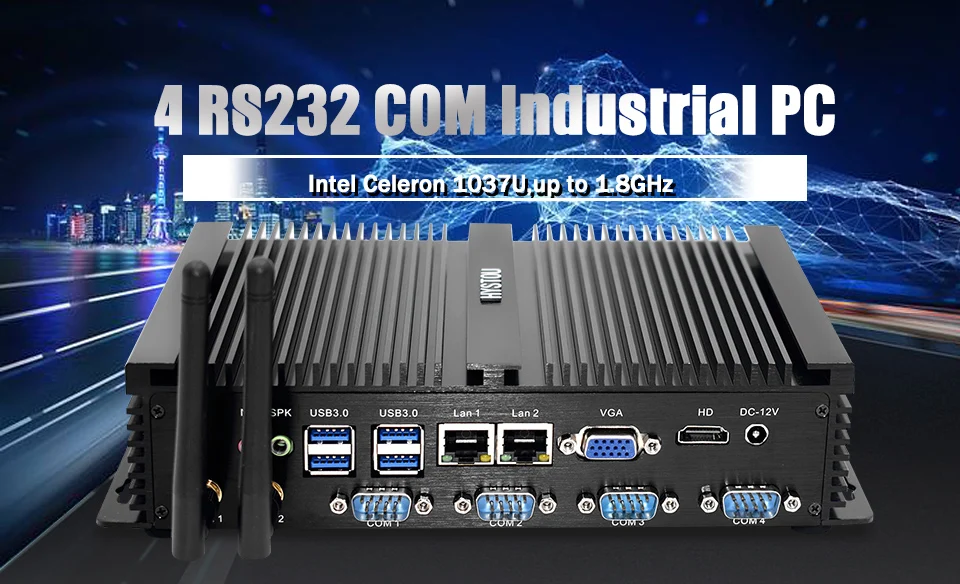

HYSTOU Embedded Industrial PC 17W Low Power Computer Set Minipc Top Buy Computers from China
- Category: >>>
- Supplier: Shenzhen Hystou Technology Co. Limited
Share on (60639022044):
Product Overview
Description
Product Description
Details Images
Processor | ||
CPU | In-tel Ce-leron 1037U (2M Cache, 2 Cores 2 Threads, Base Frequency 1.80 GHz ) | |
TDP | 17W | |
CPU Lithography | 22 nm | |
Max Memory Size | 8GB | |
Memory Types | 204 Pin DDR3L SO-DIMM Socket | |
Memory Channels | Single Channel | |
ECC Memory | Don’t support | |
Storage Specification | ||
m.2 SSD | No M.2 slot | |
SATA | 1 x SATA3.0 for 2.5 inch HDD/SSD | |
mSATA | 1 x mSATA slot | |
Graphics | ||
Processor Graphics | HD Graphics 4000 | |
HDMI | 1 x HDMI | |
VGA | 1 x VGA | |
Power Specification | ||
Power Adapter | 12V Power Input, supply 12V 5A power adapter within the package | |
Auto Power On | Support Auto Power On Function | |

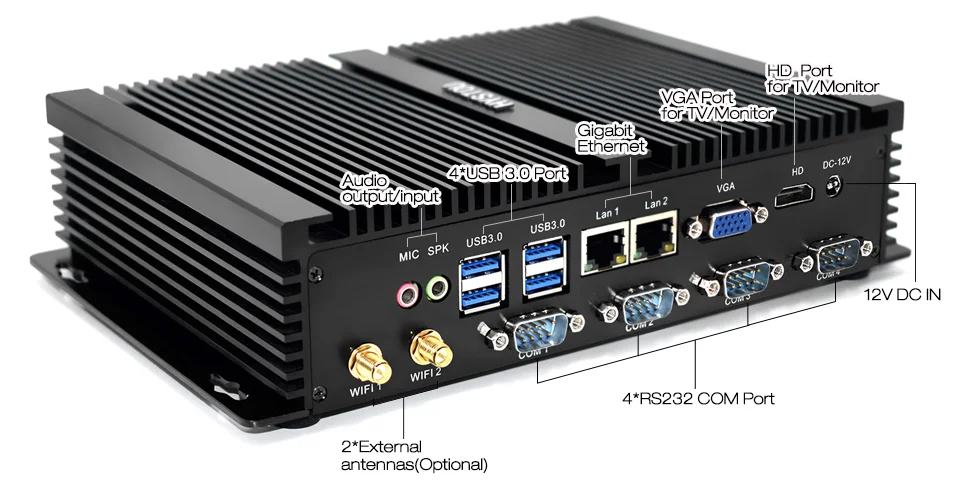

In & Out interfaces | ||
USB Port | 4 x USB 3.0 port, 4 x USB 2.0 port | |
Audio | 3.5mm 1 Jack, MIC in/ Line out | |
Video | VGA + HDMI Daul Display | |
Power Input | 12V In | |
Lan Port | 2 x 82574L Gigabit Network Connection | |
Com Port | 4 x RS232 Com port | |
Others | ||
System | Support Windows 7/10, Linux | |
Case Material | Aluminium Alloy | |

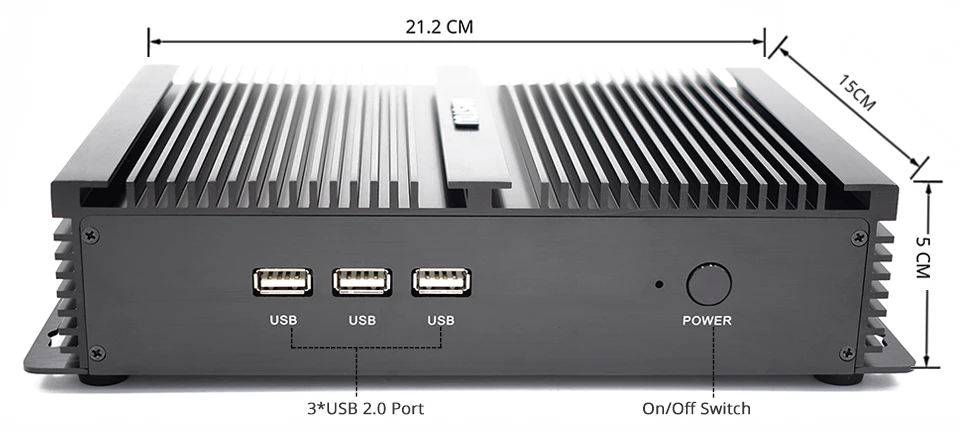

Dimension | Mini PC size 234x150x50mm Package size 321x258x78mm | |
Weight | Gross weight 2.1 kg | |
Company Introduction
Hystou is a professional manufacturer and exporter of desktop mini PC. OEM and ODM orders are welcomed. The more you purchase, the cheaper the price.
Our company in Shenzhen
Welcome to visit our factory!
Workers are assembling mini pc.
Product Usage
Packing&Shipping

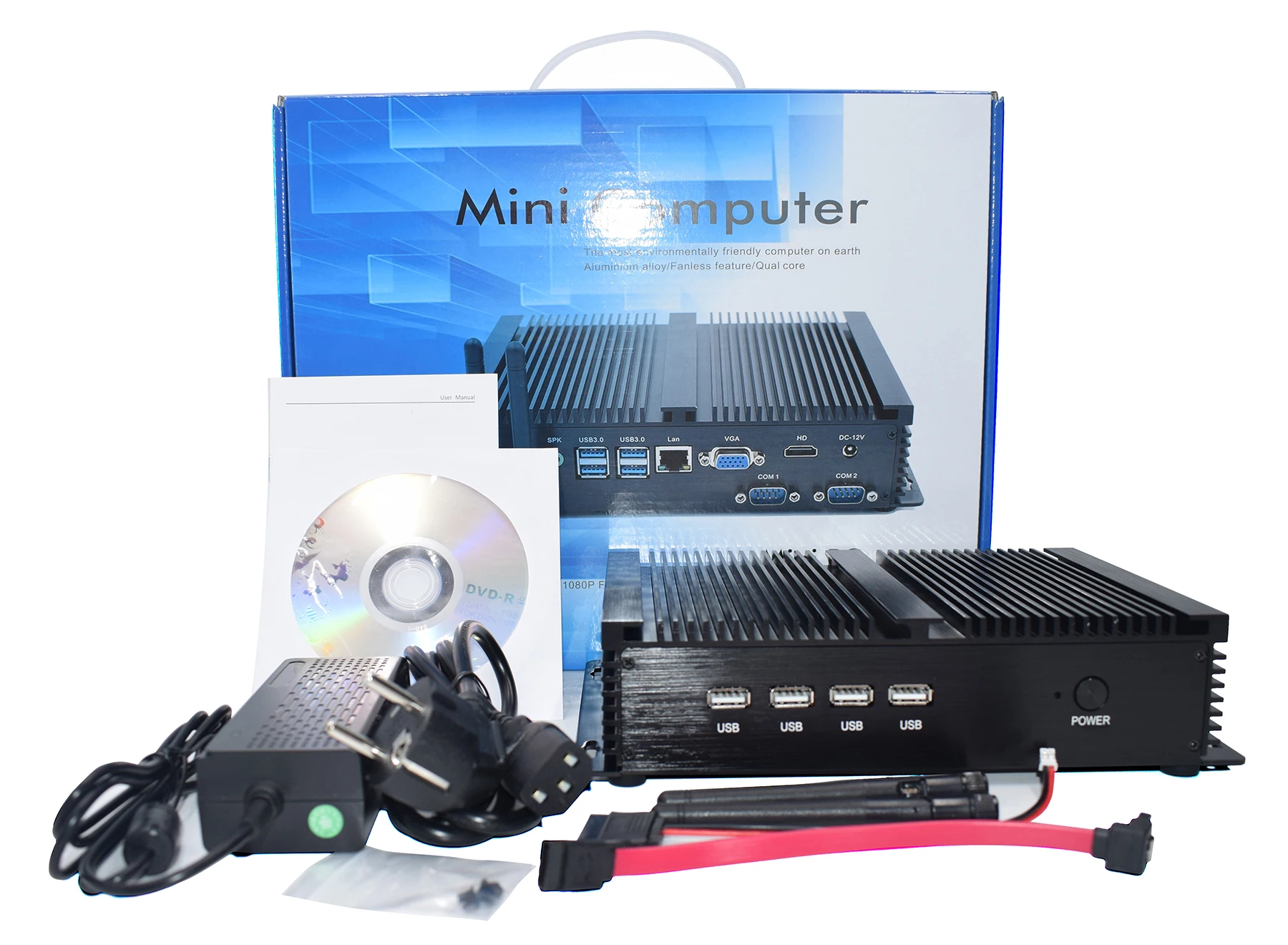

Packing List:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
