Energy saving high quality roller press coal briquetting machine

Product Overview

Description

Energy saving high quality roller press coal briquetting machine



Simple introduction of roller press coal briquetting machine

Zhongzhou series roller press coal briquetting machine , mainly used to suppress difficult molding powder materials ,characterized by forming pressure , the host rpm adjustable, with a spiral feeding device.



Roller press coal briquetting machine can be used to suppress coal,coke,iron,aluminum powder,coal dust,slag, iron oxide skin, toner , slag , gypsum, tailings , sludge , kaolin , activated carbon, coke powder and other end,Powder,waste,waste residues, are widely used in refractory , power plants , metallurgy,chemical , energy,transportation, heating , etc. , produced by the compression molding machine after the briquette materials , energy saving , easy to transport , increase of wastes Utilization, with good economic and social benefits .

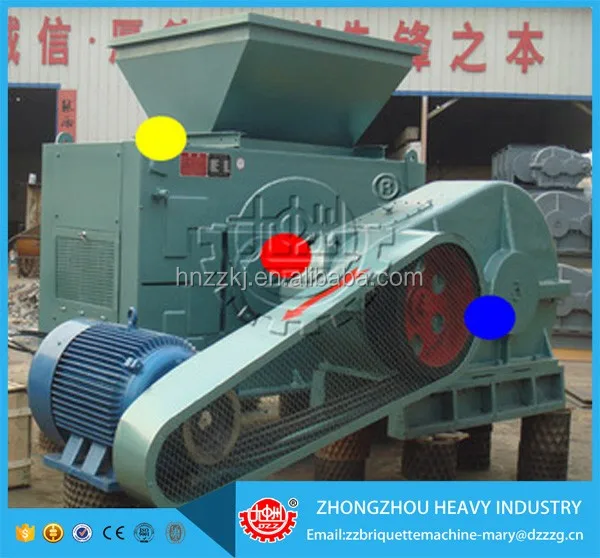

Structure of roller press coal briquetting machine

1.Feeding system:

Ration feeding and ensure the iron powder go into the machine evenly.

2.AC motor:

Electromagnetic speed regulation motor. It can maintain the constant feeding pressure to make sure the stable quality of outlet briquettes when the feeding efficiency of conveyor feeder is equal to the required amount of iron powder of main machine.

3.Transmission system:

Motor, V-belt, reduction gear, exposed gear and rollers.

4.If the machine is hydraulic type:

Hydraulic protection device: when the machine working, the hydraulic pump drives the high pressure oil into the hydaulic cylinder to make the pistion axial displacement. Then the front connector of pistion rod will be on the bearing block, which can meet the requirements of production pressure.





Features of roller press coal briquetting machine

1.In order to ensure the good quality and mechanical strength of the final product, special care should be taken to ensure that the granule size fed to the machine is maintained below 3mm,preferable in the range of 30~40% small than1~2mm, with no more than 10% over 2mm.

2.The moisture content of the mixture has also a critical effect on the quality of the final product, so it should be kept in the range of 8~12%.

3.Raw material of coal industry(coal powedr, coke, coal sludge, etc)need to make coal briquette, using in industrial boilers and civilian  boiler.



Working principle of roller press coal briquetting machine

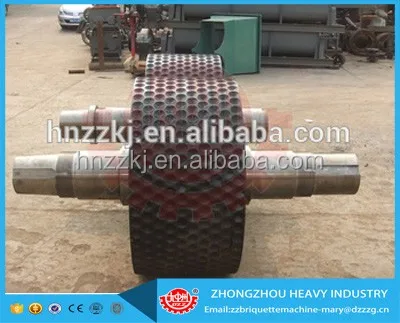

This series of roller press coal briquetting machine will make the powder pass the power on to the two pressure roller through the reducer. The two sides and roll rotation, in both the rotating roll. Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger. When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.



Other types of roller press coal briquetting machine



Model		ZZXM-4	ZZXM-6	ZZXM-8	ZZXM-10	ZZXM-15	ZZXM-20	ZZXM-30	ZZXM-40
Production	Hour	3-4T/h	6T/h	8T/h	10T/h	15T/h	20T/h	30T/h	40T/h
	Annual	10000T	20000T	25000T	30000T	50000T	100000T	200000T	300000T
Roll Width		250mm	240mm	220mm	300mm	336mm	400/500mm	500mm	700mm
Roll Diameter		360mm	400mm	450mm	500mm	650mm	750mm	850mm	1000mm
Power		7.5-11KW	11-15KW	15-18.5KW	18.5-30KW	22-45KW	30-55KW	55-90KW	90-110KW

Remarks: Based on different materials, briquettes size, capacity, the technical parameter is adjustable.





Should you did not find suitable roller press coal briquetting machine on this page , please feel free to send your inquiry.

With over 20 yeas manufacturing experience in roller press coal briquetting machine making area , we are glad to share our experience , and we are glad our machines bring you much more benefits to your enterprise !
