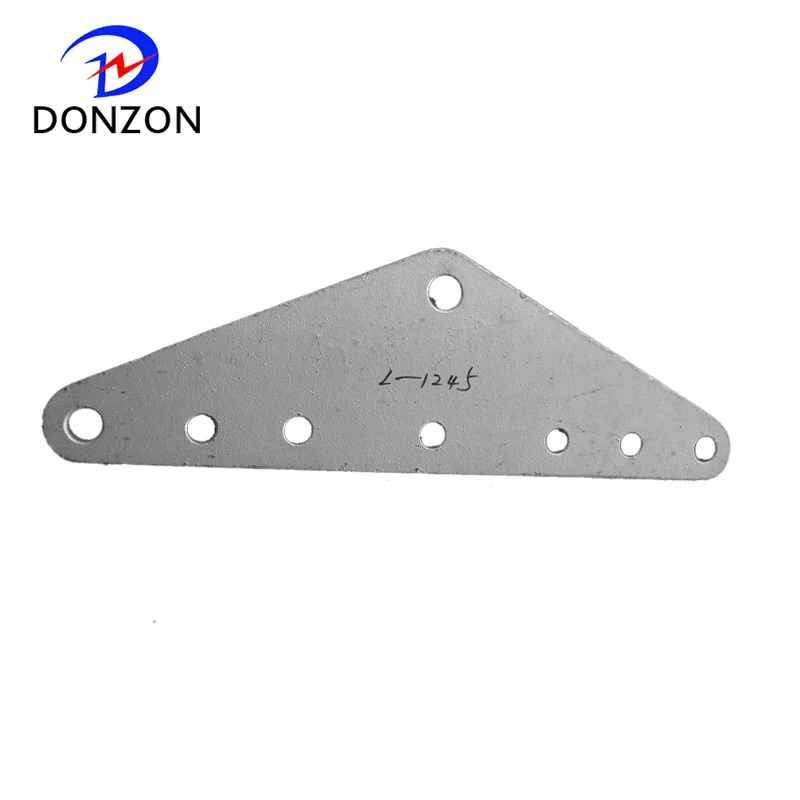

Transmission line hardware accessories hot dip galvanized Tangent Triangular Yoke Plate
These yoke plates may be used to bundle two conductors in suspension application with a single string of insulators. They also may be used in deadend applications with two strings of insulators and one deadend clamp.
Type YPD may be furnished in a variety of sizes, hole spacings, ultimate strengths. For yokes with corona ring mounting provision, consult factory.
| Deadend Triangular Yoke Plates | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Catalog Number | Ultimate Strength | Material | Type | A (in) | B | C | D | D1 | E | F |
| Y2DT060D1800 | 60000 | Ductile Iron | Double | 18 | 5/5/8 | 15/16 | 1 | -- | 13/16 | 13/16 |
| Y2DT060S1800 | 60000 | Steel | Double | 18 | 4 1/2 | 1 1/16 | 3/4 | 3/4 | 15/16 | 1 1/16 |
| Y2DT080D1800 | 80000 | Ductile Iron | Double | 18 | 6 | 1 3/16 | 1 3/8 | -- | 15/16 | 1 1/16 |
| Y2DT080S1800 | 80000 | Steel | Double | 18 | 6 | 1 1/16 | 1 1/4 | 3/4 | 15/16 | 1 1/16 |
| Y2DT100S1800 | 100000 | Steel | Double | 18 | 6 | 1 3/8 | 1 1/2 | 1 | 15/16 | 1 1/16 |
Images
Packaging & Shipping
1.We will be responsible for packing the stores suitable for transit by sea/ rail/ road so as to ensure their being free from loss. Usually we export the product on Tianjin Port and Shanghai Port. We will do our best to meet the client's any other terms' requirement.
2.We pack them by composite material wooden cases or according to your requirements to adjust.
Our Ceitifications
Our compnay has passed strict quality management ISO9001:2008 ,CE certification ,SGS and CNAS testing report .
Our factory
FAQ
Q: How is the Design & Engineering?
A: Experienced and skilled team of designers including CAD designers and 3D designers has the capacity to deliver outstanding designs for your project.If you require more complex engineering of structures such as overhead transmission and distribution lines design,we can also provide this service also designer fee .
Q: What's the payment term?
A: We accept T/T, L/C, West Union, Cash.
Q: What's the delivery time?
A: Usually within 7-15 days according to quantities
Q: What's the standard of package?
A: Export standard package or special package as the requirement of customers.
Q: What kind of product quality your factory offer?
A: Our products with both excellent quality and competitive price. And we offer free sample for your reference.
Q: What kind of certificate you have?
A: We have ISO9001:2008 ,CE ,SGS,IEC,CNAS testing report
