RS PM V10 2 Dual frequency data acquisition 0 10V pm2.5 pm 10 output air quality sensor
- Category: Gas Analyzers >>>
- Supplier: Shandong,Renke,Control,Technology,Co.,Ltd.
Share on:
Product Overview
Description
RS485 Output | Analog Output | ||||||||
Power supply | 10-30VDC air quality sensor | Power supply | 10-30VDC air quality sensor | ||||||
Operating temperature | -20℃~+60℃，0%RH~80%RH | Power consumption | Current output | 1.2W | |||||
Communication Interface | 485 (modbus) protocol Baud Rate: 2400, 4800 (default), 9600 Data bit length: 8 Parity mode: none Stop bit length: 1 The default ModBus Address: 1 Support Function code: 03 | Voltage output | 1.2W | ||||||
Resolution | 1ug/m3 air quality sensor | ||||||||
Accuracy | ±10% air quality sensor | ||||||||
Operating temperature | -20℃~+60℃，0%RH~80%RH | ||||||||
Measure range | PM2.5 | 0~1000ug/m3 | |||||||
Resolution | 1ug/m3 air quality sensor | PM10 | 0~1000ug/m3 | ||||||
Accuracy | ±10% air quality sensor | responding speed | ≤90S air quality sensor | ||||||
Measure range | PM2.5 | 0~1000ug/m3 | Preheat time | ≤2min air quality sensor | |||||
PM10 | 0~1000ug/m3 | Output signal | 4~20mA/0~5V/0~10V | ||||||
Product description
RS-PM-N01-2 is an industrial grade universal particle concentration transmitter, using the principle of laser scattering measurement, through a unique data dual frequency acquisition technology for screening, the unit size within the equivalent particle size particles The number of particles in the unit volume is calculated by the unique algorithm of science, and the data is output through the ModBus-RTU protocol at 485 interface. Can be used for outdoor weather stations, dust monitoring, libraries, archives, industrial plants and other places need PM2.5 or PM10 concentration monitoring sites. air quality sensor air quality sensor air quality sensor
Details Images

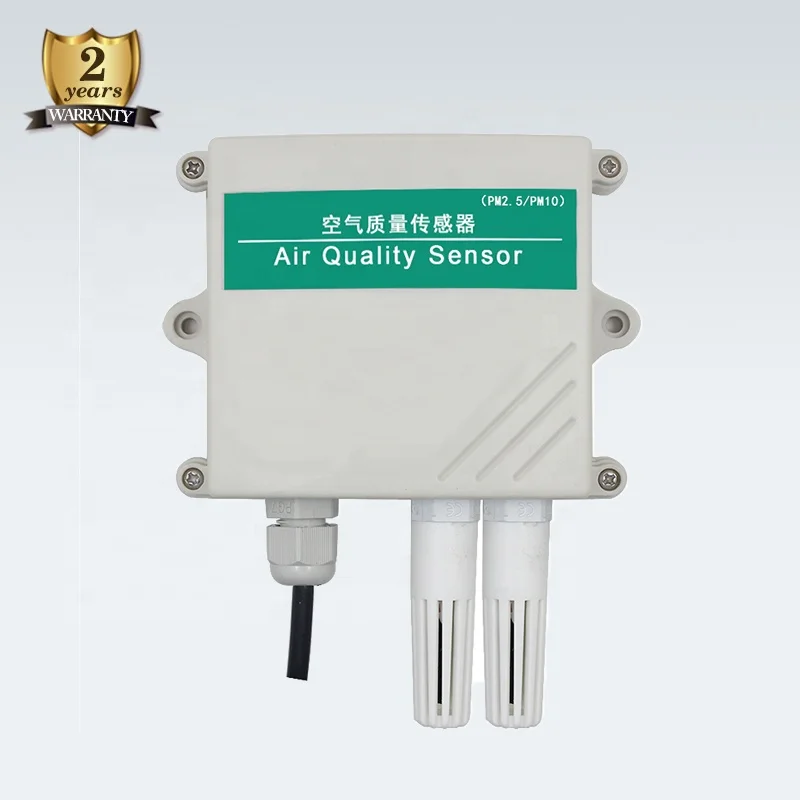

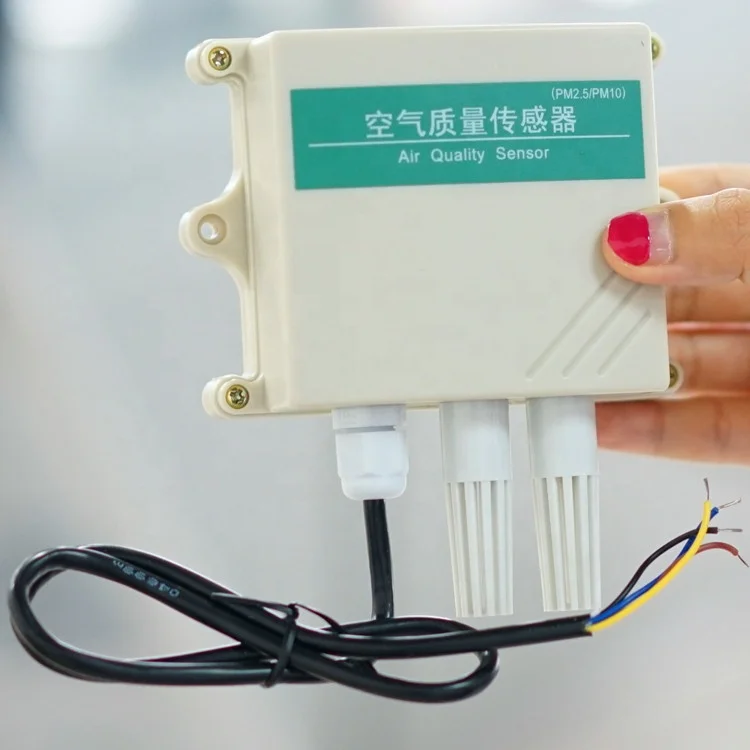

RS-PM-V10-2 Dual frequency data acquisition 0-10V pm2.5 pm 10 output air quality sensor
--range: 0-6000ug / m3, resolution 0.1ug / m3 air quality sensor air quality sensor air quality sensor
--PM2.5, PM10 output at the same time air quality sensor air quality sensor air quality sensor
--unique dual-band data acquisition and automatic calibration technology, consistency of up to ± 10%
--The use of advanced laser anti-attenuation technology to ensure long-term stability of equipment
--Standard ModBus-RTU communication protocol, easy access air quality sensor air quality sensor air quality sensor
--range: 0-6000ug / m3, resolution 0.1ug / m3 air quality sensor air quality sensor air quality sensor
--PM2.5, PM10 output at the same time air quality sensor air quality sensor air quality sensor
--unique dual-band data acquisition and automatic calibration technology, consistency of up to ± 10%
--The use of advanced laser anti-attenuation technology to ensure long-term stability of equipment
--Standard ModBus-RTU communication protocol, easy access air quality sensor air quality sensor air quality sensor
Electrical Wiring
RS485 OUTPUT | ||
Line color | Description | |
brown | positive power supply (10 ~ 30 VDC) | |
black | Negative power supply | |
yellow | 485 -A air quality sensor | |
blue | 485 -B air quality sensor | |
ANALOG OUTPUT | ||||
Line color | Description | |||
power supply | brown | Power is positive | ||
black | Negative power supply | |||
Output | blue | PM10 positive signal | ||
green | PM10 negative signal | |||
yellow | PM2.5 positive signal | |||
white | PM2.5 negative signal | |||
Application
♦ Meteorological, ropeway, ambient air quality monitoring air quality sensor air quality sensor
♦ Greenhouse, aquaculture, air conditioning and energy monitoring air quality sensor air quality sensor
♦ Air quality monitoring in areas such as agriculture, medical care, and clean space air quality sensor
