10/20/30/40/50 head Muslim cattle slaughterhouse equipment

Product Overview

Description



50 cattle per shift Cattle Slaughter and Dividing Line
Profile: 1.This proposal is to get cattle half carcass 2.The max capacity for this line can be 50 cattle/day as 8Hs 3.Total power need:27Kw 4. Worker need:10Workers 5.Water need:200L hot water for knives and saw disinfection and 500-700L cold water to washing ground
Part One Slaughtering Part
No	Name	Model	Unit	Qty	Remarks
0	Cattle weighbridge		set	1	♦ Plate :  8-14mm checker plate with coating  painting /6-8 Pcs U beam design ♦ Sensor : keli or Zemic with OimL certificate sensor ♦ Junciton : Ss yaohua or Tensent waterproof junctionbox ♦.U beam thickness design with 6mm ♦.Pre camber machine to making platform have a high curves in Middle of platform ♦.Auto welding machine to ensure welding is smooth and good strength ♦.Shot blasting clean all dirty before painting Size: 2.0*2.0*1.5m
1	Cattle Killing Box	QFX-2800	Set	1	Box body is made of Hot Galvanized, cylinder and pnematic part are made of Aluminum Alloy, Machine length:2.8m
2	Blooding Hoist		Set	1	For the slaughtered cattle from the ground to the bloodletting orbit. Function: slaughtered cattle or live cattle, with a band chain hook to lift cattle to bloodletting orbit. Lifting height: 7m, lifting capacity: 2000Kg, installed power: 3Kw, lifting speed: 14m/min. Automatic loading type. Equipped with a low pressure control, installation materials and safety overload protection. Equipped with a manual switch. Connected with the bloodletting buffer rail. Hot galvanized steel structure
3	Blooding Manual Pushing Line		M	16	Including:  hot dip galvanized steel secondary beam, hanger, stainless steel track, turnout, curved rail and connecting pieces.
4	Manual locator		pcs	6	hot dip galvanized
5	Bloodletting roller hook		set	10	Used for conveyor cattle carcass on blooding line.Made by hot galvanized frame, two stainless steel wheels with ball bearings
6	Cattle Rail Change Hoist	1T	set	1	Normal speed lifting. Max Load:2000kg

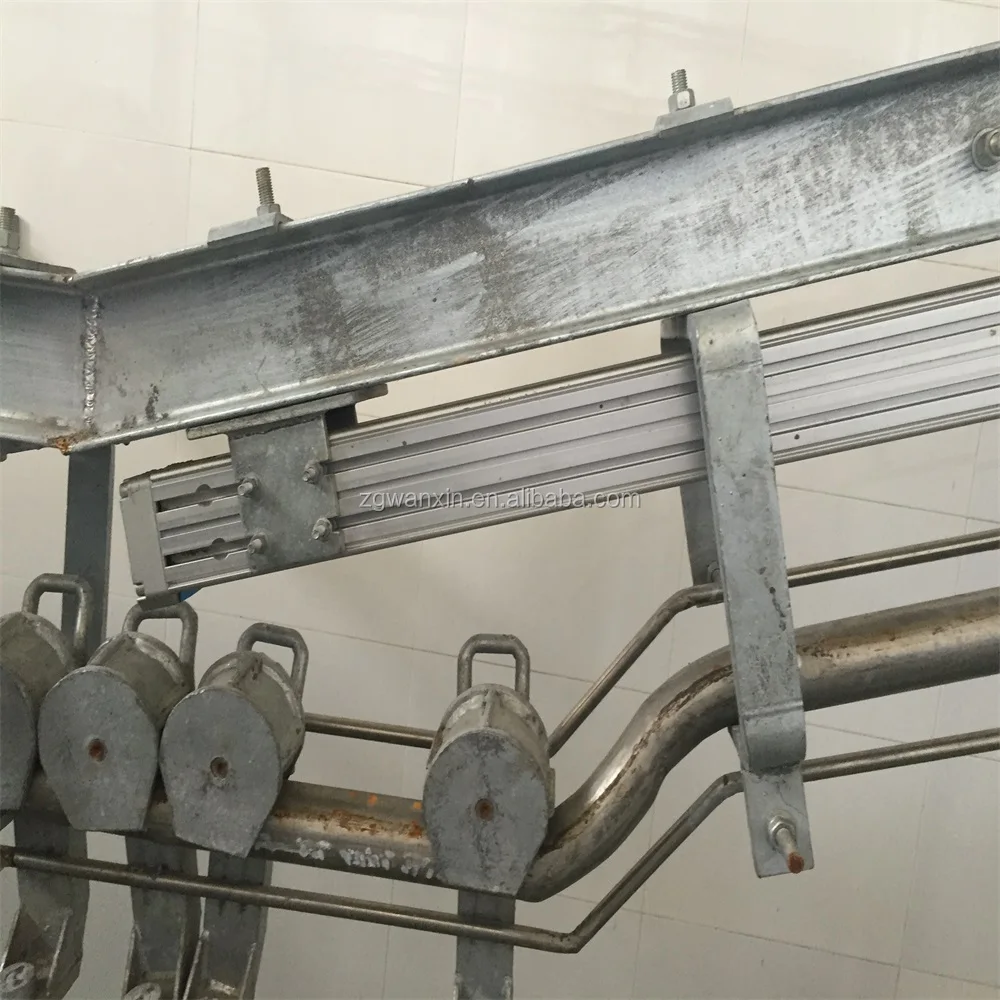

7	Tube rail pulley hook	GLG-400	pcs	20	Wheel frame is for high strength aluminum alloy material, in order to reduce weight. Hooks and rollers are made of 304stainless steel.
8	Five Station Carcass Processing Conveyor	DSJ-2400	set	1	Hot Galvanized frame,chains and tube rail, auto control or manual control with control program, pitch distance:2400mm

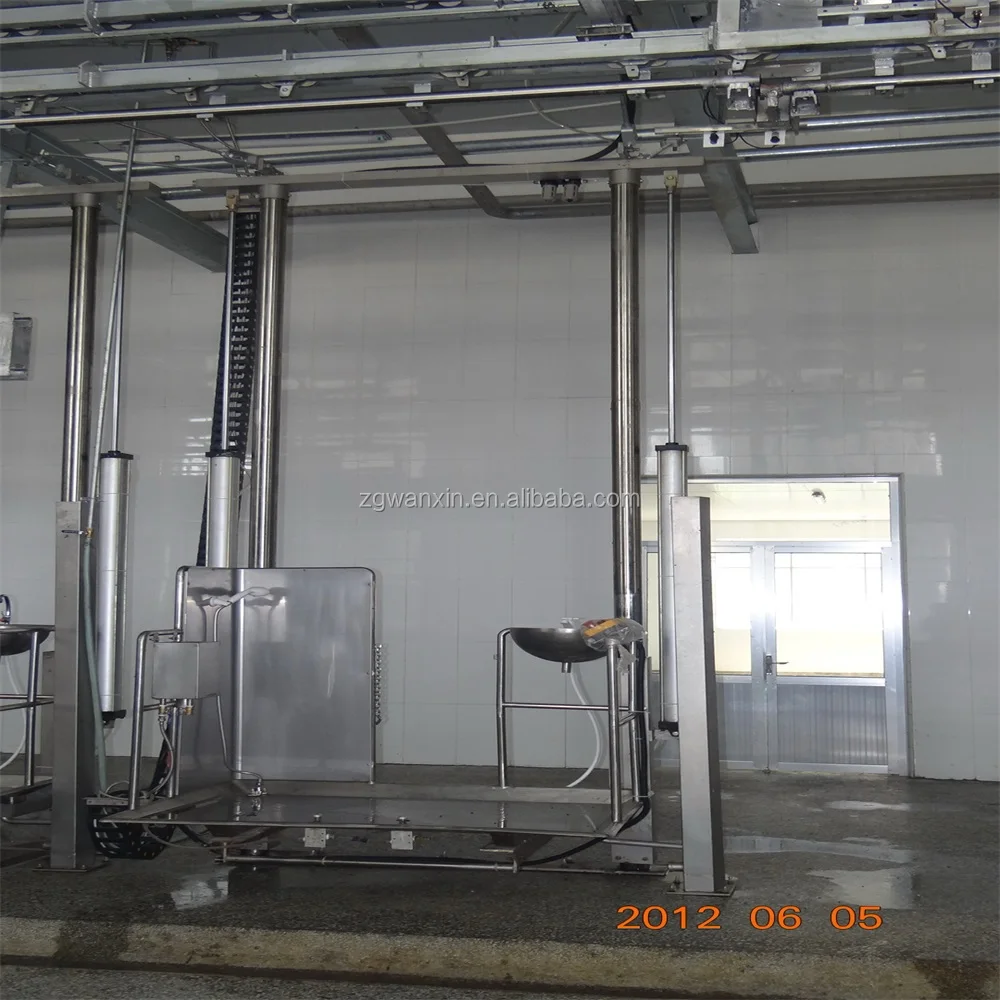

9	Double column pneumatic lifting platform	SQT-1600	set	2	Frame is Hot Galvanized, Sheel and The platform surface and handrail are made of stainless steel, cylinder, pneumatic components for aluminum alloy. The lifting height: from 400mm to 2000mm
10	Hydraulic hide puller	YCJ-5300	set	1	Frane and Shell are made of Hot Galvanized, hide puller drum  is for 304stainless steel with hdraulic system and program control system.
11	Forelegs fixing frame		set	1	Hot Galvanized, Made by Q345B,h=1.5m,Thickness:20mm.
12	Single column pneumatic lifting platform	DQT-1600	set	2	Work with hide puller, Frame is Hot Galvanized,The platform surface and handrail are made of 304stainless steel anti-slide plate, cylinder, pneumatic components for aluminum alloy.
13	Electronic rail weighing system	400Kg	set	1	for half split weight, with printing device and Screen
14	Half Split declining machine	0.5T	set	1	Normal speed lifting
15	Tube Rail manual pushing Line		m	80	Including:  hot dip galvanized steel secondary beam, hanger, stainless steel track, turnout, curved rail and connecting pieces.(This rails are for cold room usage, can load about 50 cattle carcass.)

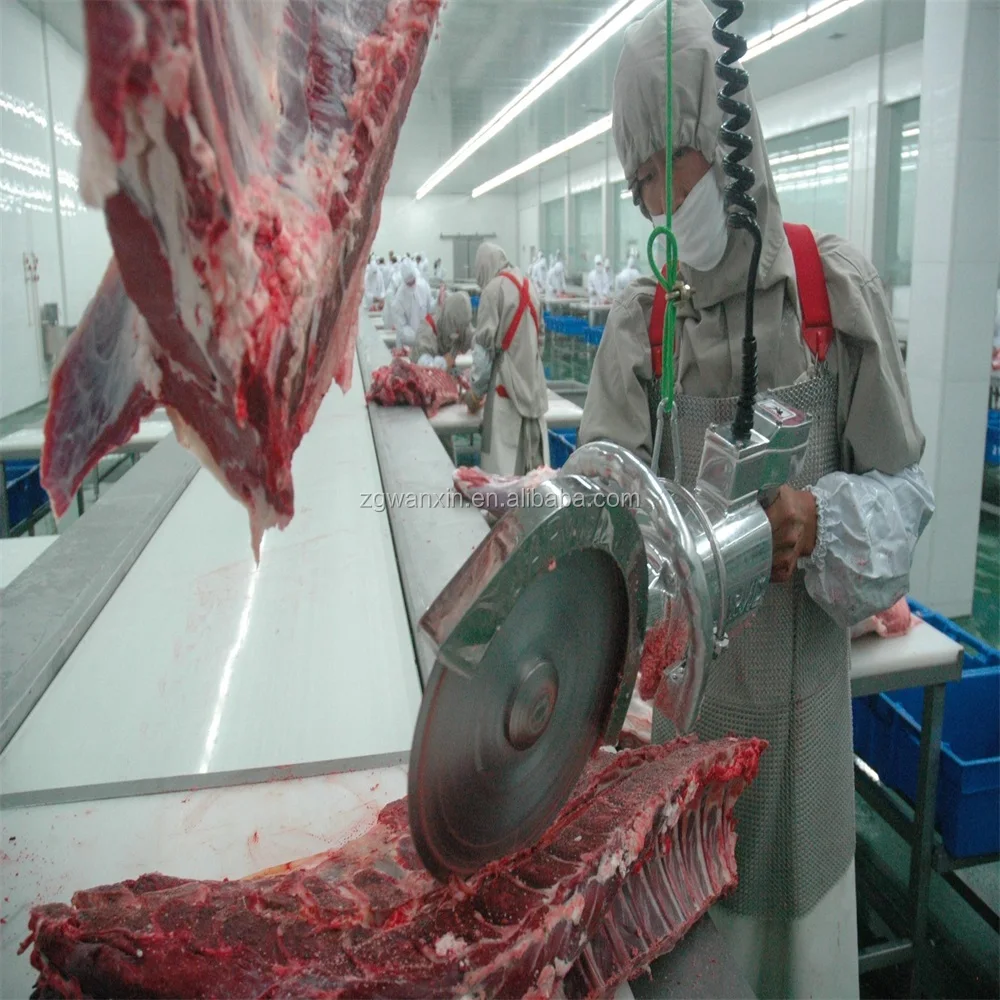

16	Chest Open saw		set	1	With Balancer, China made or UAS Brand
17	Half split saw		pcs	1	With Balancer, China made or UAS Brand
18	Hide pulling knives		pcs	10	High strength alloy steel, L=35cm(including 10cm handle)
Sub
Forth: Installation Cost: Seller will arrange for 1workers for Installation guide,buyer part should pay the cost as workers salary,round tickets and accommodation.
Delivery: by sea containers,1*40Fcl. Delivery time: 25days after order
Note: 1.The stainless steel materials used for above machine and Line are food grade
and meeting health standard requirements
2.  All above the Power cabinets are sealed Water-proofed.
3. All about the machine and Equipment are 380/220V 50Hz according to China Standards.
4. Warranty time: Whole machine for 1Year and easy broken parts for 6months, and we offer free for 1year use eas broken parts





-----------------------------------------------------------------------------------------------------------------------------------
