STA 1430 wholesale refractory heat insulation fireproof fiber paper /ceramic fiber paper

Product Overview

Description

STA wholesale refractory heat insulation fireproof fiber paper /ceramic fiber paperr



   Ceramic Fiber Paper is made from high-purity ceramic fiber by adding a small amount of binder which will completed burnt out during using process, through production technology with scientific selection and strict control binding. The product shows excellent thermal insulation properties and construction performance, suitable for use in deep processing (multi-layer composite, punching, etc.)

the features of ceramic fiber paper

    Ceramic Fiber Paper offers:

 --- high temperature resistance,

 --- very low thermal conductivity,

 --- chemical corrosion resistance and thermal shock stability

 --- heat resistance and thermal insulation in limited space.

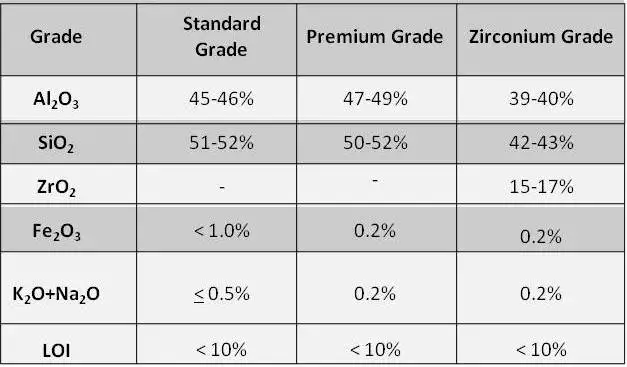

Technical Index

Type	1260C
Shrinkage On Heating (%)	1000 oC X24h ≤-3
Organic Content (%)	≤10
Density (Kg/M3)	200
Specification (mm)	40/30/20mx1220/610x1/2/3mm	Width:1220mm
Package	Carton
Quality And Environment Control System	ISO9001-2000



Item	Heat insulation Ceramic fiber paper
Material	HA alumina
Specifications	Density:180-220kg/m3 Thickness:0.6mm,1mm,3mm,5mm,6mm,10mm,12mm Min Width 50mm Regular size:40000x610x0.6mm; 40000x610x1mm;  20000x610x2mm;15000x610x3mm; 10000x610x5mm; 10000x610x6mm
Working Temperature	1050 Ordinary Ceramic Fiber Paper--950C 1260 Standard Ceramic Fiber Paper--1050C 1260 High-purity Ceramic Fiber Paper --1100C 1400 High Aluminum Ceramic Fiber Paper--1200C 1450 Zirconia Ceramic Fiber Paper--1350C



Applications of ceramic fiber paper



Appliance heat seals

Parting plane in refractory linings

Combustion chamber liners

Backup lining for metal troughs

Hot top linings

Thermal and electrical insulation

Refractory backup insulation

Coke oven door shook absorption medium

Kiln car deck covering













   Wrapped by plastic bag and put into carton box Neutral packing is also available. carton size: 320x320x620 330x330x630 pallet size: 1280x1000x2300 1240x320x320. Or as per requirment

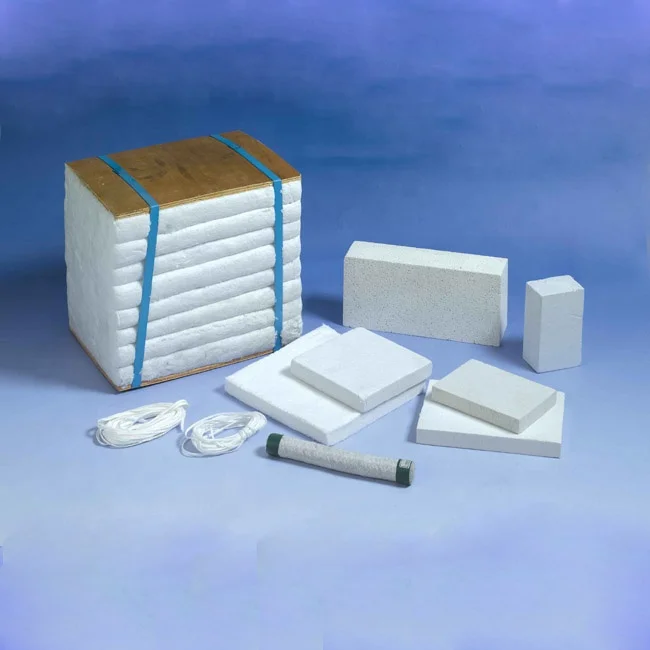

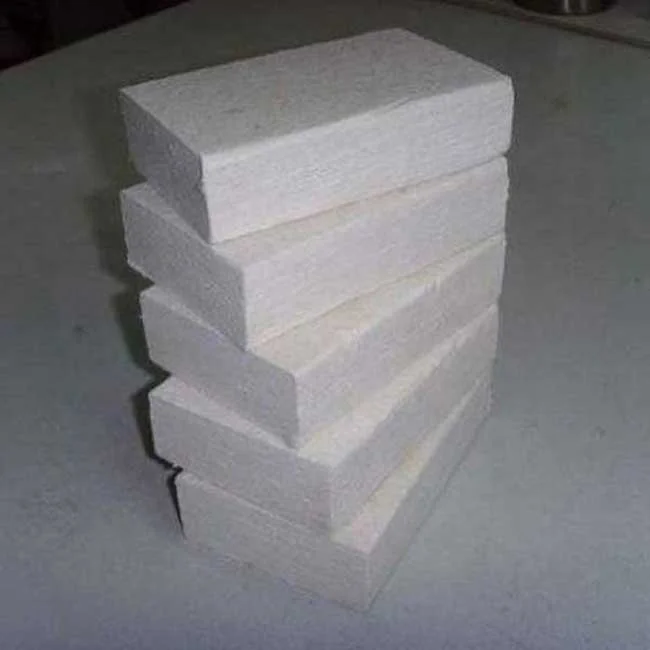

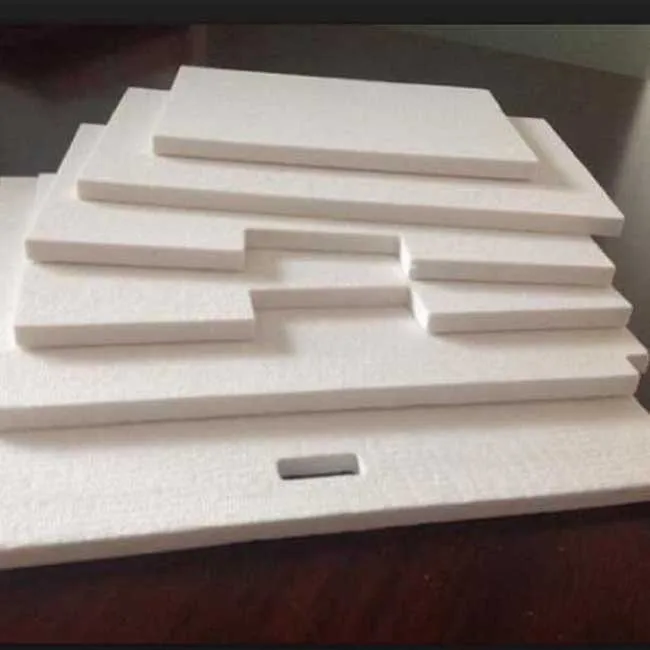

   STA  universe group is founded in 2001,is a professional manufacturer of ceramic fiber paper ,board,blanket,moduel etc. dedicating to innovation ang creating a world famous brand.And provide verious products for customers .we provide the following service:



1.top quality:our products have the CE certificate,ISO certificate

2.competitive price

3.quick delivery: whthin 10-15 days after receiving the payment,if it is the conventional products,we can deliver it in 3-5 days

4.best service after sales
