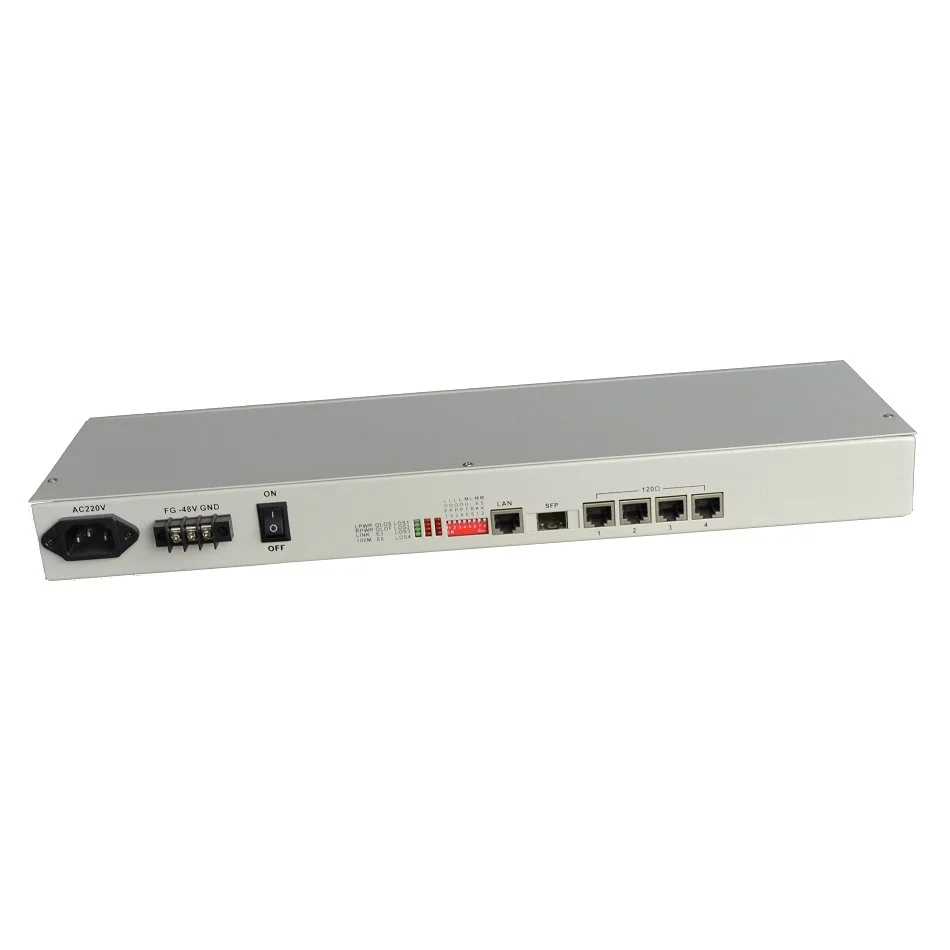

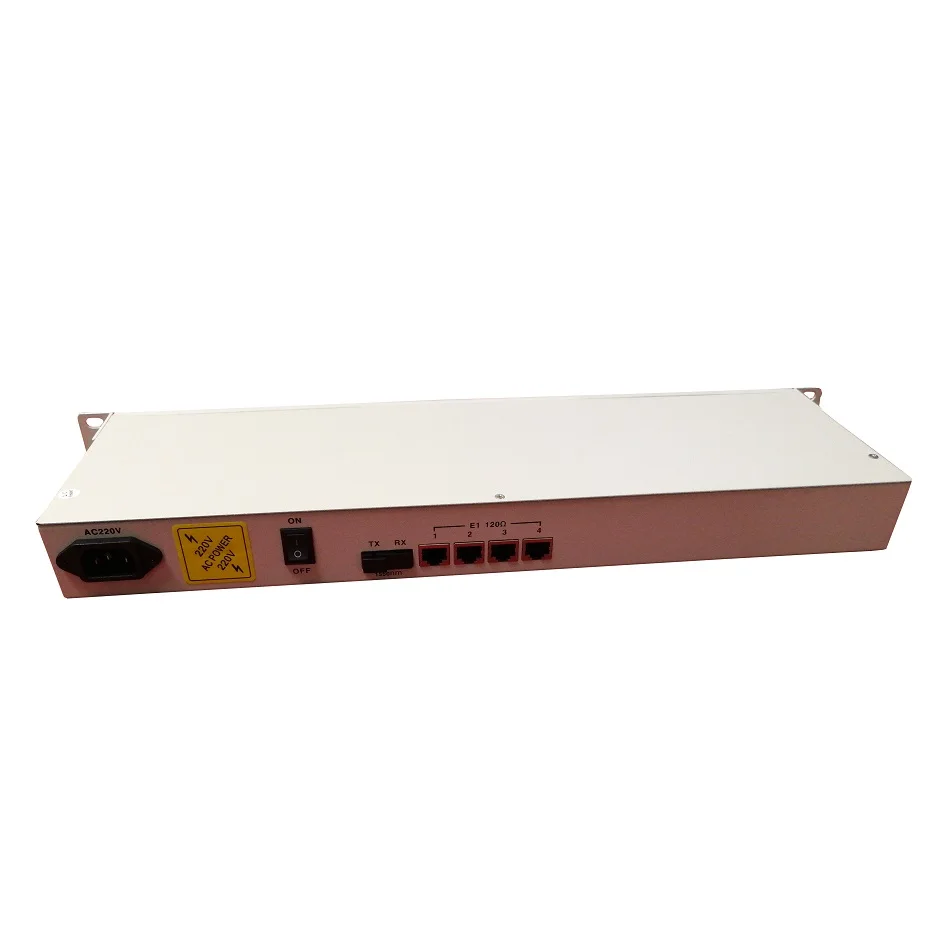

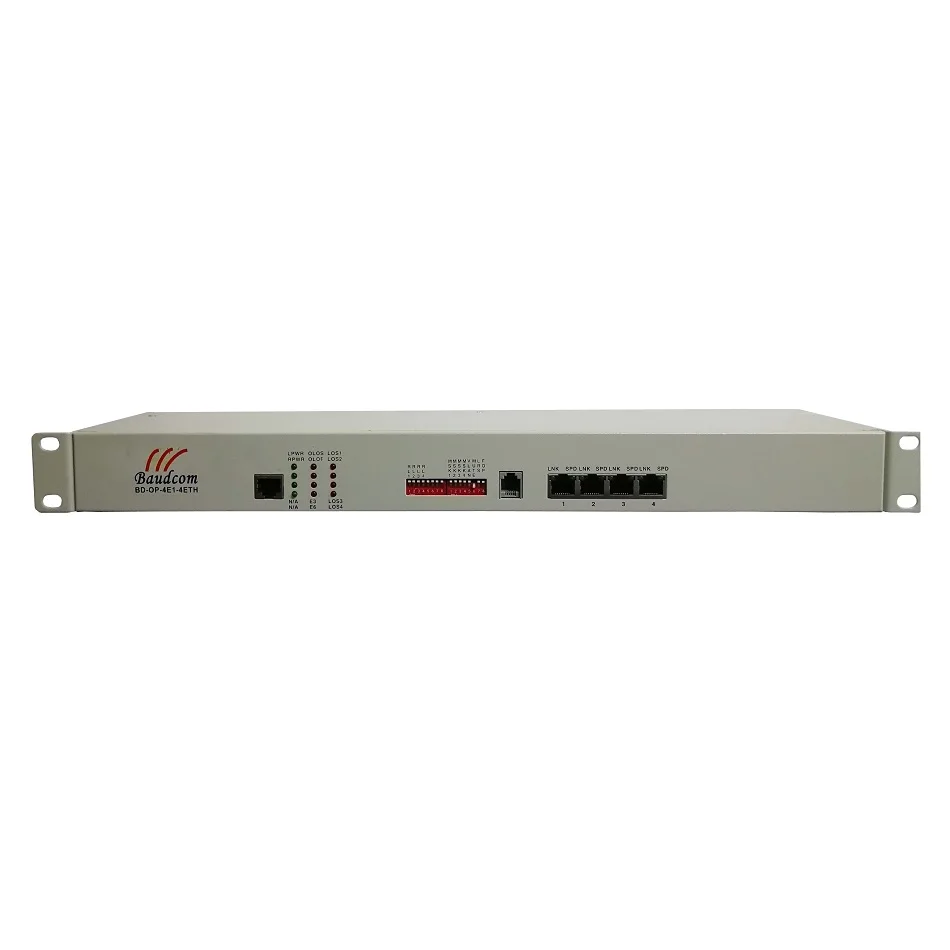

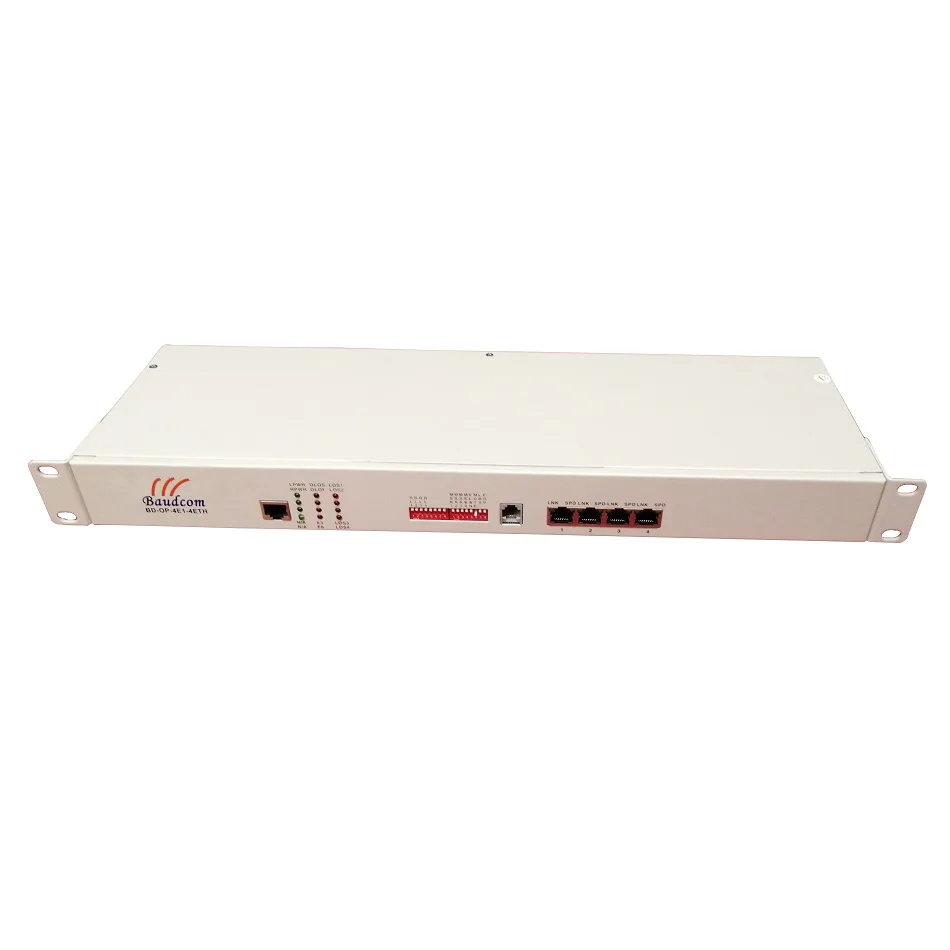

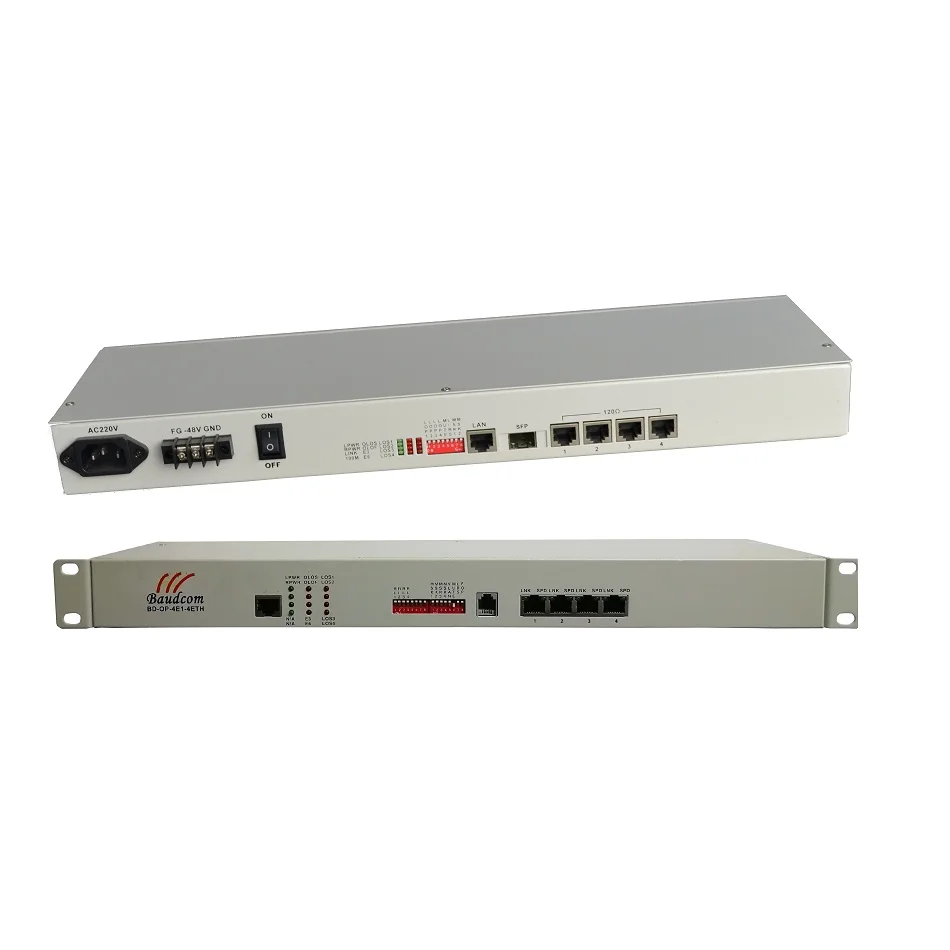

4E1 Fast Ethernet Fiber Optical PDH Multiplexer
- Category: >>>
- Supplier: Shanghai Baudcom Communication Device Co. Ltd.
Share on (60639497554):
Product Overview
Description
Product: 4E1 Fast Ethernet Fiber Optical PDH Multiplexer
Our advantage
1.Warranty is 3 years with good quality
2. Min MOQ,only one is ok
3.more 16 years factory
4.OEM/ODM accept,CE passed
5.new design and fast delivery
Product Description
The 4E1 Fiber Optic Ethernet Multiplexer is the point-to-point optical transport equipment that uses the FPGA chips and it is easy to upgrade. It is single board structure and the largest transmission capacity is 4E1. The outer design use the standard 19 inches rack, so the volume is little, weight is light and operation is convenient and credit.
The 4E1 Ethernet Multiplexer is use the PDH fiber transmission technologies. The 2M (E1) interfaces can connect with the exchanger, light loop device and multi-diplexer directly to form the mircomidi or the special network. Complete alarm function for 4E1, it is stable and easy to maintenance, install and small in size. It has one digital service telephone.
Ordering Information
| BD-OP-4E1 | 4E1 over fiber multiplexer, E1 support 75ohm or 120ohm, dual fiber or single fiber, single mode or multi-mode, 0~120KM, power supply AC220V or DC48V |
| BD-OP-4E1-4ETH | 4E1+4FE over fiber multiplexer, E1 support 75ohm or 120ohm, 10/100M Ethernet, dual fiber, single mode , 20KM, power supply AC220V+DC48V |
| BD-OP-4E1-4GE | 4E1+4GE over fiber multiplexer, E1 support 75ohm or 120ohm, 10/100/1000M Ethernet, dual fiber or single fiber, single mode or multi-mode, 0~120KM, power supply AC220V+DC48V |
Features
- offers 4E1 digital interfaces
- Offer 1~4 channel 10/100M Ethernet for option
- One order wire for service telephone for duty contract optional
- Standard 19/9.5 inches rack, little volume, light weight, steady capacity and convenient setup
- Digital clock recovery circuit and digital smooth DPLL adopted for 2.048Mb/s port
- has LED indicators
- 1+1 fiber protection for optional
- The supervisory control interface implements centralized monitoring and export the monitor and control information of this port and opposite port.
Specification
| Optical interface | |
| Optical wavelength | 850nm/1310nm for multi- mode |
| 1310nm/1550nm for single-mode | |
| Optical interface | SC/FC/ST or SFP |
| Fiber type | dual fiber or WDM |
| Receiving and dispatching module | >-6dBm |
| Optical receiver receiving sensitivity | <-36 (BER<10) |
| Dynamic range receiving | >-30dB |
| Transmitting range | Multi-mode 0~2 Km, single-mode 0~120Km |
| Vibration characteristic | Satisfies G.742 and the G.823 standard |
| Optical code | NRZ |
| E1 interface | |
| E1 port qty | 4 |
| Interface code | HDB3 code |
| Line speed | 2.048Mbp/S 50ppm |
| Interface standard | ITU-T G 703 |
| Interface impedance | 75ohm BNC or 120ohm RJ45 |
| Allowed attenuation | 0~6dB |
| Ethernet interface | |
| Ethernet port qrt | 0~4 |
| Interface rate | 10/100Mbps or 10/100/1000Mbps |
| Interface characteristic | Satisfies IEEE802.3, IEEE802.1Q |
| Connector | RJ45 |
| Management (optional) | SNMP management 1 Console port |
| Power supply | |
| Input voltage | option I – DC-48V,range DC-36V~DC-72C option II – AC220V,range AC165V~AC240V option III - DC+AC, DC+DC or AC+AC |
| Power Consumption | <=7 Watts |
| Environment condition | |
| Working temperature | -10°C ~ 50°C |
| Storage temperature | -40°C ~ 80°C |
| Humidity | 5%~95 % (no condensation) |
| Dimension | 1U 19inch rack mount 433mm(L)x138mm(W)x 44mm(H) |
FAQ
1.How can I get sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit), we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipment?
For small orders, we will send the goods by International Express like Fedex/DHL/TNT/UPS(Also you can use your existing DHL/Fedex/UPS accounts for shipping). Usually it takes about 7work days to arrive.
If big quantity we will ship by Ocean transportation, it takes one month to arrive.
if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging & Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
