VoIP video intercom system for apartments security door phone waterproof designed

Product Overview

Description

VoIP video intercom system for apartments security door phone waterproof designed

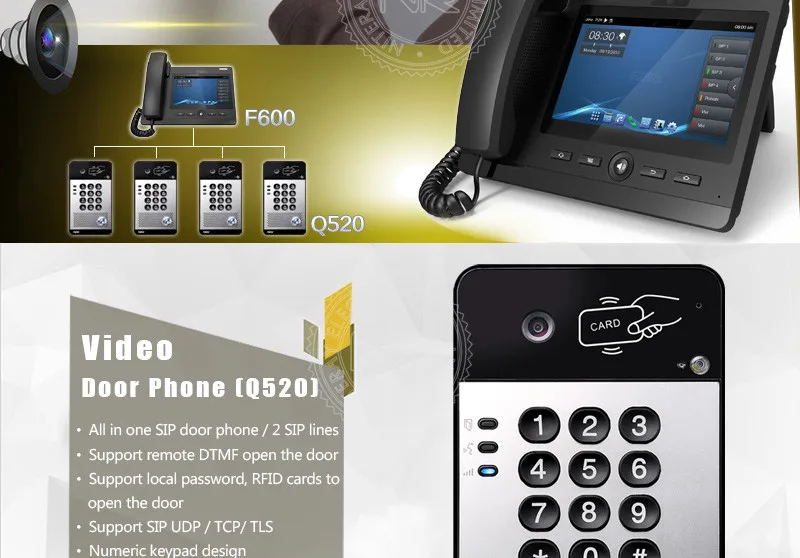

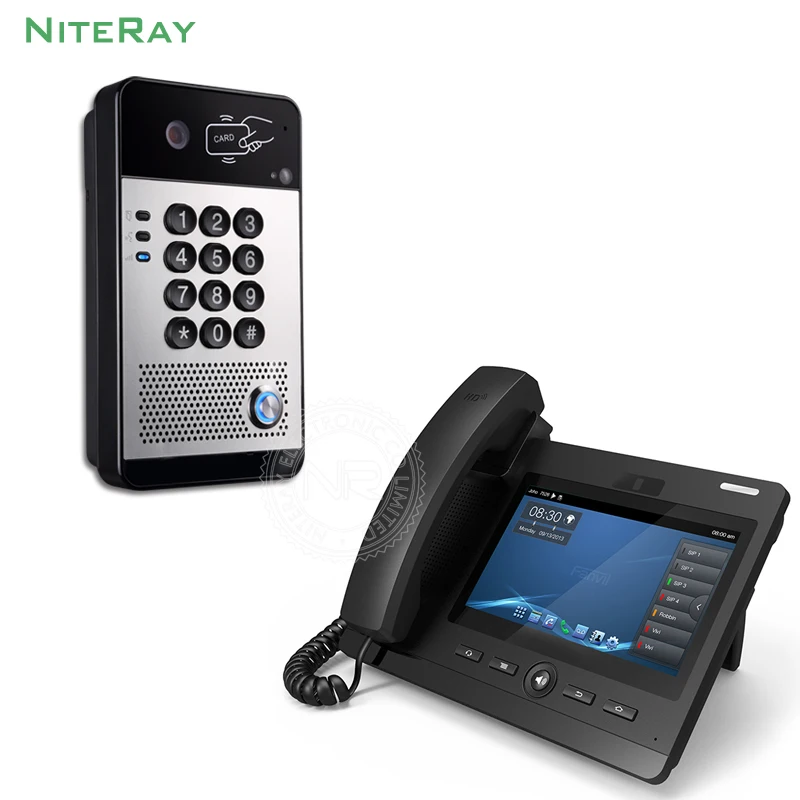

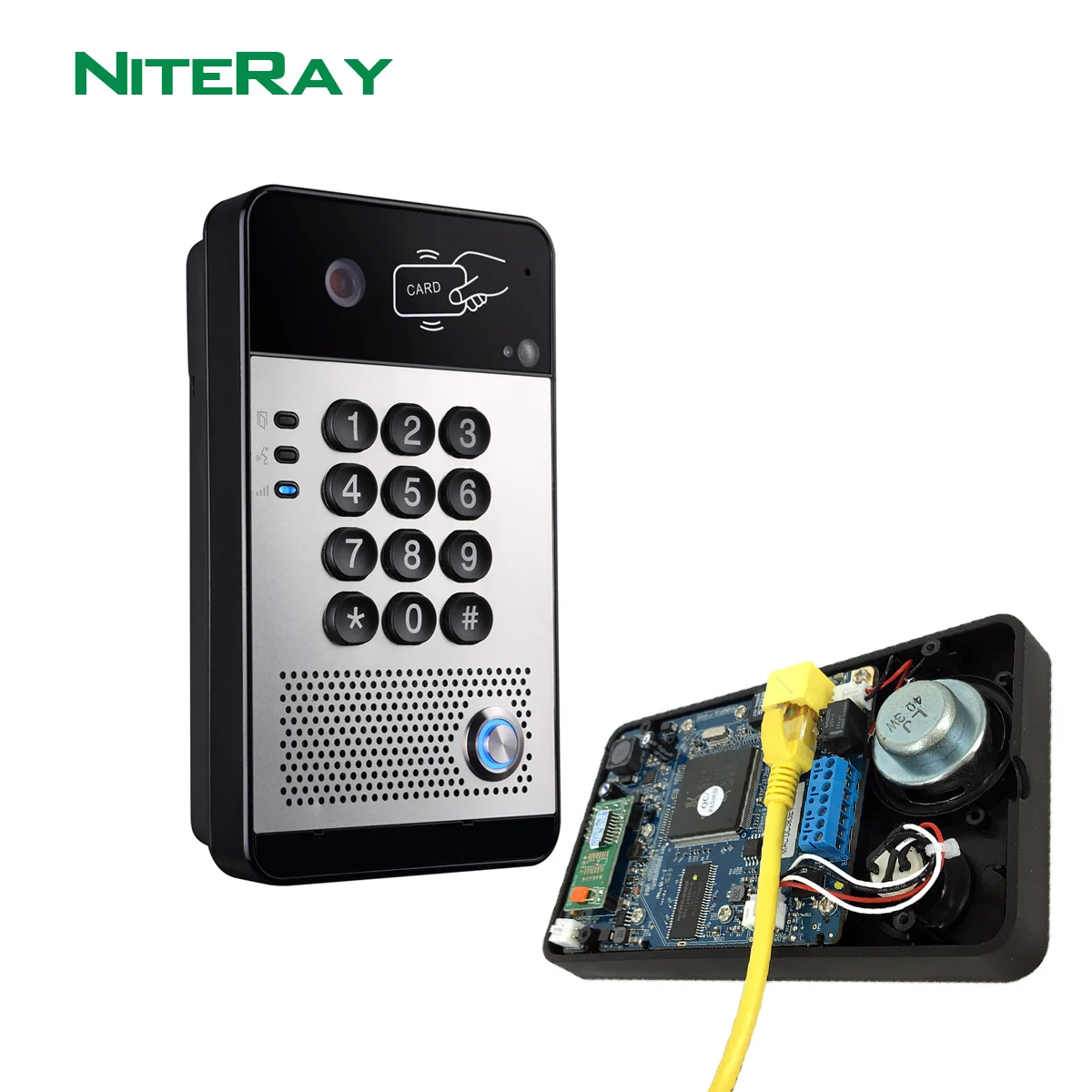

• Video SIP basic telephone(F600) + Video SIP door phone(Q520).


• Optional qty to choose: F600*N+Q520*N.

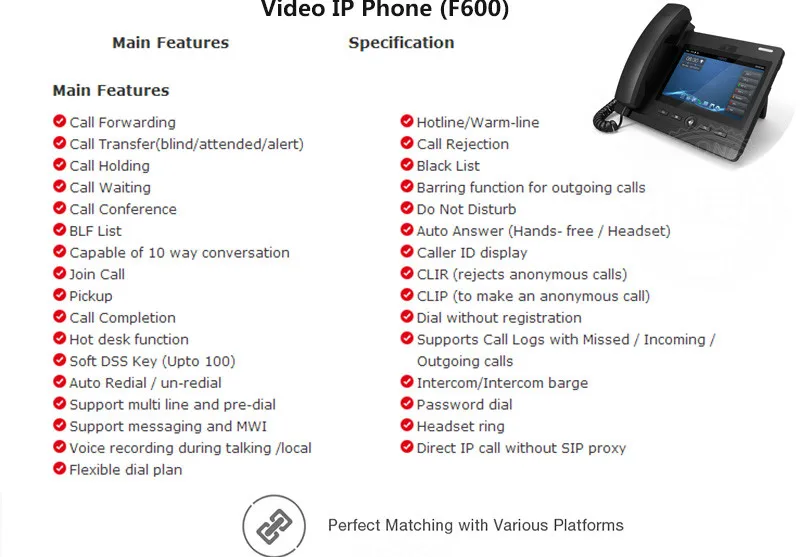

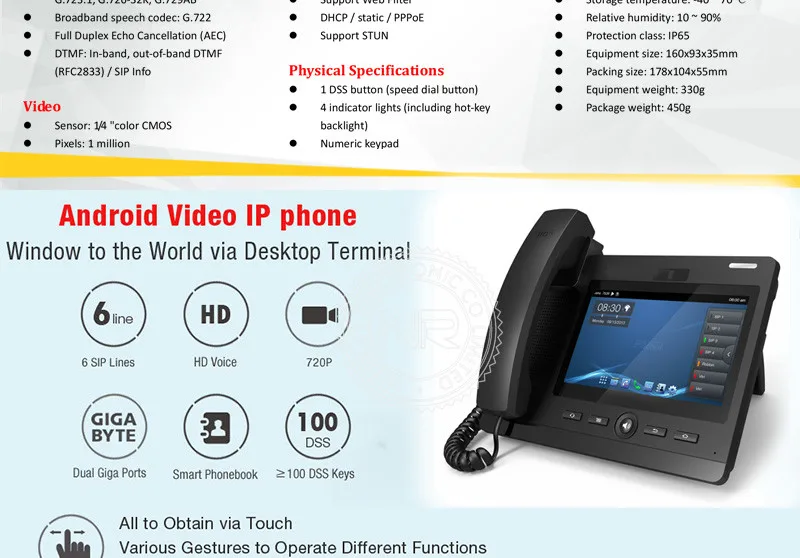

• 7 inch 720P HD video display, Android system on F600.


• Hidden RFID Card Reader.


• Relay to Connect to Door Lock , NO/NC Relay Mode.

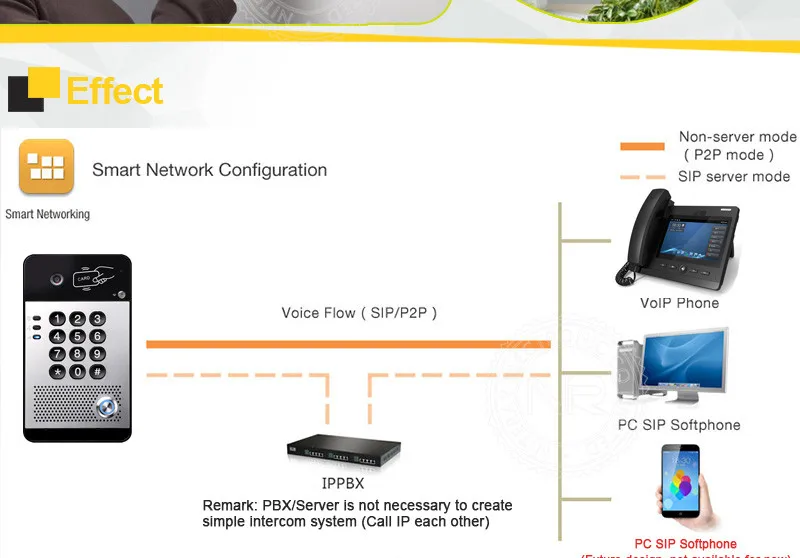

• Able to create Intercom with or without server/PBX.


• Use SIP Protocol, Easy to Deploy.


• Directly Call to Preset Telephone.


• Waterproof design IP65.


• Hight Quality Conversation Voice.


• Full Duplex Intercom.


• Auto Answer , Auto Hand Down.

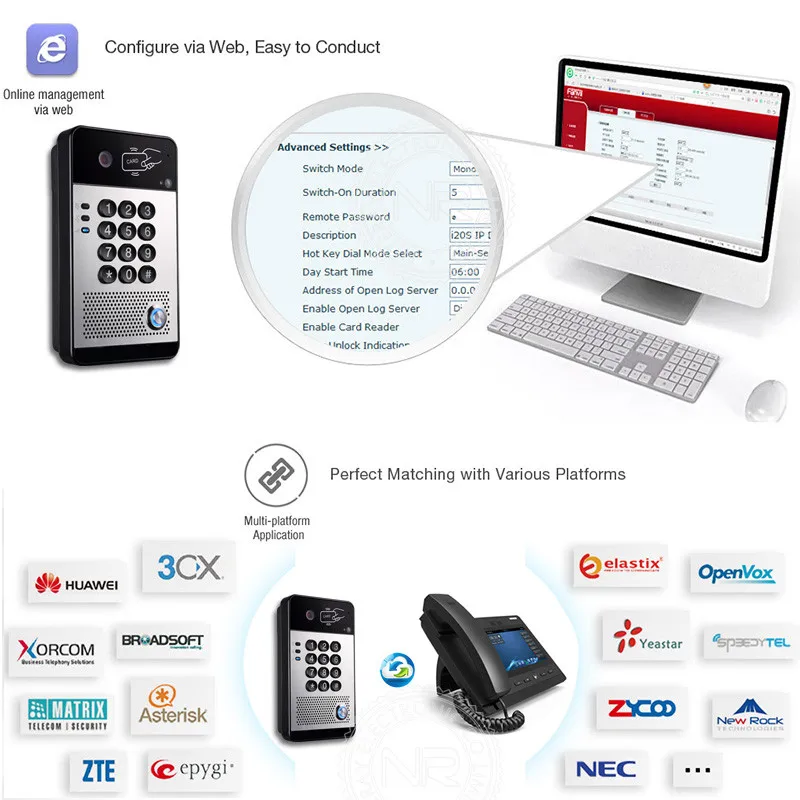

• Powerful Web Management.


•


  Access control function l




  Two SIP lines, support SIP 2.0 (RFC3261) and related RFC l




  Full-duplex handsfree (HF) l




  Default Auto Answer l




  Open the door operation: DTMF, password, RFID card, switch l




  Support 200,000 door open records l




  Support 2000 remote access list l




  Support2000 RFID cards  l




  Support electric lock internal or external power supply options l




  Support customized DSS keys l




  Network Time Synchronization l




  Action URL / Active URI remote control  Audio l




  Narrowband speech codec: G.711a / u, G.723.1, G.726-32K, G.729AB l




  Broadband speech codec: G.722 l




  Full Duplex Echo Cancellation (AEC) l




  DTMF: In-band, out-of-band DTMF (RFC2833) / SIP Info




  Video l




  Sensor: 1/4 "color CMOS l




  Pixels: 1 million




  Video codec: H.264 l




  Resolution: The main stream1280 *720 Sub-stream 640*360, 352*288, 32*240 l




  Viewing angle: 110 ° (H), 95 ° (V) l




  Minimum illumination: 1Lux, temporarily does not support infrared lighting




  Networking/ Protocols l




  Support PoE (802.3af) l




  Primary and secondary DNS servers are supported l




  Support VLAN l




  Support SNTP client l




  Support VPN L2TP / openVPN l




  Support SRTP l




  Support HTTP / HTTPS web pages l




  Support Qos: 802.1p / q, DSCP l




  Support MD5 authentication l




  Support Web Filter l




  DHCP / static / PPPoE l




  Support STUN









  Physical Specifications l




  1 DSS button (speed dial button) l




  4 indicator lights (including hot-key backlight) l




  Numeric keypad




  1 indoor switch l




  1 relay: MAX DC30V / 1A, AC125V / 0.5A l




  Active switching output: 12V / 700mA DC l




  RFID reader: ID (EM4100) standard type IC(MIFARE ONE) custom type l




  RFID card number output: positive   sequence output 8H10D l




  Microphone: -38dB l




  Speaker: 4Ω / 3W l




  WAN port: RJ-45, 10 / 100M adaptive l




  Power supply: 12V ± 15% / 1A DC or POE l




  PoE: 802.3af (Class 3 - 6.49 to 12.95W) l




  Standby power: 2.76W, 12V / 230mA l




  Network cable: CAT5 or better l




  Shell material: metal surface, ABS bottom shell l




  Installation: wall-mounted installation l




  Operating temperature: -20 ~ 60 ℃ l




  Storage temperature: -40 ~ 70 ℃ l




  Relative humidity: 10 ~ 90% l




  Protection class: IP65 l




  Equipment size: 160x93x35mm l




  Packing size: 178x104x55mm l




  Equipment weight: 330g l




  Package weight: 450g
