Automotive Alternator Stator Winding Machine with spiral winding
- Category: >>>
- Supplier: Nantong Zhenhuan Trade Co. Ltd.
Share on (60639635175):
Product Overview
Description

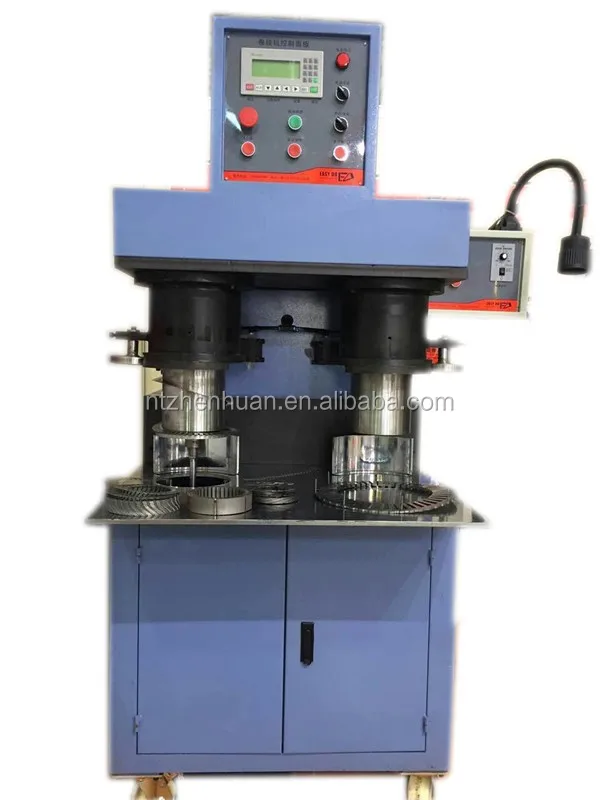

MACHINE DESCRIPTION

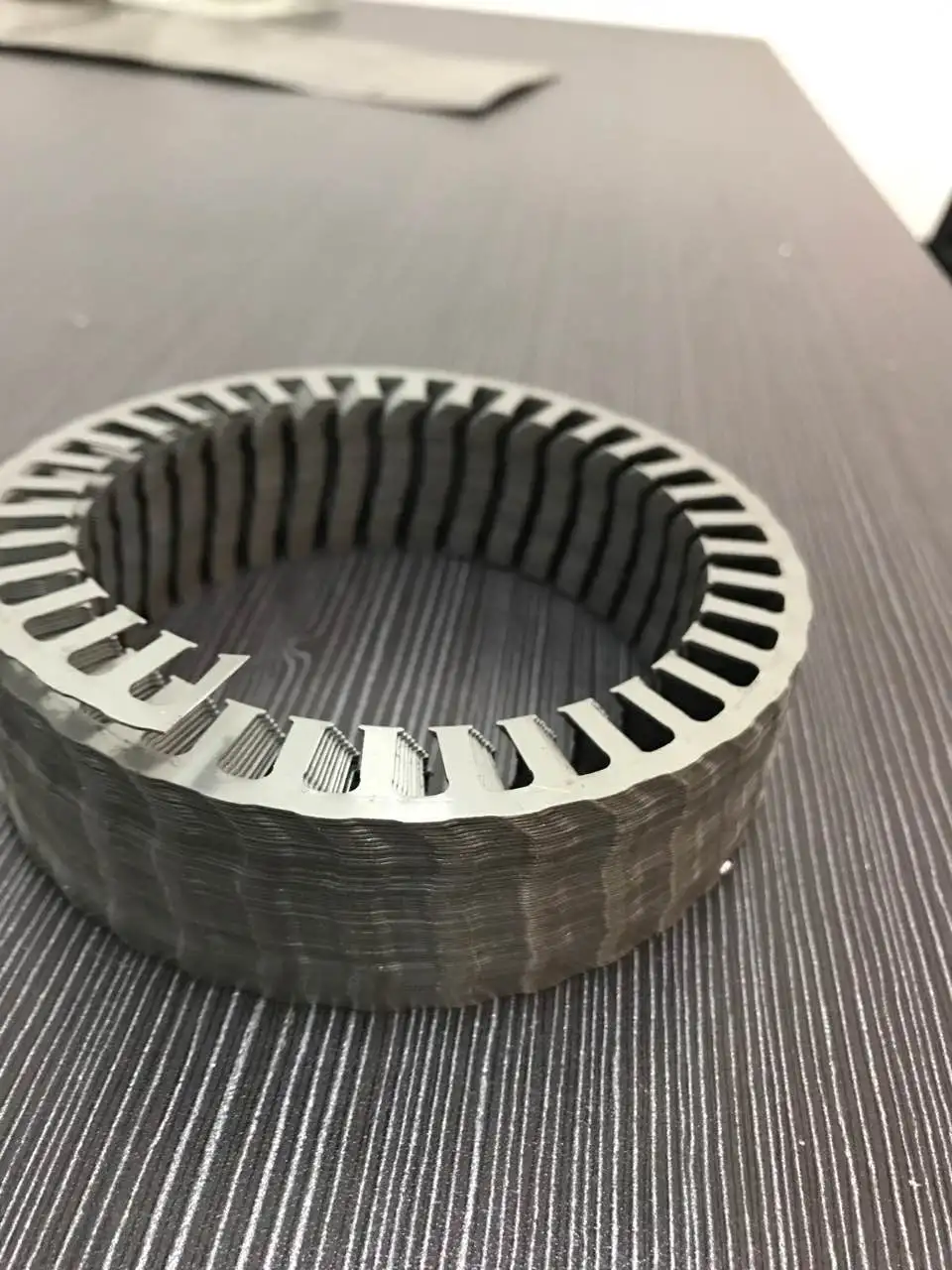

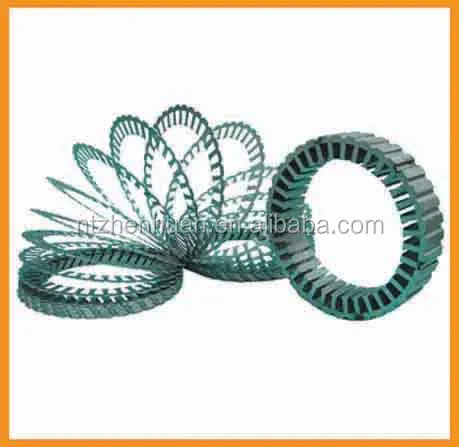

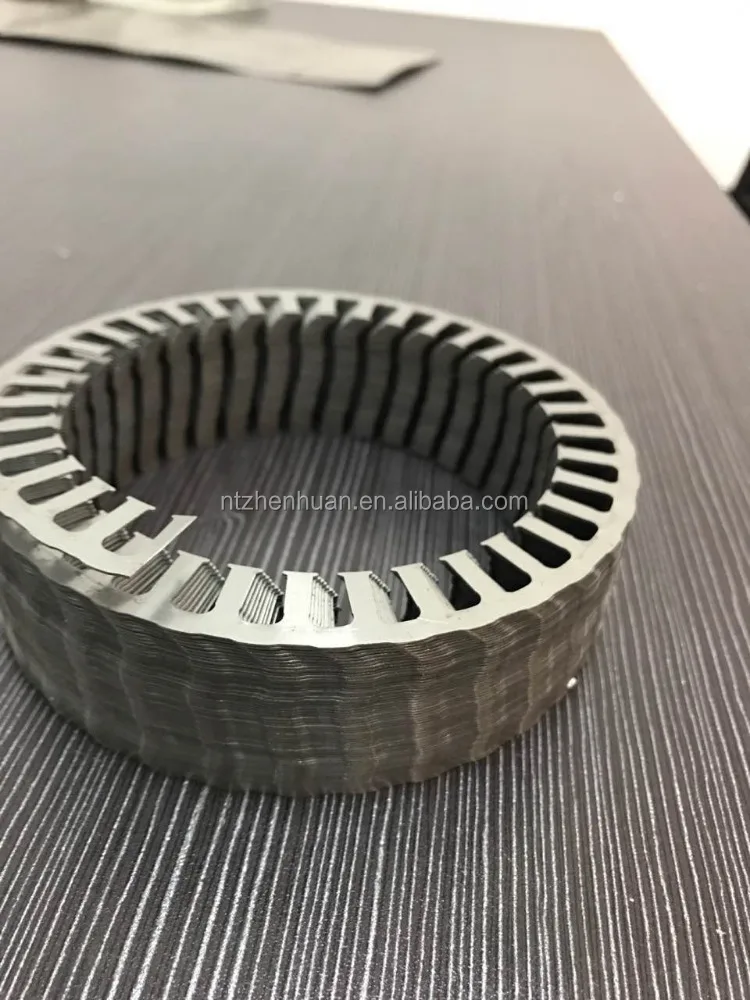

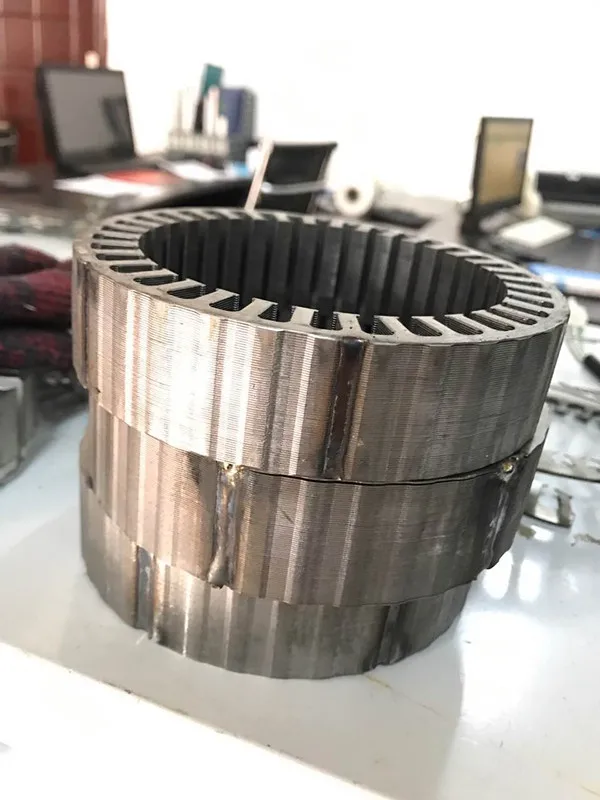

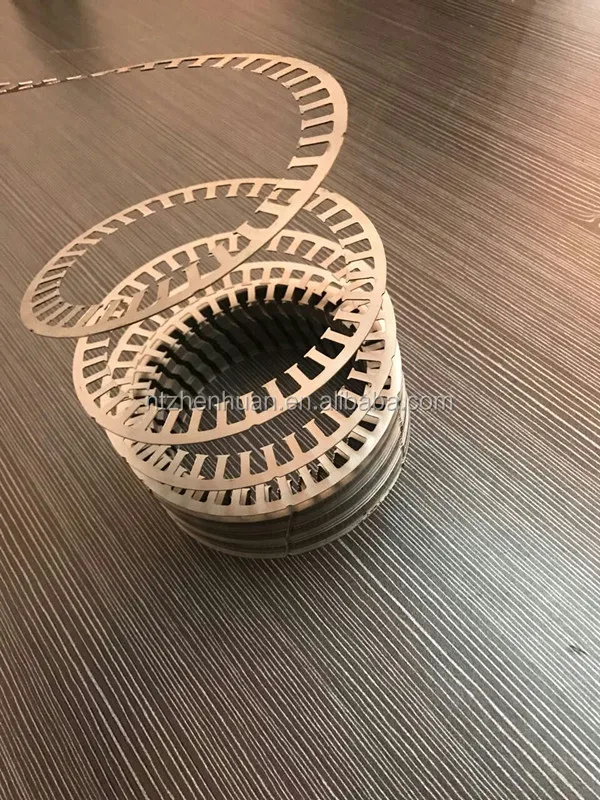

This machine is an automatic machine, designed for the spiral (slinky) winding of die-stamped strip of sheet iron (with high content of silicon). It is suitable for automotive alternator and electric wheel hub motors. It can spiral wind steel belts with punching to form required shape and size with automatic.
This machine has two air cylinders.
This machine has two air cylinders.
MAIN FEATURES
Main features
1-Specialized for automobile stators, servo motor driving, 24 hours working.
2-PLC control, simple operation and easy maintenance.
3-Safety protection device.
4-Machine body is made by 20mm thickness plate.
5-Winding die is processed by heat treatment and processing, which promise long life and high accuracy.
2-PLC control, simple operation and easy maintenance.
3-Safety protection device.
4-Machine body is made by 20mm thickness plate.
5-Winding die is processed by heat treatment and processing, which promise long life and high accuracy.
MACHINE SPECIFICATION
Machine code | DRJ-01 |
Winding speed | 0-200rpm |
Capacity | 2-3pcs/min |
Motor power | AC220V/1.5kW |
Electric supply | 220V, 50-60Hz. |
Air pressure | 0.6-0.8MPa |
Machine dimension | About 920 x 860 x 1580mm |
Machine weight | About 480kg |
MACHINE CONFIGURATION
