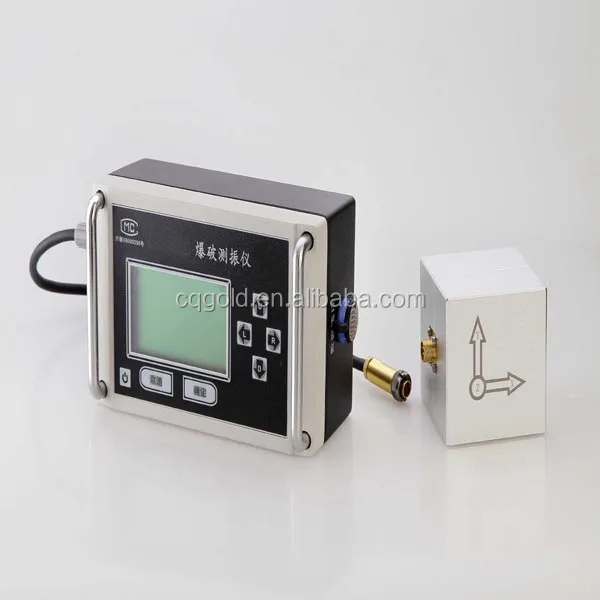

Construction Blasting Vibration Meter Blast Monitor

Product Overview

Description

Digital Construction Blasting Vibration Meter Blast Monitor





 Introductions:

Blasting vibration Monitor satisfies all the needs of blasting vibration recording

happened in the engineering projects of construction, mining, bridge, tunnel, roads and so on. Consultants equipped it as a must for blasting affection estimation as well as people works in the seismic institutes or related universities.



I-Applications of Construction Blasting Vibration Meter Blast Monitor

Blasting Vibration Monitor can be used in the field of:

Tunnel, bridge, highway, subway and mine construction monitoring

Historic building protection monitoring

Underwater construction

Pile monitoring



II--Key Features of Construction Blasting Vibration Meter Blast Monitor

    Easy to use   Embedded computer system and backlit LCD make onsite setup and operation quick, easy and  intuitive, even for inexperienced personnel. Italso supports quick view afterwards.

   Triaxial velocity  All 3 speed sensors in one makes cable setting

    Easy- High - A/D resolution A/D resolution reaches to 16 bit, which makes waveform smooth and precise.

    Wide Range Specially designed range from 0.001cm/s to 35.4cm/s covers all the possibilities of blast   vibration recording. Manual operation is not necessary , it adjust automatically .

    Large storage The number of events can be continuallyrecorded is 128 to 1000.The total storage space is 128M which enables user to allocate events.



III--General Specifications of Construction Blasting Vibration Meter Blast Monitor

Channels: Triaxial Geophone or 3 independent user-confi gurale channels
User Interface:7-key keypad and high-contrast, backlit LCD
Battery: Rechargeable 8 V lithium cell
Sample Rate: 1kHz to 50kHz adjustable
A/D: 16 Bit
Frequency Range: 0 Hz ~ 20 kHz
Resolution: 0.05mV(0.5mm/s)
Accuracy: 1 ‰
Clock precision: ≤5s per month

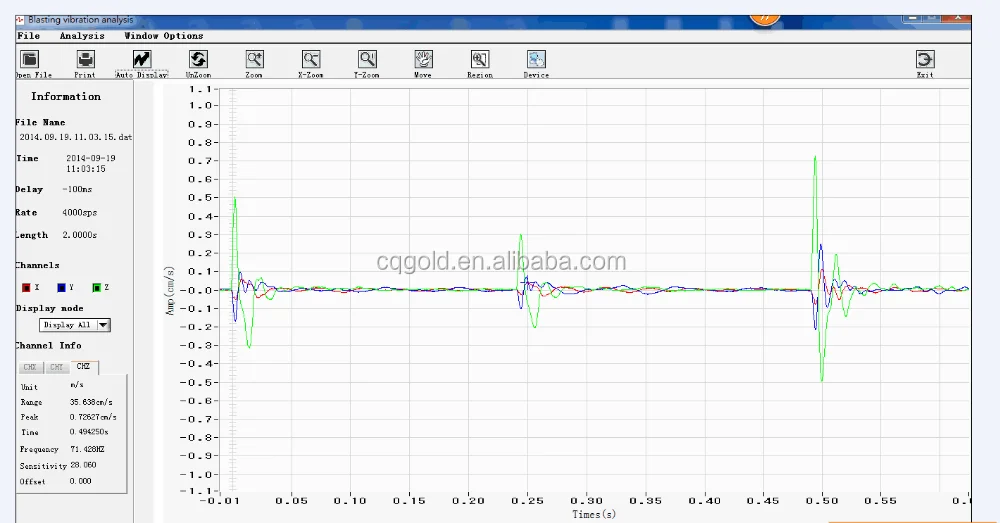

Waveform Recording

Sample Mode: Simultaneous Acquisition
Record Time:1 to 160 seconds adjustable
Record Mode:Event is recorded until activity remains below trigger level for duration of
auto mode, or until available memory is filled.
Range: Auto Range. Up to 350 mm/s
Trigger level: 0-10V(0-35cm/s) adjustable
Storage Capacity: 1M SRAM ,128 M flash ;128~1000 event capacity

Physical Specifications

Dimensions: 168mm × 99mm × 64mm
Weight: 1kg
PC Interface: USB 2.0
Battery life: Capacity for 60 hours of continuous monitoring
Operating Temp. Range: -10℃ ~ 75 ℃
Environmental:Relative Humidity: 20 ~ 100 % RH Noncondensing
Remote Communications Compatible with GSM, RF and Cellular servers
Warranty 2years
