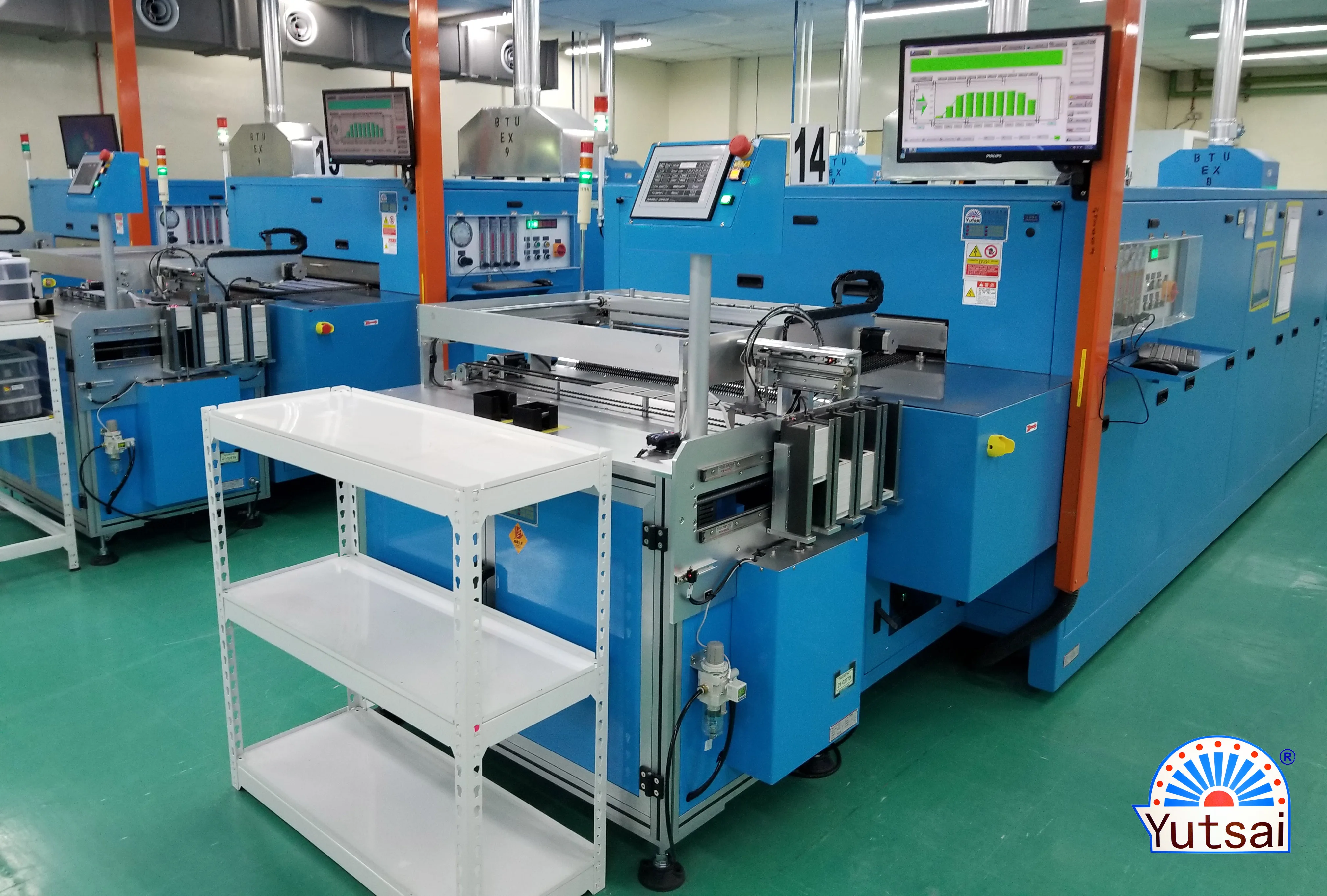

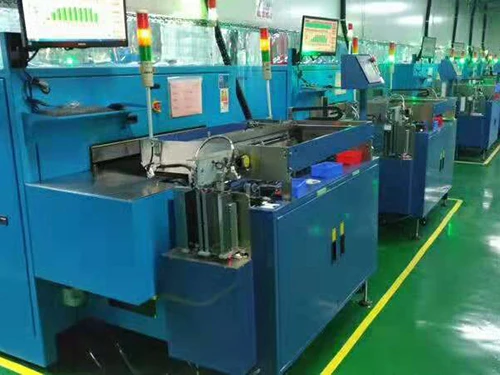

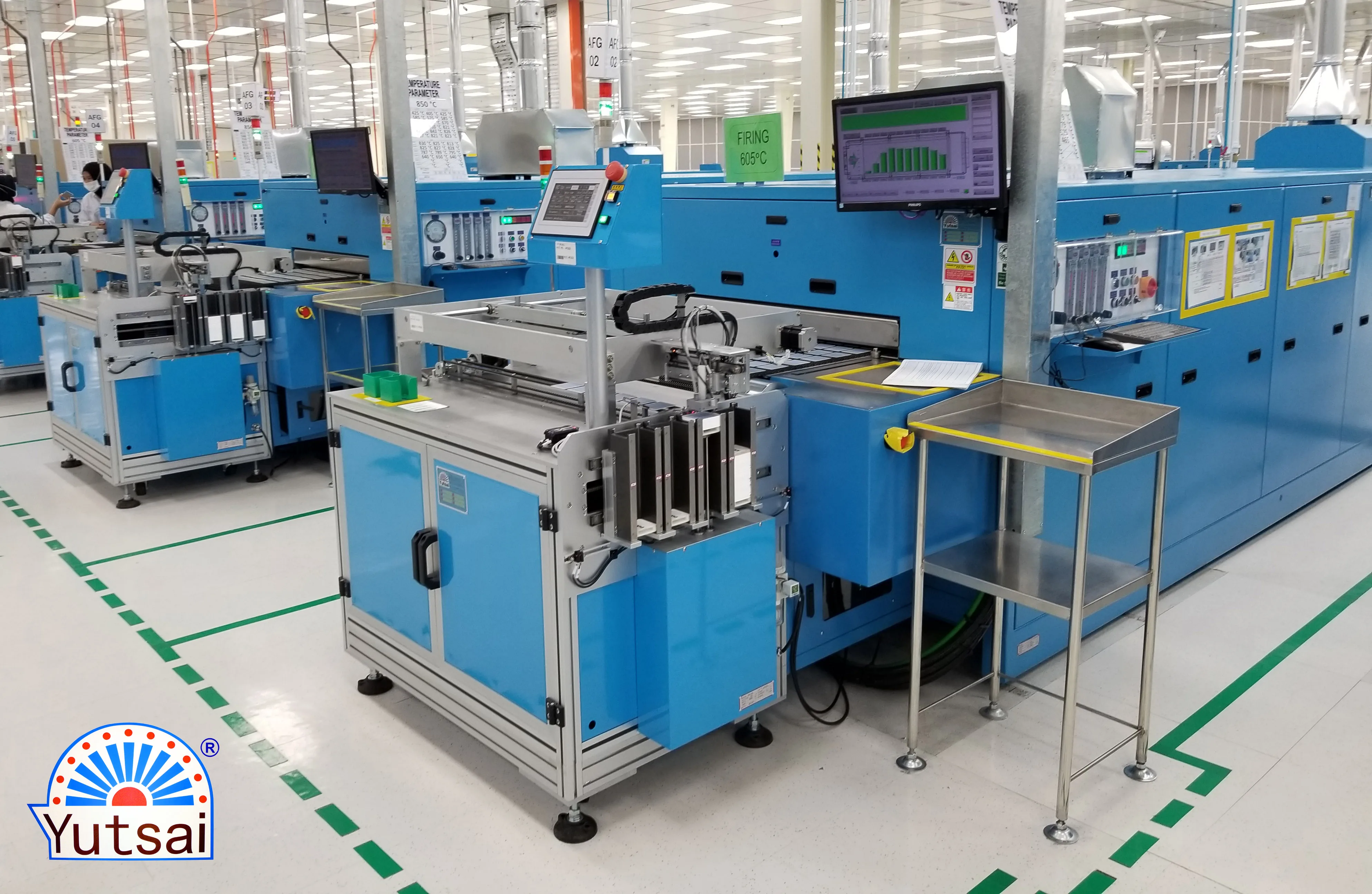

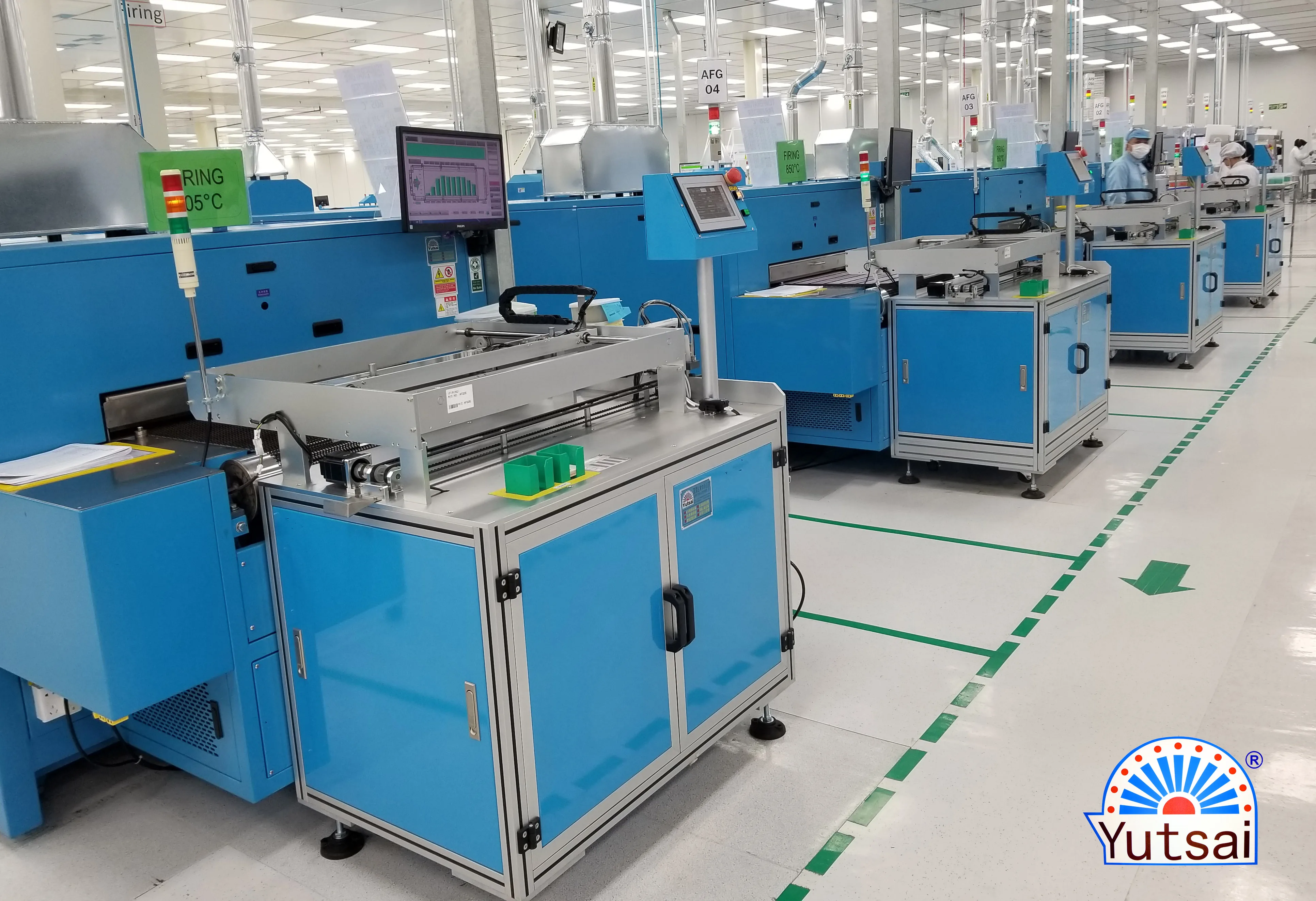

manufacturers high temperature heat treatment fritting furnace / roast oven for sale
- Category: >>>
- Supplier: Dongguan City Jinyao Exactitude Equipment Co. Ltd.
Share on (60639697807):
Product Overview
Description
Product Description

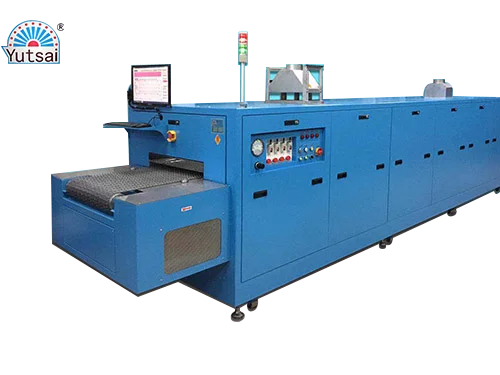

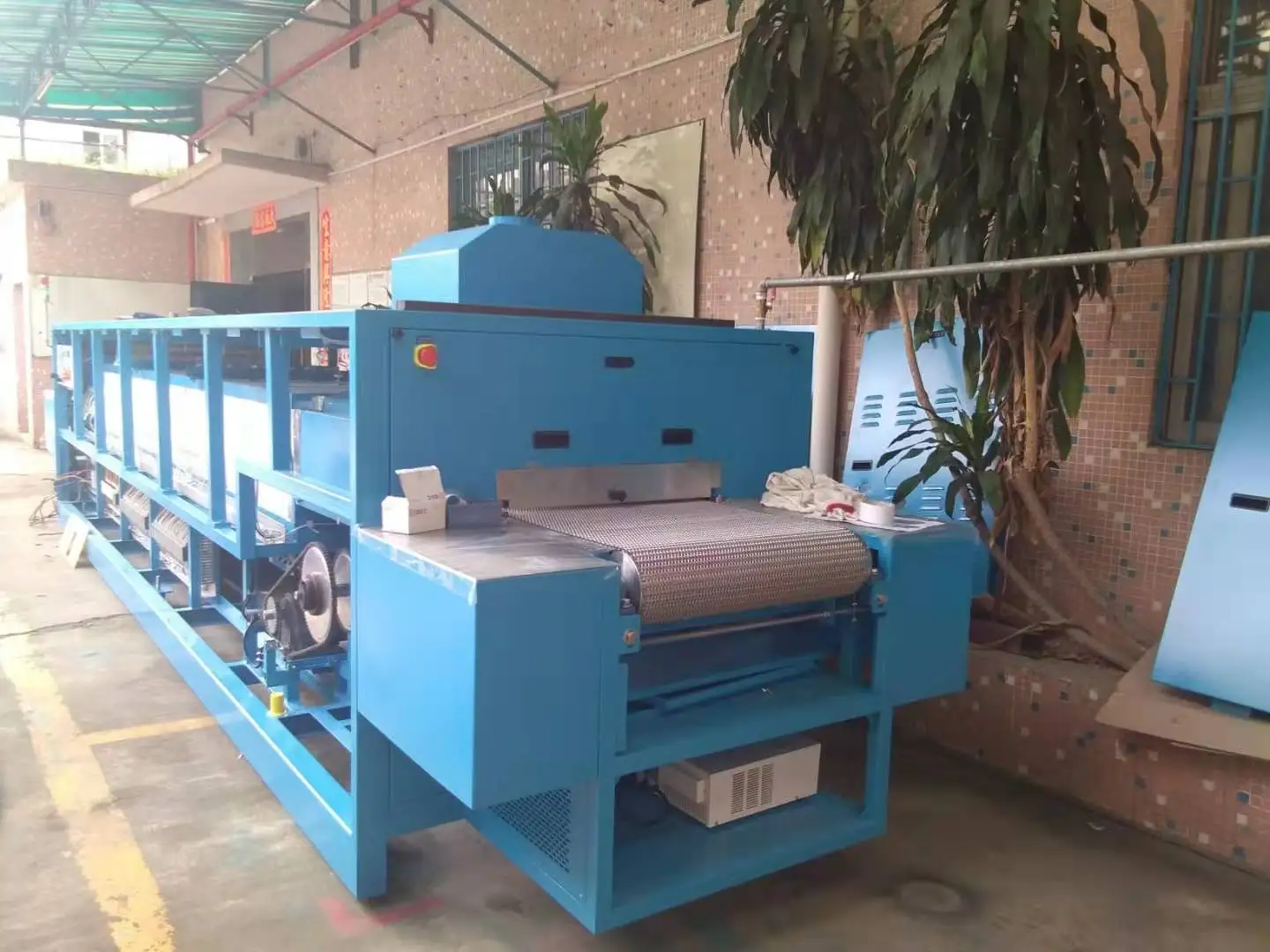

| Name | 1000 degree Celsius sintering furnace |
| Machine size | 1590*1400*6540mm(W*H*L) |
Feed area
| 1295*910*610mm(W*H*L) |
Ramp to Reflow | L350MM |
Heating zone | 330MM*10 Zone=3300mm |
Cool Down Period | 350mm |
Cooling zone | 1495MM |
Output area | 1295*910*610MM (W*H*L) |
| Temperature range | maximum temperature MAX:1000 degree Celsius , scope of application ,800---900 degree Celsius , temperature uniformity:90% of Broadband bandwidth Air oven high temperature constant temperature zone Temperate condition, left and right vertical strip can be maintained at +-3 degrees Celsius. |
| Power | 220V,60HZ,116KW |
| Heating area | The top and bottom of the ceramic heating plate: 1:The upper heating plate 10 sets; 2:Lower heating plate 10 set |
| Delivery system | Steel plate material NI80 |
| Conveyor network specification | W 900*L 15000MM |
| Transporting velocity | 100 TO 250 MM/MIN (stand:180mm/min ) |
| Motor | drive motor AC 3P Motor |
The frequency converter drives and controls the motor speed, the speed setting is converted by the RS485 module, and the DCO-10V provides frequency converter control (interycurtain) control | |
| Coolant passage | Bar type cooling chamber attached to the above, below, the use of copper adsorption heat dissipation, high efficiency cooling and heat dissipation. |
| Flow control | Digital flowmeter |
| Close the gas entrance | 15 to 100L / MIN |
| Firing pressure | 40 to 300L / MIN |
| Entrance spoiler
| 15 to 100L / MIN |
| Export gas off | 100L / MIN |
Navar | Control model: Double sleeve type (1:Thermometer controller;2:Double sleeve type) |
|
| Thermo Control type:Scale, integral, differential |
Controlinterface:Windows | |
Controlinter face :SCR | |
| Thermocouple K type , Heating rate limit When heating up, limit the amount of heating per minute, between 3 and 5 degrees Celsius | |
| The maximum heating power limits the heating output power | |
| Status bar chart: a simple bar chart shows the status of the furnace temperature, red is abnormal, green is normal | |
Set settings screen, set the temperature, speed, alarm value, correction value (need: pass) | |
| Set settings screen, set the temperature, speed, alarm value, correction value (need: pass) | |
The temperature uniformity test, the actual measurement of high temperature line into the furnace temperature and time and cutting temperature diagram to analyze the temperature of each temperature zone | |
Alert mode: 1:Temperature upper and lower alarm; 2:Air pressure upper and lower warning; 3: Transmission speed limit alarm |

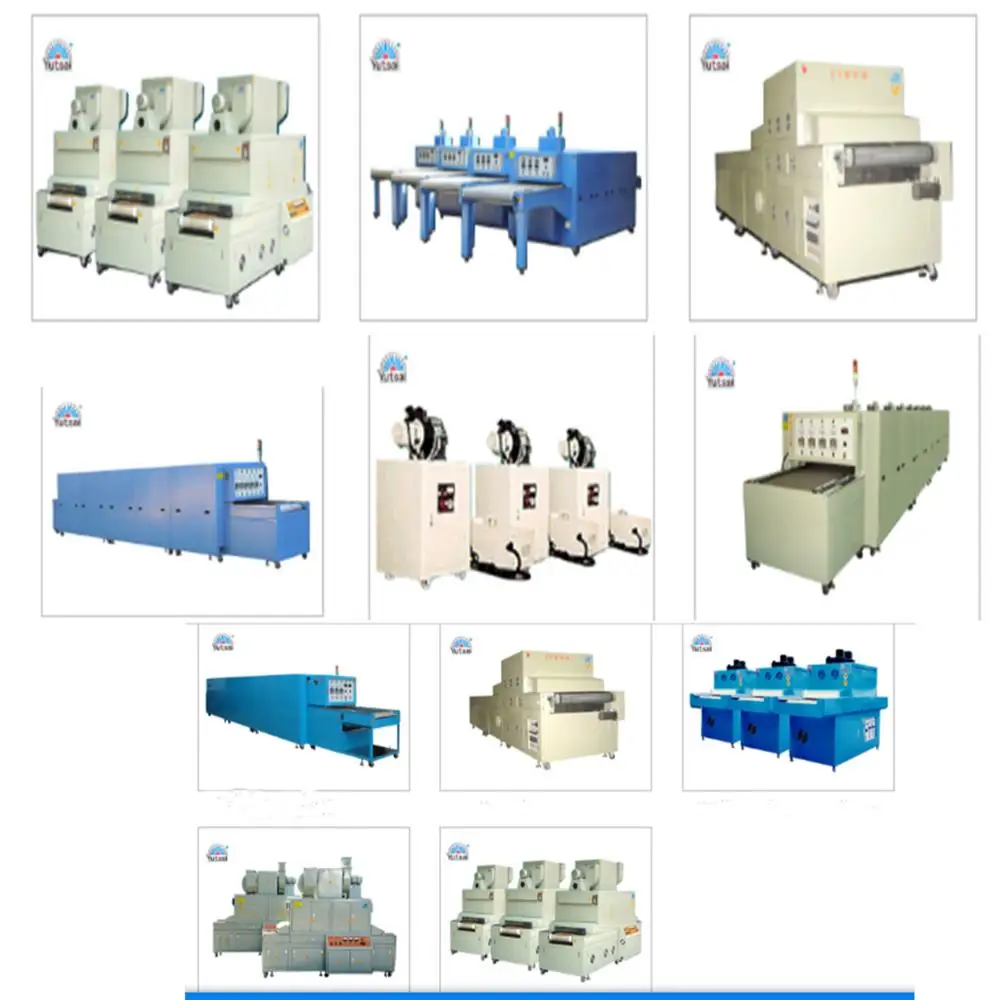

Hot sale modles for recommand:
Our Services
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convenient
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Engineer are available for oversea training.
--Free change for some parts
--Remote control technical consult
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

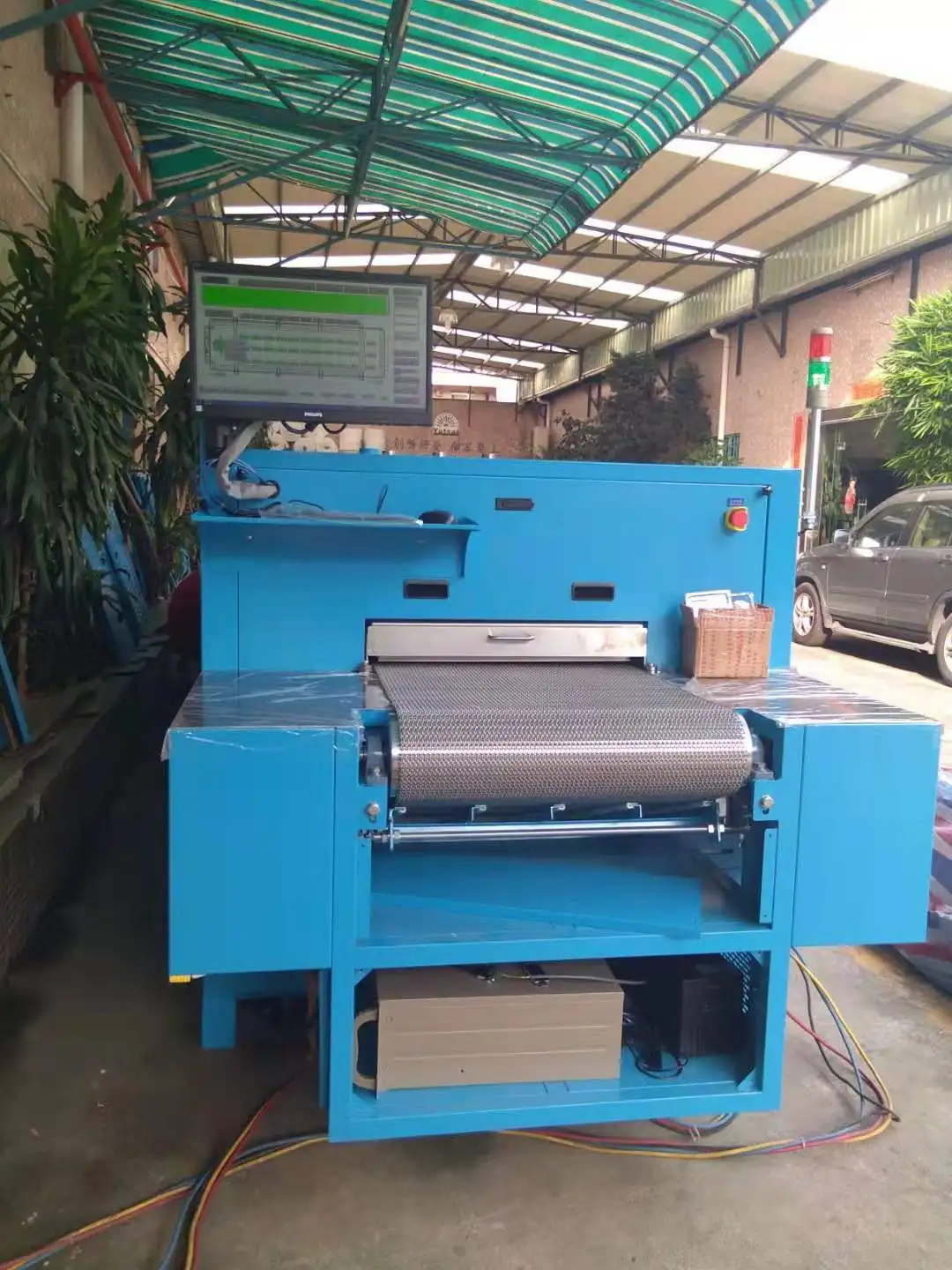

5,Working show and shipping:

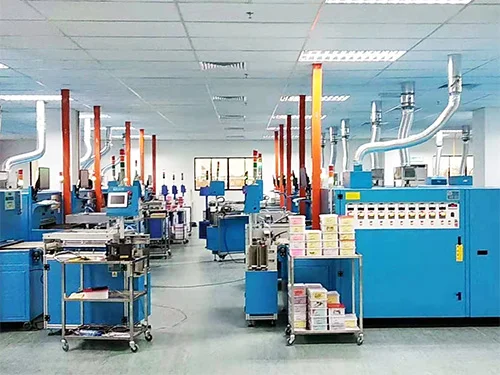

Company Information
About Us
Dongguan city Jinyao precision Equipment co., LTD is one of Enterprise combining develop, produce and sale. Established in 1980, already have 30 years experience to produce: Precision Hot-air drying oven; IR/UV deliver drying equipment; environmental test equipment; printing machine; automation industrial equipment etc.
Our company always keep the aims that provide high quality product; quick service attitude and the great design. We keep the company spirit that has advance technology and high quality team. Our product receive a lot of client trust, and stand firmly front of others.
Dong Guan YUTSAI precision device enterprise LTD. is registered capital achieve ten million RMB. It has 4800 square meters factory. More than three million RMB fixed assets. Value of output achieve 24million RMB each year.
We has the steady domestic clients such as: FOXCONN, HuohYow, FU BROTHRT industrial company, HUAXIN technology company, PUYAO group etc. It's all about more than 500 company include Domestic ,foreign and military enterprises. We also has the long-term relationship with Thailand, India and England.
The company toward higher, farther, more perfect operating system. the Taiwan Head Company as the axis, and we make efforts in mainland market development.
Hot air circulation oven is our original product, with carefully designed and continuously update,it have reach the international advanced level.
The device is a kind of oven, and can be installed, divided into CT type (centrifugal fan)
CT-C (axial fans) series products, it is the use of steam, electricity and gas as heat source,
through the heater heating,a large number of hot air will circulate in the oven, and then continue to dehumidify from the outlet,increase the heat transfer effect, and keep reducing the moisture.
The oven equipped with low noise and high temperature proof axial flow fan and automatic temperaturecontrol system, the circulatory system fully closed, the thermal efficiency of the oven is from the traditional drying room 3 - 7% increase to the current 35 - 40%, the highest thermal efficiency up to 70%.
The device named SAO series is according to the National Pharmaceutical Administration released the industry standard.
Advantage
1.Strong durability: As the haater is sealed in the housing,the contact area with air is small,it is difficult be oxidized.
2.Heated air circulation: Baked good is heated uniformly
Accurate and reliable electrical control:reasonable structure,effective working area,full-function,simple operation,easy to maintenance and adjustment,low noise,high reliability,low cost,low energy consumption and high production efficiency.
Application
Apply for baking of food and goods with chemical gas ,removal of the substrate,curing of the lnk and drying of film and so on. Widely used in the precision baking,drying,tempering,preheating,stereotypes and processing of electronics,electrical,communications,plating,plactics,metal,chemicals,food,printing,pharmaceutical,PC board,power,dipping,spraying,glass,ceramic and building materials and so on.
With the help of our experienced professionals, we offer a comprehensive range of Hot Air Oven that gives accurate control over
temperature setting. These are provided with double walled insulation, which keeps the heat in and conserves energy. To assure
FAQ
1. Can you customize the product?
Yes, we can customize any products according to customer's requirements.
2. Which payment terms are you doing?
PayPal, West Union, T/T, (100% payment in advance.)
3. Which shipment is available?
By sea, by air ,by express or as your requirement.
4. Which country you have been exported?
We have been exported to many countries, all most all around the world, like Malaysia, Vietnam, Thailand, United States, France, Spain, Mexico, Dubai, Japan, Korea, Germany, Porland Etc.
5. How long is the delivery time?
It's about 15-30 days.
