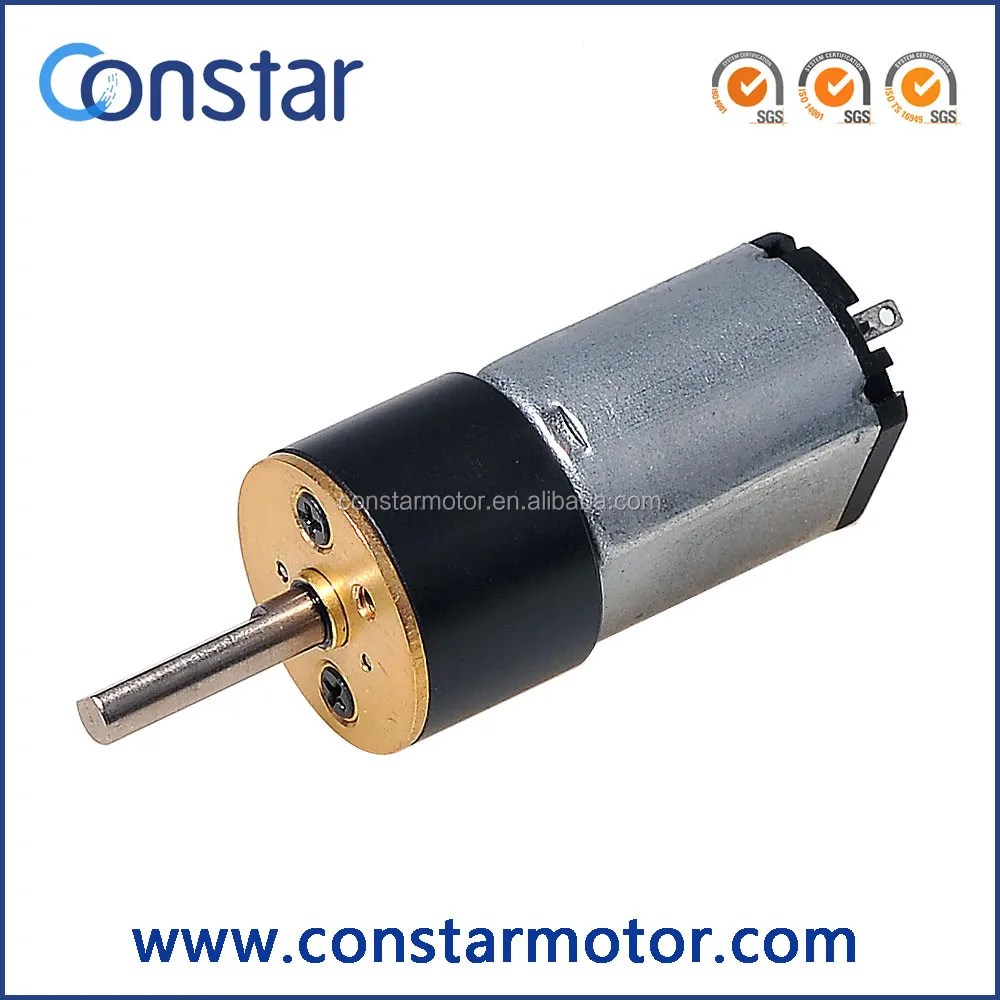

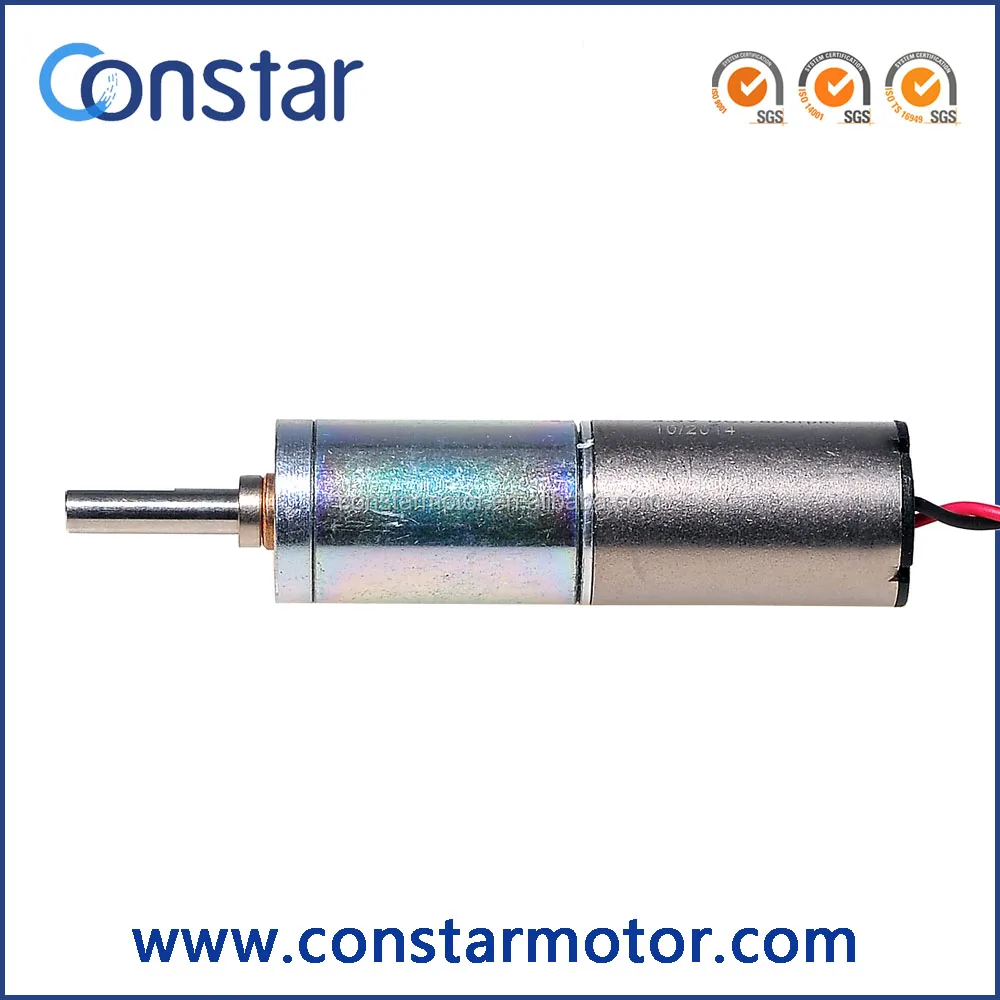

Constar Low Noise High Torque 12mm Planetary Gearbox Motor 6v

Product Overview

Description



 Constar Low Noise High Torque 12mm Planetary Gearbox Motor 6v

CONSTAR MICROMOTOR
Brushless DC Motor	DC Coreless Motor	Gearmotor	Sonic Motor







 Audio and visual products, high-end toys, personal health care products and security equipment



3.Characteristics:

Series	Dimension (mm)	Voltage (V)	No-load Speed (rpm)	No-load Current (mA)	Load Torque (mNm)	Load Speed (rpm)	Load Current (mA)	Max Torque (mNm)	Reduction Ratio
GB1219R	φ12*40.0	6	225	40	14.7	204	150	156.8	1/64



Lead wires length, shaft length, special coils, gearheads,Encoder

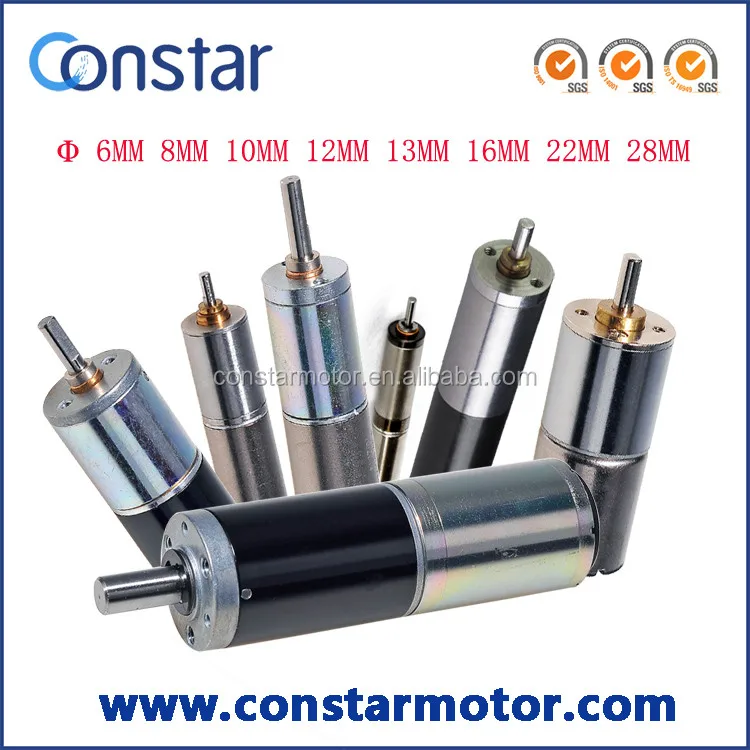

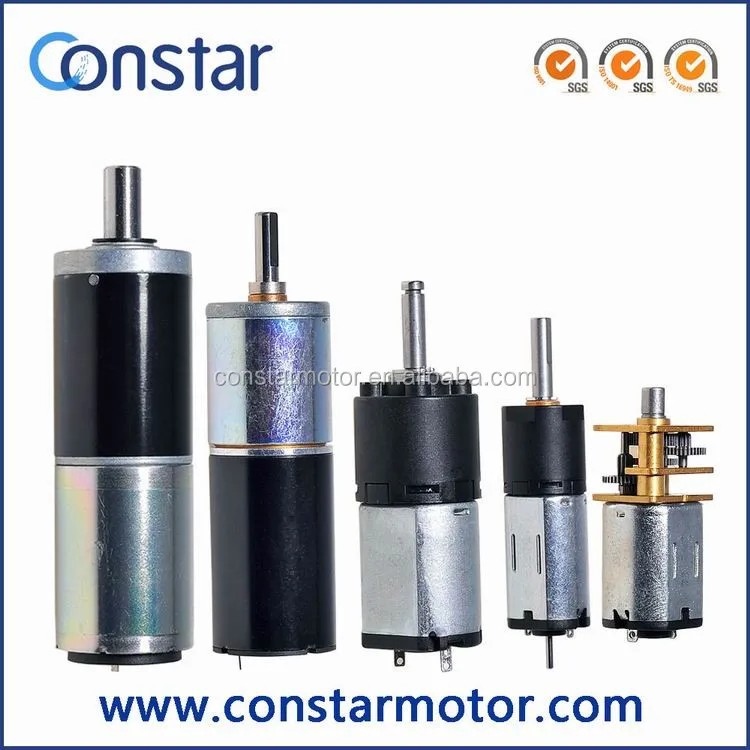

Series	Diamete(mm)	Voltage (V)	Termanal resistence (Ω)	No-load Speed (rpm)	Reduction Ratio
GB06**R-0615RCN57-2L27-80-3.0	6	3	8.3	18500	4(3.7)-699
GB08**R-0816RCN51-1-8.0	8	8	60	15400	4-4096
GB10**R-1016RCN51-90-12.0	10	7.5	56	10900	4-4096
GB12**R-1230RN51-8-12.0	12	9	17	6300	4-4096
GB13**R-1230RN51-8-12.0	13	9	17	6300	4-4096
GB16**R-1627RCN51-21P-12.0	16	12	71.3	8500	4-3027
GB22**R-2233RCN52C-38L17P-30-12.0	22	12	70	2300	5-3968
GB28**R-2960ZWND-1-11.0	28	11	0.5	24500	4-939



              Constar 22 millimeter 12V DC geared motor for Automation equipment
