Jinou Newest Bluetooth Dual Mode Router for Smart home/Logistics /Medical/ Exercise/ IOT

 JINOU Bluetooth dual mode router is a kind of product which integrates both classic Bluetooth and BLE. Built-in core processor supports the router to connect 20 devices and transmit data at the same time. When Bluetooth router searches BLE devices, it will send around device’s MAC address, device name, broadcasting type, broadcasting contents and also real time signal strength. Same device’s information can be returned once according to customers’ command during scanning process, it can also be returned according to the real time scanning conditions. There is no limitation of the number of scanning devices. As to classic Bluetooth devices, this router supports connect and communicate with various devices which achieve SPP and HID. Thus, JINOU Bluetooth dual mode router can better satisfy different IOT application with different requirements.

JO-BTGW-01: 10M Bluetooth 4.0 Dual-mode Gateway

*Compatible with Bluetooth 3.0 and BLE4.0

*Linux system

*10M

*Scans unlimited broadcasting

*Connects 28 Bluetooth devices at most

The smart gateway is Bluetooth IoT gateway for smart home. It isoften uses in data connection, monitoring logistics and control different home smart devices.

JO-BTGW-02: 100M Bluetooth 4.0 Dual-mode Gateway

*Compatible with Bluetooth 3.0 and BLE4.0

*Linux system

*100M

*Scans unlimited broadcasting
*Connects 28 Bluetooth devices at most

The Bluetooth smart router often uses in far distance data connection, staff monitor in school or workshop, and control different home smart devices or industrial devices.

JO-BTGW-03: 10M Bluetooth 4.0 Dual-mode Access Point AP

*Compatible with Bluetooth 3.0 and BLE4.0

*Linux system

*10M

*Scans unlimited broadcasting

*Connects 7 Bluetooth devices at most

The Bluetooth AP often uses in home or medical field to collect data of less than 7 users, or records data of competitor in exercise and fitness.

Features:

• Easy internet connection


• Flexible device scanning


• Support Bluetooth devices if all the versions


• Low cost, high speed internet access


• Safe, easy to install and manage


• Max connect 20 devices at the same time, and it the input ability can be extended by USB port


• USB port

Technical specification:

• Support point to multi-point wireless connection


• 10M and 100M adaptive network


• Automatically distributes IP address


• Support Bluetooth data encryption


• Embedded Linux operating system


• 400MIPS High-performance processor


• Average power consumption is 120mA-12V


• Size: 20*12*4cm(not include antenna)

Bluetooth specification:

• Bluetooth V4.0 standard


• Class 2 Bluetooth module


• External antenna


• Frequency range: 2.402G ~ 2.480GHz


• Achieved Bluetooth protocols: LC, LM, L2CAP, GATT, SDP, RFCOMM


• Achieved internet protocols: TCP/IP, HTTP, FTP, ARP, DHCP, PPP, etc.


• Authentication: support Bluetooth safety certification

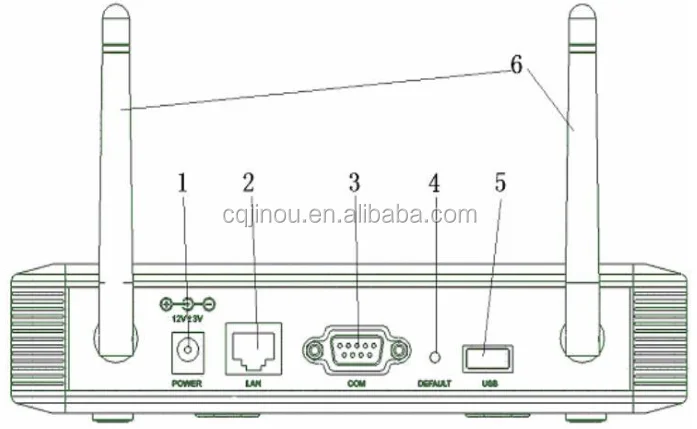

• RJ45 port(can choose WiFi)


• 10M and 100M adaptive

• Device data collection


• Staff monitor in school, workshop, etc.


• Smart home, building automation


• Logistics


• Medical


• Exercise and fitness


• IOT

1. Sample order accept. Sample delivery time: about 3 days.

2. OEM & OEM & costomize available.

3. Software/ App customize available.

4. 24 hours-7 days sales service.

5. Factory check accept.

6. Free warranty: 2 yesrs.
