Galvanized Steel Ringlock layher scaffolding truss ladder girder beam
- Category: >>>
- Supplier: Xianning City Topway Metal Products Co. Ltd.
Share on (60639823928):
Product Overview
Description
Product Description

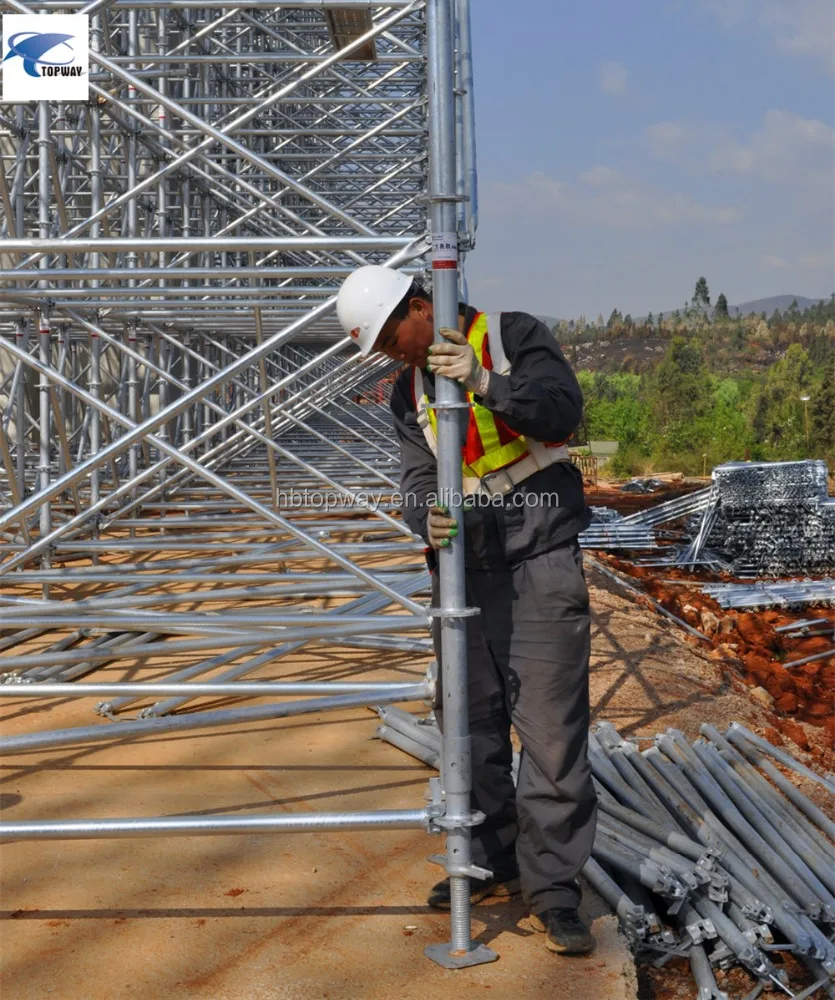

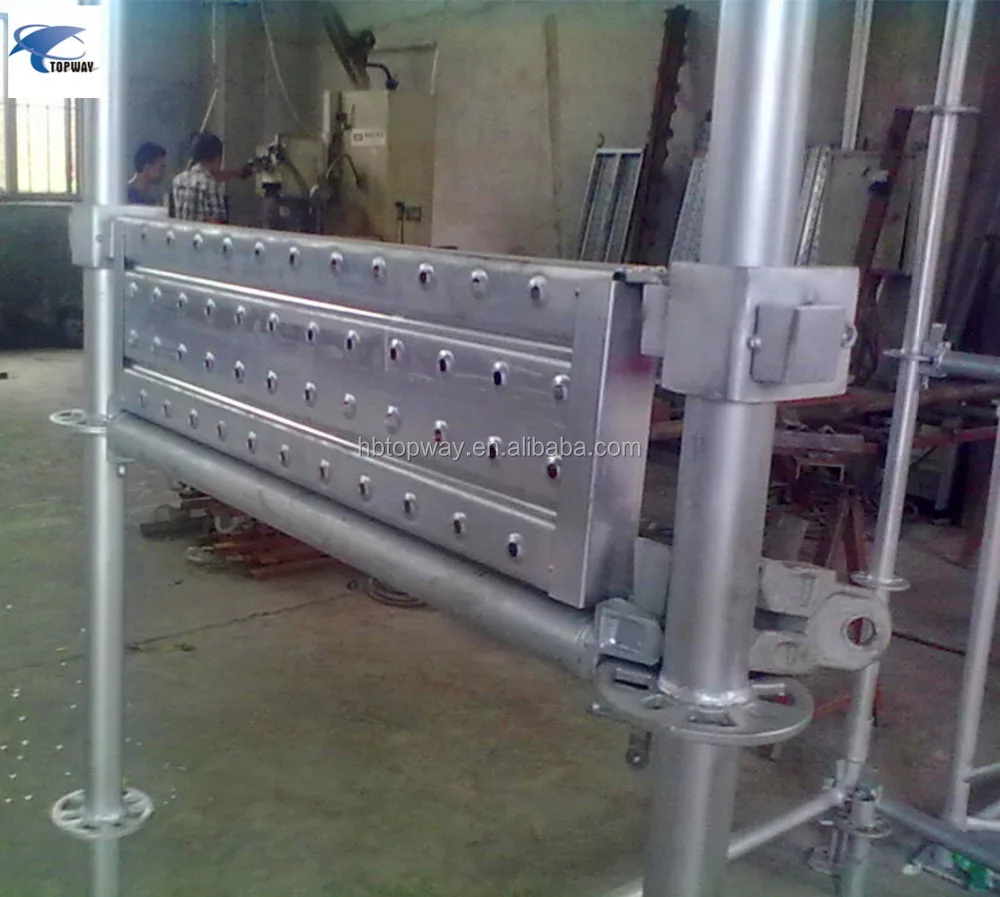

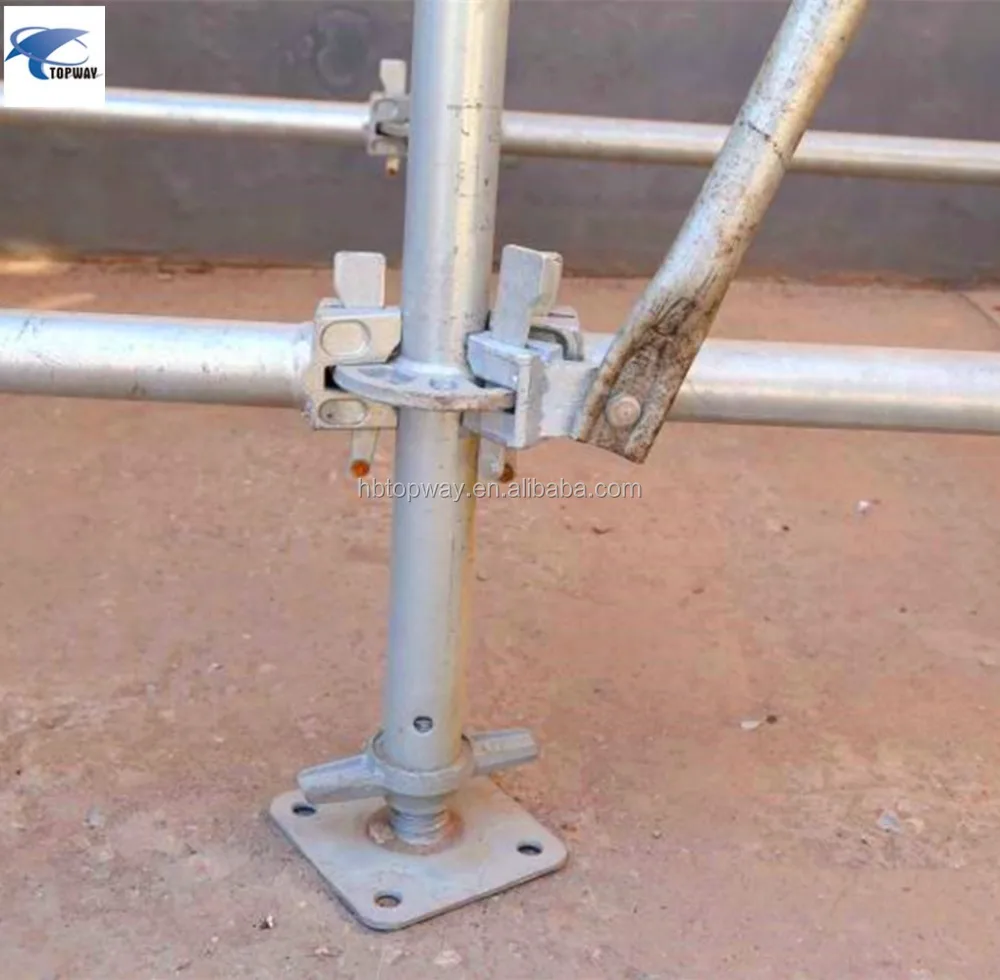

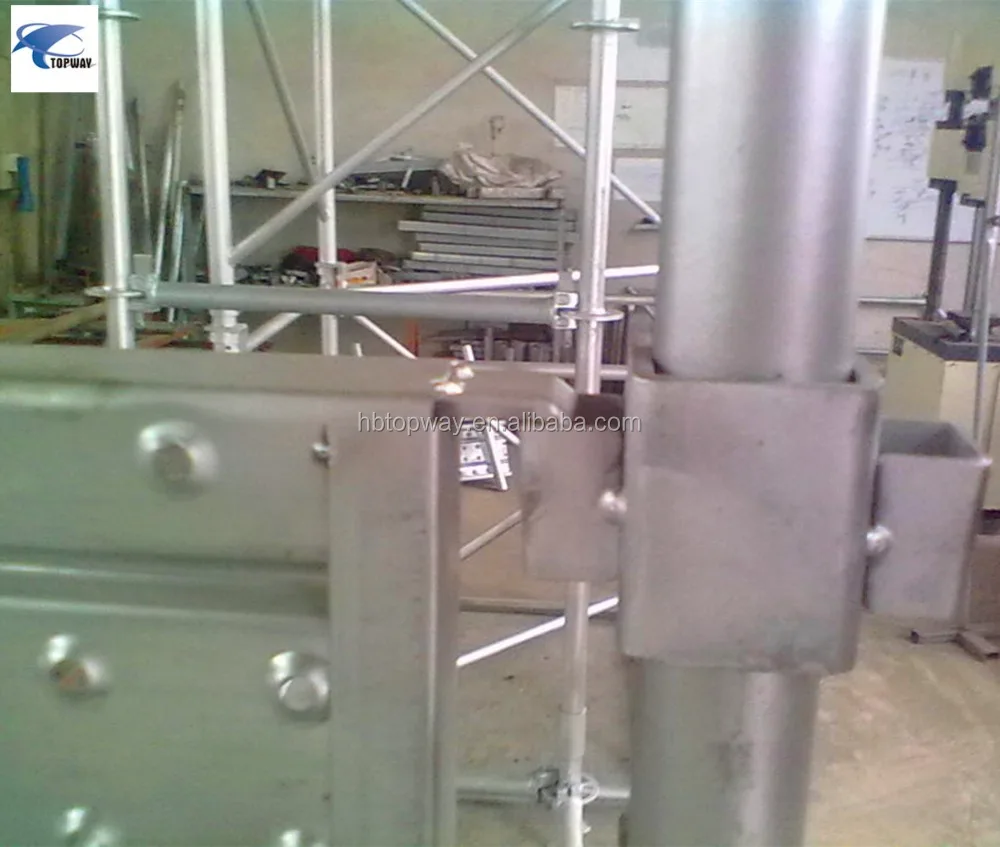

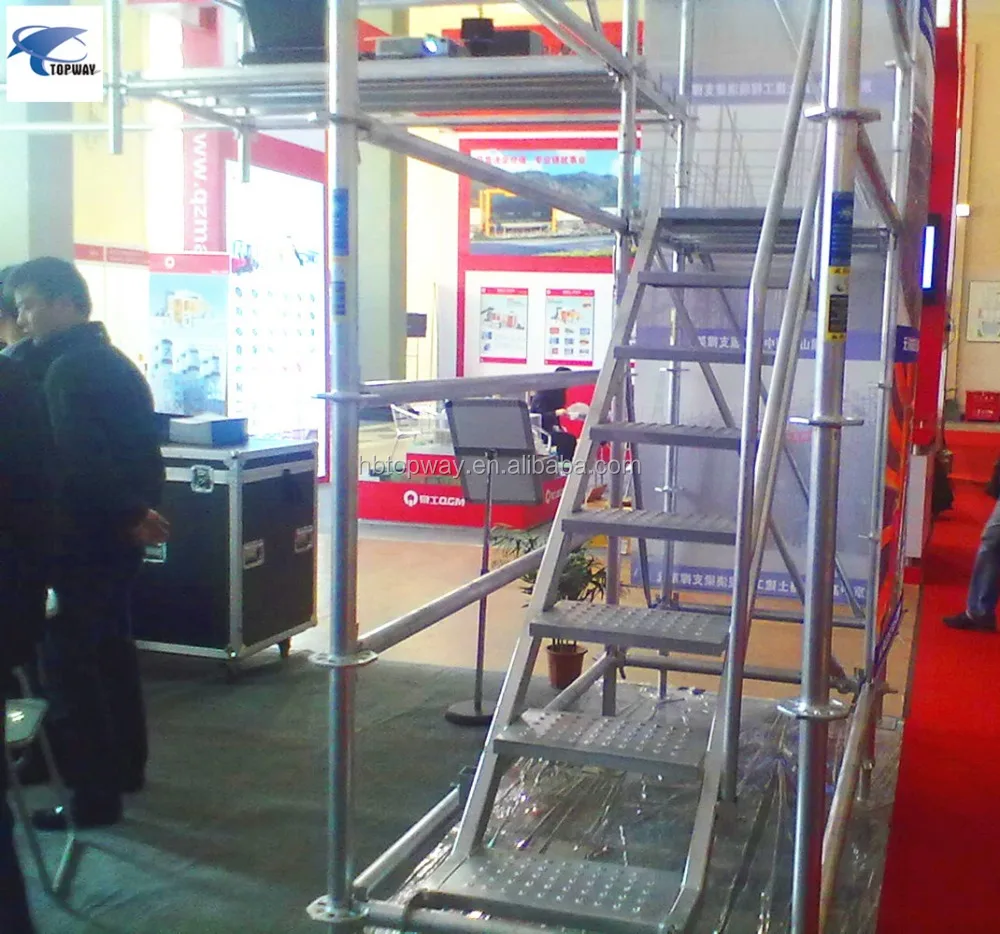

Ringlock Scaffolding System Include:Vertical pipe.Horizontal pipe.Diagonal Brace.Screw Jack.Workboard.Stair System and guard safe parts.It can be used for building protection.formwork support and building face decoration.
Feature:
Can be quickly erected,just need a hammer to erect,save labour cost.
Convenient transportation and storage.
Low maintenace,The hot dip galvanized finish will last life of it,No paint required.
No more rust or corrosion,even it can be stored externally.
- Vertical Pipe(Standard)48.3*3.2mm with spigot (Hot dip galvanized or Painted)
| Product Code | Specification(mm) | Weight(kg) | Material | Surface treatment |
| TY-RV050 | 48.3×3.2×500 | 3.06 | Q345/Q235 | galvanized/painted |
| TY-RV100 | 48.3×3.2×1000 | 5.56 | Q345/Q235 | galvanized/painted |
| TY-RV150 | 48.3×3.2×1500 | 8.05 | Q345/Q235 | galvanized/painted |
| TY-RV200 | 48.3×3.2×2000 | 10.55 | Q345/Q235 | galvanized/painted |
| TY-RV250 | 48.3×3.2×2500 | 13.04 | Q345/Q235 | galvanized/painted |
| TY-RV300 | 48.3×3.2×3000 | 15.54 | Q345/Q235 | galvanized/painted |
- Horizontal Pipe(Ledger)48.3*3.2mm with ledger head (Hot dip galvanized or Painted)
| Product Code | Specification(mm) | Weight(kg) | Material | Surface treatment |
| TY-RH073 | 48.3×3.2×730 | 3.68 | Q235 | galvanized/painted |
| TY-RH104 | 48.3×3.2×1040 | 4.48 | Q235 | galvanized/painted |
| TY-RH109 | 48.3×3.2×1090 | 5.08 | Q235 | galvanized/painted |
| TY-RH140 | 48.3×3.2×1400 | 6.28 | Q235 | galvanized/painted |
| TY-RH157 | 48.3×3.2×1570 | 6.94 | Q235 | galvanized/painted |
| TY-RH207 | 48.3×3.2×2070 | 8.88 | Q235 | galvanized/painted |
| TY-RH257 | 48.3×3.2×2570 | 10.83 | Q235 | galvanized/painted |
| TY-RH307 | 48.3×3.2×3070 | 12.77 | Q235 | galvanized/painted |
- Diagonal Brace Pipe(Brace)48.3*2.5mm with brace head (Hot dip galvanized or Painted)
 | Product Code | Specification(W×H) | Weight(kg) | Material |
| TY-RDB2120 | 730×2000mm | 8.29 | Q235 | |
| TY-RDB2230 | 1040×2000mm | 8.60 | Q235 | |
| TY-RDB2250 | 1090×2000mm | 8.67 | Q235 | |
| TY-RDB2400 | 1400×2000mm | 9.15 | Q235 | |
| TY-RDB2490 | 1570×2000mm | 9.40 | Q235 | |
| TY-RDB2810 | 2070×2000mm | 10.37 | Q235 | |
| TY-RDB3180 | 2570×2000mm | 11.50 | Q235 | |
| TY-RDB3580 | 3070×2000mm | 12.72 | Q235 |
Product show
Related Products
Project show
Packaging & Shipping
Company Information
 | TOPWAY METAL, a industry & trade company was established in 2014 and is committed to supplying diversified scaffolding products to the world. In the past five years, it has exported to the United States, Canada,Singapore, Poland, the United Kingdom,Taiwan(China), Hong Kong(China), and other countries and regions with big quantity. TOPWAY METAL main products: scaffold products, formwork support system.TOPWAY METAL scaffolding parts factory was established in 2001 and is located in Hebei & Tianjin. It specializes in the production of ringlock scaffolds, steel shoring props, screw jack, and various types of frame scaffold.total up to hundreds of types, can be customized according to customer requirements. You are here can enjoy one-step-shopping with all types scaffold and formwork support system. |
FAQ
Q.1 Are you a trader or manufacturer?
We are a production and marketing,industry and trade integration company.
Q.2 Where is your company located?
Head office is located xianning city,Hubei province,china,our factory is located Tianjin,china.
Q.3 What's your main products?Can you accept "OEM" or "ODM"?
We are a professional manufacturer of the scaffolding and fittings
Of course,we can accept "OEM" or "ODM".If you have problems in designing,we will offer you the best engineer.All you need to do is just to give us the image or words you require for the product and we design for you!
Q.4 Can i request sample?
of course,and sample is free!
Q.5 How about the delivery time?
Under normal conditions 15-20 days,but it's according to your quantity.
