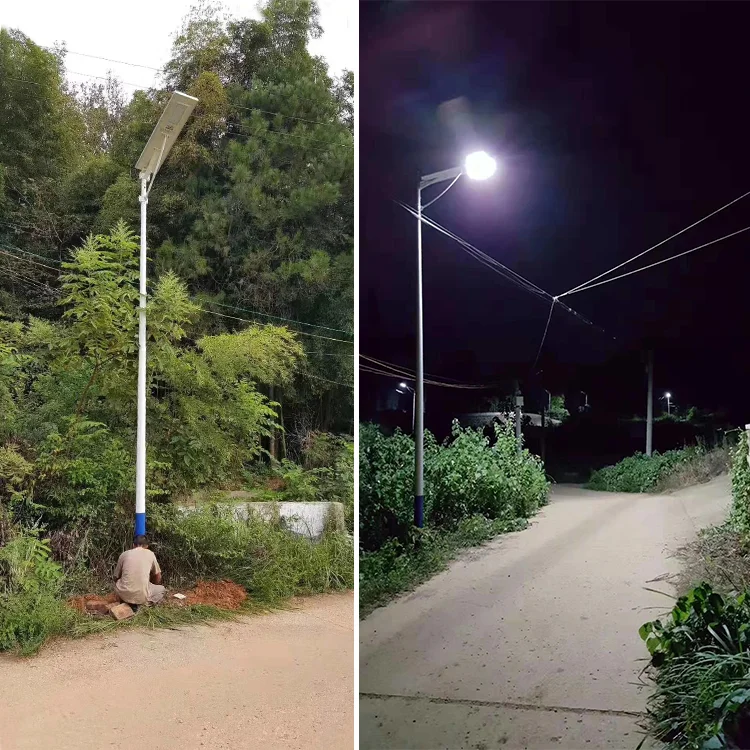

high brightness 30W 50w 60w 80w solar street light galvanized steel lamp post street lighting pole with arms
- Category: >>>
- Supplier: Shaanxi Yahua Lighting Electric Equipment Co. Ltd.
Share on (60639868824):
Product Overview
Description

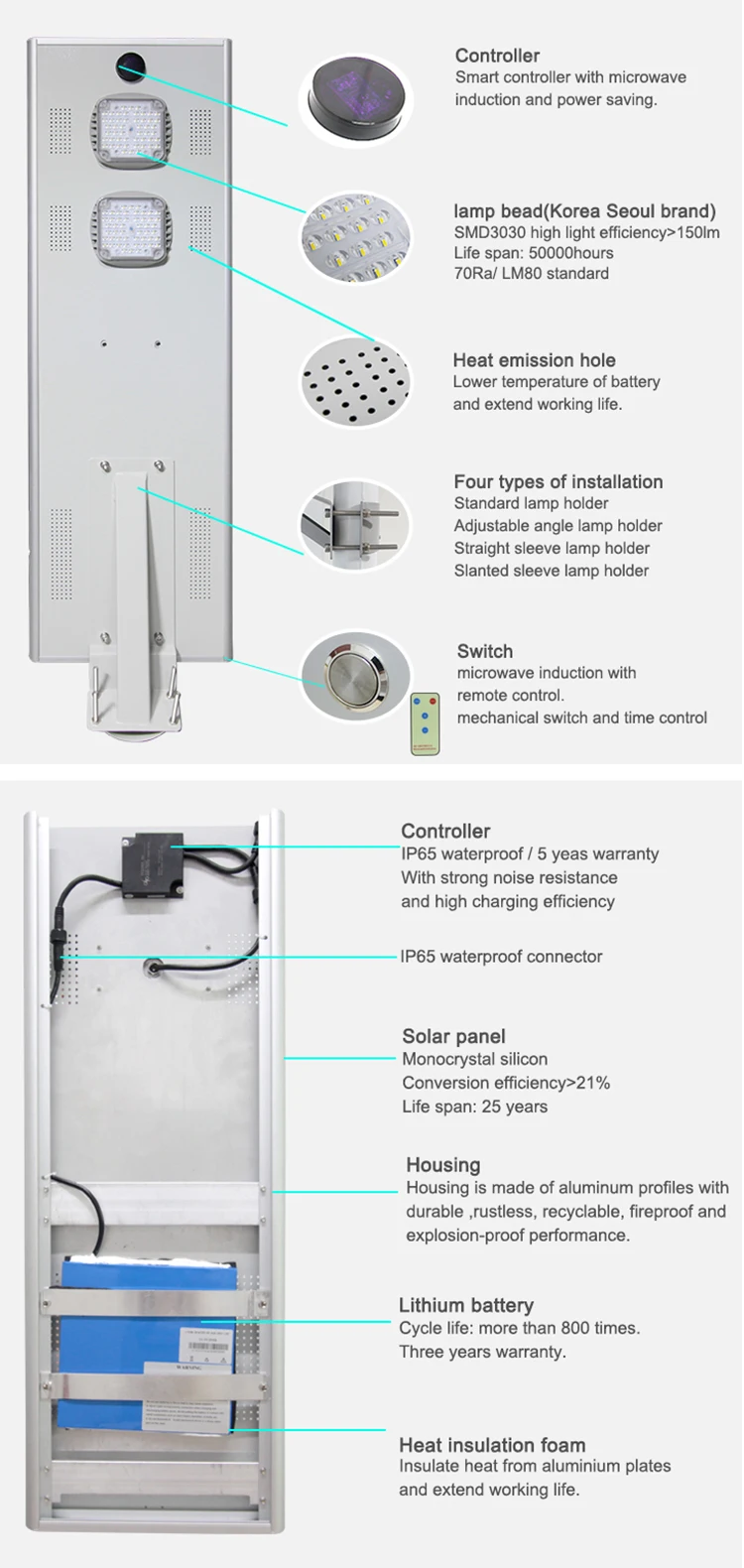

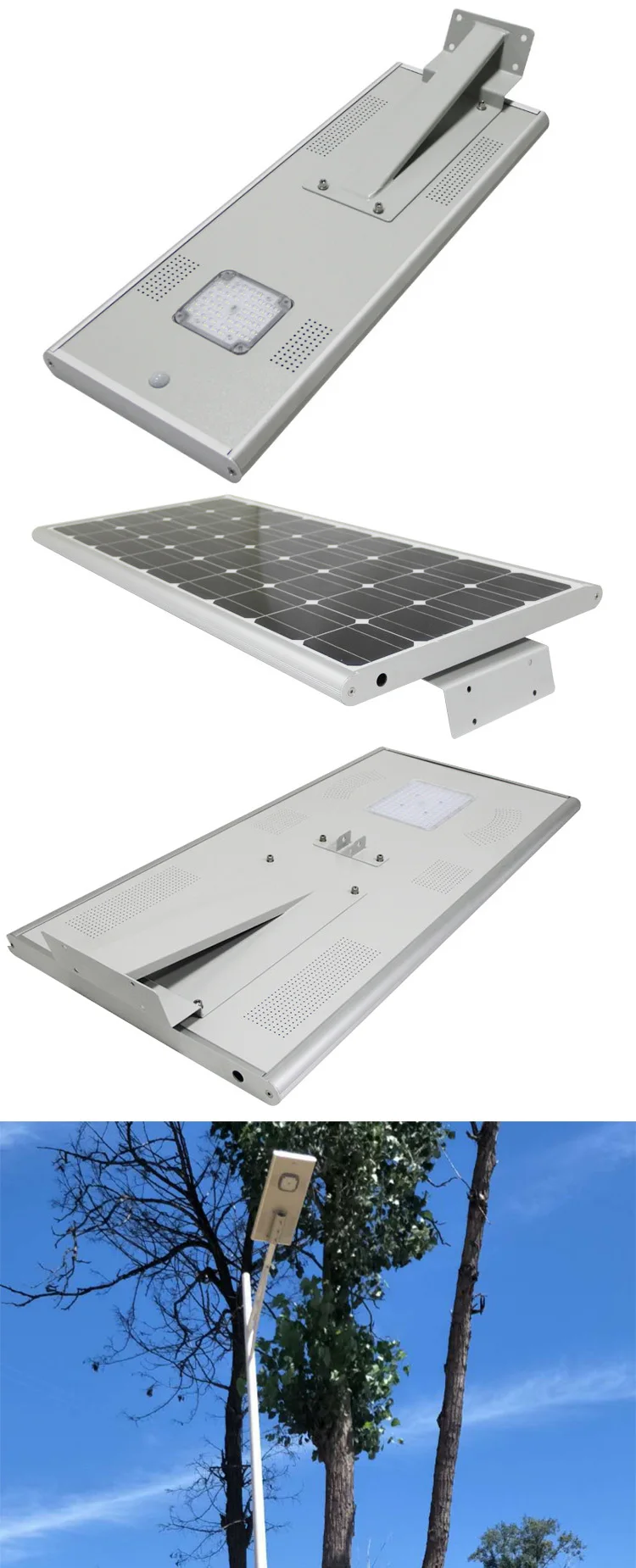

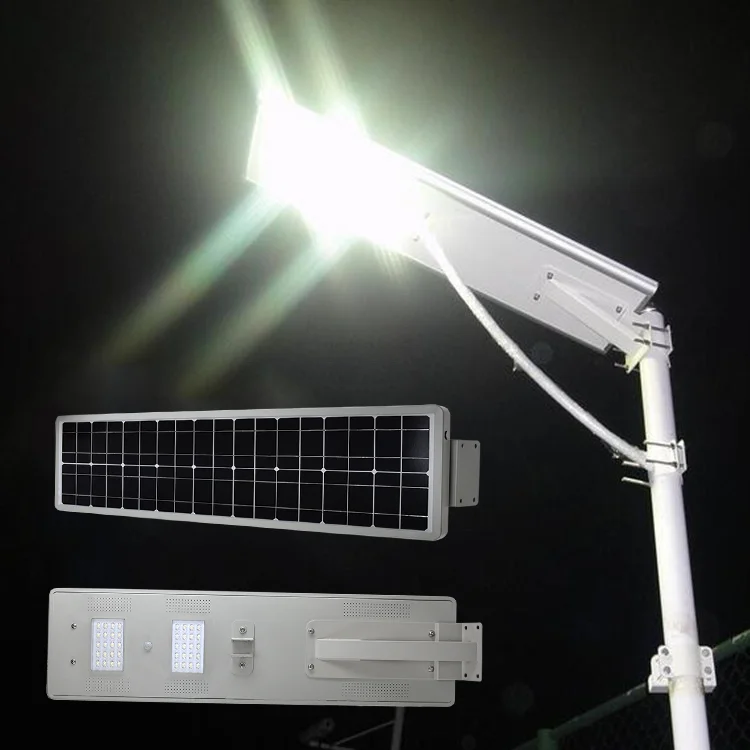

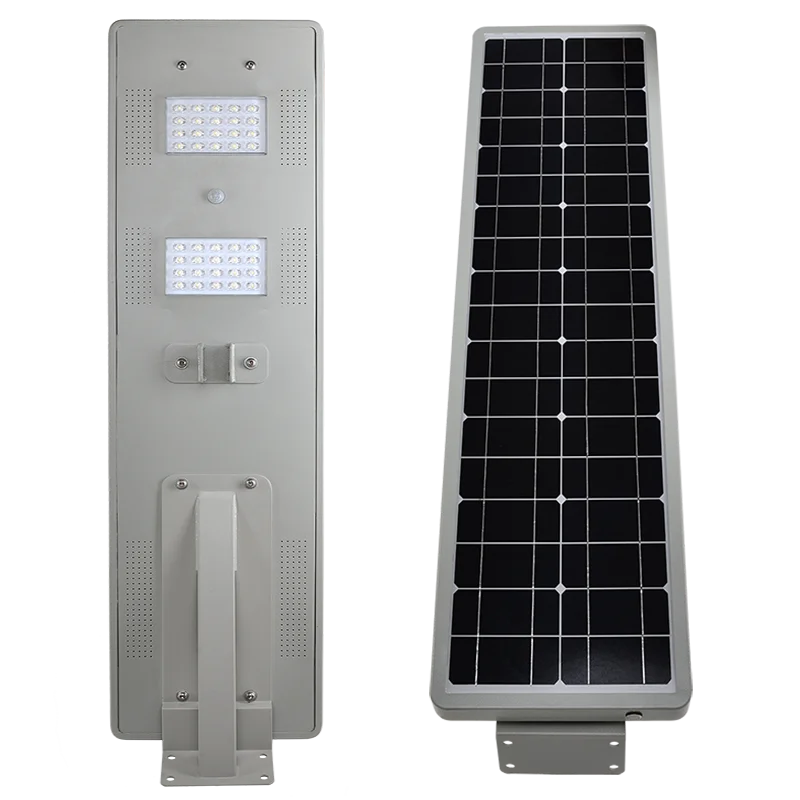

high brightness 120lm/w white light 50w 60w 80w solar street light galvanized steel lamp post street lighting pole with arms
Widely used 12m galvanized steel round octagonal street light pole for area lighting
Product Description

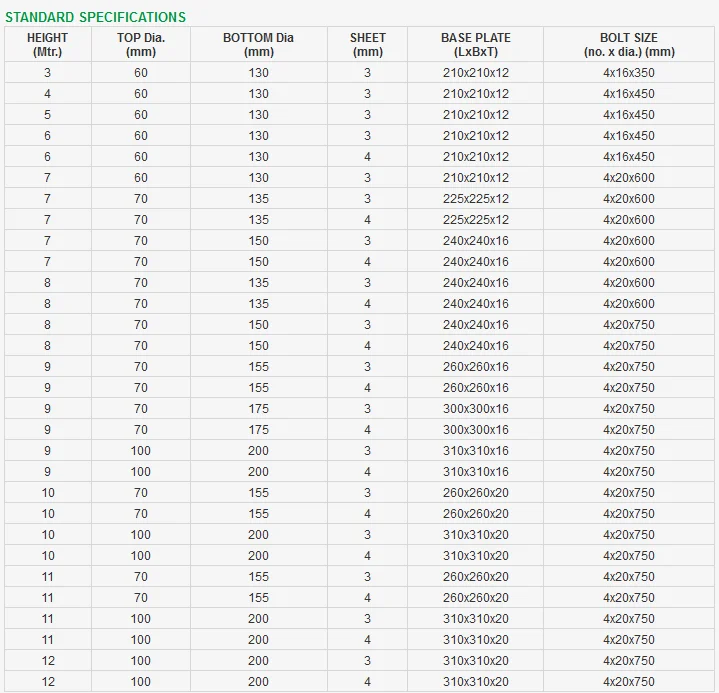

3m-15m galvanized steel lamp post street lighting pole with arms
Pole Height:3M to 15M,
All Pole designs will withstand a gusted wind velocity of 150 KM/H
1.All materials utilized by Pole meet or exceed international. Standards or on Customize Request.
2.Poles are produced using steel, "self -
weathering" steel Q235B SS400, Q235, (yield strength: 235Pa 24kg/mm2 Tensile Strength: 375-460Pa 38-47kg/mm2
| Type | Street Lamp pole, lamp post, Lamp column, Street Light Pole |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Material | Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52 |
| Torlance of dimenstion | ±0.02 |
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Standard | Octagonal tapered column Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123 |
| Length of per section | Within 14m once forming without slip joint. |
| Suit for | Highway Roadway Residential subdivisions Commercial development |
| Option | Height from 6m to 12m Flange mounted or planted type Variable arm length from 0.125m to 3.0m with single or double arm type Variable spigot size from 35mm to 60mm. |
| Production Process | Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→ Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→ Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
| Packages | Our poles as normal cover by bubble pack/blanket or straw bale at the top and bottom ,anyway also can following by client required |
| Warranty | At least 20 years. |
3m-15m galvanized steel lamp post street lighting pole with arms

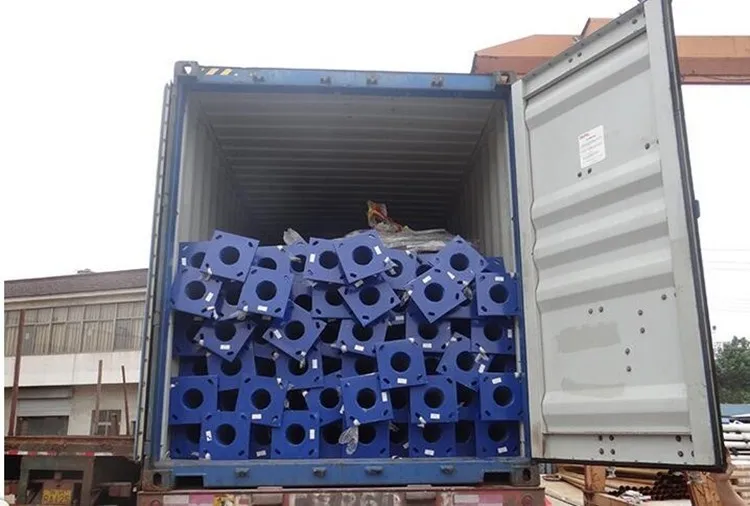

Packaging & Shipping
3m-15m galvanized steel lamp post street lighting pole with arms
