Good quality chinese universal metal lathe machine C6232A low price
- Category: >>>
- Supplier: Guangxi Xiashi Machinery Equipment Co. Ltd.
Share on (60639984590):
Product Overview
Description
Good quality chinese universal metal lathe machine C6232A low price
Product Description
Specification
Features
1.Has the processing specifications,
2.High precision,
3.Strong rigidity,between the throat is low,the ion is light,flexible,and other
characteristic
4.low cost
5.renovated lathe are available
6. high efficiency
7. metal shavings recyclable
Technical parameters
Model | C6232A | C6240A | ||||
Lathe specifications | Center height | 175mm | 202mm | |||
Max.swing over bed | 350mm | 400mm | ||||
Max. Length of work piece | 750mm | 1000mm | 750mm | 1000mm | ||
Max. travel of tool slide( longitudinal ) | 900mm | 1150mm | ||||
Max swing dia of workpiece | 190mm | 240mm | ||||
Max. swing over gop | 520mm | 580mm | ||||
Valid length of gap | 200mm | 200mm | ||||
Barstock diameter | 45mm | 45mm | ||||
spindle | Thru-hole diameter | 46mm | 46mm | |||
Taper | MT6 | MT6 | ||||
Speed50Hz(60Hz) | 25~1600r/min (30~2000r/min) | 25~1600r/min (30~2000r/min) | ||||
Head max. Stroke | Longitudinal | 650mm | 900mm | 650mm | 900mm | |
Transverse | 240mm | 240mm | ||||
tool rest | Max.transversal travel of carriage | 240mm | 240mm | |||
Max.travel of top slide | 140mm | 140mm | ||||
longitudinal graduation value | 0.5mm/grid 100mm/r | 0.5mm/grid 100mm/r | ||||
Cross graduation value | 0.05mm/grid 4mm/r | 0.05mm/grid 4mm/r | ||||
tool post graduation value | 0.05mm/grid 3mm/r | 0.05mm/grid 3mm/r | ||||
tool rest rotating angle range | ±45° | ±45° | ||||
Distance from spindle center line to the tool supporting surface | 22mm | 27mm | ||||
Section oftool shank (H×W) | 20mm*20mm | 25mm*20mm | ||||
Longitudinal feeds | 0.04~2.16 mm/r 138kinds | 0.04~2.16 mm/r 138kinds | ||||
Cross feed | 0.02~1.08 mm/r 138kinds | 0.02~1.08 mm/r 138kinds | ||||
Distance from spindle center line to the tool supporting surface | 205 mm | 205 mm | ||||
Tailstock | Taper bore of tailstock barrel | MT4 | MT4 | |||
Max.travel of tailstock barrel | 130mm | 130mm | ||||
Main motor power | 3/4.5kw | 3/4.5kw | ||||
Machine overal dimensions | 1950*900*1200mm | 2150*900*1200mm | 1950*900*1250mm | 2150*900*1250mm | ||
Machine weight | 1300kg | 1400kg | 1350kg | 1450kg | ||

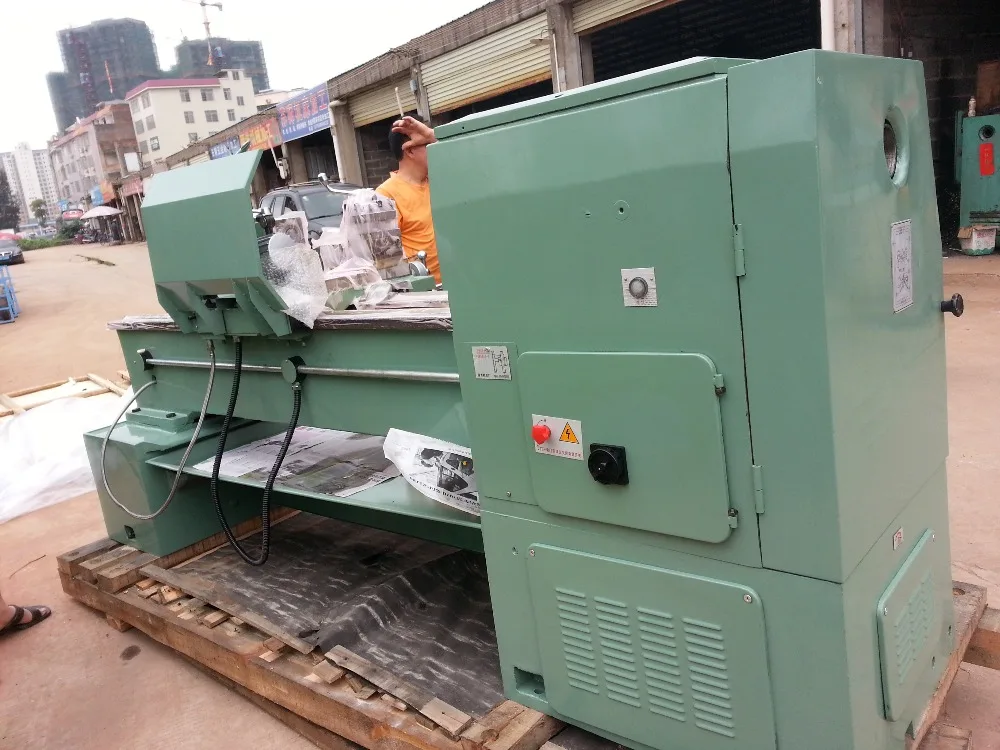

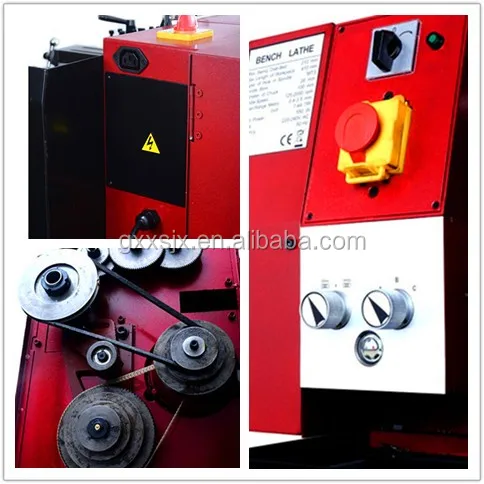

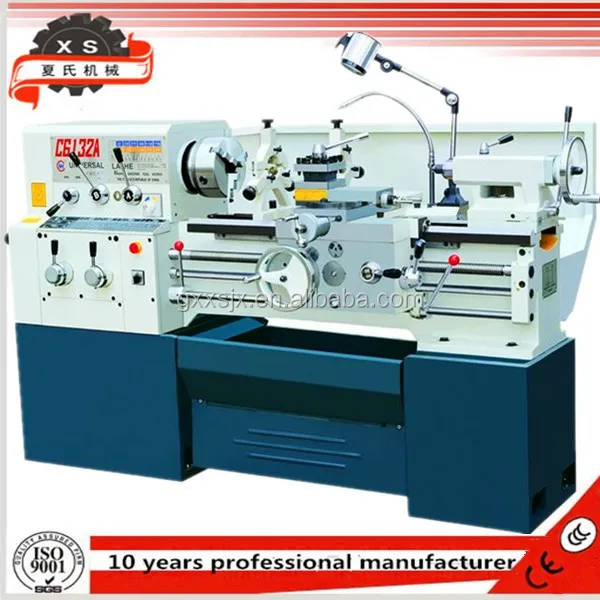

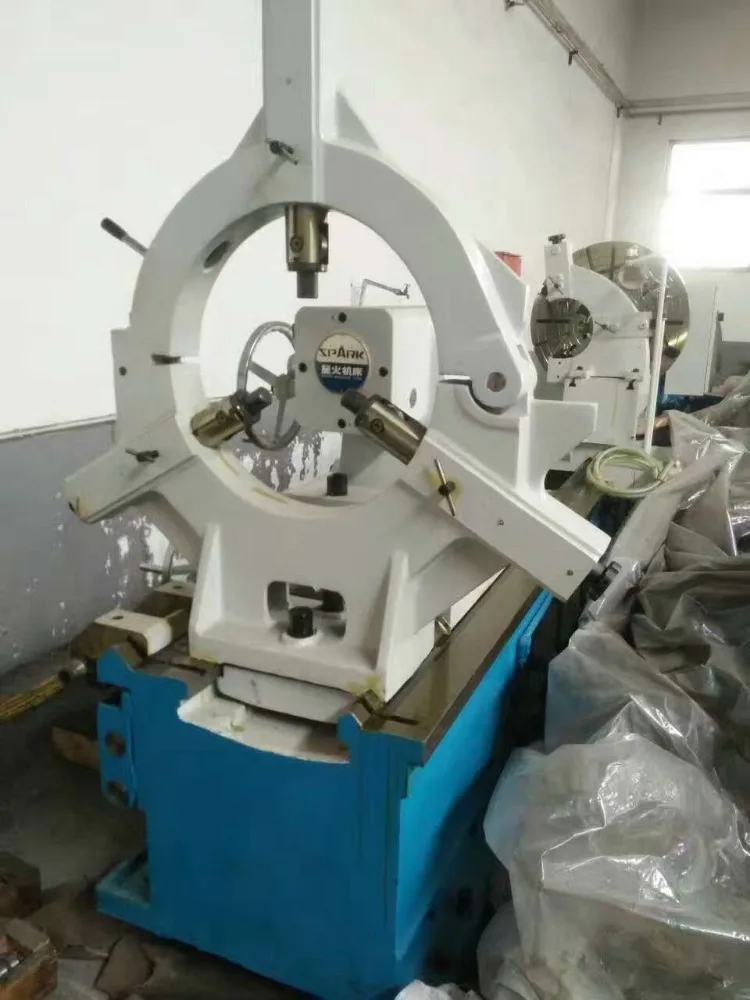

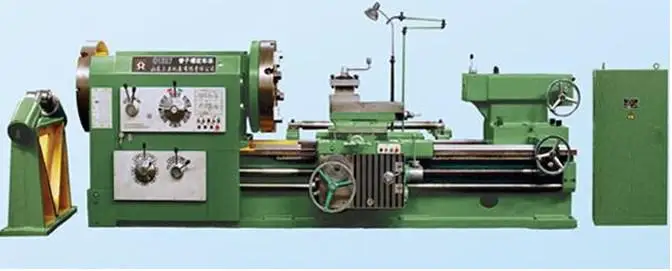

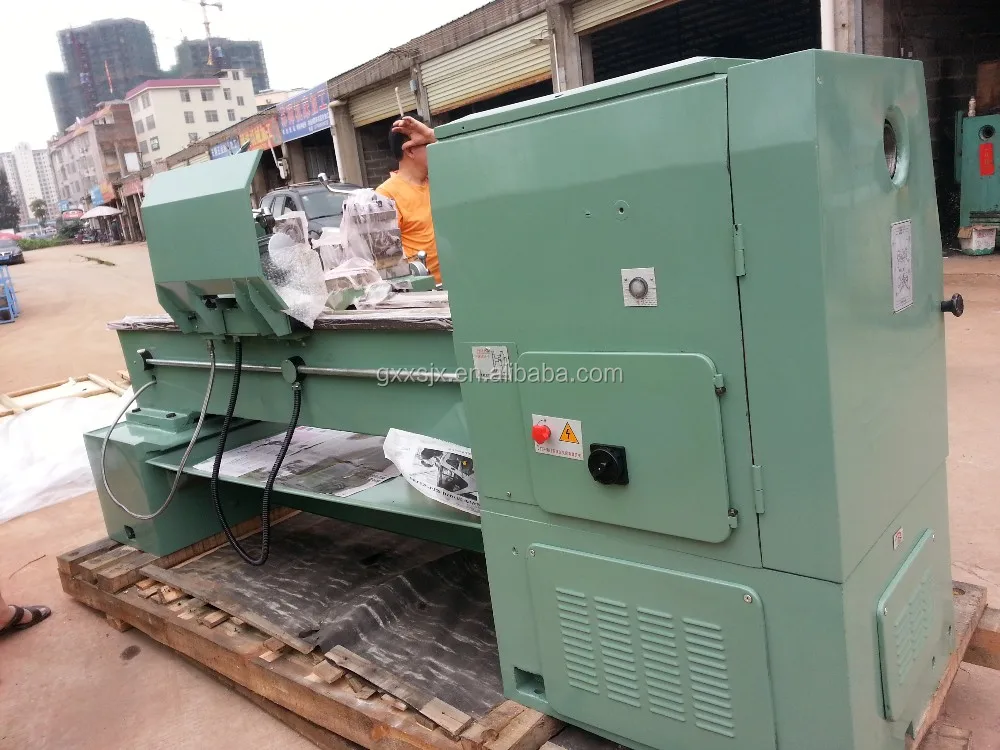

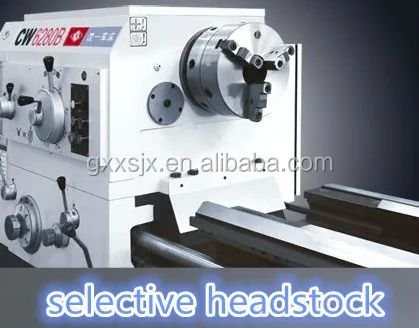

Picture detail
Why Choose us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
