ship industry high pressure rust paint remove high pressure water blaster

Product Description

What is rust paint remove high pressure water blaster?

rust paint remove high pressure water blaster is made based on Germany technology, it is super high pressure plunger. rust paint remove high pressure water blaster is used for jet cleaning, metal cutting, ship cleaning, descaling, and rust paint remove high pressure water blaster is also used in chemical, sugar making factory, power plant for cleaning condenser, heat exchanger, evaporating pot, boiler, and cans.

rust paint remove high pressure water blaster is made of high durable stainless steel, with wear-resisting, tension resist, crush resistance, corrosion resistance, long life time, can bear 400MPA pressure. rust paint remove high pressure water blaster needs only 15 minutes to replace spare parts by only one person.

rust paint remove high pressure water blaster

Technical Parameters

What is data of rust paint remove high pressure water blaster?

Input Axis Speed min-1			1480	Plunger Stroke		120 mm
Gear Reduction Ratio i			4.04	Pump Speed min-1		366
Power		90 kw	110 kw	132 kw	160 kw	Plunger Dia mm
Flow Rate
L/min	M³/h
34	2.0	130	150			18
40	2.4	115	140	150		20
50	3.0	95	120	140	150	22
60	3.6	80	100	115	140	24
70	4.2	70	85	100	120	26
80	4.8	56	70	85	100	28
93	5.58	50	60	70	90	30
106	6.36	44	52.5	61	78	32
126	7.56	37	44	51	66	35
Pump Weight		870 kg	Liquid Input	G2	Liquid Output	M30*2

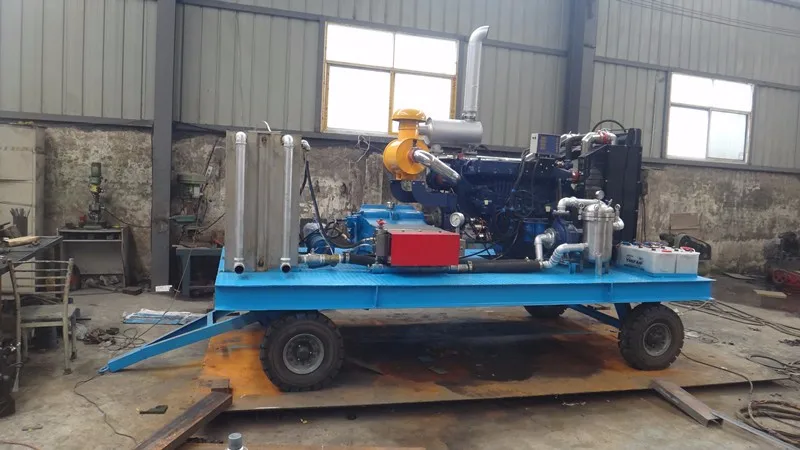

Detailed Images

1. High pressure triple plunger pump ( Reciprocating plunger pump, Easy maintenance pump head )

Pressure: 500bar to 1500bar

Water flow: 40 LPM to 80 LPM

2. Engine: diesel engine or Electric motor drive. customer can choose the one they prefer rust paint remove high pressure water blaster

For diesel engine: Brand has two: WeiChai and Cummis

For electric motor, Brand is Shandong HuaLi.

3. Pressure regulating valve: 0~ 1500bar. easy to be adjustable.

4. Safety valve: High pressure Rupture Disc valve.

5. Self Aligning, Water Cooled, Tungsten Coated Plungers,

6. Water tank: stainless steel material, 300L.

7. Oil tank: ( for diesel engine) stainless steel material 200L.

8. High pressure dump gun: Max. pressure 1500bar. stainless steel material.easy to be control and operate.

9. High pressure hose: 6 layer of steel wire . Length can be meet customer's request on rust paint remove high pressure water blaster.

10 High pressure nozzle: single-hole self rotating nozzle, fan-shaped nozzle ( flat nozzle), Cylindrical type nozzle.

rust paint remove high pressure water blaster

Product Uses

Where is rust paint remove high pressure water blaster applied?

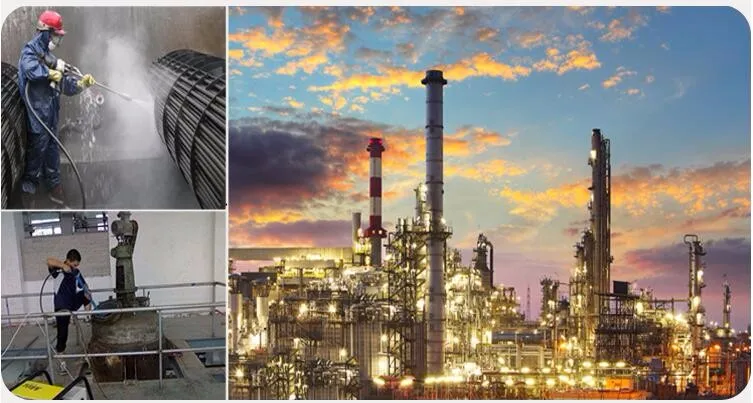

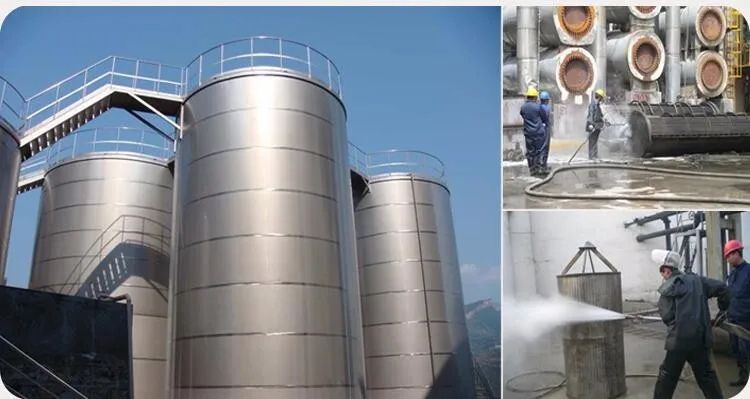

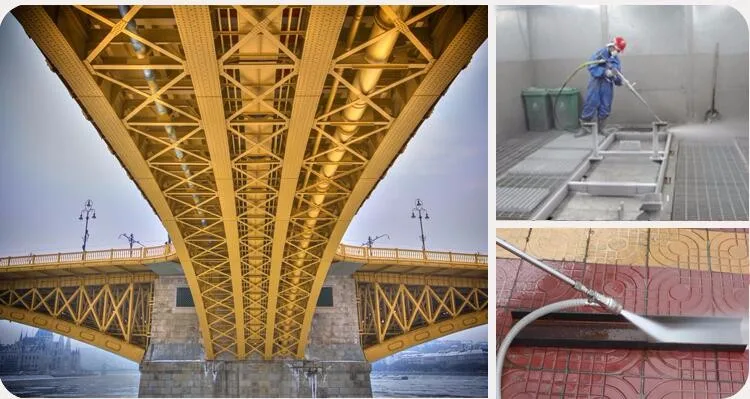

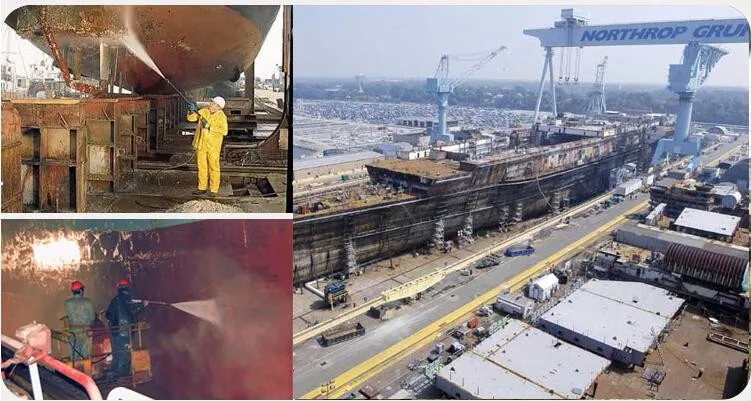

rust paint remove high pressure water blaster is used in chemical industry, sugar making industry, food making industry, ship cleaning, petrol system, ocean platform, can cleaning ,etc.

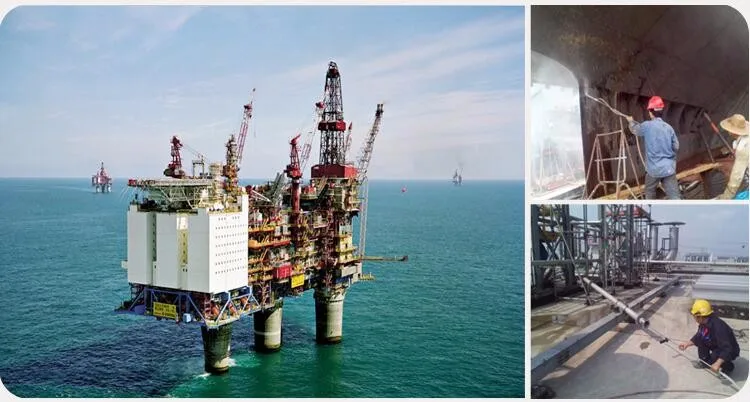

Ocean Platform

rust paint remove high pressure water blaster
