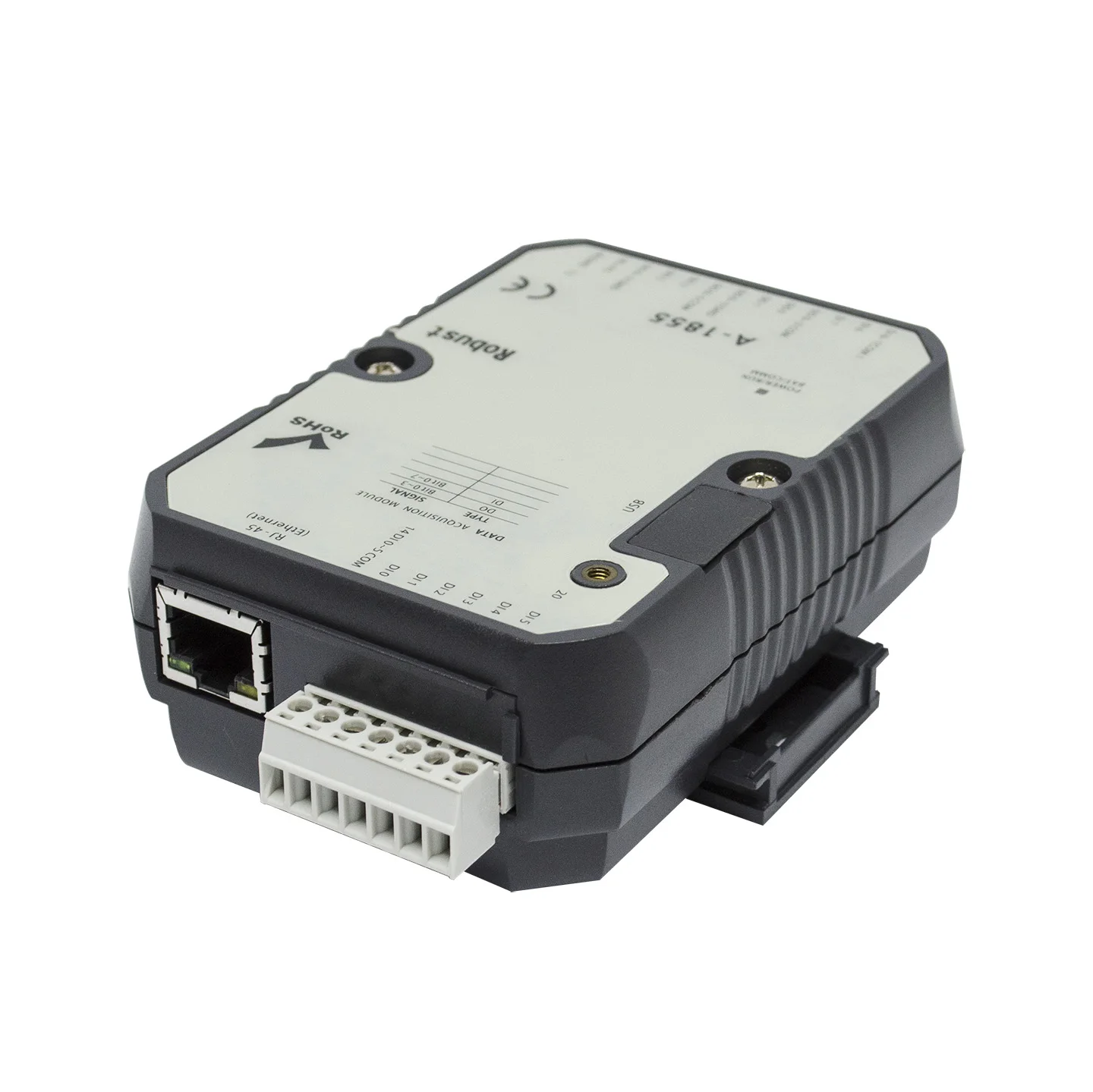

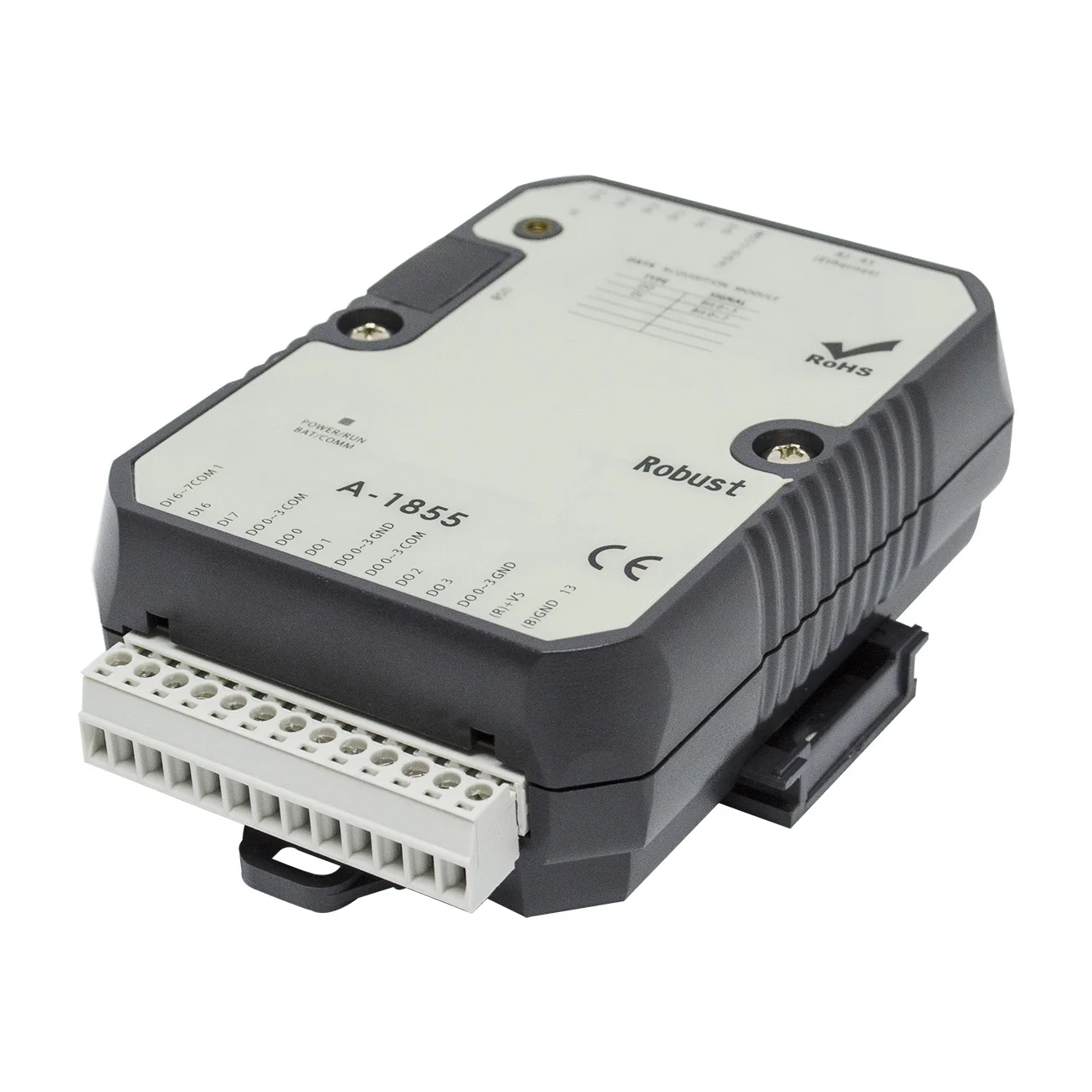

Ethernet IO Remote modbus Modules(A 1855)
- Category: >>>
- Supplier: Shenzhen ATC Technology Co. Ltd
Share on (60640151048):
Product Overview
Description
Products Description
ATC Industrail remote Ethernet I/O module is an industrial class.High reliability, high stability and high precision data
acquisition module. Embedded ARM-Cortex-M4 MCU (ST). Integrated 1-Port Industrial 10/100M Ethernet port. It provides multi I/O
with digital input/output and analog input/output. It support ModBus TCP protocol. The user's can through IPC or DCS controller
communication with Ethernet I/O module and support 7 independent TCP socket connection.

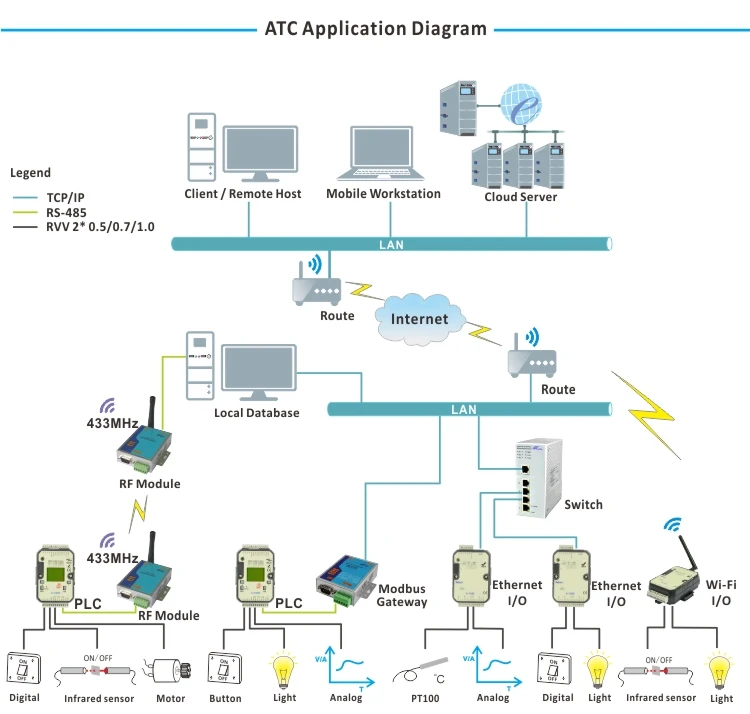

It’s design for working in the harsh industrial application environment. Such as industrial automation, factory automation,
building antomation,automatically measurement and control system.
acquisition module. Embedded ARM-Cortex-M4 MCU (ST). Integrated 1-Port Industrial 10/100M Ethernet port. It provides multi I/O
with digital input/output and analog input/output. It support ModBus TCP protocol. The user's can through IPC or DCS controller
communication with Ethernet I/O module and support 7 independent TCP socket connection.
It’s design for working in the harsh industrial application environment. Such as industrial automation, factory automation,
building antomation,automatically measurement and control system.
Specifications
Type | A-1855 | ||||
Operation Voltage | 10~30VDC/24VAC | ||||
Digital Inputs | 8*Isolation DI status low:<1VDC status high:>5~30VDC | ||||
Input Isolation | YES(5000VDC) | ||||
Digital Output | 4*DO(Sink) | ||||
Input Operating Frequency | 10HZ | ||||
Output Operating Frequency | Transistor:10HZ | ||||
Interface Type | Ethernet(10/100Mbps)+USB(1.1,2.0 Configration Only ) | ||||
Operation Temperature | -20 to +75 °C | ||||
Degree Of Protection | IP20 | ||||

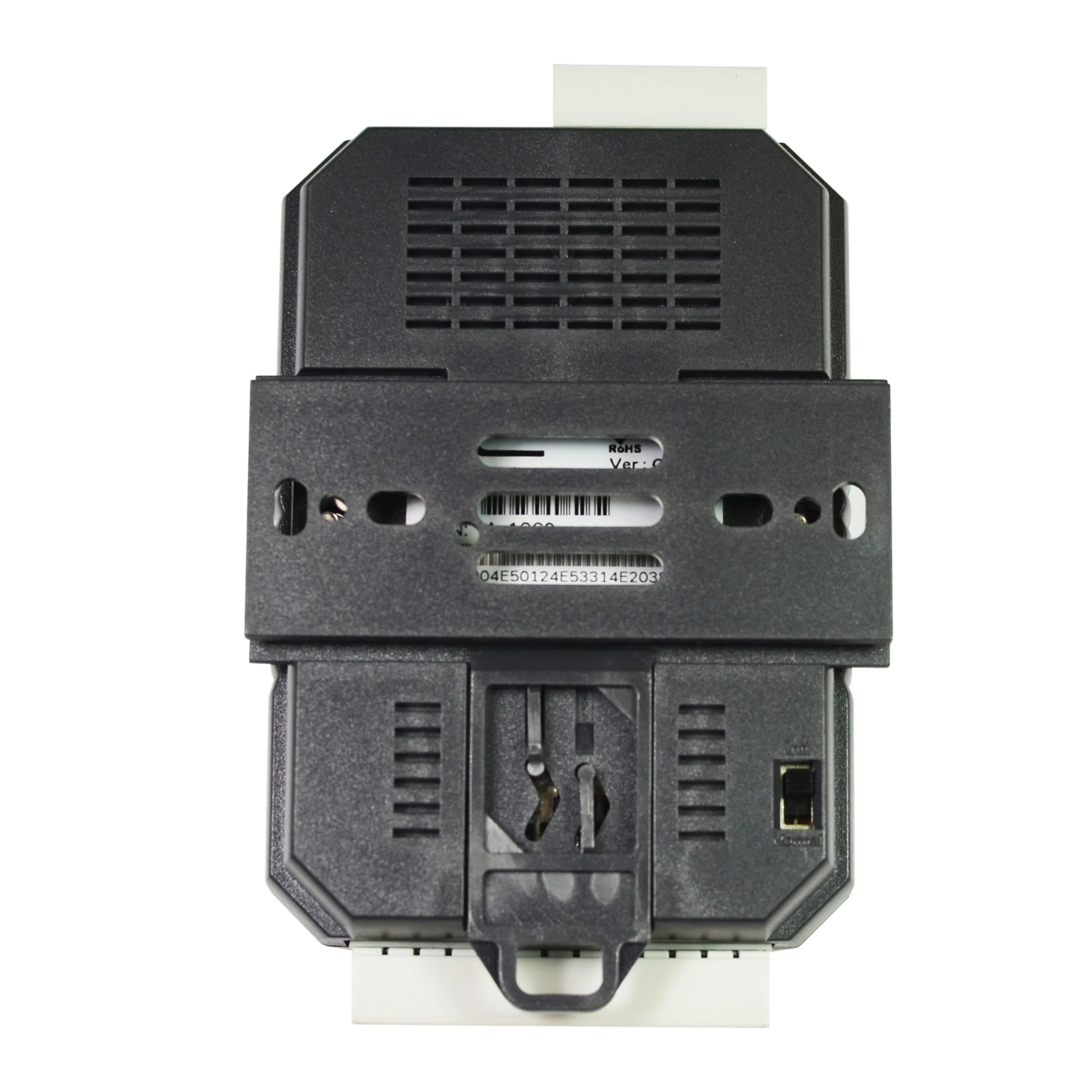

Installation | 35 mm DIN rail or Flush mounting | ||||
Dimension (W x H x D mm) | 76.4*118.2*38.5 mm | ||||

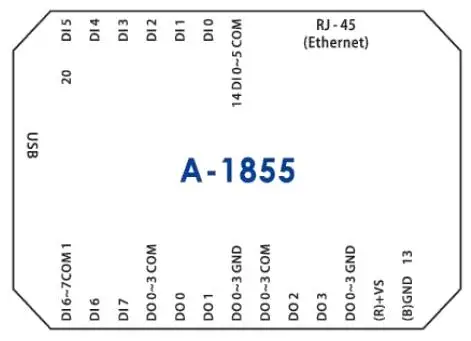

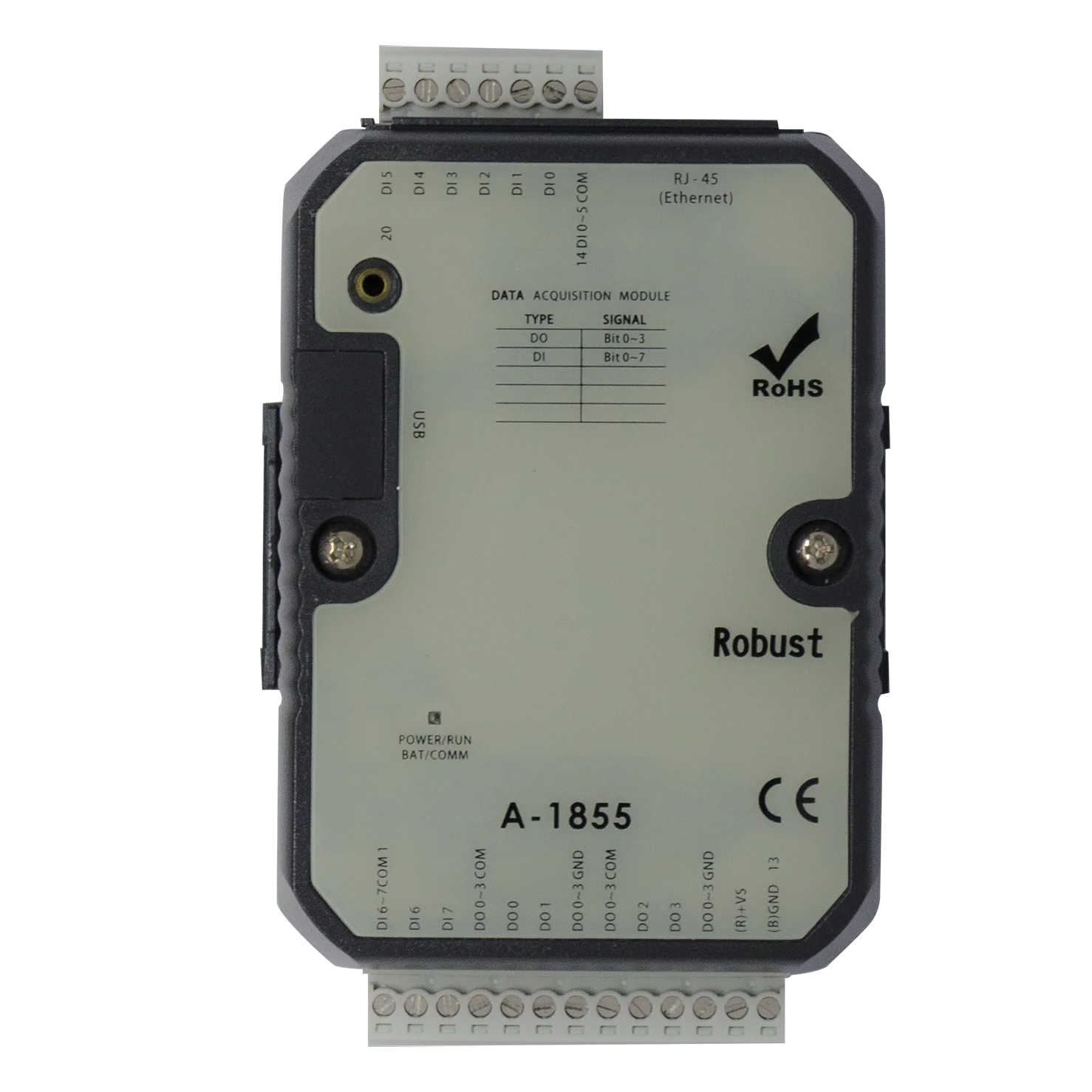

Pin Assignments

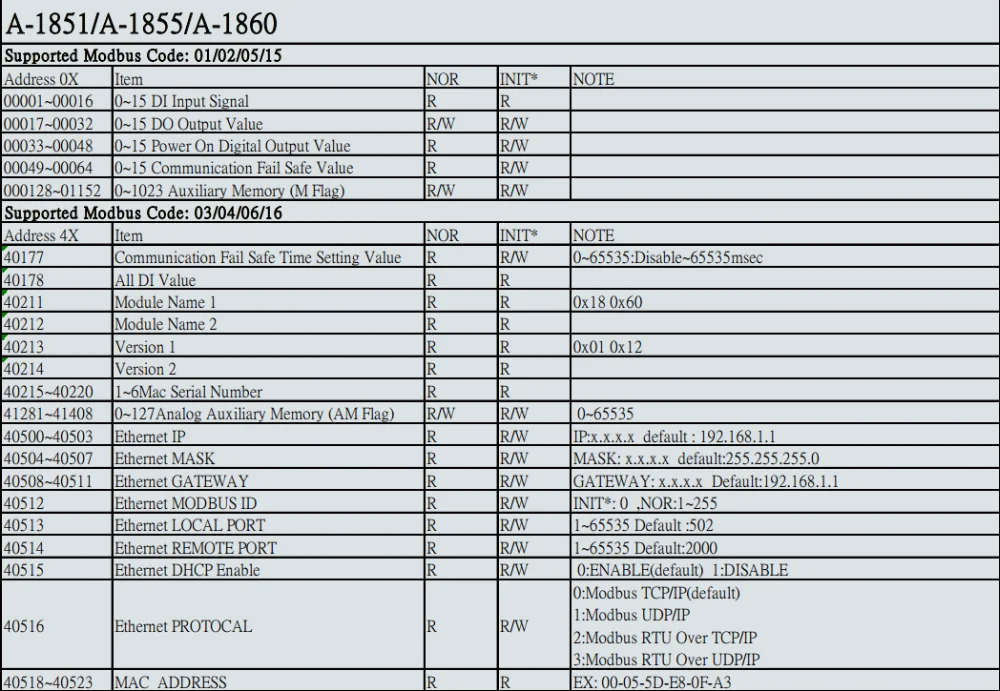

Address Mapping

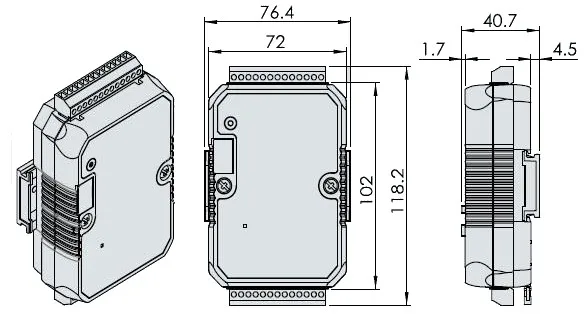

Product size
Product Category
Order information
