China Manufacturer Low Noise 24V Brushless Blower
- Category: >>>
- Supplier: Constar Micromotor Co. Ltd.
Share on (60640181809):
Product Overview
Description
China manufacturer Low Noise 24V brushless blower
 | |||
| CONSTAR MICROMOTOR | |||
 |  |  |  |
| Brushless DC Motor | DC Coreless Motor | Gearmotor | Sonic Motor |
1. Applications:Breathing machine
2. Operating Environment:-40~+100°C
3. Characteristics :
The following are our standard products, we also provide customized products and service.
...
| -2ZP-250A-24.0 | |||
| 1 | Voltage | V | 24 |
| 2 | Terminal resistance | Ω | 2 |
| 3 | NO. of phase | — | 3 |
| 4 | Input power | W | 20 |
| 5 | Rated Load | — | Blades (Blow hole: 4mm) |
| 6 | Load speed | rpm | 33000 |
| 7 | Load current | A | 1.4 |
| 8 | Air pressure | Pa | 4000 |
| 9 | Air flow | m³/h | 4.4 |
| 10 | Noise | dB | ≤40 |
| 11 | Weight | g | 237 |

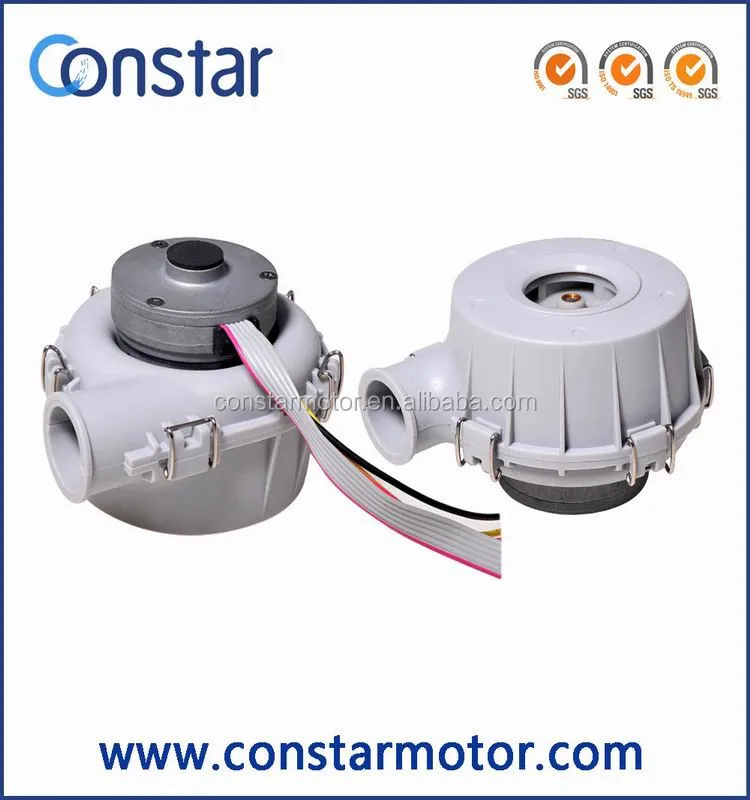

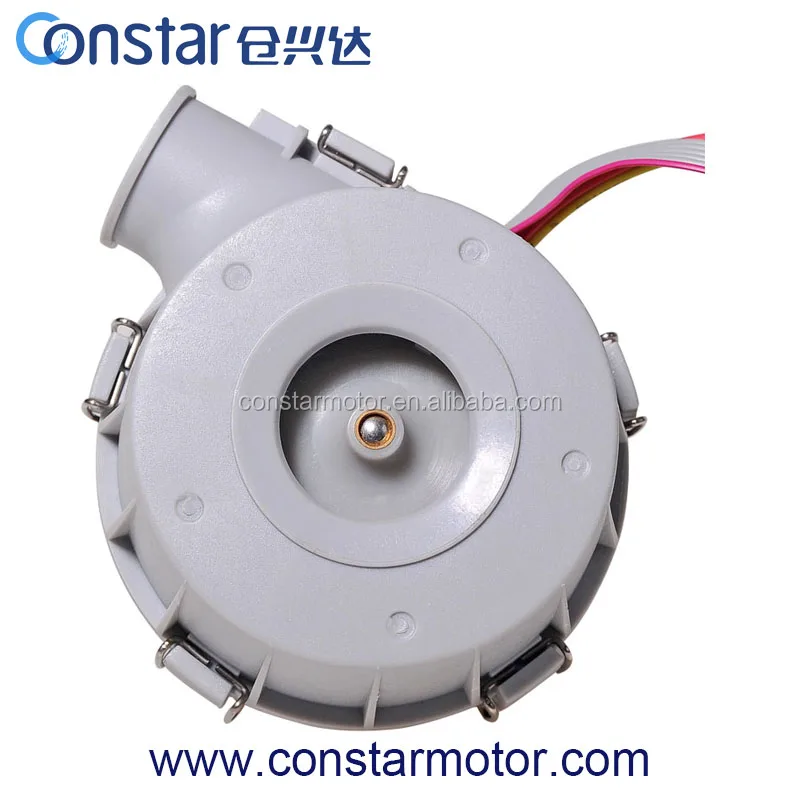

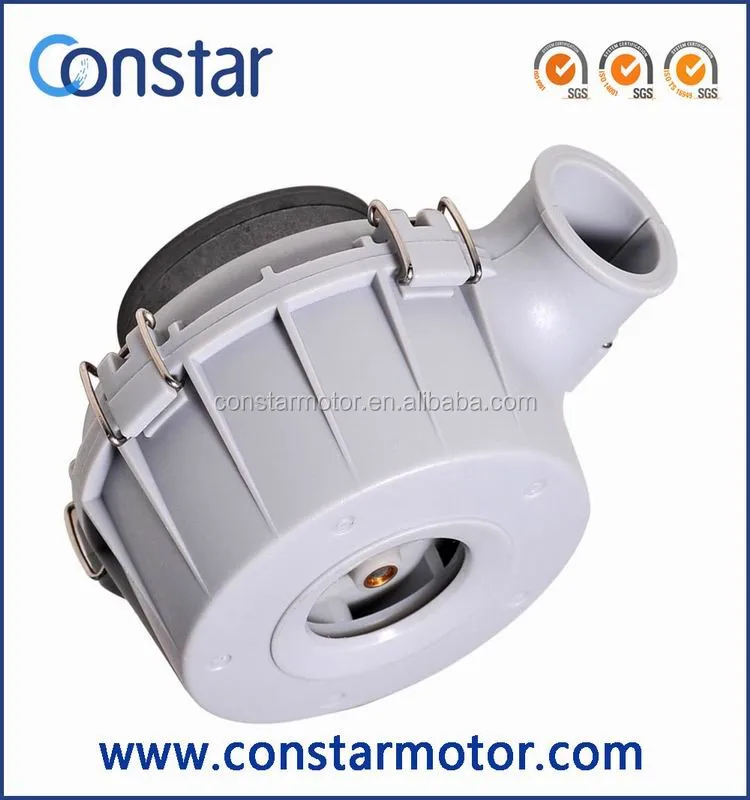

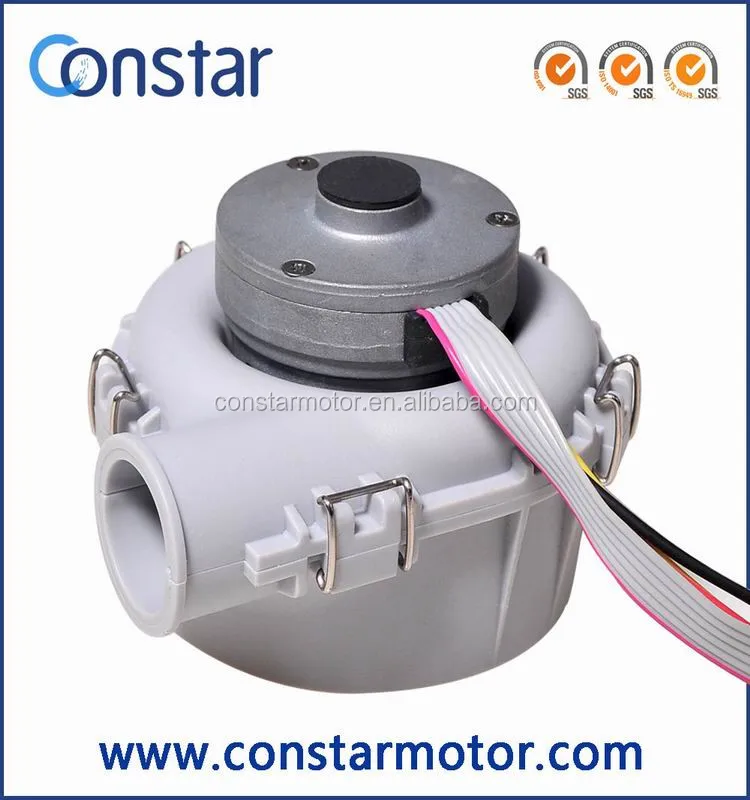

4.Photo:
China manufacturer Low Noise 24V brushless blower
Customized Motor
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!

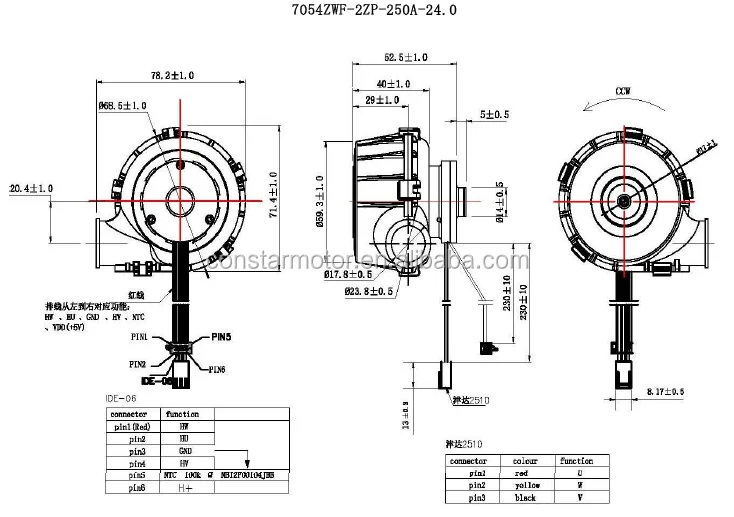

Outline Drawing
Packaging & Shipping
Company Information
FAQ
