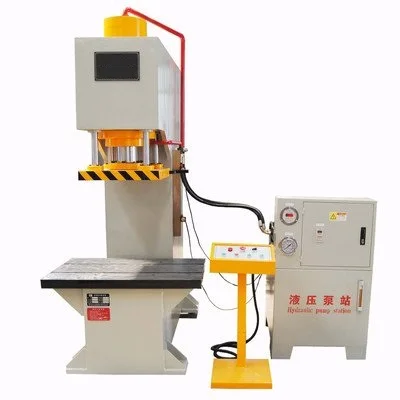

YQ41 40T single column hydraulic straightening and mounting press

Product Overview

Description

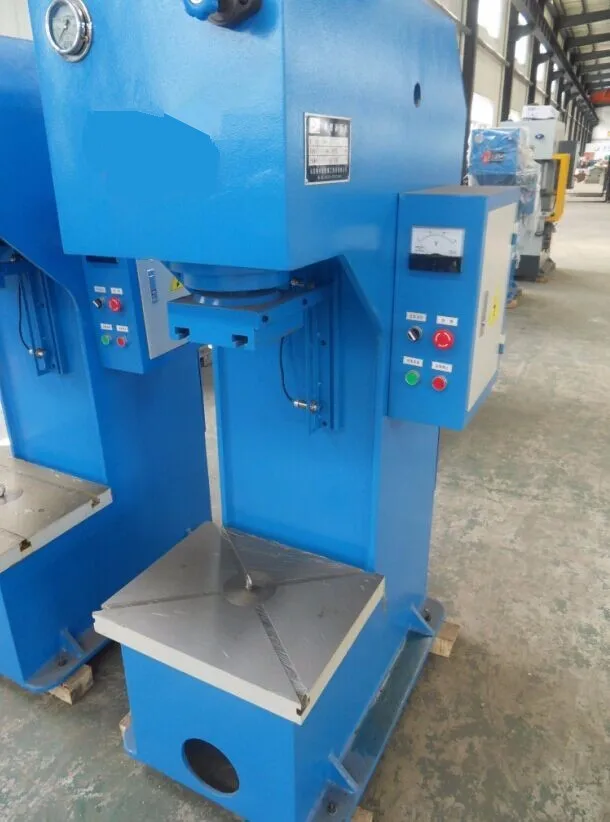

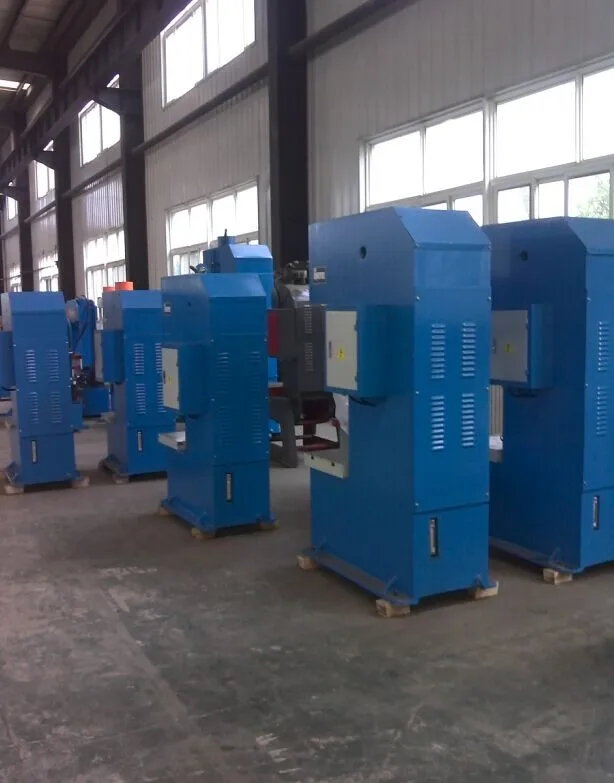

YQ41-40T Single Column press machine

Specifications

hydraulic press

2.competitive price

3.good performance

4.easy to operate

5.structural reliability



Appliance field :

This series hydraulic press mainly applies to the proofread,assemble of axle

component and section bar,the bending , impressing of the panel component ,



The stretch plastic products of simple component , and the use of other line , like Machinery tool, combustion engine , spinning , axle , bearing, washing machine , automobile motor, air conditioner motor, electrical equipment ,defense industry enterprise and foreign-funded enterprises assemble production line .

Features:

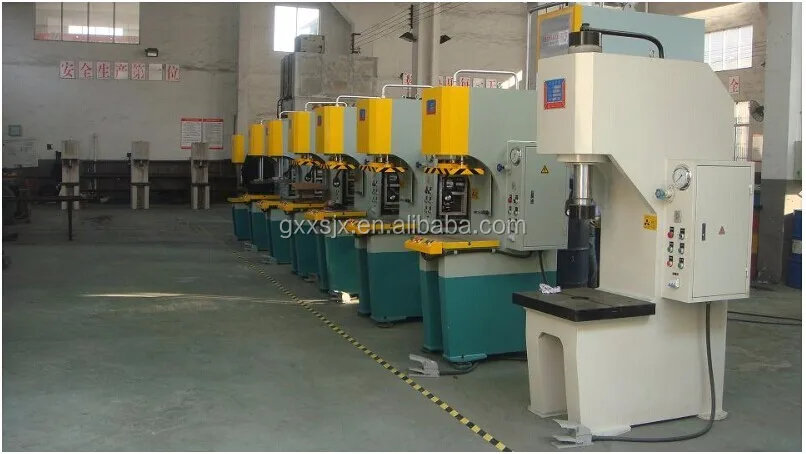

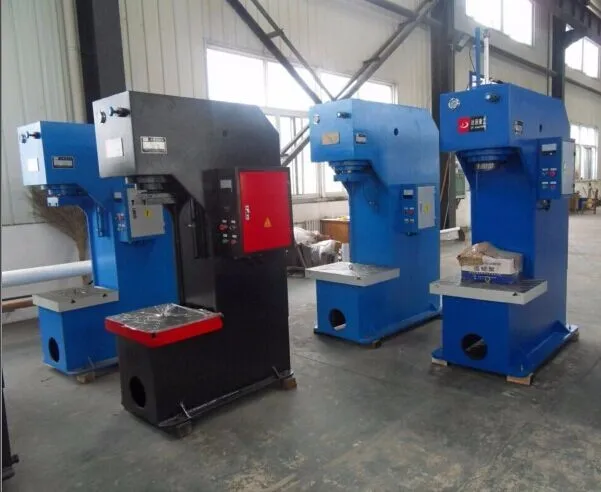

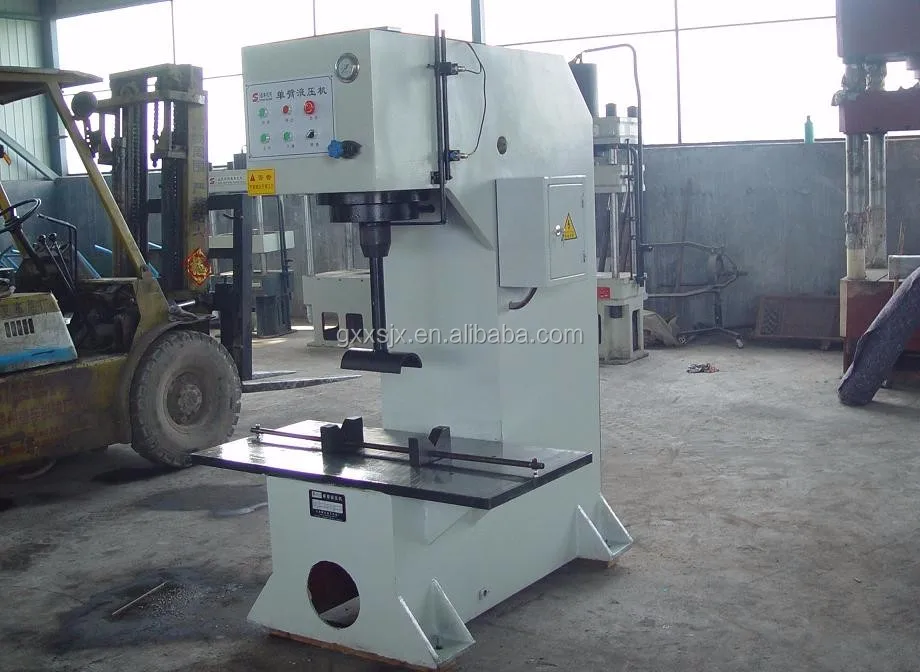

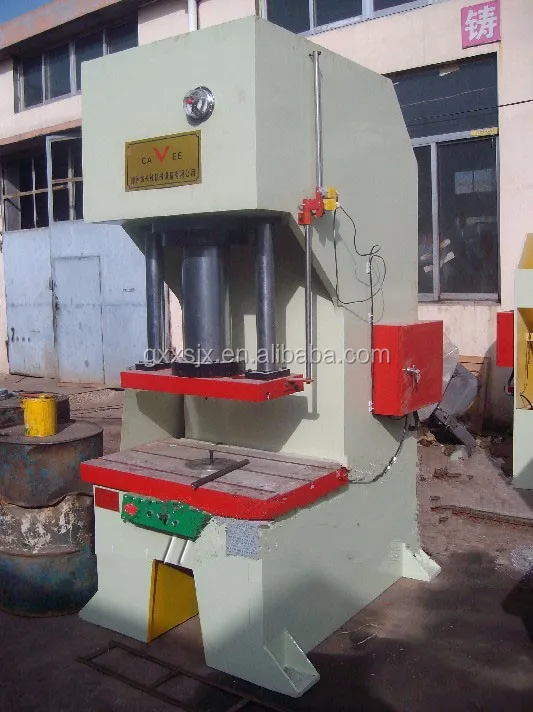

Fuselage and the single column hydraulic press of company's production are C type single arm type structures ,Itadopts the whole CO2 welding of steel plate, and  passes through tempering ageing treatment after welding, Ensure that fuselage never warps.   Hydraulic system is located in fuselage , outside type is beautiful, Easy to Operate may expand wide working scope , it Uses 3 surfaces the space extended hydraulic



Technical parameters



Model		YQ41-20T	YQ41-40T	YQ41-60T	YQ41-100T	YQ41-200T	YQ41-315T	YQ41-500T
nominal pressure(KN)		200	400	600	1000	2000	3150	5000
working pressure of liquid(mpa)		20	20	30	28	28	28	25
throat depth(mm)		200	220	240	280	300	360	500
stroke(mm)		240	260	260	300	360	600	600
working speed(mm/s)		18	15	12	18	10	18	30
return speed(mm/s)		25	22	20	30	20	40	60
pressure head to the table the maximum distance		500	550	700	800	800	1000	1000
dimension of table(mm)	front back	400	400	450	500	600	800	1000
	left right	500	500	600	700	600	1000	1200
motor power(kw)		2.2	3	5.5	7.5	7.5	15	30

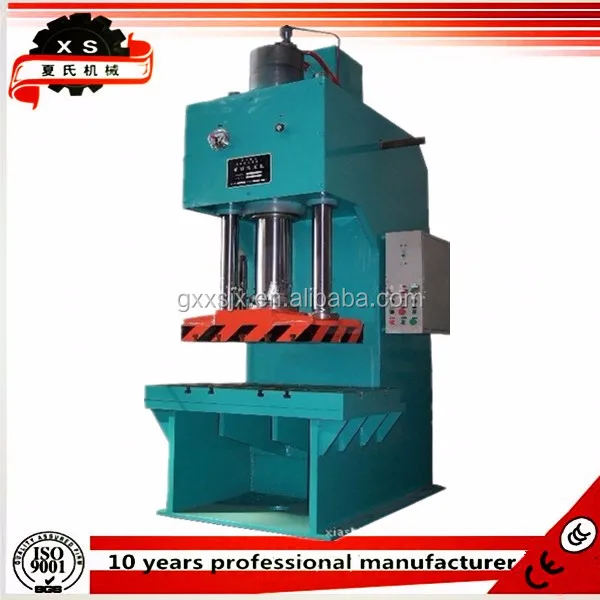

Other models of hydraulic press machine
