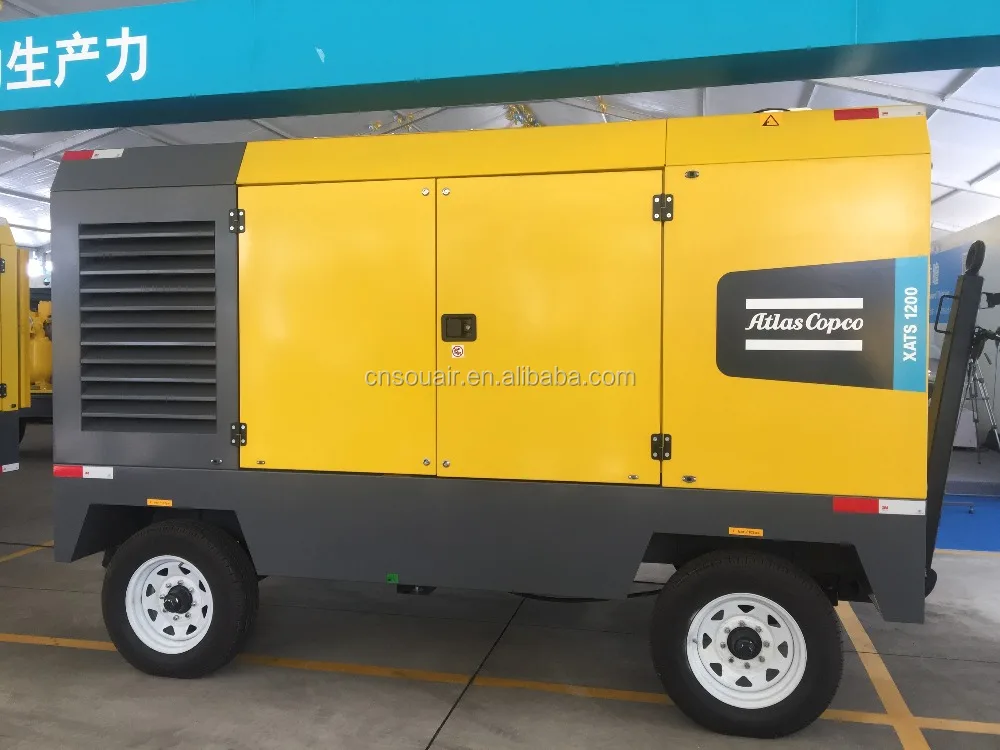

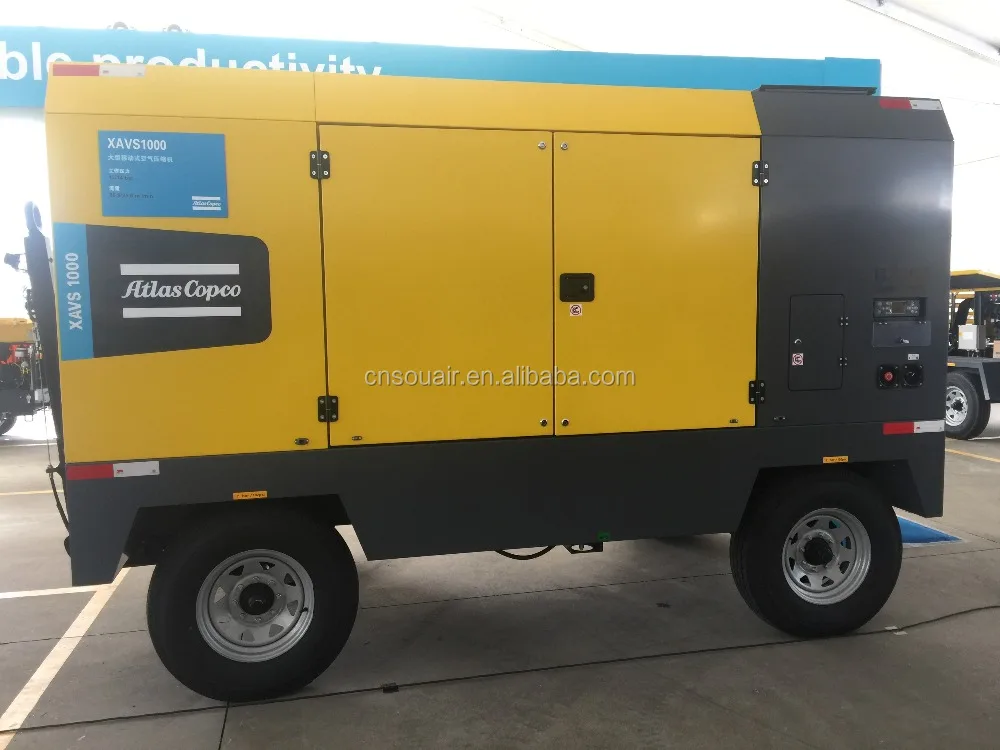

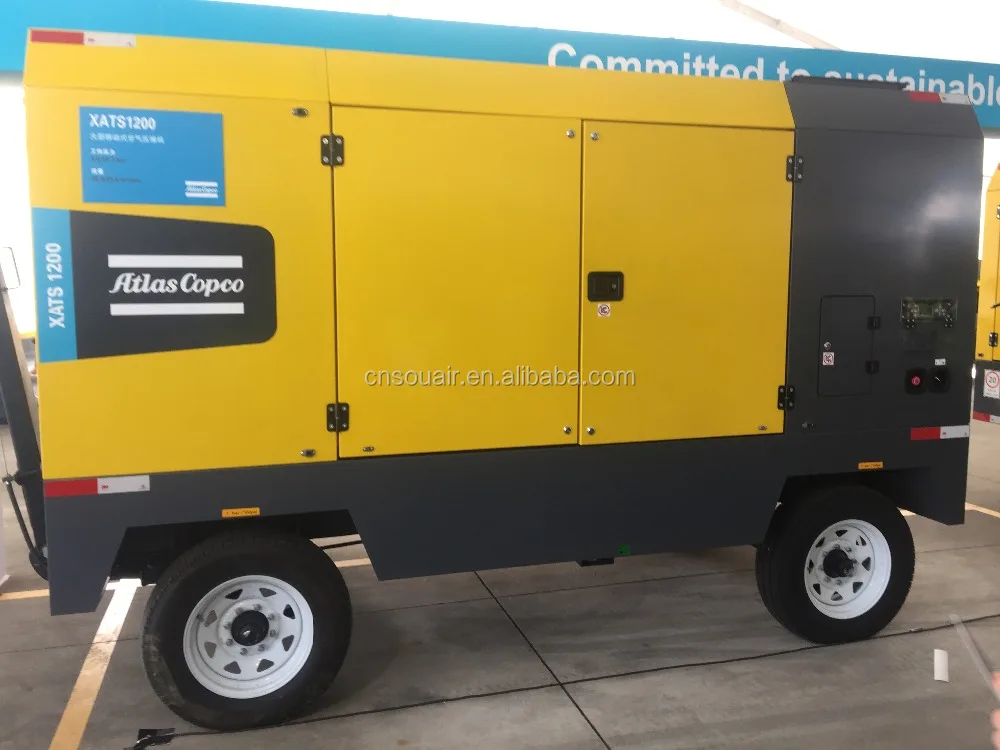

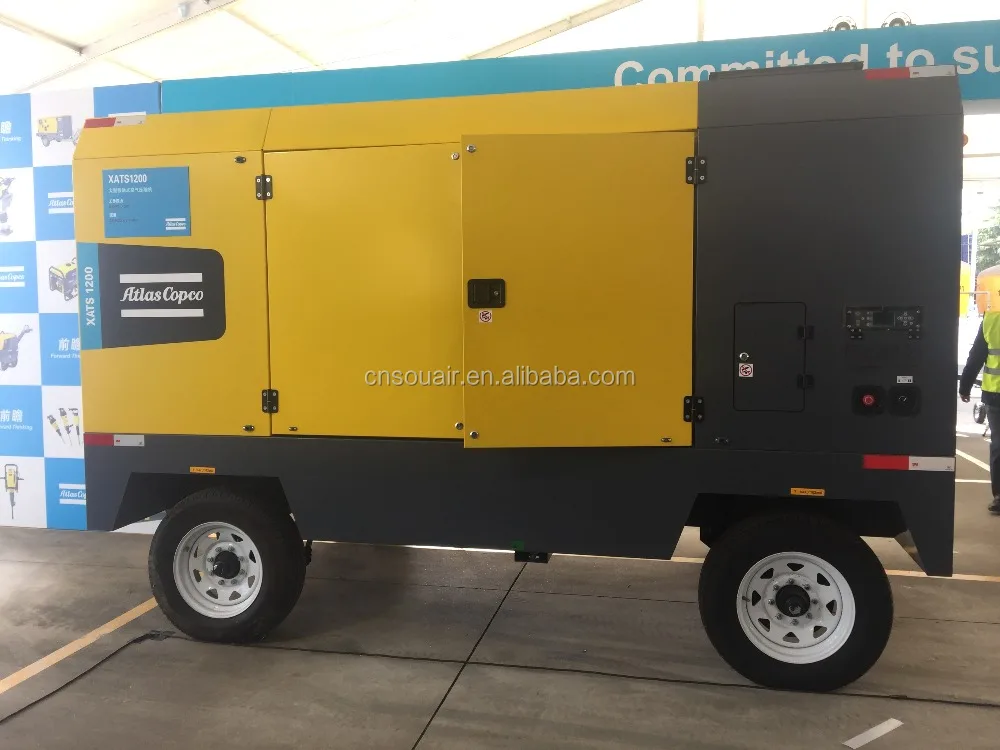

price of air compressor V900 XAVS1000 XATS1200 Atlas Copco DrillAir two stage rotary screw air compressor core drill rig

Product Overview

Description

price of air compressor V900 XAVS1000 XATS1200 Atlas Copco DrillAir two-stage rotary screw air compressor core drill rig

XRVS1300/25Bar AT 36.4M3/min XRXS1240/30Bar AT 34M3/min Atlas Copco DrillAir two-stage rotary screw air compressor core drill rig

XRVO1550/25Bar at 43.2M3/min XRXO1400/30Bar at 40.2M3/min Atlas Copco DrillAir two-stage oil-injected rotary screw air compressor rig

Portable Air Compressors

The New DrillAir™ Range of Compressors



The drilling world is a high-pressure business. Every foot drilled costs money, so the faster the holes can be made, the better.

XRVO 1550 CD7

XRXO 1400 CD7

365 - 435 psi



Atlas Copco develops its machines with the toughest conditions in mind. As safety is paramount for all Atlas Copco equipment, DrillAir™ high-pressure compressors are secure for the operator and the environment. Above all, DrillAir™ compressors are built for reliability and easy maintenance.

The new open units are built in a new dedicated open design and deliver higher capacity, higher pressure, and a longer component lifespan in a very effective and efficient way. Higher pressure makes drilling faster, higher flow removes the cuttings more efficiently. Superior productivity is gained by increasing speed.

Ease of transportation and installation makes these units ideal for specialist applications and Original Equipment Manufacturer system integration.

Technical Specifications

Type		XRVO 1550 CD7	XRXO 1400 CD7
Nominal pressure	psi bar	365 25	435 30
Actual free air delivery* with Push fan	cfm l/sec. m3/min.	1525 720 43.2	1419 670 40.2
Actual free air delivery* with Pull fan	cfm l/sec. m3/min.	1510 713 42.7	1409 664 39.9
Compressor oil system capacity	US gal.	20.1
Air outlet	inch	2
Engine - Caterpillar
Type		C18 Twin Turbo
Engine Power	HP	700
Engine speed (nominal)	rpm	1800
Engine speed (unloaded)	rpm	1300
Unit dimensions (overall) L x W x H
with Push fan	inch	157.5 x 86.6 x 80.7
with Pull fan	inch	157.5 x 86.6 x 90.6
Weight (dry)
with Push fan	lbs.	10,339
with Pull fan**	lbs.	10,582
Weight (wet)
with Push fan, including lubricants	lbs.	11,045
with Pull fan, including lubricants**	lbs.	11,287

 *according to ISO1217 ed.3 1996 annex D
**Aftercooler not included (only difference with Push fan is air duct)

Extended Warranty

In combination with our different service programs and Oiltronix™, we offer extended warranty up to 5 years (for more details, see warranty conditions).

Single Service Side

Compressor control panel

Standard fuel filters (10 micron and 3 micron)

Heavy duty dual fuel filters (optional)

Electric fuel primer

Engine oil filters

Engine oil top up tank (optional)

Engine air filters

Compressor air filters

Oil vessel separator

Air outlet valve

Spill pan (under unit)

Emergency stop button

Batteries

FuelXpert™ (supplied as standard)

External fuel connections (supplied as standard)



Available Options

Aftercooler with water separator and bypass valve

Particulate and oil mist filters

Oiltronix™ (standard supply on 435 psi/30 bar)

Dual pressure switch (only for 435 psi/30 bar)

Cold weather equipment

Engine coolant preheater

100 psi / 7 bar service air outlet

Refinery equipment (inlet shutdown valve and spark arrestor)

Night lights with timer

COSMOS™

Wireless remote control
