High performance mini multi purpose lathe machine HQ800 cheap price
- Category: >>>
- Supplier: Guangxi Xiashi Machinery Equipment Co. Ltd.
Share on (60640315609):
Product Overview
Description
High performance mini multi-purpose lathe machine HQ800 cheap price
Product Description

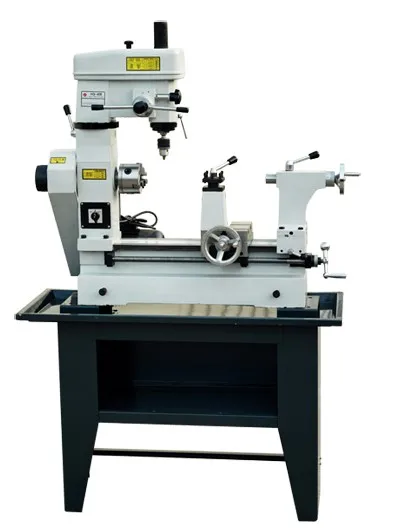

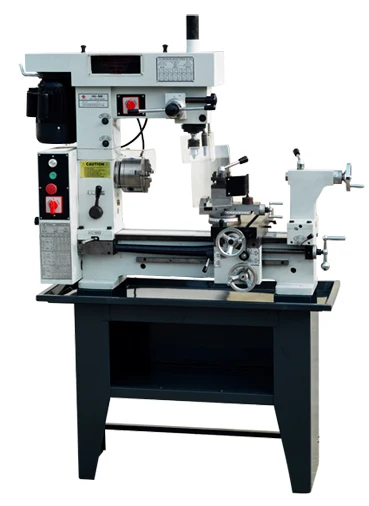

HQ-500 MultiFunctional Lathe mini lathe with milling and drilling function
Multi-purpose machine HQ-500,It can lathe, drill and mill in metal, wood and other materials.
HQ-500 series has basically 3 specifications: -2, -4, -5. The differences between them are: for –2, the length of tool carrier is 200mm; for –4 and –5, the lengths of tool carrier are both 425mm, but the longitudinal feed handle of –4 is at the tail as shown in the picture, the –5’s handle is at the side.
Feature
HQ-800 Multi-Purpose Lathe Machine
1. Swing Over Bed: 420mm
2. Spindle hole: 7mm
3. Distance Between Centers: 800mm
Technical parameters
SPECIFICATION |
|
|
|
|
ITEM | HQ500 | HQ800 | HQ500N | HQ800N |
Swing over bed | φ420mm | φ420mm | ||
Distance between centers | 500mm | 800mm | 500mm | 800mm |
Max. longitudinal travel | 440mm | 740mm | 440mm | 740mm |
Max. cross travel | 200mm | 200mm | ||
Taper of spindle | M.T.4 | M.T.4 | ||
Spindle hole | φ28mm | φ28mm | ||
Step of spindle speed | 7 | 7 | ||
Range of spindle speed | 160-1360r.p.m | 160-1360r.p.m | ||
Barrel travel | 70mm | 70mm | ||
Taper of center | M.T.3 | M.T.3 | ||
Metric thread range | 0.2-6mm | 0.7-4mm | ||
Inch thread range | 4-120T.P.I | 4-30T.P.I | ||
Longitudinal range of automatic feeding | 0.05-0.35mm/0.002-0.014inch | 0.088-0.55mm/0.0035-0.022inch | ||
Cross range of automatic feeding | 0.05-0.35mm/0.002-0.014inch | 0.088-0.55mm/0.0035-0.022inch | ||
Max. drilling capacity | φ22mm | φ22mm | ||
Worktable size (L*W) | 475×160mm² | 475×160mm² | ||
Max. end mill | φ28mm | φ28mm | ||
Max. face mill | φ80mm | φ80mm | ||
Distance between spindle center and column | 285mm | 285mm | ||
Distance between spindle and worktable | 306mm | 306mm | ||
Headstock travel of up and down | 110mm | 110mm | ||
Spindle taper | M.T.3 | M.T.3 | ||
Step of spindle speed | 16 | 16 | ||
Range of spindle speed | 120-3000r.p.m | 120-3000r.p.m | ||
Swivel degree of headstock | ±360° | ±360° | ||
Motor power | 0.55Kw/0.55Kw | 0.55Kw/0.55Kw | ||
Voltage/Frequency | As customers’ requirement | As customers’ requirement | ||
Packing size | 1130×580×1100mm(HQ800:1430×580×1100mm) | 1130×580×1100mm(HQ800N:1430×580×1100mm) | ||
N. weight/G .weight | 245kg/280kg(HQ800:275kg/325kg) | 250kg/285kg(HQ800N:280kg/330kg) | ||
Loading amount | 40pcs/20container(800: 32pcs/20container | 40pcs/20container(800N: 32pcs/ | ||
Picture detail
Why Choose us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
