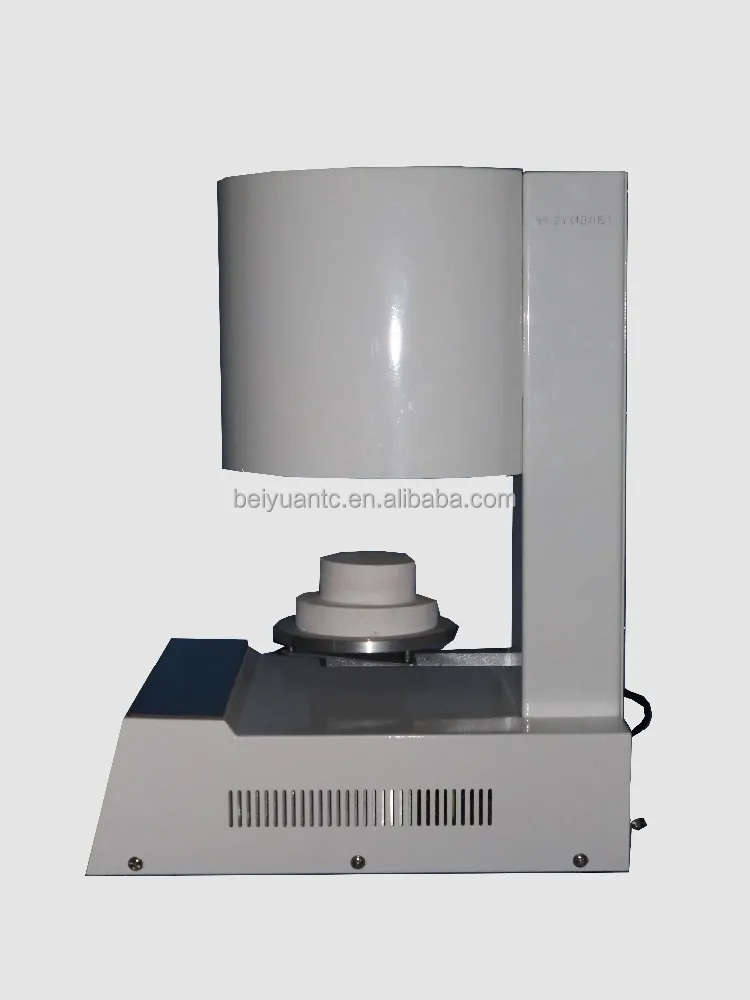

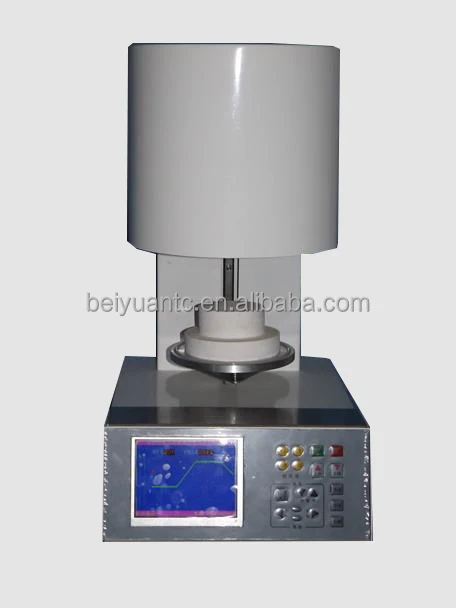

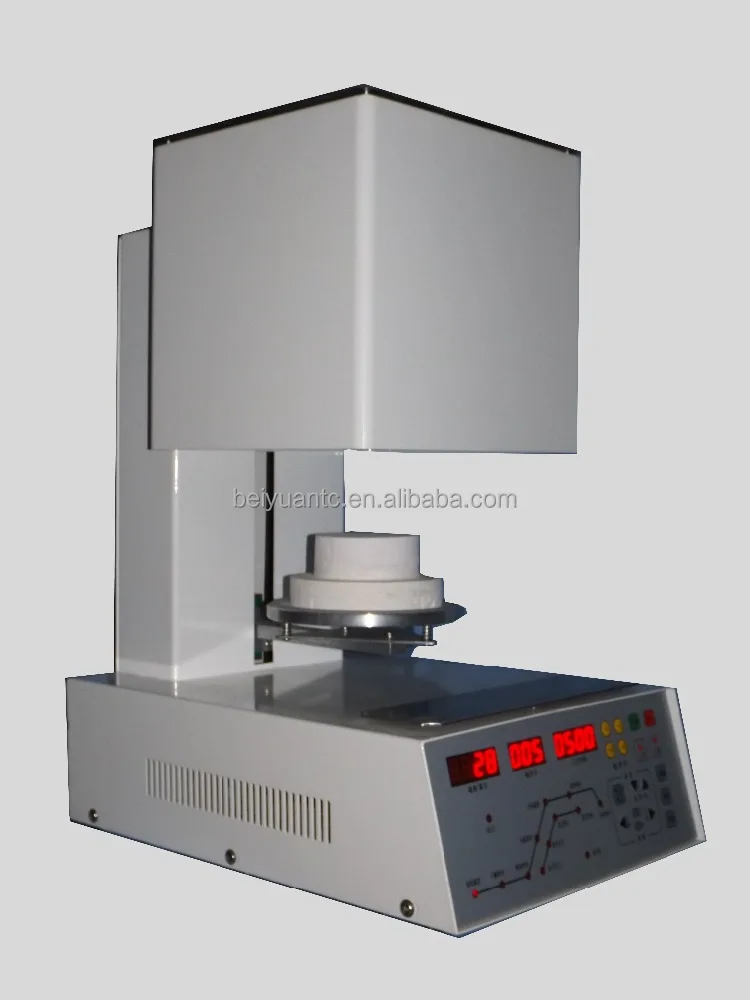

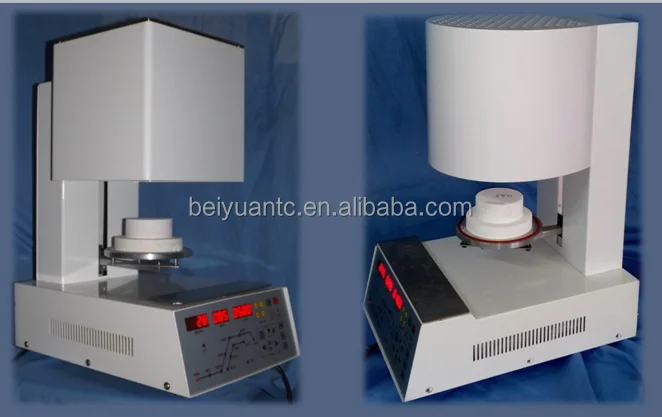

Dental Lab Equipment 1200C Full Automatic Vacuum Porcelain Furnace

Product Overview

Description

1200C Full Automatic Vacuum Dental Porcelain

An ideal equipment for annealing and sintering materials in your research labortory.

we use top kanthal resistance wire as the heating elements to ensure the furnace excellent heating and long using life.

The chamber is designed in cylinder with automatic lift tray and can be pumped in vacuum.





 Feature

•     190 different firing procedures
•     All-ceramics firing capabilities ,special design guarantees excellent sealing of the furnace
•     Auto purge, Auto night mode Firing procedures calibration by keypad
•     Chinese or English panel selection
•     Multi-display window for better readability
•     Preheating range 80-750℃
•     Firing temperature up to 1200℃
•     Automatically or manually enter energy-saving status
•     Unique cooling function,temperature correction

  Description



Model No.	RM-36
Chamber Size	Φ95 *80mm
Working Temperature	1100°C
Maximum Temperature	1200°C
Temperature Control	PID automatic control
Heating Rate	2~120°C/min
Temperature Accuracy	± 1℃
Max Vacuum	-97KPa
Heating Element	KANTHAL APM T
Working Voltage	220V,50HZ
Thermal Couple	S type
Max. Power	1.65W
Outside Size	450x300x600mm
Net Weight	26.5kg (excluding the pump)
Gross Weght	35kg   (including the pump)





 Details

We use quartz/silicon carbide as materials for furnace chamber to improve performance.









 Sweden Kanthal Fe-Cr-Al heating wires , maximum operating temperature 1425℃











    Accessory

          Vacuum pump/vacuum hose/Seal ring
