Product Overview
Description

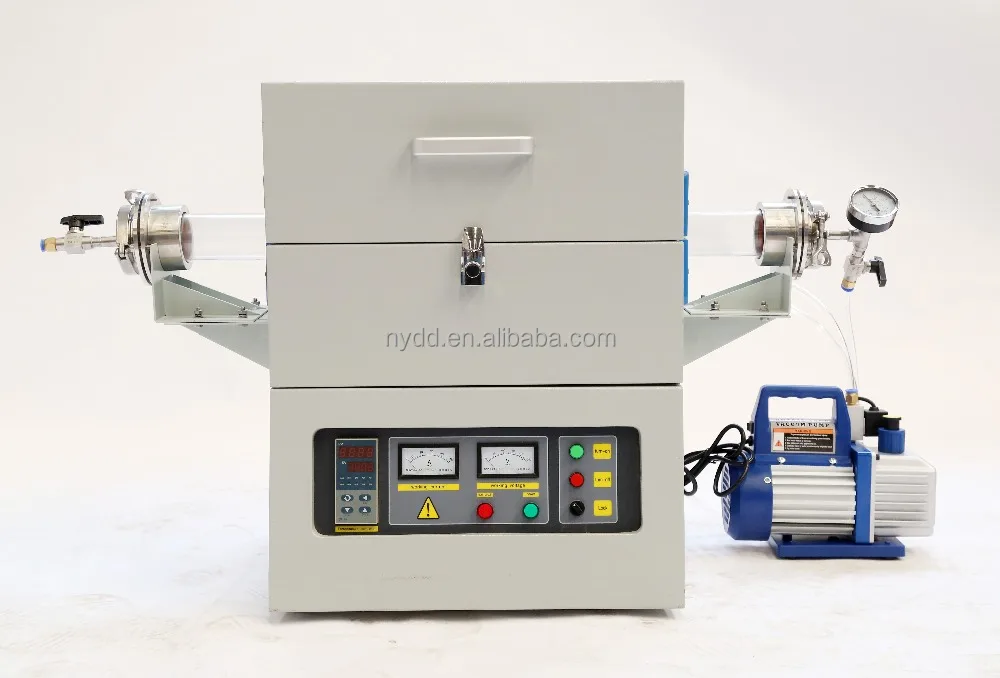

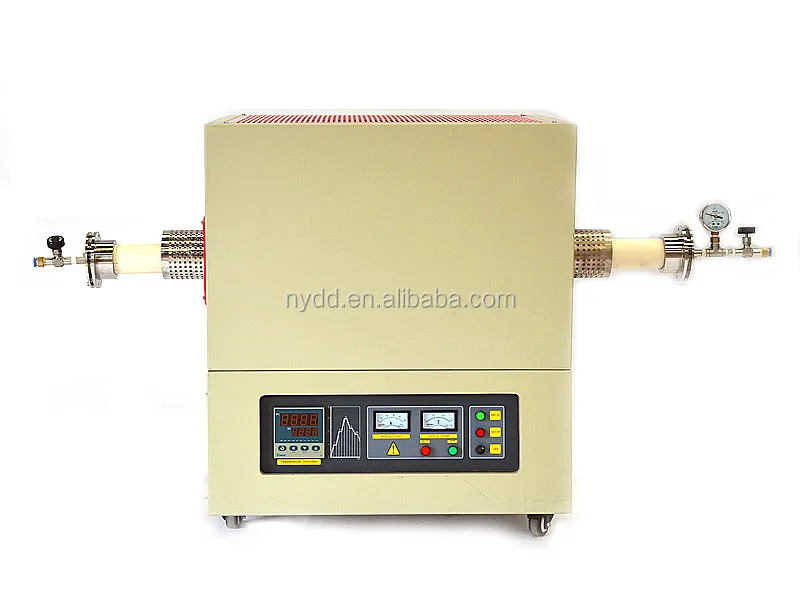

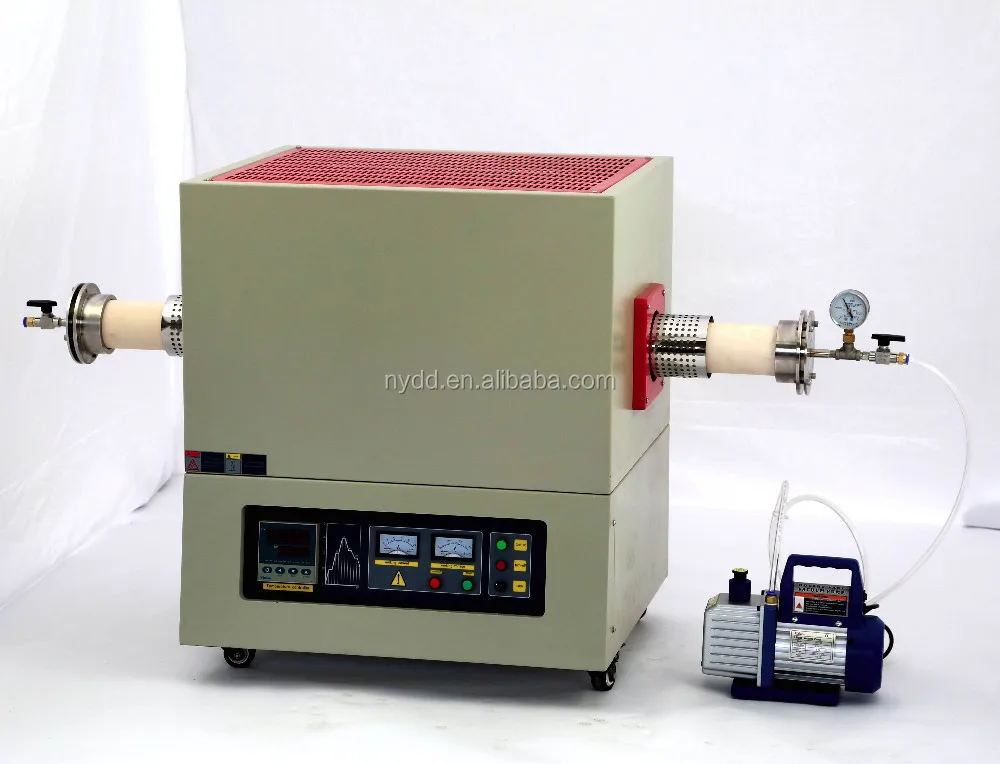

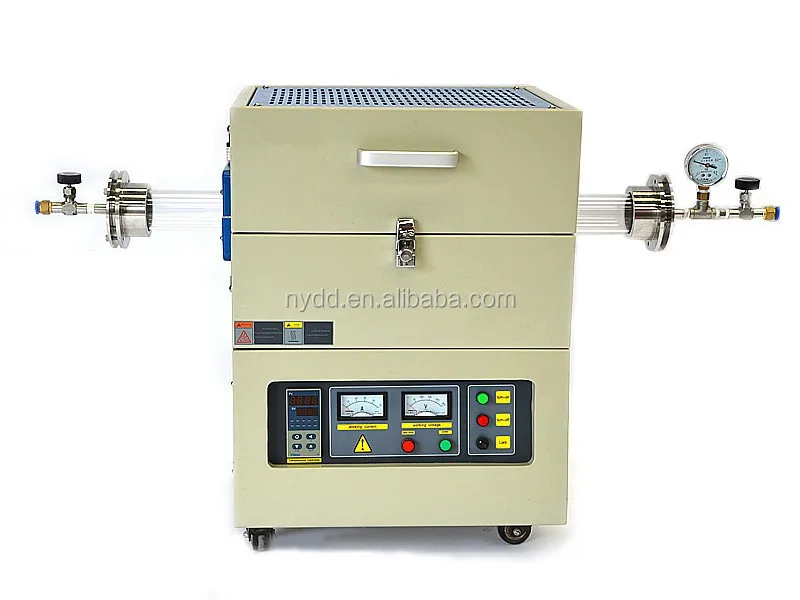

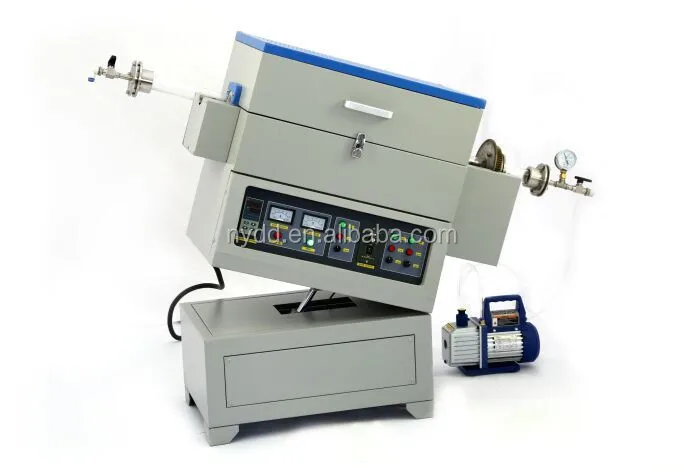

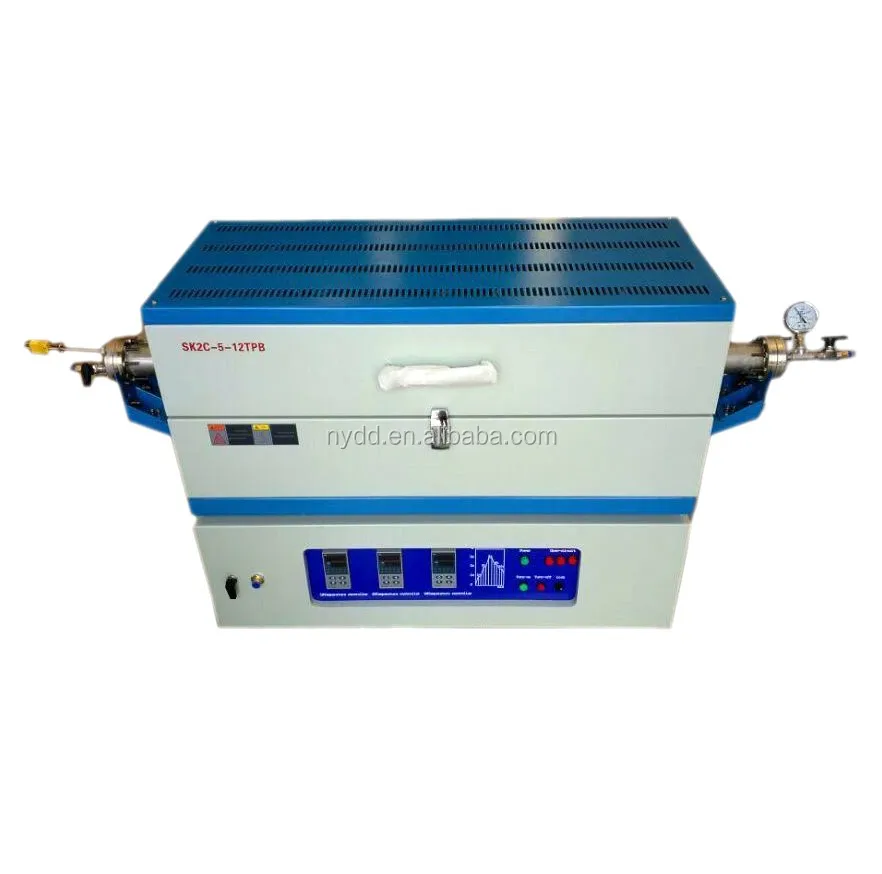

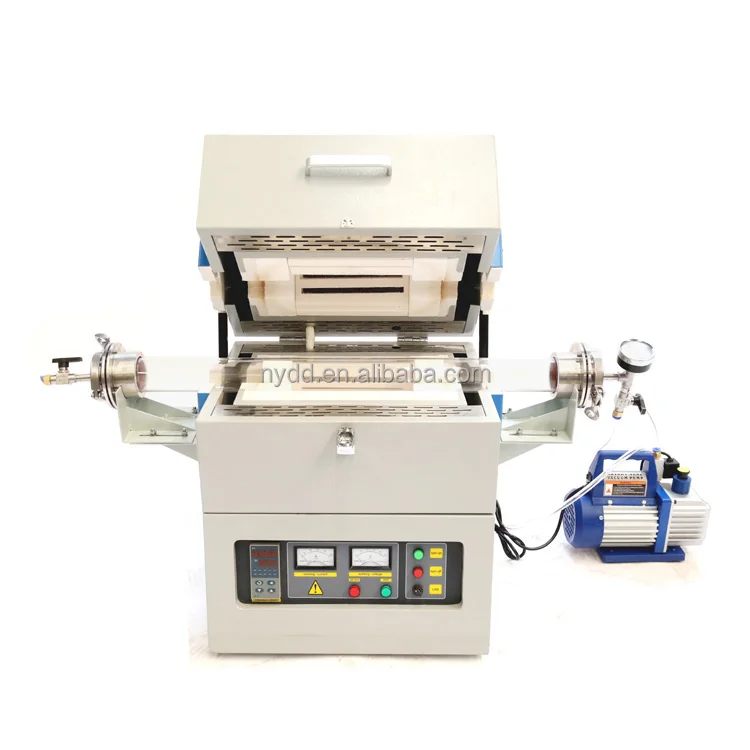

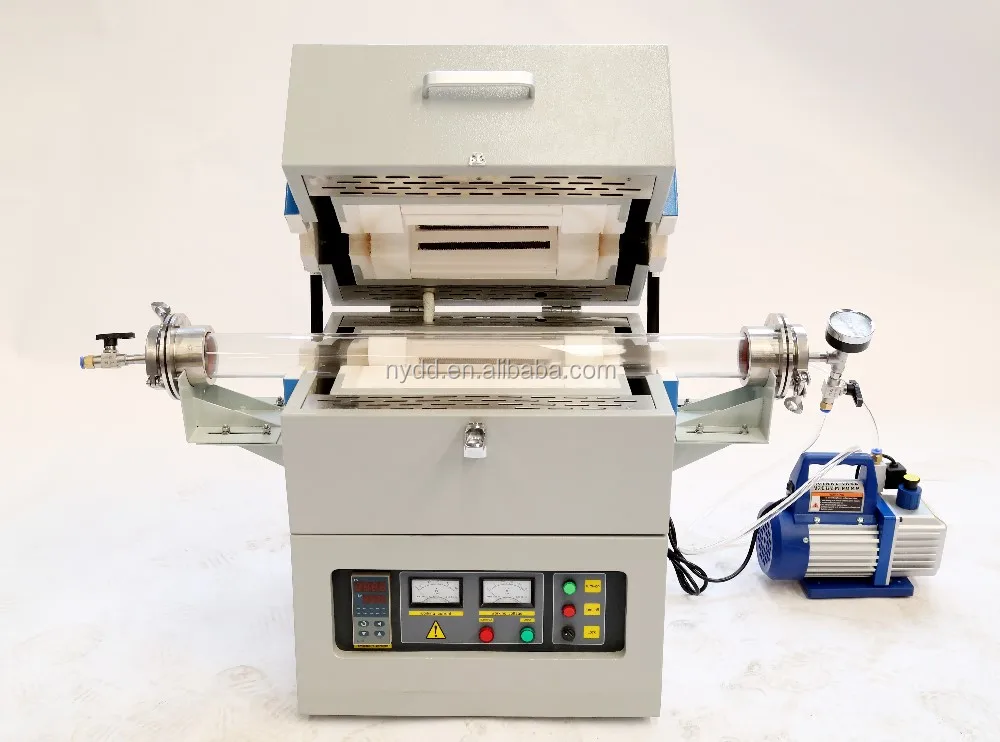

Lab Pyrolysis vacuum tube furnace, Vacuum atmosphere tube furnace, heat treatment sintering tube furnace
It is a tube furnace 1200 Degree High Temperature Laboratory Sintering Tube Furnace For Ceramic Alloy Metal Powders Chemical Materials with a heating element using a resistance wire. The temperature rise and temperature are controlled by a 30-stage program with a maximum temperature of 1200.C. This high temperature furnace can be widely used for sintering or annealing of materials (under vacuum or inert gas protection).
Product Description
Furnace Structure & Chamber:
High purity fibrous alumina insulation for maximum energy saving 60-80% less power consumption than old style.
Heavy duty double layer structure with cooling fan to keep furnace exteriors safe to touch.
Heat Treatment tube furnace details specification :
| Rated Voltage & Power: | AC 380V 50/60Hz, 10kw |
| Inner Chamber Size: | Quartz tube OD100mm,Tube OD 40-120mm or bigger; Single heating zone:600mm L; Single/ 2/3/5 or more heating zone optional. Each zone: 150/200/300/400/600mm optional; |
| Max. Temperature: | 1200.C for short time ; |
| Continuous Working Temperature: | 1100.C Max. |
| Max. Heating Rate: | 0-30.C /min, suggest to be 10.C/Min; |
| Temperature Controller: | PID automatic control and auto-tune function, 30 programmable segments for precise process. Each heating zone with one controller. |
| Temperature Accuracy: | +/- 1 .C. |
| Heating Element: | Electric resistance wire . |
| Thermocouple : | K type |
| Vacuum: | rough vacuum -0.1Mpa, 5000pa,10Pa, 1.33x10^-1Pa, 1.33x10^-3Pa optional; |
| Vacuum measuring : | regular vacuum gagule(-0.1-0.15Mpa),Digital vacuum gague, resistance vacuum gague (10*5Pa-10*-1Pa),composite vacuum gague (10*5Pa-10*-5Pa) optional; |
| Atmosphere | Inert gas,N2,O2,CO2,Air gas available. |
| Gas mixing system: | 2/3/4/5 Float flowmeter gas control/MFC gas control system; With One mixing tank; flowmeter range: 0.03-0.3SLM,10-100SCCM,16-160ml/min,25-250cc/min optional; For precision gas control, you can choose digital mass flow Control system instaed of float-meter. SCCM 0~5,10,20,30,50,100,200,500 SLM 0~1, 2, 3, 5, 10,15, 20, 30 |
| Optional parts: | PLC touch screen controller, paperless recorder,Remote communication control system, 2-3 gas channels mixing system desktop. |
| Standard Parts: | Crucible tongs 1pc, high temperature gloves 1 pair , one user manual. |
Warranty: One year limited warranty with lifetime support, excluding heating element,cooling fans, thermocouple and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Vacuum sintering tube furnace Application Notes:
(1)Furnace tube pressure can not be higher than 0.02MPa
(2)As the internal pressure of the cylinder is high, so the gas into the furnace tube, the cylinder must be installed on the valve, the proposed purchase of the company pressure valve, the company valve range of 0.01MPa-0.1MPa, Will be more accurate and safe
(3)When the furnace temperature is higher than 1000 ℃, the furnace tube can not be in a vacuum state, the furnace pressure and atmospheric pressure equivalent to maintain the atmospheric pressure.
(4)The gas flow into the furnace tube should be less than 200 SCCM to avoid the impact of cold airflow on the heated quartz tube.
Packaging & Shipping
Shipping way : By Courier / By sea / By Air /By Train Optional, depend on clients' demad of time and cost.
Shipping terms: Support EXW /FOB/C&F /CIF/ CPT/CIP /DDU /DDP terms...
Even for some countires with high taxes and some Remote areas, we can ship goods to your Door address and including taxes.
Related Products
You May need other Tubular furnaces in the following:

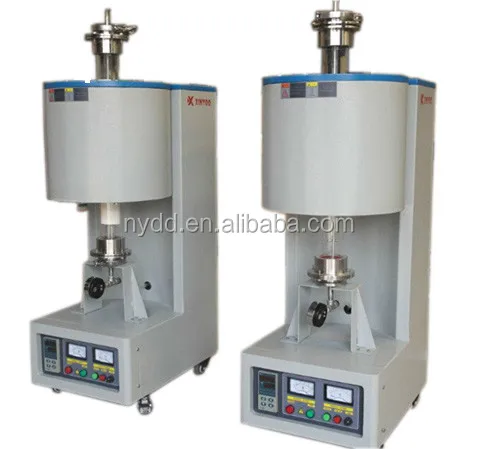

| 1200.C laboratory tube furnace | 1400.C electric tube furnace | 1700.C sintering tubular furnace | Vertical tube furnace |
 |  |  |  |

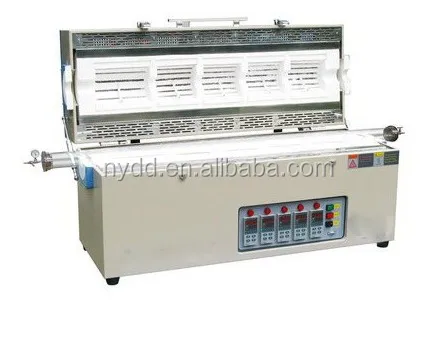

| Two heating zone tube furnace | 3 heating zone tube furnace | 5 heating zone tube furnace | Rotary Tilting tube furnace |
 |  |  |  |
